CE/EMC Certified,  High Efficiency Full Power 7000 Peak Power 3500W Off Grid Pure Sine Wave Solar Power Inverters Converters DC TO AC Voltage Transformer LED Display Iron Shell With Wired Controller

About us:

-Our company is the leading and professional manufacturer for 150w to 8000w DC TO AC OFF GRID PURE SINE WAVE INVERTER. Our professional technical department, will support the best technical service and after-sale technical service.

-Our principle is “quality first, customer priority, service best, trade honest”.

-With the high quality, favorable fame, excellent service, our power inverters are sold all over the world. We have many loyal customer in the Europe, America, Asia, etc.

-All inverters are stricktly inspected before leaving factory, Reliable Company Guarantees that each inverter is in its best operating condition.

About avantage of our inverter:

1.High quality transformer

As the core components, transfer the DC power to AC power, we use the high frequency transformer, ensure the stable and full AC output, no failure.

2.Imported capacitor

Adapted the imported capacitor, large electricity, better performance, longer lifetime, safer usage.

3.True copper inductance

High quality true copper inductance, filter the wave form, ensure the true pure sine wave AC output, safeguard your equipment.

4.EMC tested

No electromagnetic interference to your equipment, such as no noise for TV, FM radio, Audio.

5.Radiating flange

With the big radiating flange, better cooling performance, ensure the best inverter working condition.

6.Big mosfet

All big mosfet, larger load capacity, stable the inverter performance, supply the continuous AC output.

7.Earth line connection

Earthe connection for both PCB board and output, more safe for the load and the usage.

8.PCB thickness

The PCB thickness of 2.00mm, thicker than the most inverters on the market, allow the stronger current floating on the circuit, increase the load capacity.

Applications of Our Customers:

Product Detail Parameters:

Feartures:

1. Pure Sine Wave, as good as the grid power
2. Full Power
3. Core Technology, German  Design
4. Most Advanced Program in Software
5. Complete Protection  Non Defect Rate,
6. Better EMC - Electro Magnetic Compatibility,
7. No Noise for TV or Stereo Sound
8. SMT- Surface Mounting Technology
9. All Big Imported Mosfet,Strong Driving Capacity
10. PCB Thickness :2.00m
11. LED Display
12. Compact Design, Less Weight, Full Power,
13. Single Layer Design, Easy to Repair if any.
14. Earth Connection for Both Inverter and PCB,
15. Low No Load Current Draw
16. Durable quality with 10 years usage,
17. Alarm and LED Indication Light for error warning. New inevrter with LED display, let you monitor the inverter input voltage and output voltage in time. With this function, you will know about the inverter condition more clearly.
18. Sufficient Heat Radiation
19. More Vent Holes on the plates and the bottom for heat radiation
20. Popular Metal Black Design
21. Big Current Connector,
22. All kinds of socket are available
23. Strong Wiring Row on AC End,
24. Best quality ever in the market
25. Factory Price.

Product Details:

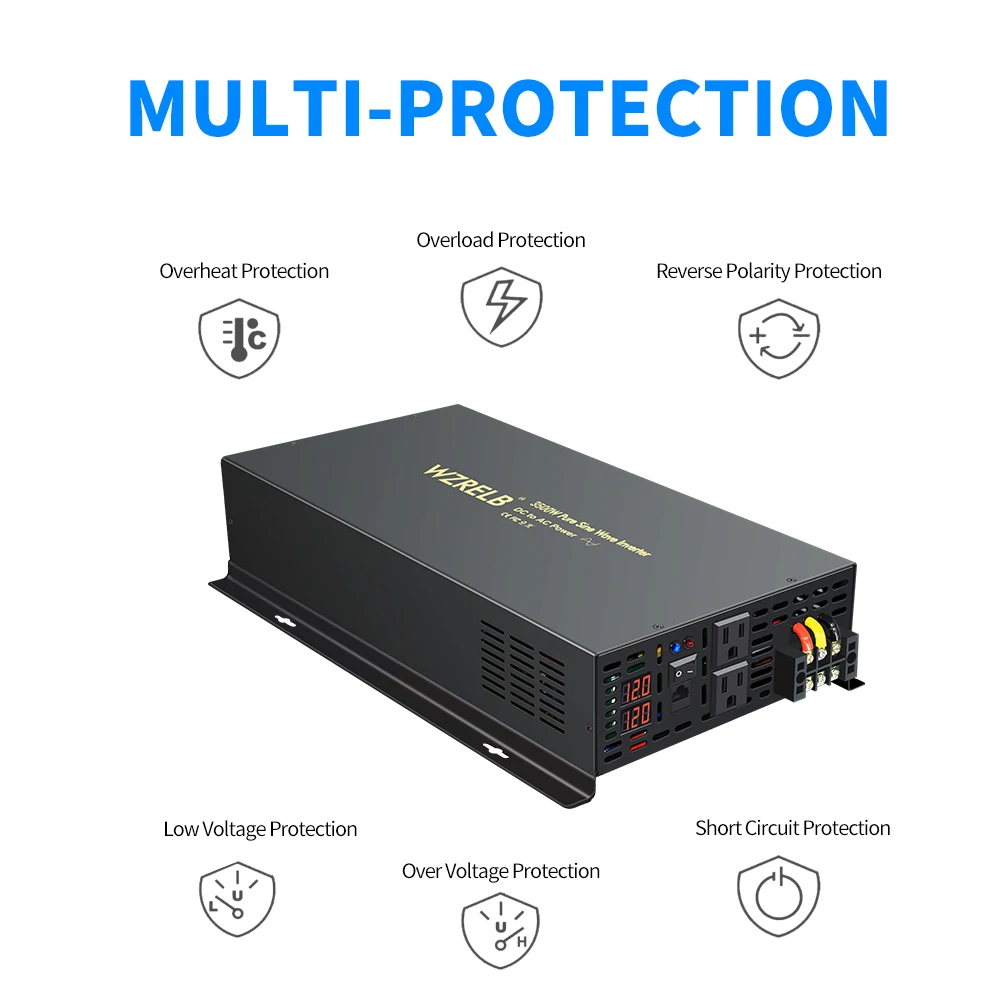

Protection Systems:

Thermal protection, Overload protection, Over Voltage protection, Under Voltage protection, Low Voltage protection alarm. Inverter comes with an LED light to indicate the problem.

9 kinds of protections:

1.Short circuit production.

When the load is short circuit, the inverter will stop working.

2. High temperature production.

When the use environment is stuffy, the heat of the inverter can not be radiated. The temperature is above the rated temperature, the inverter will stop working.

3. High voltage protections.

The battery voltage is above the rated voltage of the inverter, the inverter will stop working.

4. Low voltage protections

The battery’s voltage falls during the usage. When it is lower than the rated voltage, the inverter will automatically cut the input voltage for the self protection.

5. Surge protection.

It can avoid the DC high voltage’s surging attack upon the electronic components inside.

6. Overload protection

When the appliances’ power is higher than the inverter’s power, the inverter will stop working for self protection.

7. Over current Protection

When the appliances’ current is  bigger than the inverter’ current, the protection components on the board will be cut automatically for self protection.

8.Fuse protection.

When the appliance’s resistance is bigger than inverter’s, the fuses on the socket will be automatically cut off for self protection.

9. Reverse protection

It can avoid the accidents of burning the inverter if the positive and the negative poles are reverse connected.

The Resistive Load Applications and  The Inductive Load Applications:

For resistive load applications:
If you need the inverter to run the resistive load (like laptop, TV, electric cooker, LED light), please choose the inverter with continuous power higher than the appliance's rated power.

For example, for the power inverter with continuous power 2500w,it is suggested to run the appliance with rated power less than 2500w. It is best to use 80% of the rated power.

For inductive load applications:
If you need the inverter to run the inductive load (for appliance such as compressor, motor, water pump), please calculate the power of inverter 3 to 7 times higher than the rated power of your appliance.

Product Certification:

Durable and safe quality with many years usage, our pure sine wave inverters are approved by EMC testing in Australia and CE certified. 18 months warranty.

We accpet the customized made inverter for each customer, please leave me a messages of your inverter specifications:

Leave me all these specifications by sending me a message, so that I can make sure of a fast shipping!
