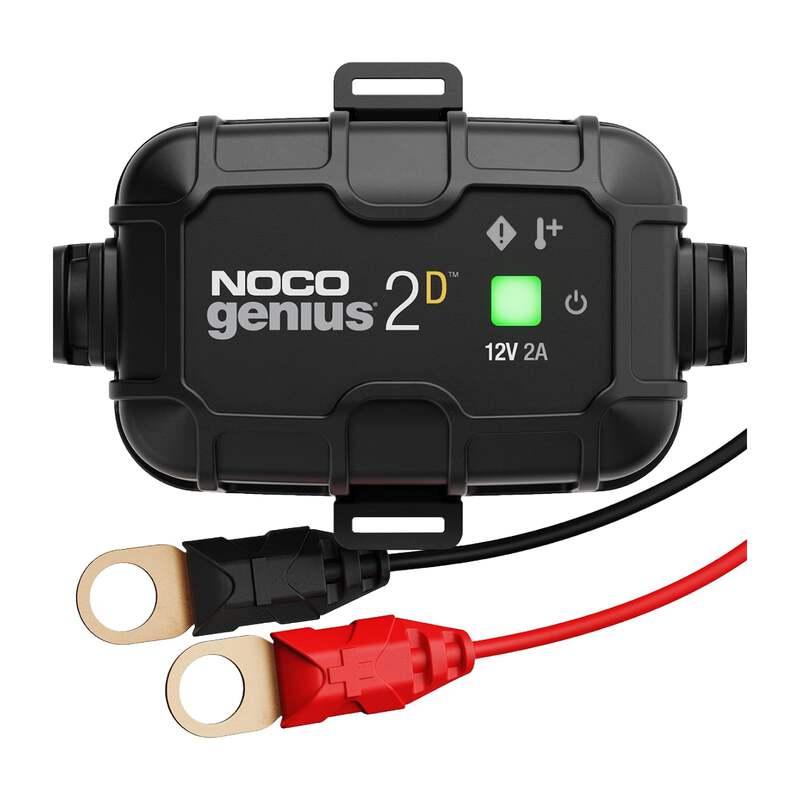

GENIUS2D 12V 2A Direct-Mount Battery Charger

6V/12V 2A Smart Battery Charger

2-AMP DIRECT-MOUNT

Battery Charger + Battery Maintainer
Introducing the GENIUS2D, one of our most powerful, highest-performing, energy-efficient, and compact chargers yet. The GENIUS2D is a 2-amp direct-mount battery charger and battery maintainer engineered to be securely mounted nearby the battery. Its designed for all types of 12-volt lead-acid batteries, including flooded, gel, AGM and other maintenance-free batteries.

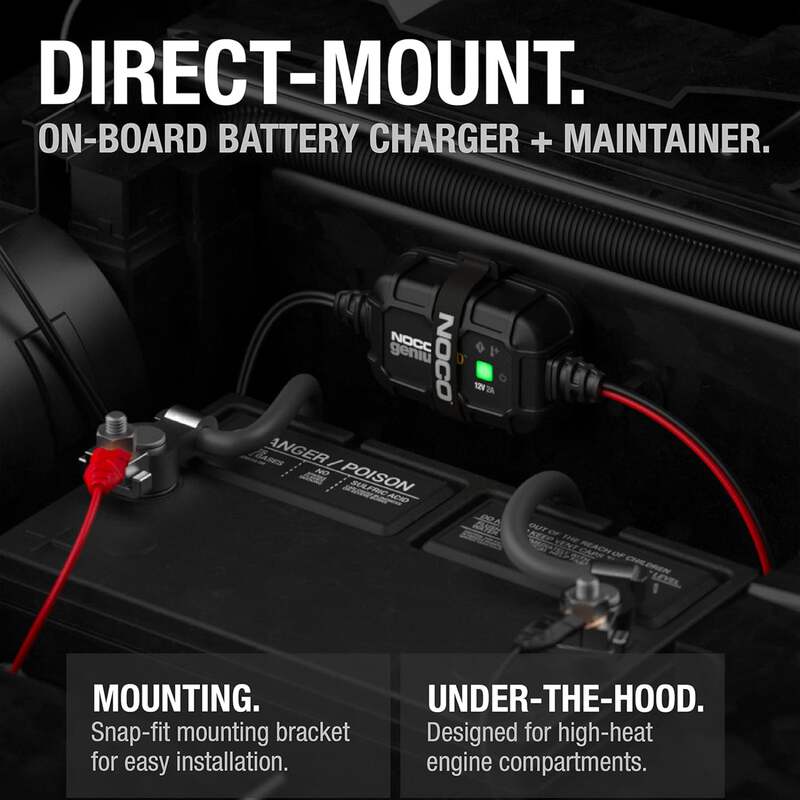

ONBOARD CHARGING SOLUTION. DIRECT-MOUNT.

Engineered and tested to withstand rugged working environments, like high-heat engine compartments, shock, vibration, and even water exposure. The GENIUS2D is the ultimate mountable on-board battery charger and battery maintainer for any car, boat, truck, RV, or equipment, and is designed to be located in close proximity to the battery.

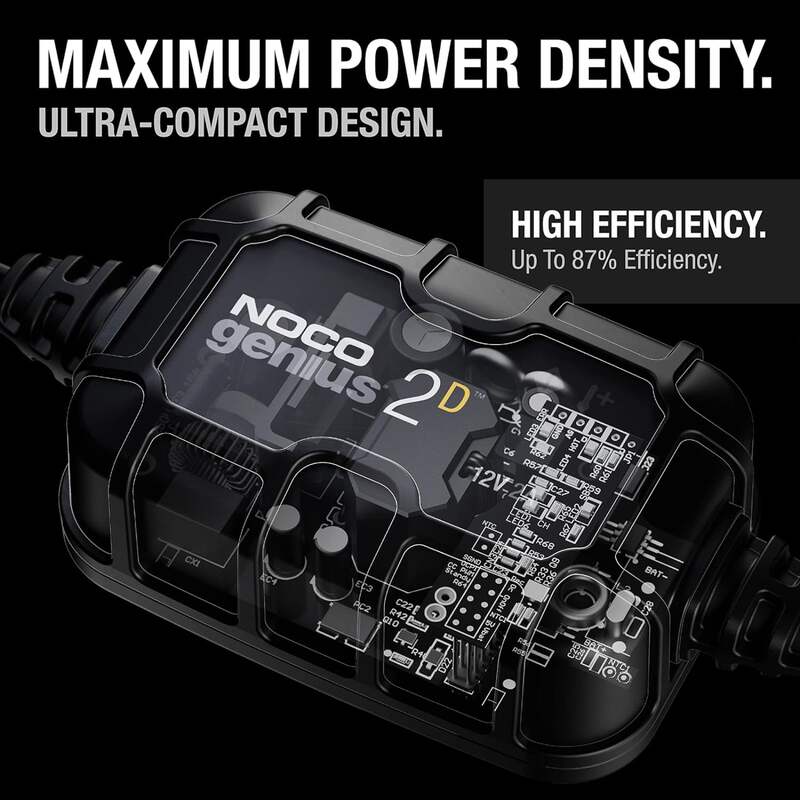

MORE POWERFUL. MORE COMPACT. INCREDIBLY SMART.

Introducing the next-generation of battery charging with the all-new maximum power density technology. This smart charger has insanely high performance and it is designed to be the most compact, lightweight and energy efficient charger on the market. Using advanced power conversion topologies as its foundation, the Genius 2D has significantly increased the power-to-space ratio utilizing power magnetics, consolidated components, and innovative thermal management techniques.

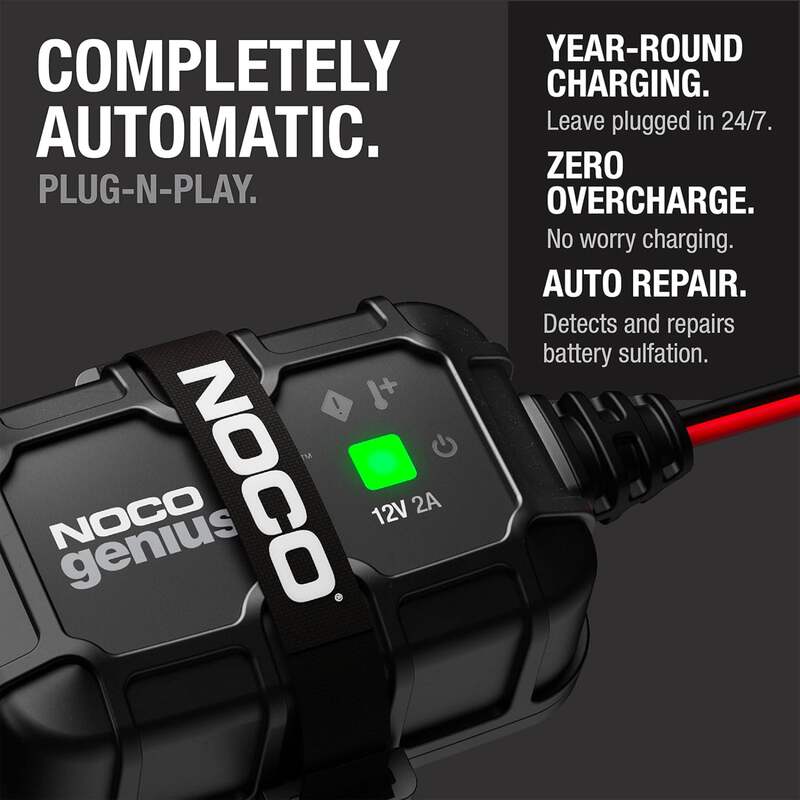

WORRY FREE YEAR-ROUND CHARGING. COMPLETELY AUTOMATIC.

Finally a charger from start to finish that’s completely automatic. No special modes, no technical knowledge required. Genius will safely charge any battery. Detect damaged batteries and intuitively repair them. And actively monitor for long-term battery maintenance and extend battery life. This system allows for continuous operation without user intervention, and zero risk of overcharging your battery.

• Line Voltage: 100V to 240V AC

• Frequency: 50Hz to 60Hz

• Operating Temperature: -4°F to 140°F(-20° to 60°C)

• Storage Temperature: -40° to 212°F(-40° to 100°C)

• Relative Humidity: 0 to 95% Non-Condensing

• Charging Current: 2 Amps DC Voltages: 12 Volts

• Chemistry: Lead-Acid Types: AGM CA EFB Gel MF Wet

• Capacity Range: Up to 40 Amp-Hours

• Maintenance: All Battery Sizes

• Power Consumption: 28 Watts (Max) Efficiency: 87%

• Safety Short-Circuit: Yes Open-Circuit: Yes Overheating: Yes Overcharge: Yes Spark-Proof: Yes Reverse Polarity: Yes

• Product Size Height: 3in (76.2mm) Width: 3.5in (89mm) Depth: 1.6in (40.6mm)
  Weight: 0.5lb (0.23kg)

• Cable Management DC Cable + Clamp Length: 24in (609cm) DC Cable Size: 18 AWG DC Fuse Size: 4 Amp Mini Blade Fuse AC Cable Length: 24in (60.9cm) AC Cable Size: 18

• Oil, gas, grease, water, chemical, UV, abrasion resistant

• IP Rating IP65

• GENIUS2D Battery Charger and Maintainer

• Mounting Bracket with Strap

• Self-Tapping Screws

• User Guide
