Our automatic sliding gate opener is designed to be easy to install with no electrician or welding required. It commonly used in heavy duty sliding gate up to a maximum of 40 ft long or maximum of weight of 3300 lbs per gate leaf. This gate opener can be utilized for many applications including hotel, factory, school, private house, farm and ranch, etc.
The kit includes everything you need for installation, no hesitation to own one for your convenient life and family safety.

Specification

Color: Gray

Power Supply: 110V AC, 60Hz

Sliding Gate Move Speed: 40 ft / min

Remote Control Range: 230 ft

Max. Torque: 26 N.m

Motor Speed: 66 rpm

Motor Power: 550 W

Output Shaft Height: 48mm

Max. Gate Weight: 3300lbs

Duty Cycle: S2, 15 Minutes

Protection Class: IP44

Noise: < 56 dB

Max. Gate Length: 40 ft

Temperature: -13 °F~+131 °F (-25 °C~+55 °C)

(With Infrared Sensors)

Features

✅Premium Quality - Constructed with pure copper motor, it is corrosion and rust resistant. Moreover, equipped with waterproof and dust-proof shell, it boasts stylish look and is durable enough for long lasting time.

✅Convenient Operation - Our automatic sliding gate opener boasts 2 wireless remotes including 4-button remotes to open, close, stop, or use the pedestrian mode on the gate. Compared with others, our remotes can work range up to 230 ft. The emergency release key can also help you to enter or leave when power is off.

✅Anti-shock Stroke Design - Compared with others, our gate opener is equipped with two photo cells. It can detect the tiny obstruction during gate closing or opening and make the gate stop and reverse to open automatically for safety protection. Avoiding people and gate opener from hurting.

✅Superior Safety - The thrust of the motor is adjustable during operation to prevent the motor from overloading, thus protecting the motor. The motor has a temperature protector. The motor automatically cuts off the power supply when the temperature is too high. Moreover, equipped with manual clutch, you can manually disconnected for safety when power is off.

✅Easy To Install - This gate opener is designed to be easy to install with no electrician or welding required. Also, our kit includes everything you need for installation. You can also get an extra installation tool(1 red hex wrench). It is quite easy and convenient for you to assemble.

✅Widely Use - It is suitable for hotels, factories, schools, private houses, farms and pastures, etc. Our door opener can make your life more convenient and comfortable.

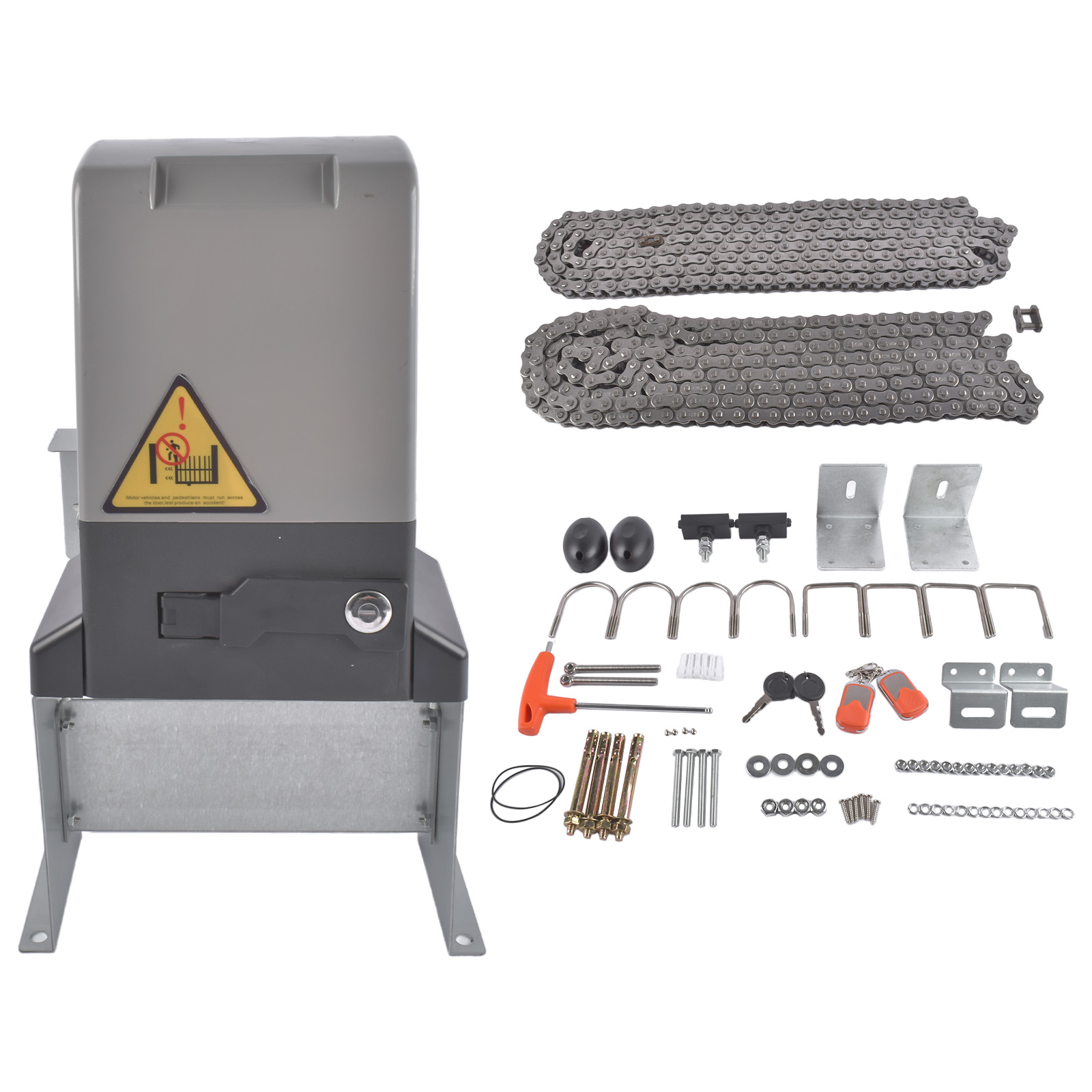

Package Content

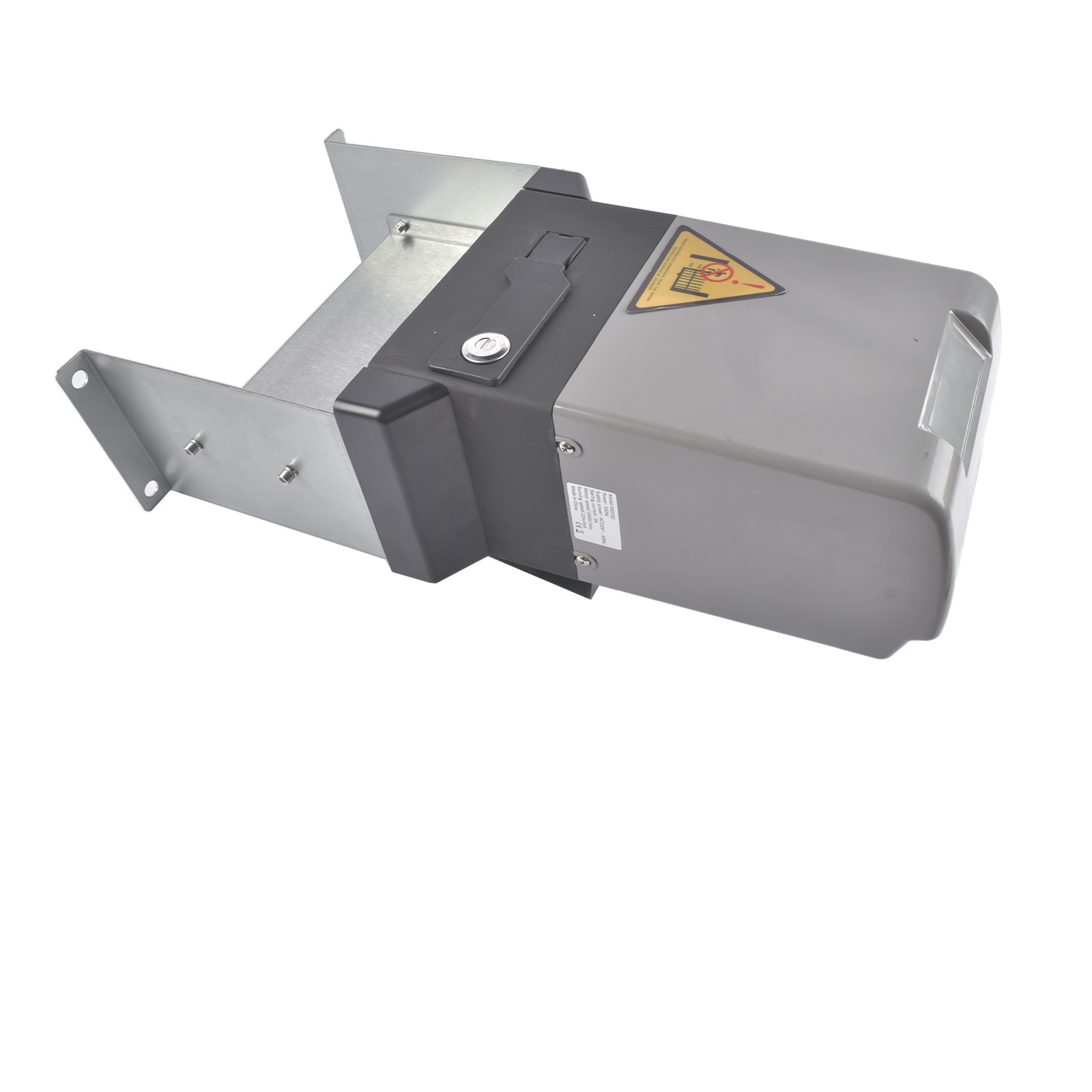

1 x Sliding Gate Opener Unit

1 x 20 ft of Chain (Can be split into 2 x 10 ft Chains)

2 x Remote Controls(Not Include Battery)

2 x Manual Release Keys

2 x Infrared Sensors

1 x Mounting Hardware

1 x Installation Parts

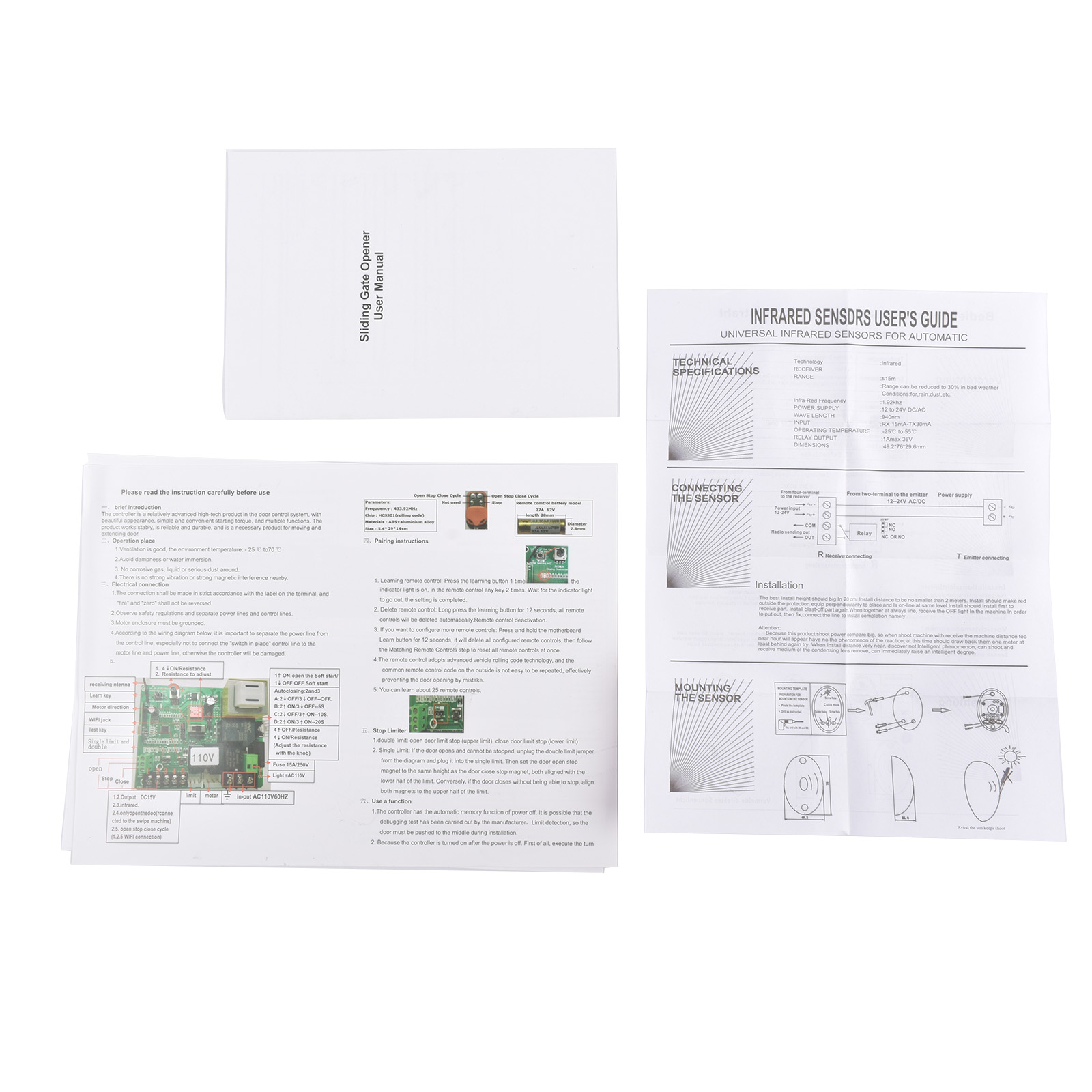

1 x Instruction

(As Pics Shown)
