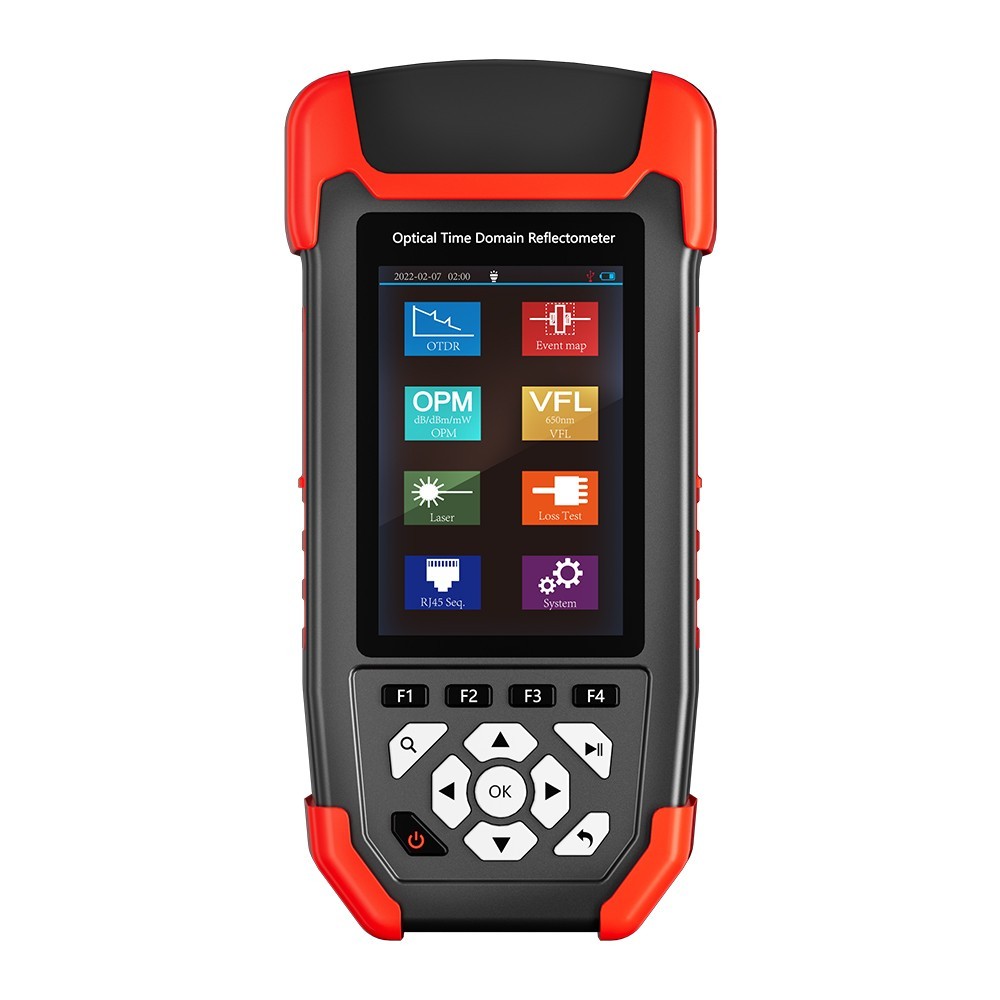

Product Name:OTDR Fiber Optic Reflectometer
Type: OTDR NF-981
Dimensions (LxWxD): 173x82x37 mm
Dynamic range: 24 dB/22 dB
Test range: 10 meters to 60 kilometers
Wavelength: 1310/1550 nm
OTDR/OLS Connector: FC/PC (SC/ST interchangeable)
Pulse width: 5ns~10μs
Attenuation dead zone: 15 meters
Event dead zone: 10 meters
Sampling points: 16K~128K
Loss Accuracy: ±0.2dB/dB
OPM: +26~-50dBm, 850/1300/1310/1490/1550/1577/1625nm, universal connector
VFL: 10mW, universal connector
LCD Display 3.5-inch high-definition color LCD screen
Power Supply: 3.7V, 4000mAh Li-Ion Battery
Feature:
1, 3.5-inch color LCD, equipped with high-performance chip, measuring distance 60KM
2, USB data interface, external storage TF card, 4000 mAh lithium battery
3, OTDR one-key test, optical power test, VFL visual fault location
4, LS stabilizes the light source, RJ45 wiring sequence test
Package List:
1*OTDR Optical Time Domain Reflectometer
1*User Manual
1*Cotton Swab
1*Data Cable
1*Plug
1*SC Adaptor
