This type controller is 12/24/48V system voltage automatically reorganize, the system voltage depends on your battery bank, for example, if your battery bank is 24V, then your the system voltage is 24V, in the same way, DC load Rated Voltage is 24V.
Below is the matching recommendation for these different system voltage:
12V battery bank: 12V wind generator +about 18V Vmp solar panel array
24V battery bank: 24V wind generator + about 36V Vmp solar panel array
48V battery bank: 48V wind generator + about 72V Vmp solar panel array

Product Highlights

The controller adopts color screen design, the display information is more comprehensive, the display interface is clearer, the controller supports WIFI module and GPRS module to expand and implement APP cloud monitoring (optional).

Product Application

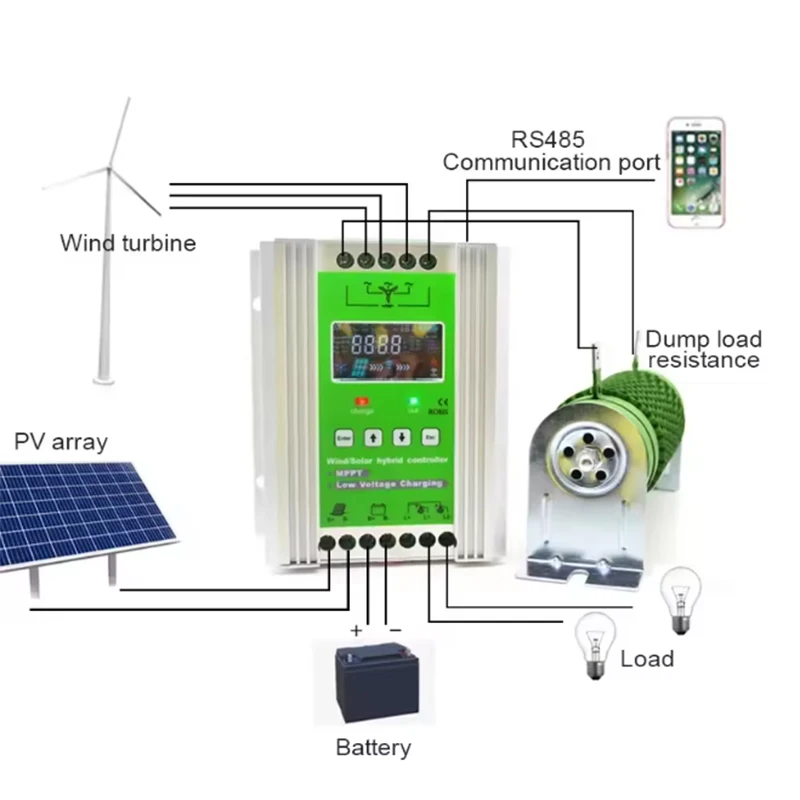

The controller is suitable for wind solar off-grid system, automatically controls charging and discharging, and can be applied in communication base stations, household systems, street lighting systems, monitoring and other fields.

Product Features

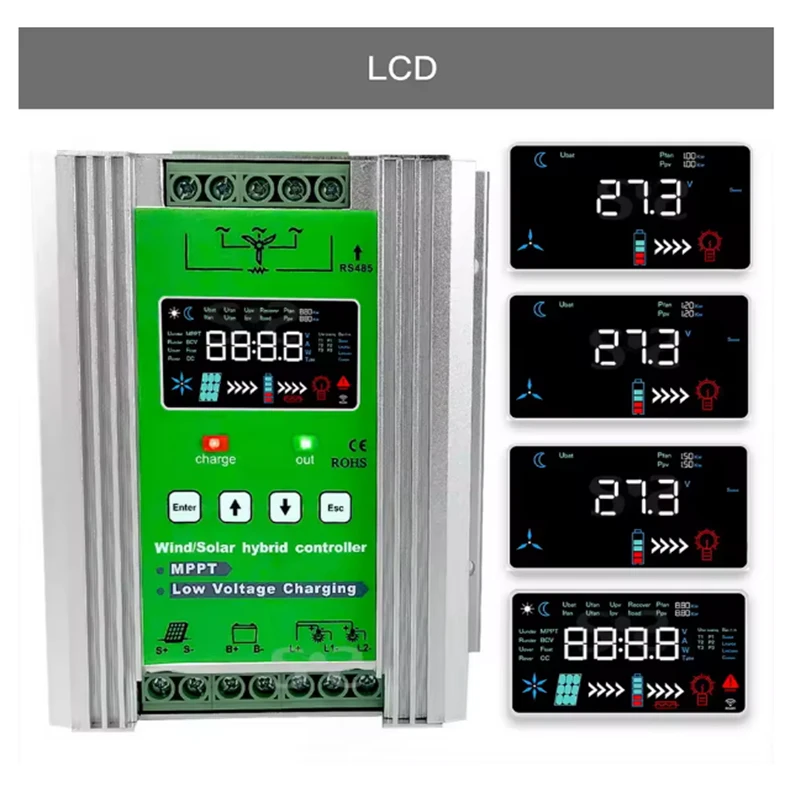

(1) The display adopts color screen design, the display information is more comprehensive, the display interface is clearer, and the 4-key man-machine interface and operation setting are more convenient;
(2) The MPPTcontrol algorithm used for Wind charging ensures MPPT charging at low wind speed，
(3) Wind three-stage charging mode: MPPT charging; lifting charging; floating charging.
(4) Solar three-stage charging mode: CC (constant current); lifting charging; floating charging.
(5) 12V/24V battery system automatically recognizes, or 12V/24V/48V battery system automatically recognizes (Optional).
(6) RS485 communication can provide communication protocol to facilitate unified management and secondary development for customer;
(7) The controller operating parameters can be viewed and set through the mobile phone APP( Optional );
(8) The controller has comprehensive protection functions such as over charge, over discharge and overload;

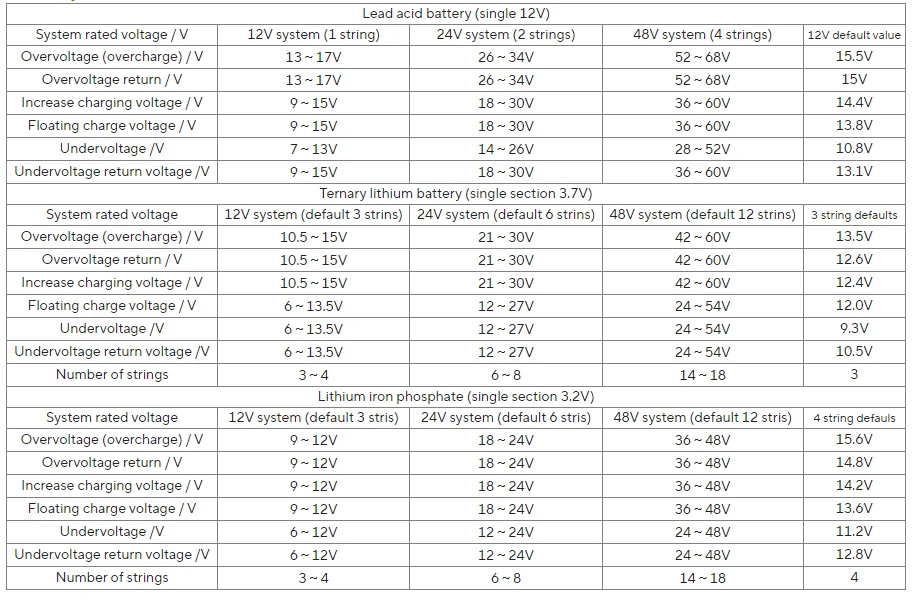

(9) Four battery types charging mode can be selected for operation: Lead-acid battery, Ternary lithium battery, Lithium iron phosphate, Custom ;
(10) The controller has various load control modes, the load has two outputs, and the output power and time can be set;
(11) The controller has wide adaptability, adaptive day and night.
