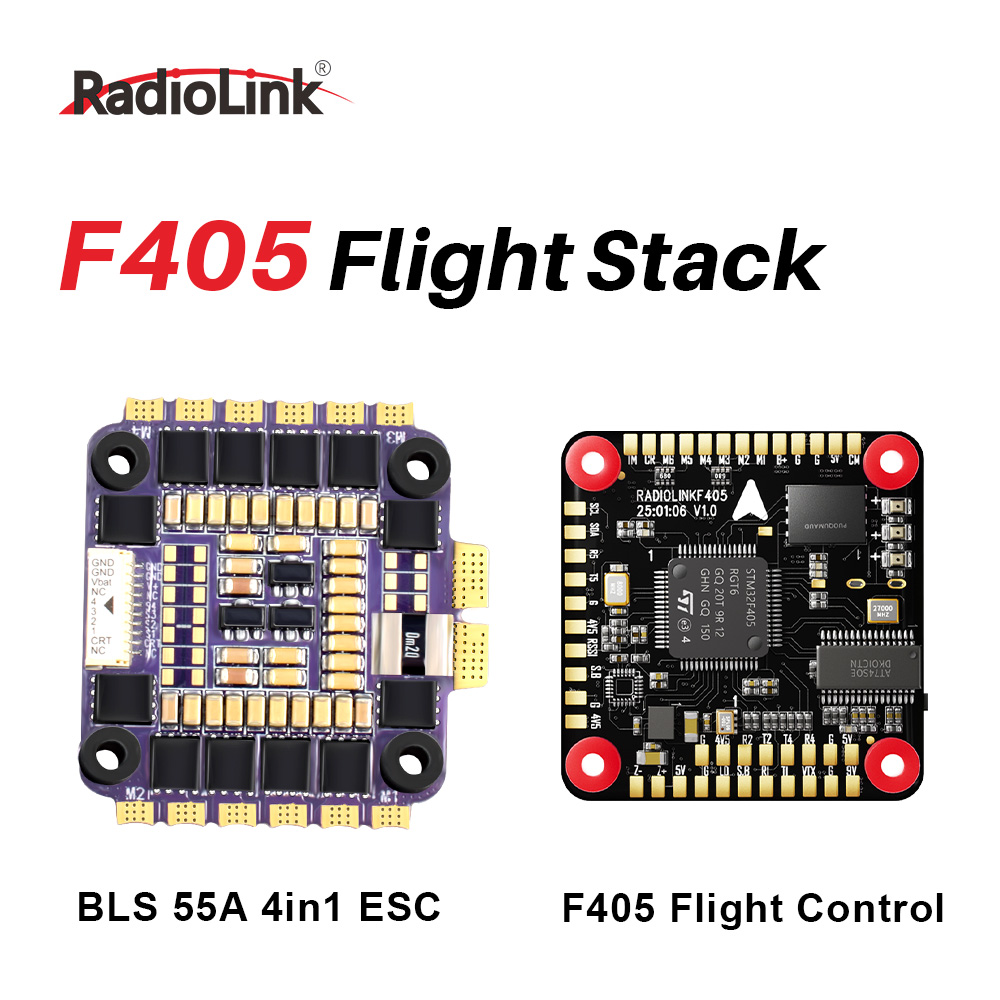

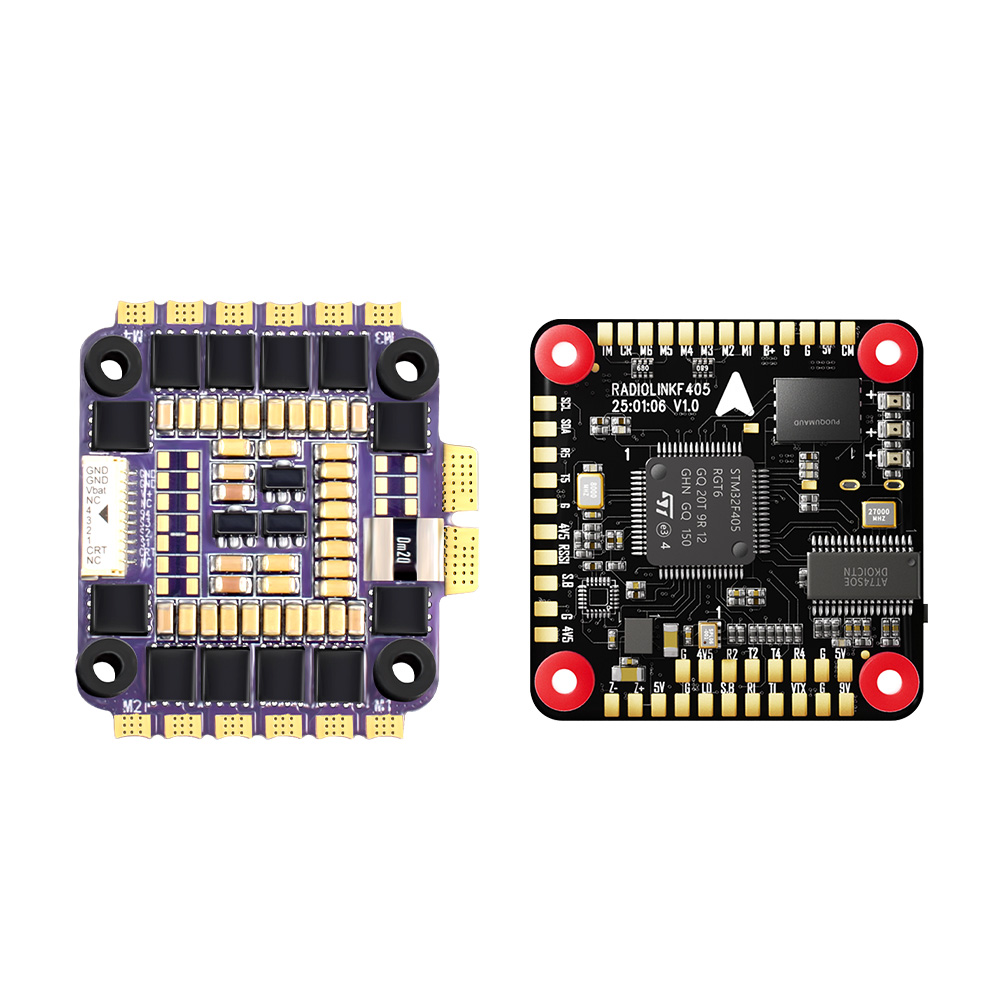

Radiolink F405 Flight Stack F405 Flight Control 55A ESC 3-6S Lipo 30.5x30.5mm BMI270 Gyro For Remote Control FPV Racing Drone
Features:

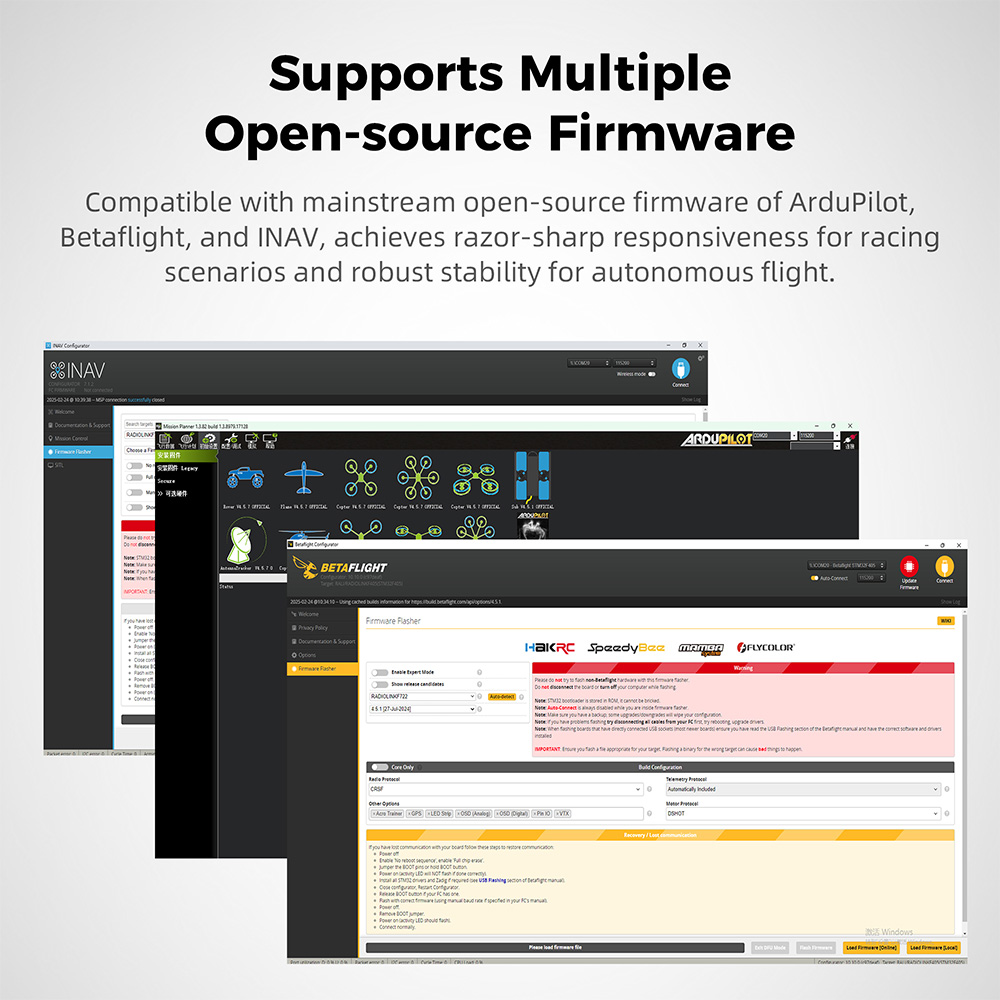

1. Compatible with mainstream open-source firmware of ArduPilot Betaflight,INAV.

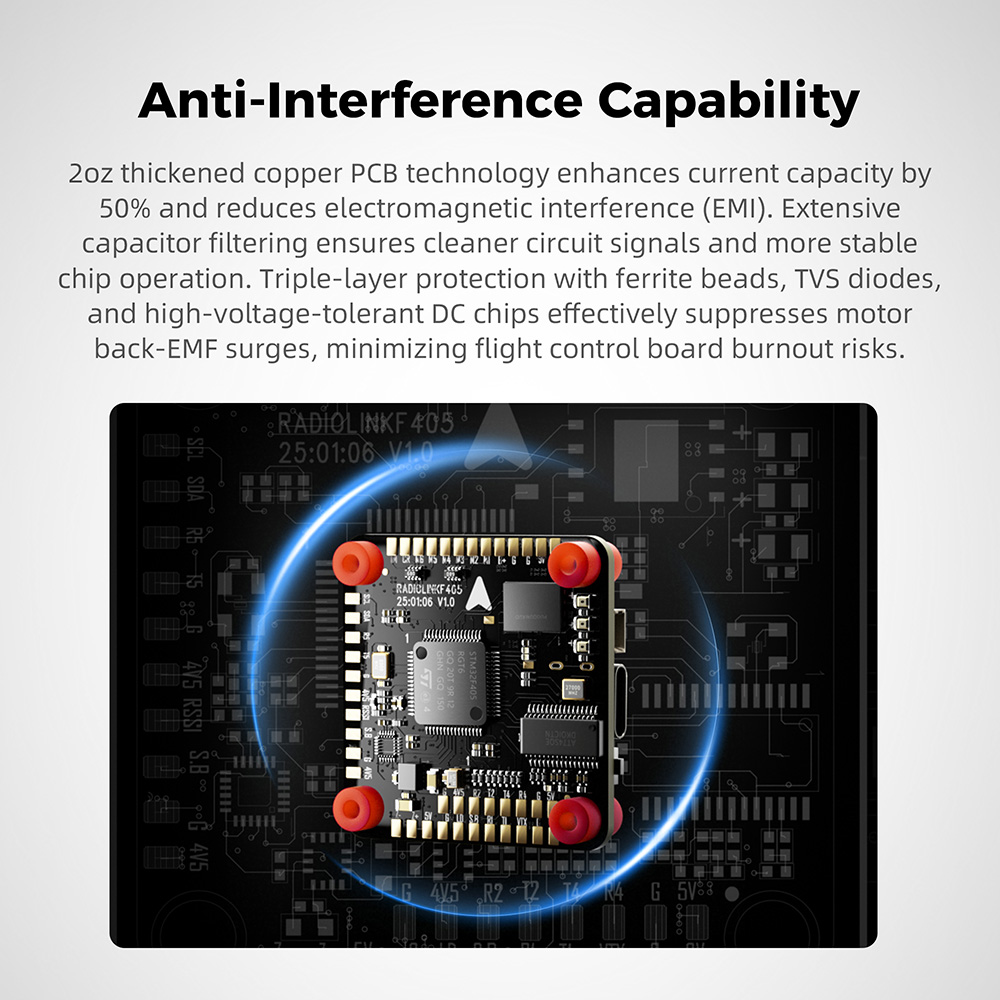

2. 2oz thickened copper PCB technology enhances current capacity by50% and reduces electromagnetic interference (EMl).
3. Extensivecapacitor filtering ensures cleaner circuit signals and more stablechip operation.

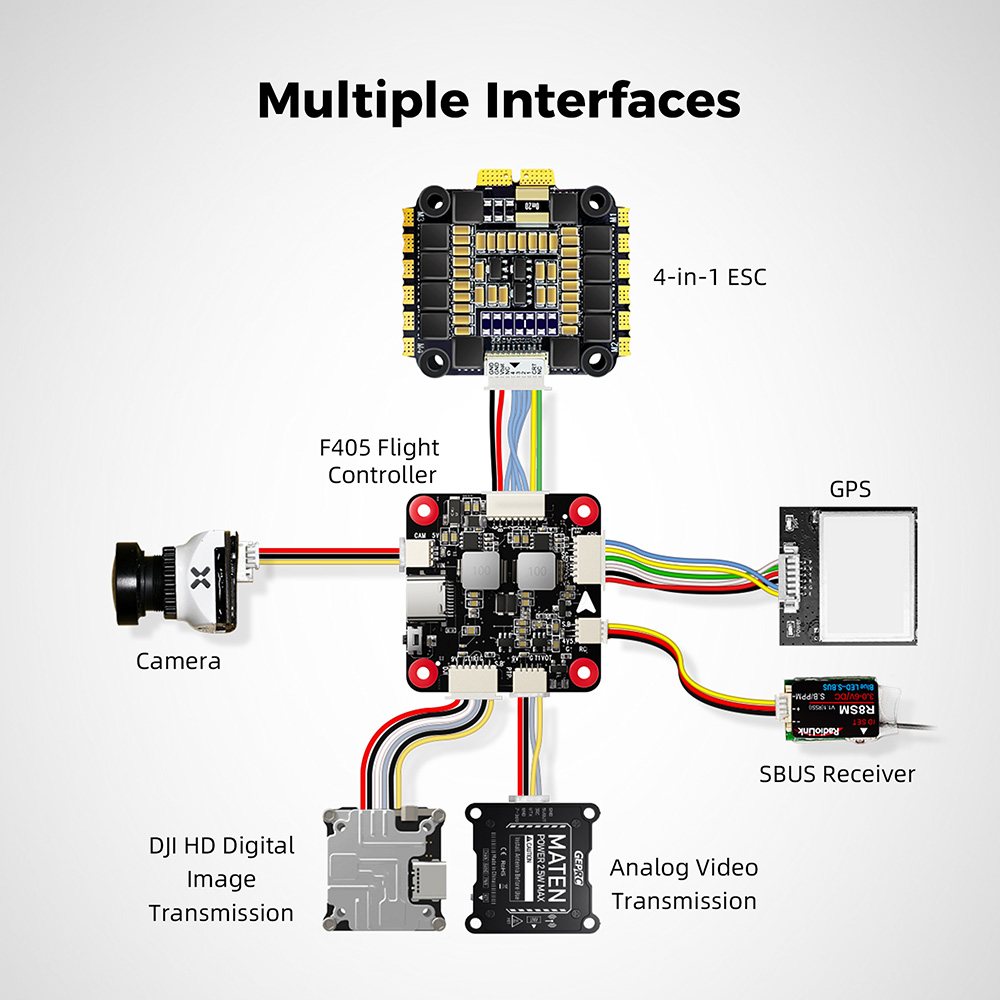

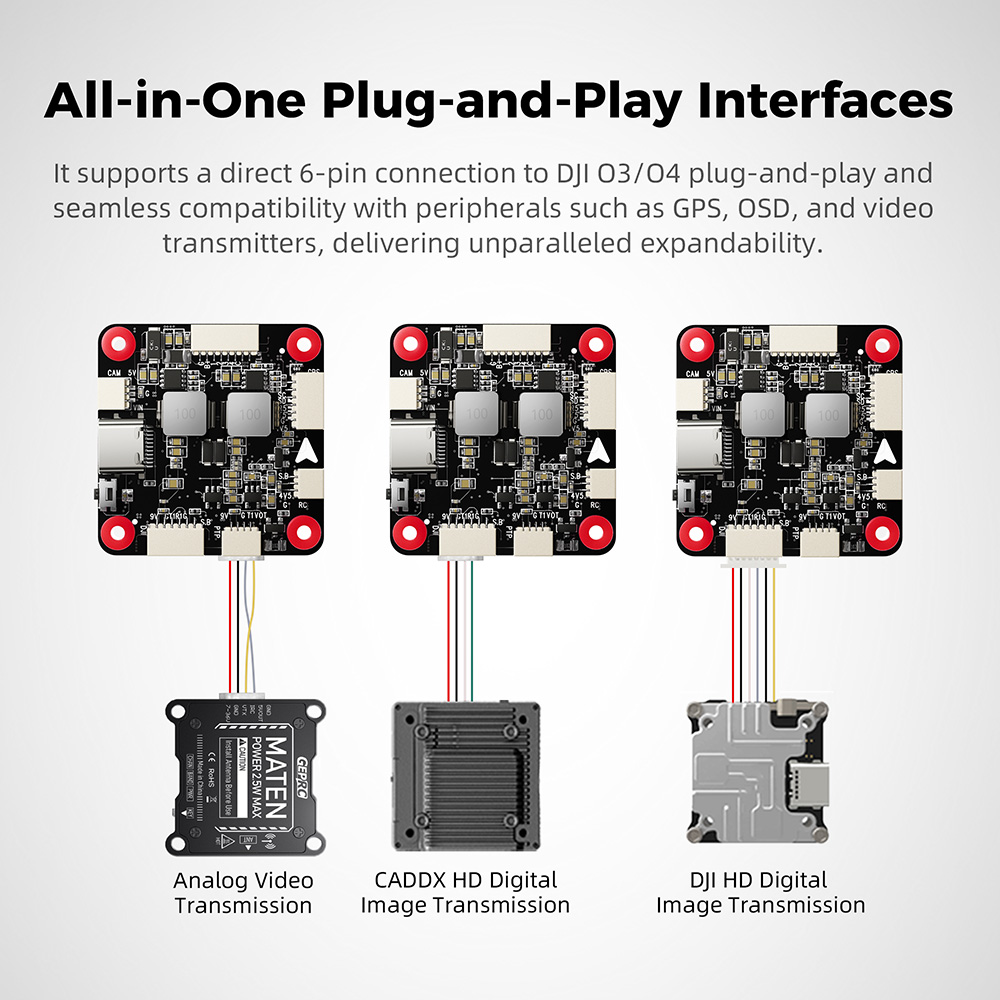

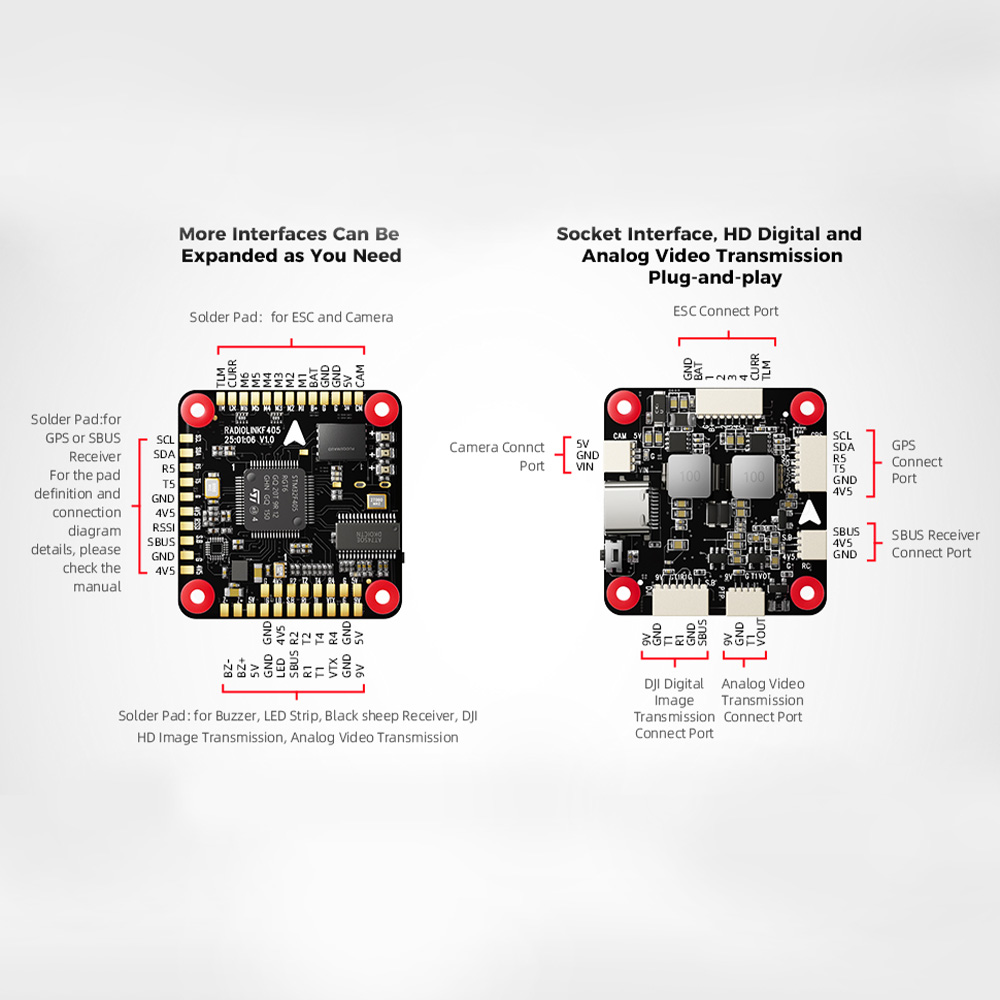

4. supports a direct 6-pin connection to DJl O3/O4 plug-and-play andseamless compatibility with peripherals such as GPS, OSD,and video transmitters.

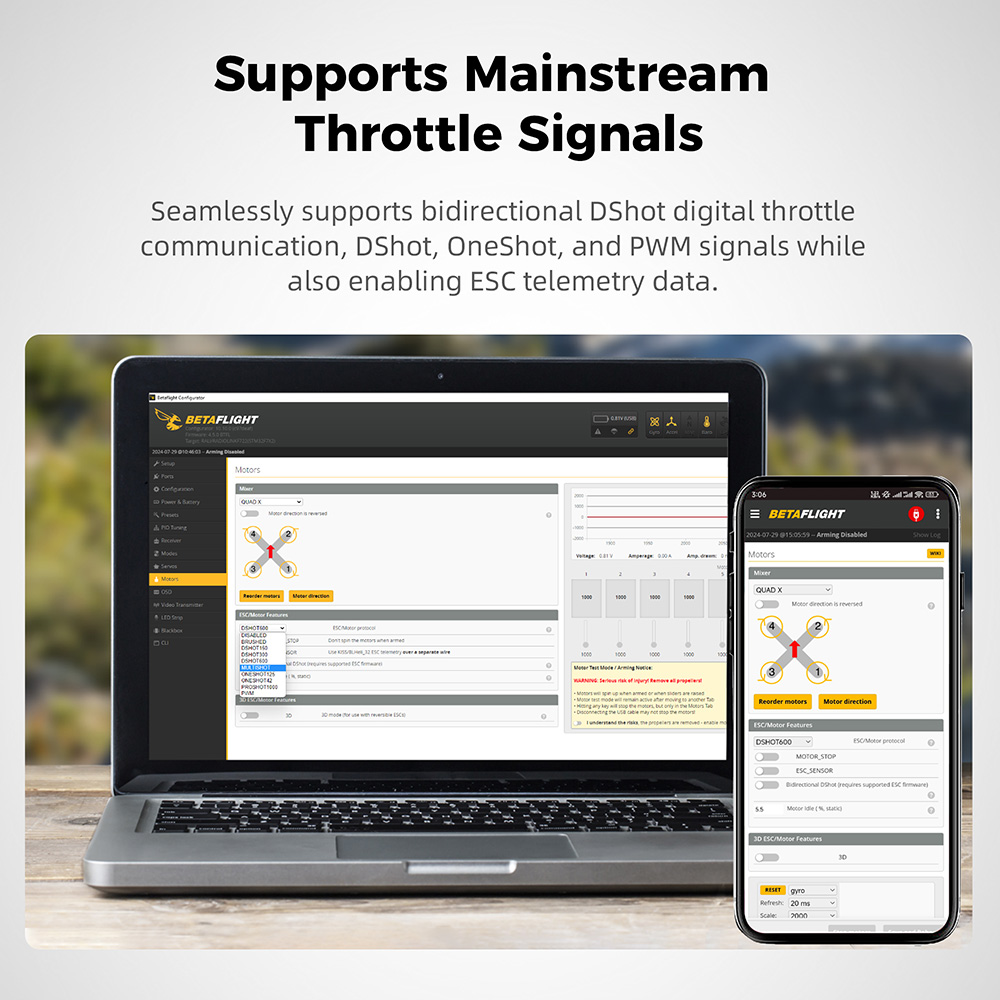

5. supports bidirectional DShot digital throttle communication, DShot, OneShot, and PWM signals.
6. F405 supports 6 output channels.

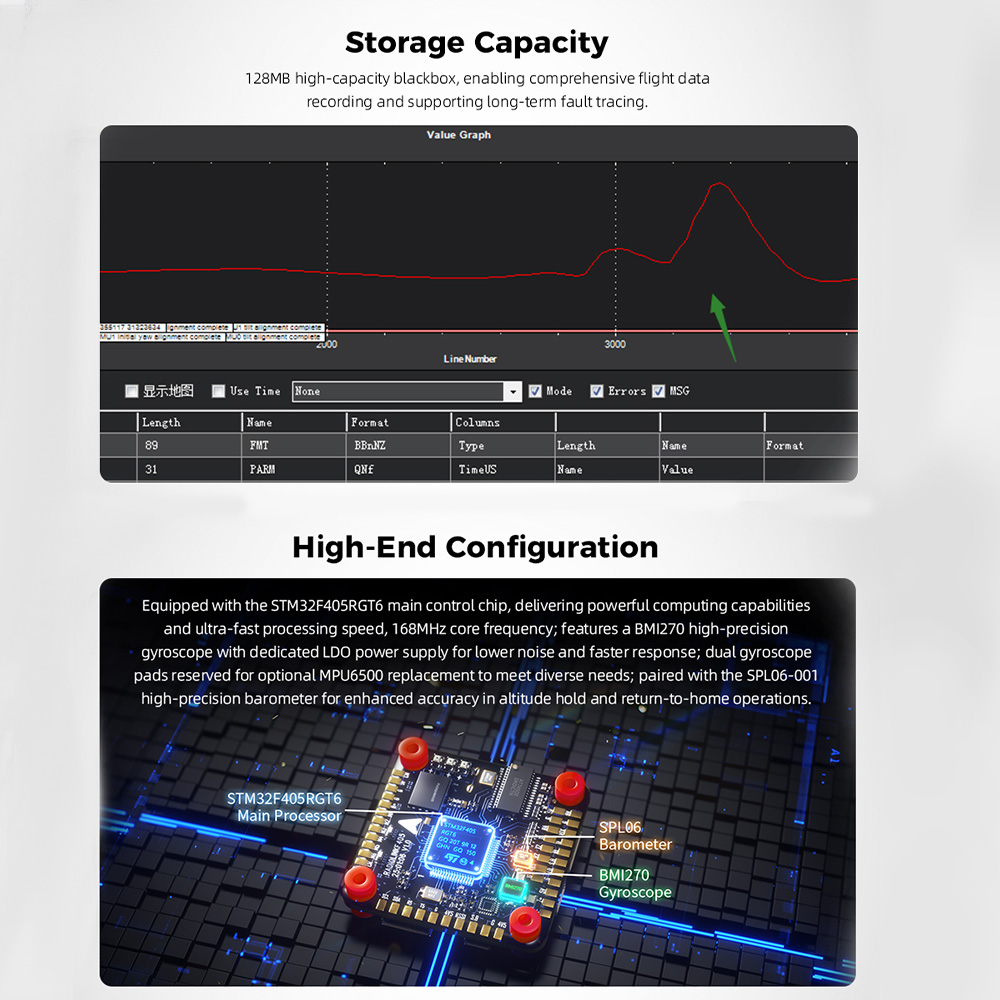

7. 168MHz core frequency; features a BMl270 high-precisiongyroscope with dedicated LDO power supply for lower noise and faster response.
8. dual gyroscope pads reserved for optional MPU6500 replacement to meet diverse needs.
9. compatible with a wide range of models,including 2-6-axis multi-rotors, fixed-wing aircraft, helicoptersflying wings, cars, boats, robots, lawn mowers, and bait boats.
Description:
F405 Flight Stack Support Bluejay firmware, bidirectional DSHOT,,Using large solder pads, the pads are kept away from the components to ensure perfect soldering for beginners.Supports connectivity to all DJl Air Units.F405 main control chip, onboard OSD chip, barometer are also available even in complex flight environments.

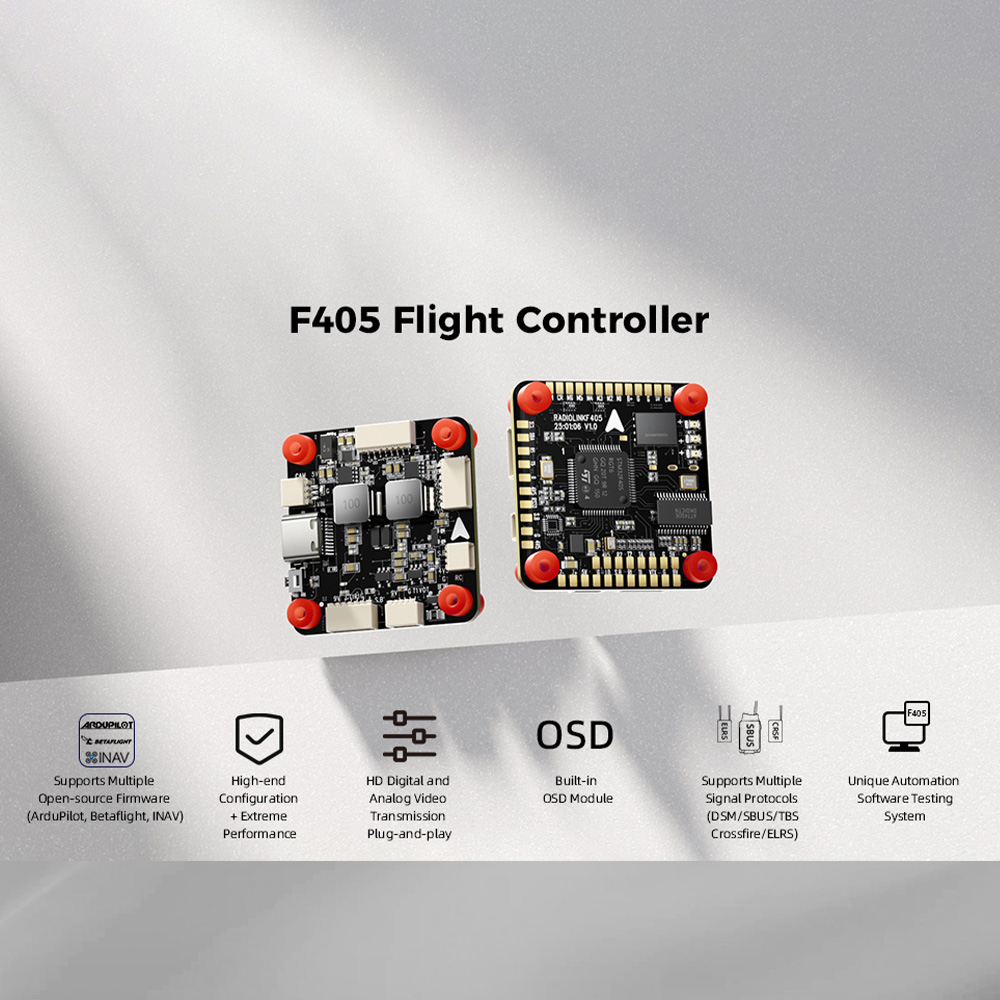

F405 Flight Control Specifications:

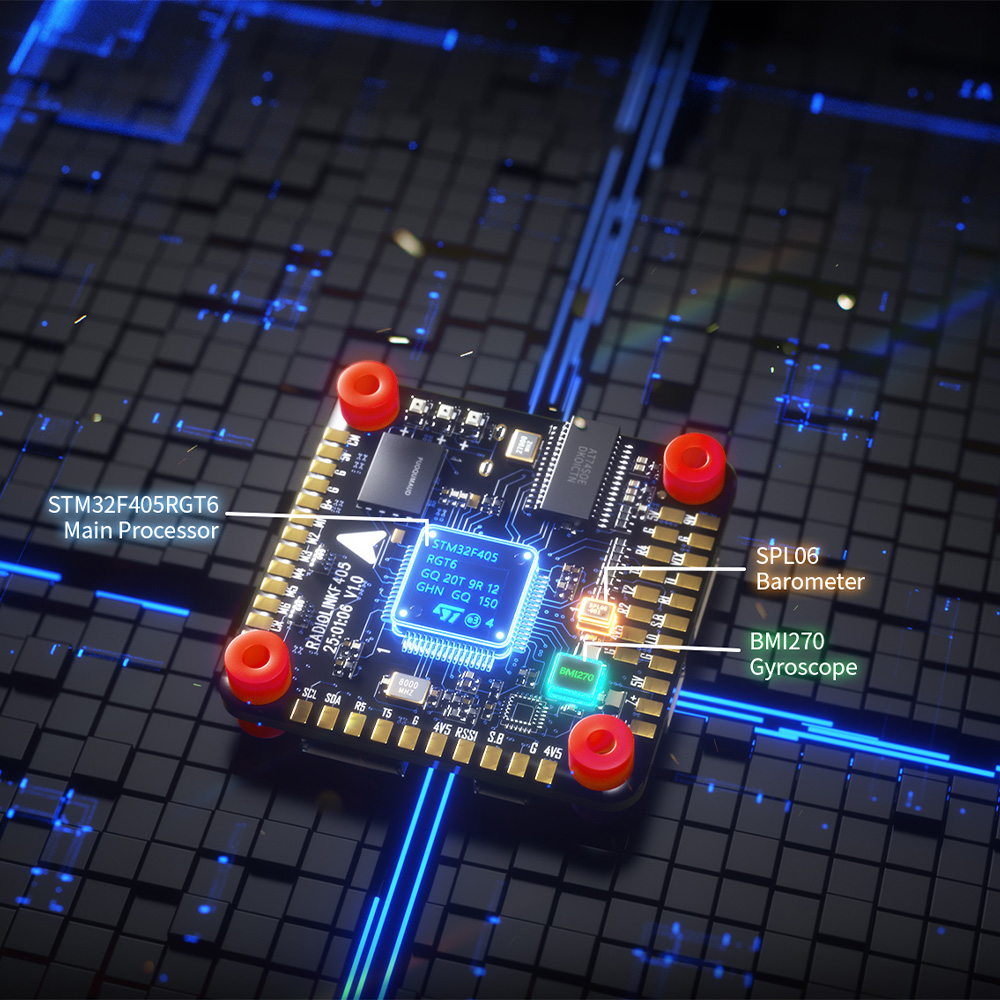

Master chip: STM32F405RGT6
Gyroscope: BMI270
Battery: 3-8S
USB: Type-C
Barometer: SPL06
OSD chip: YES
Core frequency: 168MHz
Output channels: 6
USB Port: 1(Type-c)
Support firmware: ArduPilot Betaflight,INAV
Installation hole position: 30.5x30.5mm
Size: 37X37x6MM
Weight: Bare board 8g
Operating temperature: -30~85-C

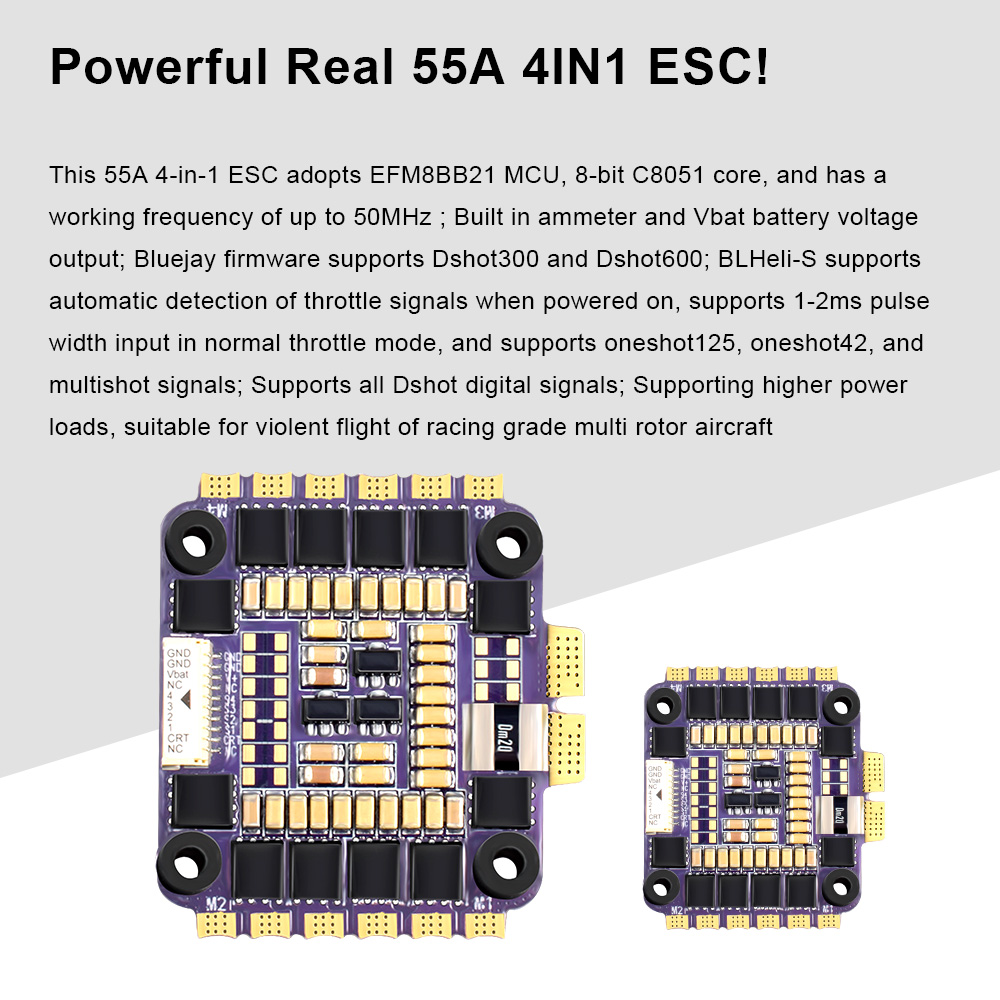

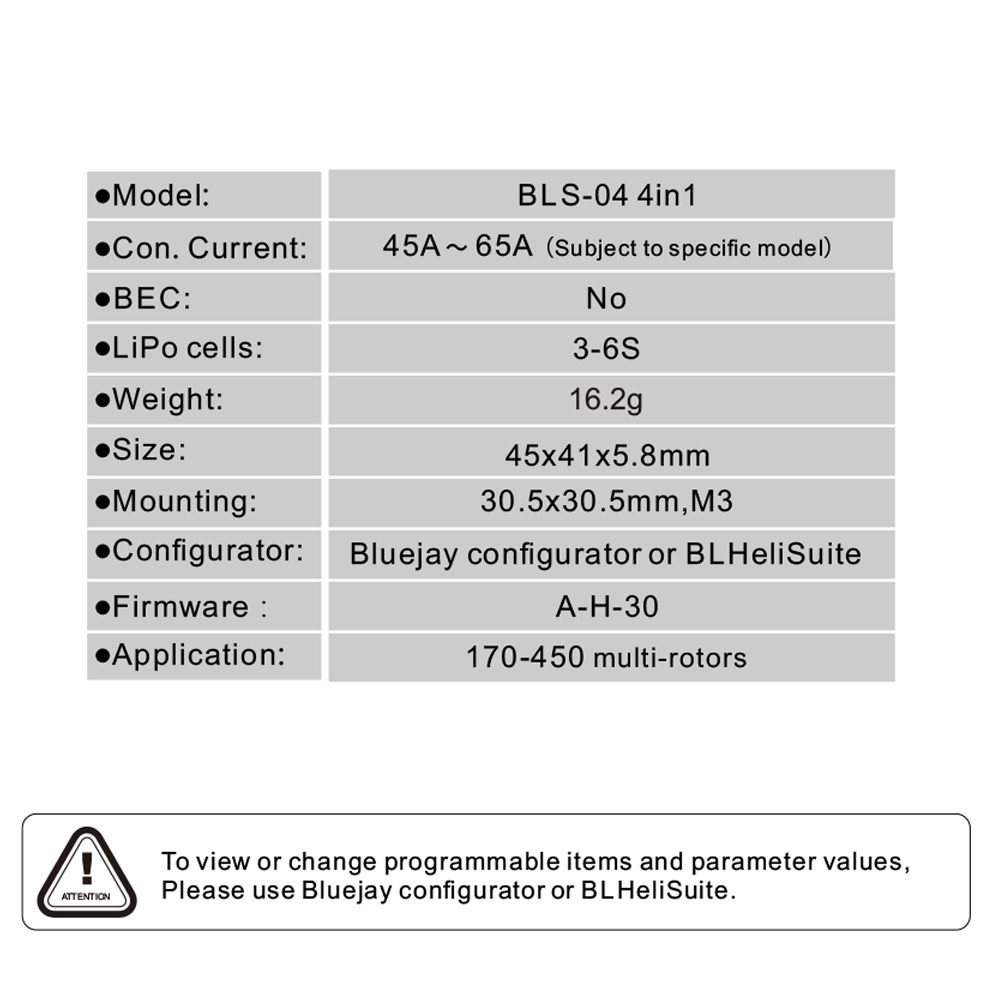

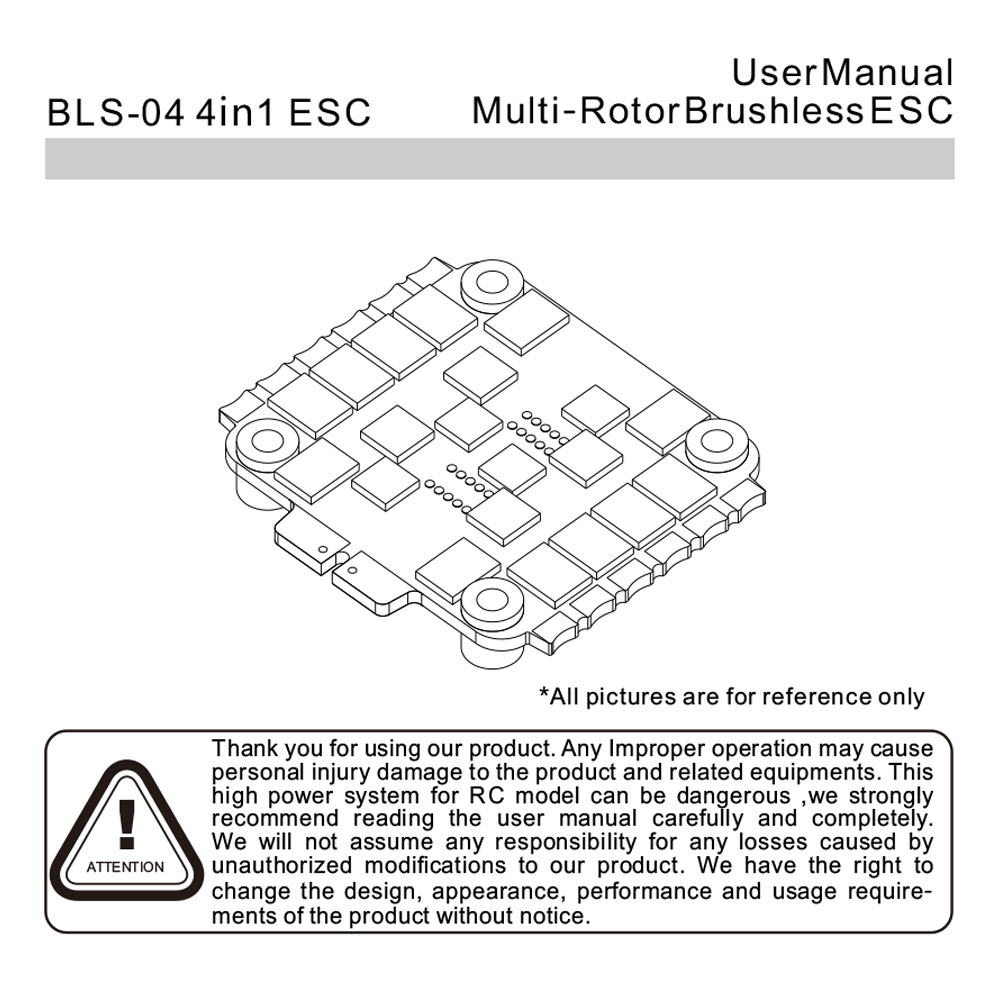

55A ESC Specifications:
Model:BLS-04 4in1
Con. Current:45A~65A(subject to speclfic model)
BEC: No
LiPo cells:3-6S
MCU: EFM8BB21F16G
Weight:16 .2g
Size:45x41x5.8mm
Core: 8-bit C8051
Mounting:30.5x30.5mm,M3
Configurator:Bluejay configurator or BLHeliSuite
Firmware :A-H-30
Max Frequency: 50 MHz
Application:170-450 multi-rotors
Bluejay firmware: Dshot300 & Dshot600
Dshot: all supports
Supports firmware1: Bluejay, A-H-30 (Using Bluejay configurator)
Supports firmware2: BLHeli-S,A-H-30 (Using BLHeliSuite)
