Product Description

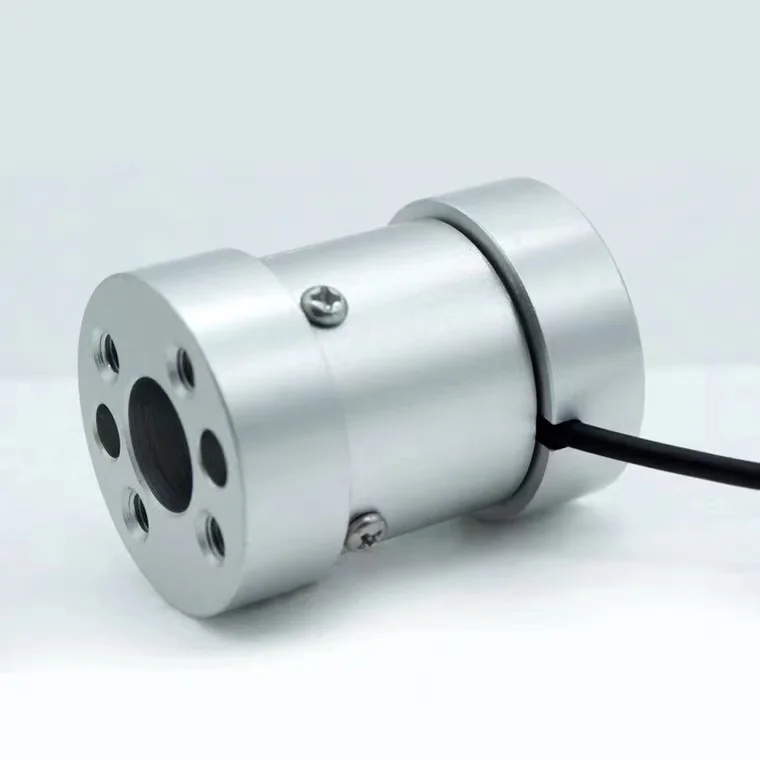

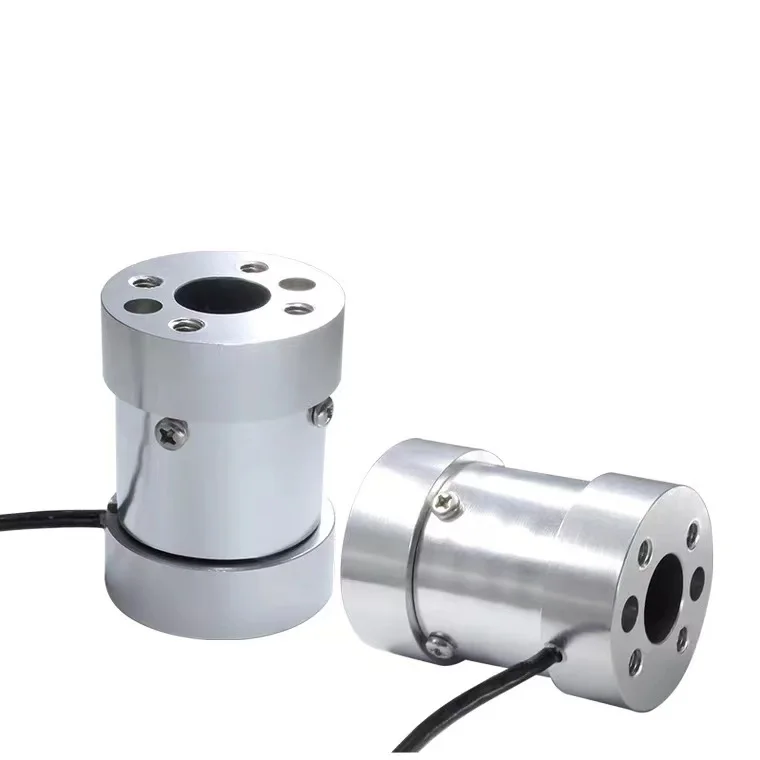

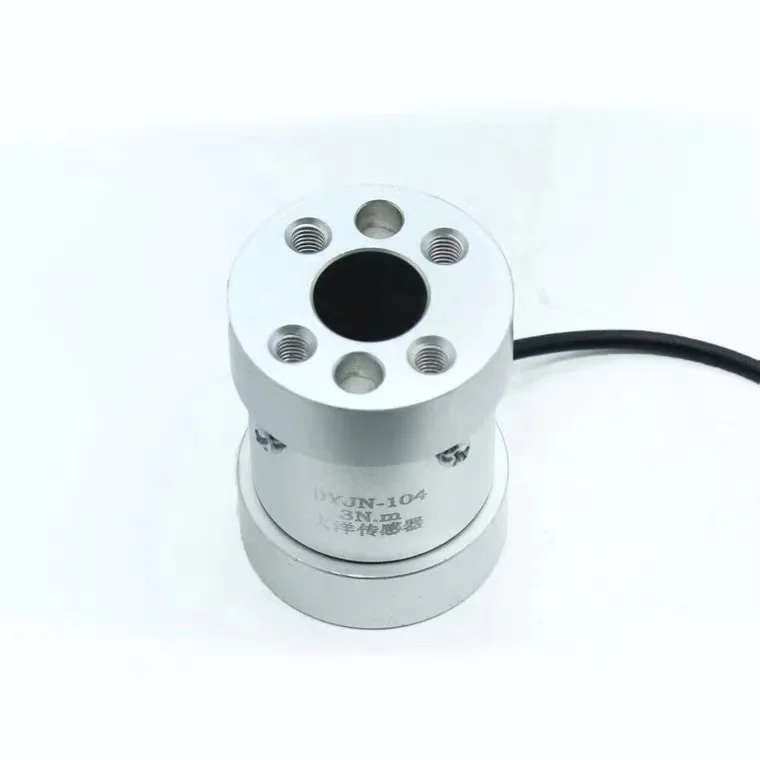

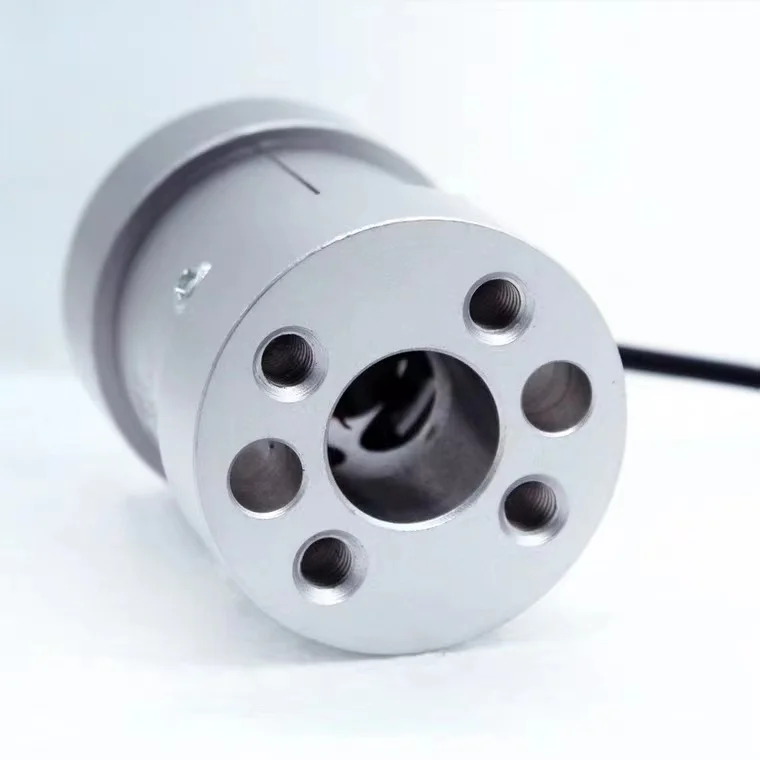

Reaction Torque Sensor for Static Torque, 1-150 N.m
torque sensor is a reaction torque sensor for static torque measurement. Torque sensor is made of aluminium alloy, 150%FS safety overload, -20℃~+80℃ operating temperature, low price. Reaction torque sensors have a capacity range from 1Nm ~ 150 Nm and can measure both forward and reverse torque.
Specification
|
Model
|
SOPJN-104
|
|
Shipping weight
|
1kg
|
|
Capacity range *
|
0-1Nm ~ 0-150 Nm
|
|
Output signal *
|
4-20mA
|
|
Sensitivity
|
2.0mV/V
|
|
Zero balance
|
±2%FS
|
|
Non-linearity
|
0.05%FS
|
|
Hysteresis
|
0.05%FS
|
|
Repeatability
|
0.05%FS
|
|
Creep
|
0.05%FS/30min
|
|
Temperature drift on zero
|
＜0.05%F.S/10℃
|
|
Temperature effect on output
|
＜0.05%F.S/10℃
|
|
Operating temperature
|
-20℃~+80℃
|
|
Humidity
|
0~90%RH
|
|
Impedance
|
350Ω
|
|
Insulation resistance
|
≥5000MΩ/100VDC
|
|
Stability
|
0.3%FS/year
|
|
Safety overload
|
150%F.S
|
|
Ultimate overload
|
200%F.S
|
|
Excitation voltage
|
DC 5-15V
|
|
Material
|
Aluminium alloy (OPTIONAL: ALLOY STEEL)
|
|
Protection class
|
IP65
|
|
Cable length
|
2m (Φ3mm)
|
|
Wiring
|
EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White
|

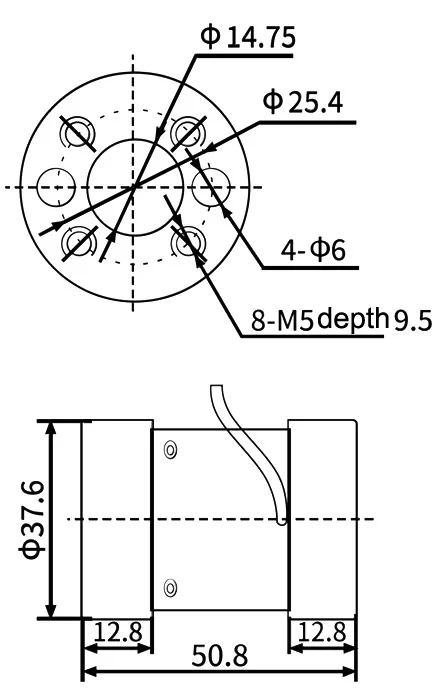

Dimensions

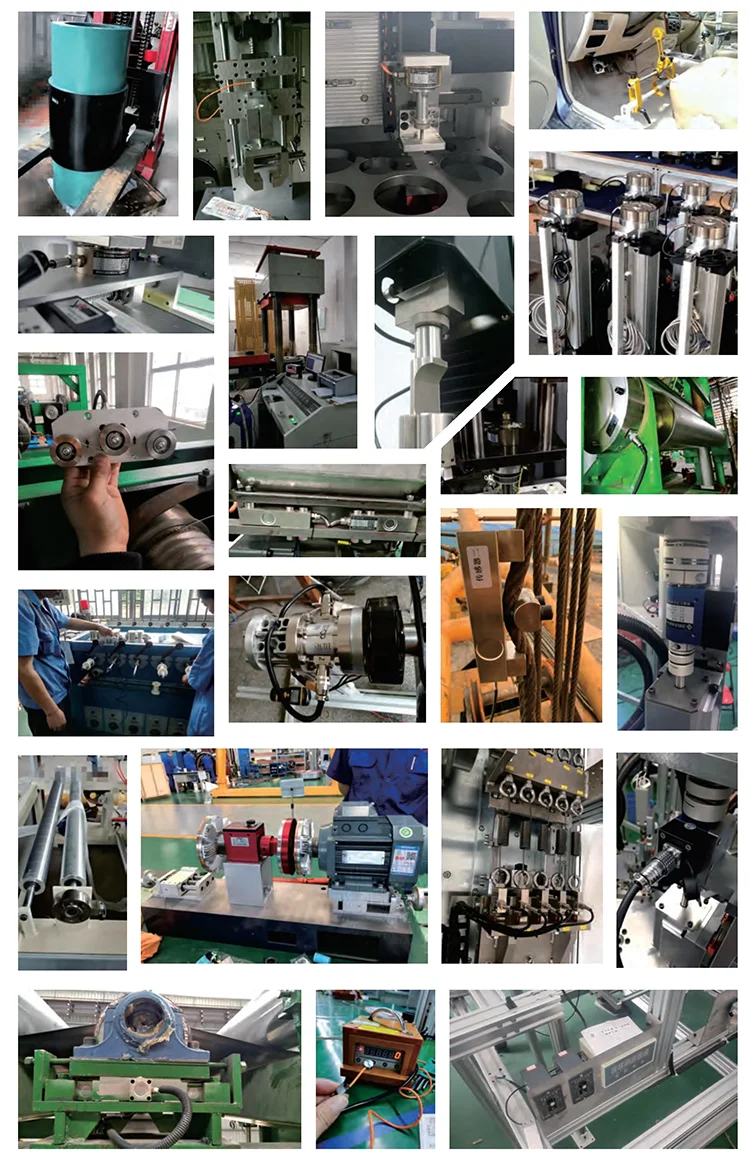

Applications
