Products Description
The model PPM-T322H pressure transmitter is the ideal solution for customers with demanding performance requirements in many industrial application.It features high accuracy, extended temperature ranges, high stability, high repeatability, low power consumption. The model PPM-T322H offers continuous measuring ranges between 0…10 bar to 0…1000bar in all common engineering units. These measuring ranges can be combined with several standard industry output signal, such as 4…20 mA, 0…10 V, 0…5V and many others.
| Measuring medium | Gas, liquid |
| Pressure type | Gauge pressure(G), Sealed pressure(S) |
| Pressure range | 0~10bar,16bar,25bar,40bar, |
| 60bar,160bar,250bar,400bar,600bar,700bar,1000bar | |
| Power supply | 9-32VDC |
| Output signal | 4~20mA ,0~10VDC,0~5VDC,1~5VDC,0.5~4.5 VDC |
| Nonlinearity | ≤0.25% FS (10bar,16bar,25bar) |
| ≤0.05% FS (≥40bar) | |
| Non-repeatability | ≤0.1% FS |
| Accuracy | 0.5%FS |
| Long-term stability | 0.15%FS/year |
| Medium temp | -40~+125ºC |
| Operation temp | -40~+105ºC |
| Zero temp. drift | ≤0.02%FS/ºC |
| FS temp. drift | ≤0.02%FS/ºC |
| Response time | ≤1ms(10%~90%) |
| Insulation resistance | ≥1000 MΩ/100V |
| Overpressure | 150%FS (1.5 times FS) |
| Damage pressure | 500%FS (5 times FS) |
| Vibration resistance | 5~1000Hz |
| Shcok resistance | 50g, 20ms |

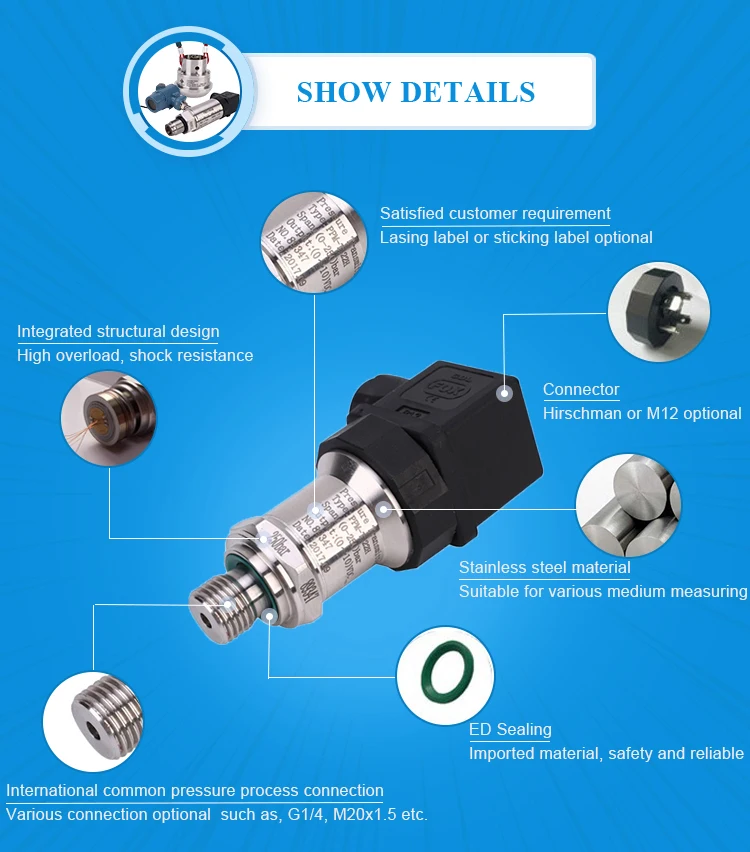

| Process connections | G1/4, M14×1.5, or other process connections on request |
| Materials | Wetted parts: 17-4PH, non-wettedparts: stainless steel 304 |
| Ingress protection | IP67 |
| Electrical connections | Circular connector M12 x 1,L-connector DIN43650 |
