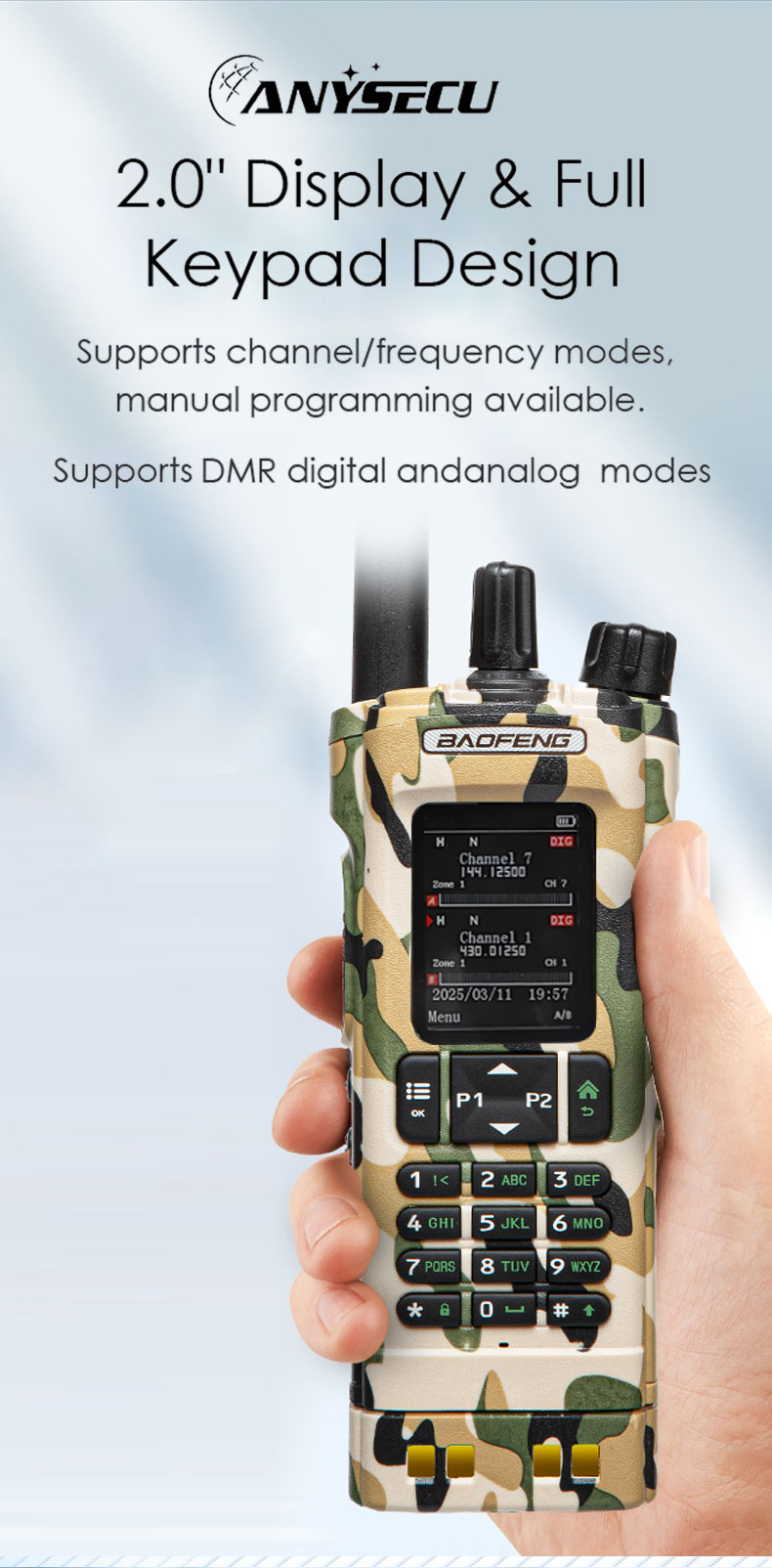

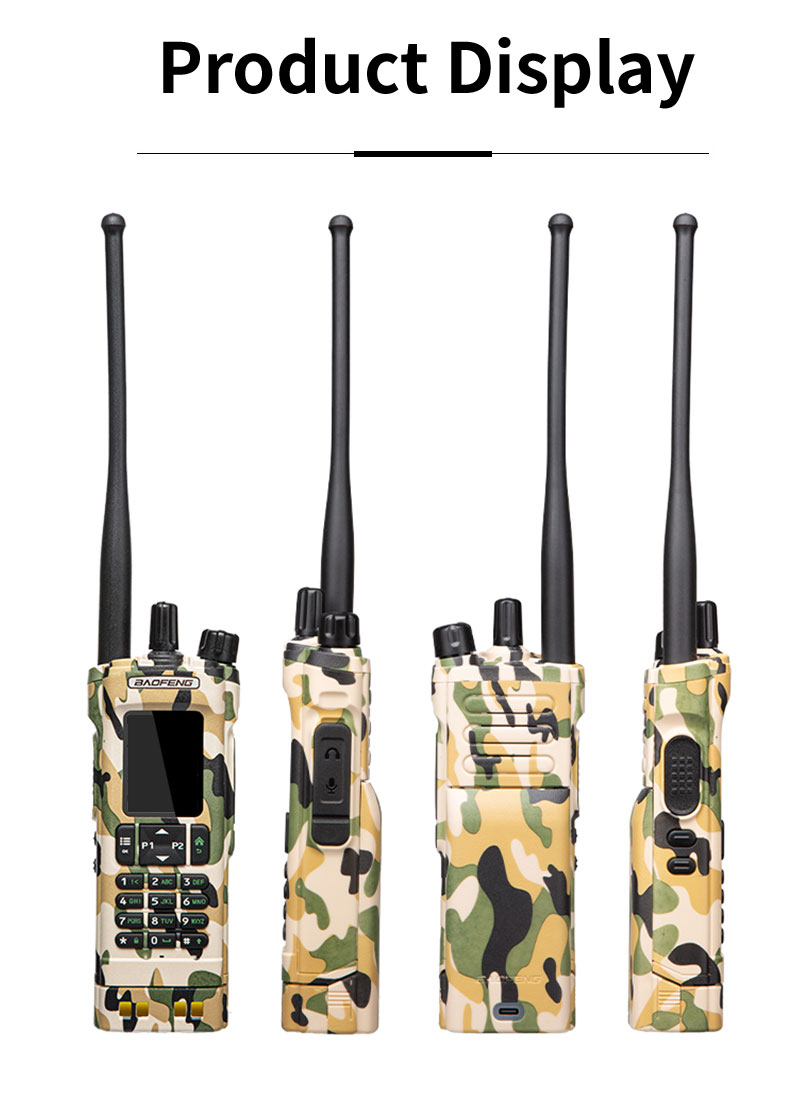

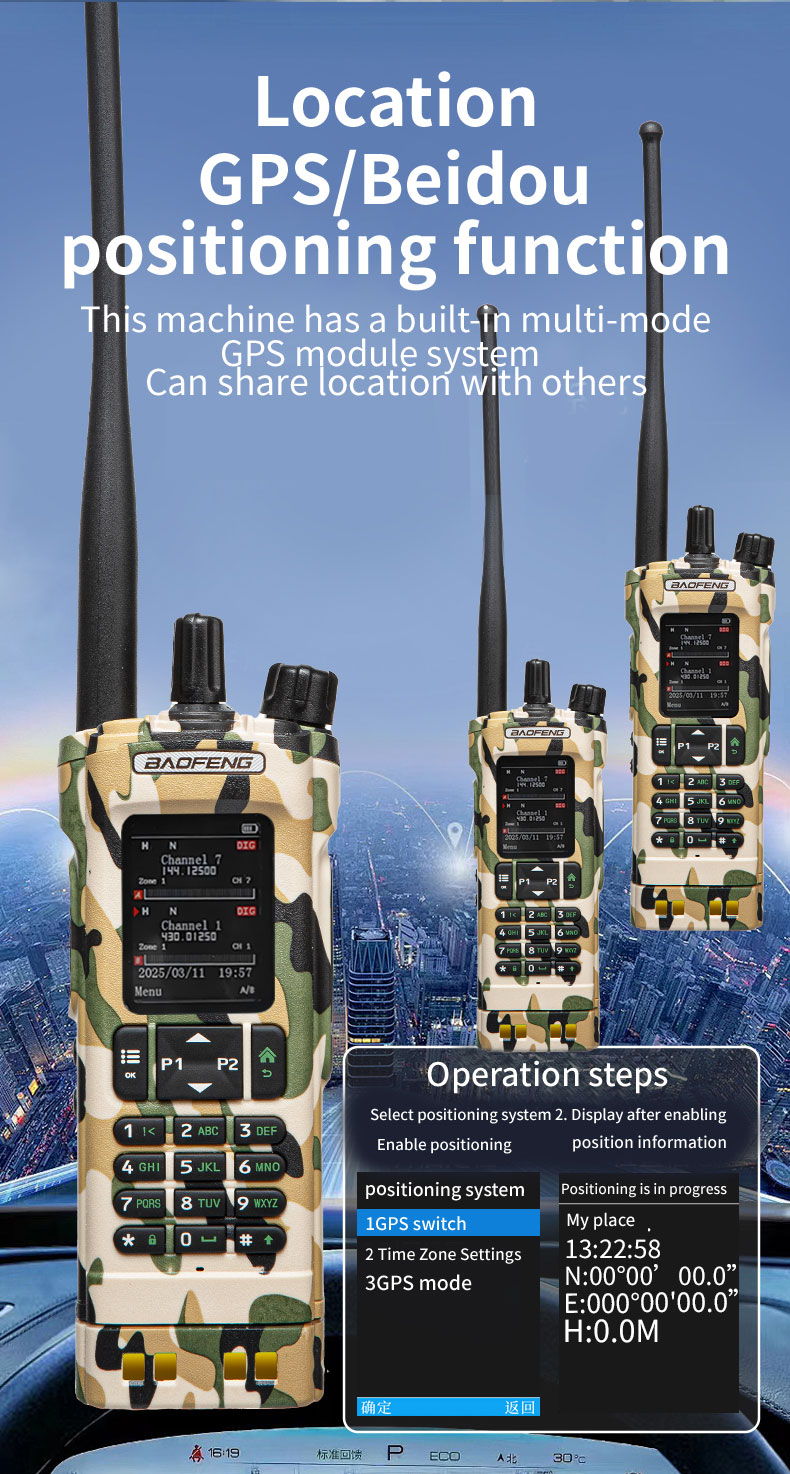

NEW Baofeng DMR DM-32 Digital Walkie Talkie GPS APRS Dual Time Slot VHF UHF AM FM Ham Radio
Note:DMR DM-32 Digital radio has no Bluetooth function. If you need Bluetooth function, please choose UV-32 analog Walkie Talkie.
Specifications
Channel Spacing: 25KHz (Wide Band) ,12.5KHz (Narrow Band)
Frequency Stability: ±2.5ppm

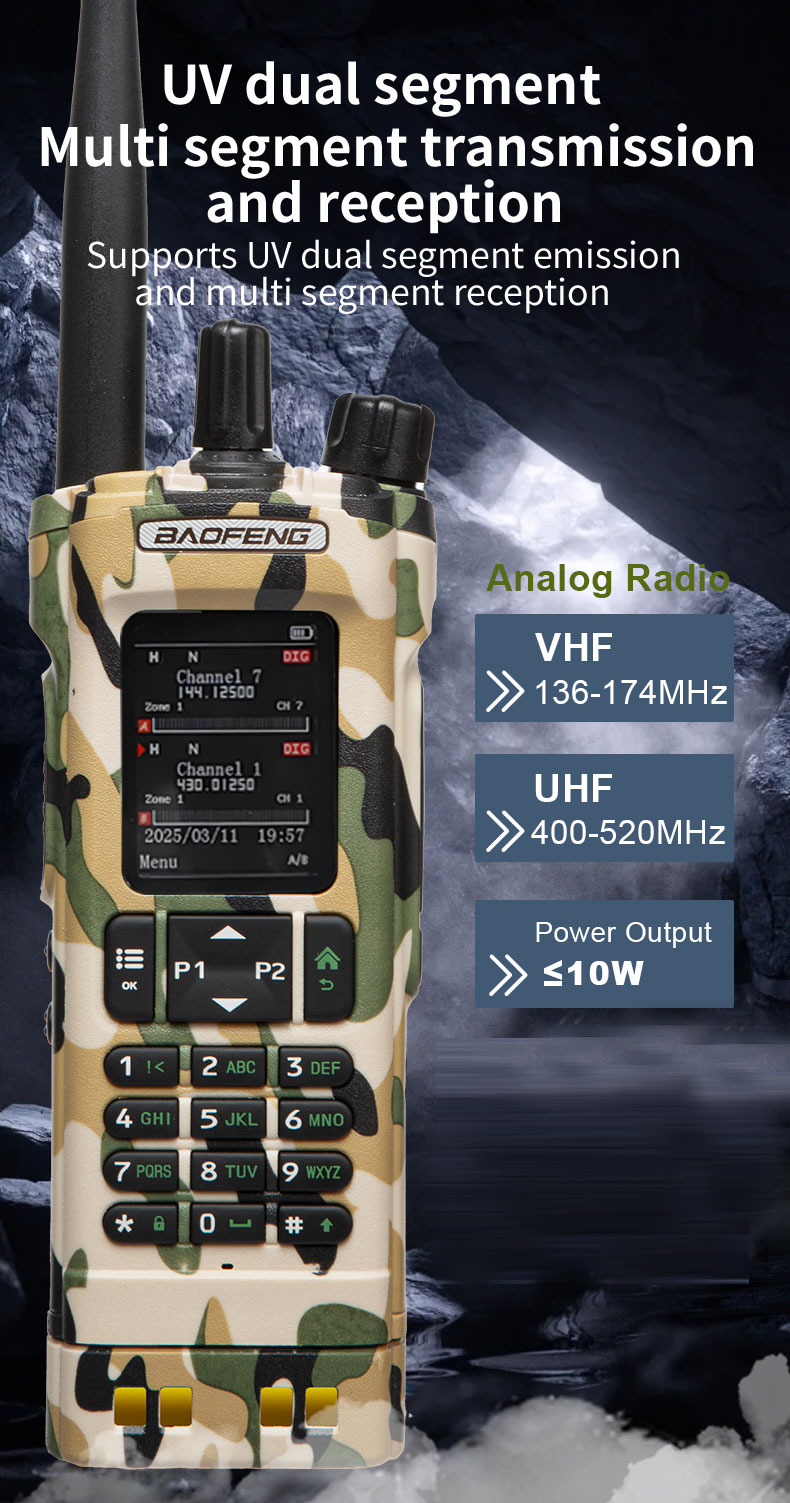

RX frequency range:
65-108 (FM), 108-136MHz (AM), VHF136.000-174.000, UHF400.000-470.000 MHz
TX frequency range:
144-148 & 420-450Mhz (America verion)
144-148 & 440-450Mhz (Canada verion)
144-146 & 430-440Mhz (European Unionverion)
136-174 & 400-470Mhz (some country or area no limit, for study & research)
Operating Temperature: -10℃~+55℃
Operating Voltage: 7.4V DC ±20% /(2100mAh)

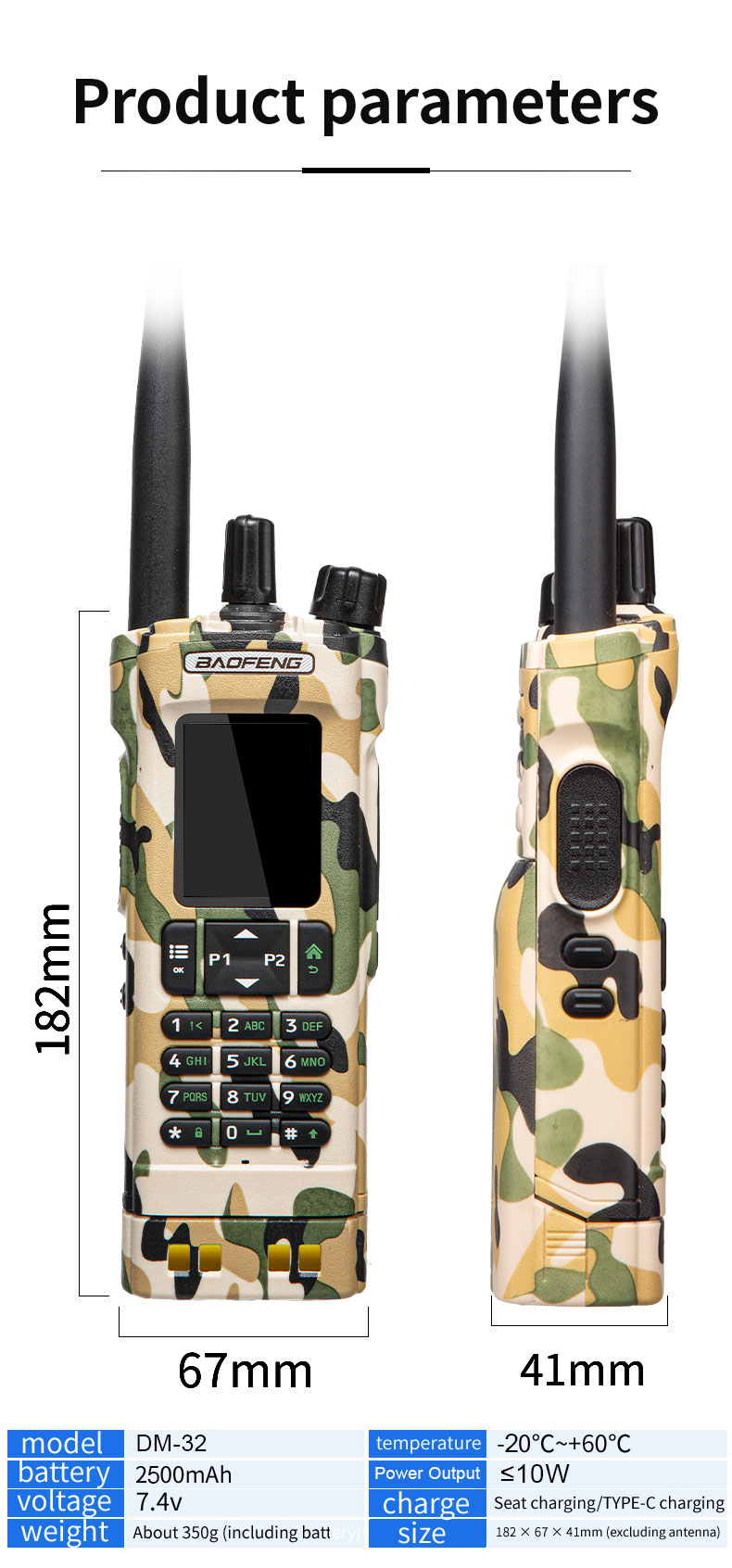

Size: 182×67×41mm (with battery pack)
Weight: 350g (with battery pack, antenna)
Transmitting Part
Output power: High:8W,Middle:4W,Low:1W
Output Consumption: Analog≤2.6A, Digital≤1.5A
Consumption: ≤0.18A
FM modulation: 16K¢F3E@25KHz, 141K¢F3E@20KHz, 11K¢F3E@12.5KHz
4FSK digital modulation: 12.5KHz for data:7K60FXD, 12.5KHz for data and voice :7K60FXE
Modulation Distortion: ≤5%
Signal-to-noise(wide/narrow): ≥45dB@25KHz, ≥40dB@12.5KHz
Adjacent Channel power: ≤-65dB, ≤-60dB
Audio Response: +1~3dB
Antenna Port Spurious: 9KHz-1GHz: ≤-20dBm, 1GHz-12.75GHz: ≤-20dBm
Digital Protocol: ETSI-TS102 361-1,-2,-3
Digital Protocol: ETSI-TS102 361-1,-2,-3
Vocoder type: AMBE+2 TM
