Oil Filter OC593/3 Mahle

PartsInMotion benefits

For any queries please contact using the contact seller link provided.

Description

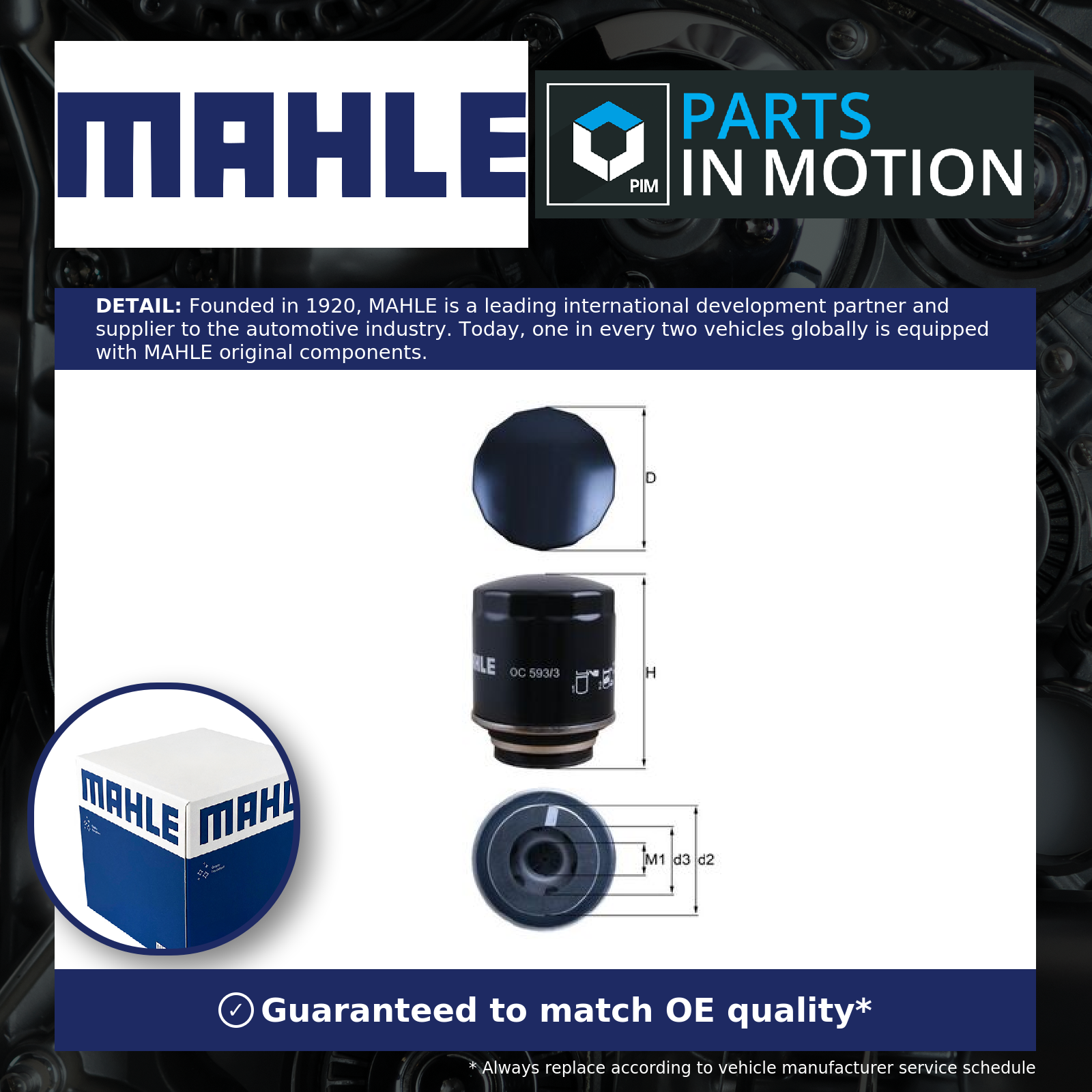

Oil Filter OC593/3 Mahle

Brand	MAHLE
Part Number	OC593/3
Height	98.3 mm
Diameter	76.0 mm
Additional Information 2	with two anti-return valves
Thread Size	3/4"-16UNF-2B
Filter type	Spin-on Filter
Seal Diameter	34.0 mm
Diameter 2	54.0 mm
Valve type	Overflow Valve
Tightening Torque	20 Nm
Packaging height	10.20 cm
Packaging length	8.0 cm
Packaging width	8.00 cm
Part number of the recommended special tools	OCS 1
Net Weight	368 g
Type	Oil Filter

Documents / Graphics

Cross references

ACDelco	X4336E
ALCO FILTER	SP1373
BLUE PRINT	ADV182107, ADV182122
BORG & BECK	BFO4179
BOSCH	F026407116, F026407183, P7183
CHAMPION	COF100622S
CLEAN FILTERS	DO5519
COMLINE	EOF250
CoopersFiaam	FT6035
FEBI BILSTEIN	49666
FILTRON	OP641/2
FRAM	PH10757
GUD FILTERS	Z567, Z67
HENGST FILTER	H314W, H314W01
MAGNETI MARELLI	153071762341, 71762341
MANN-FILTER	W712/91, W712/94
MEAT & DORIA	15575
MECAFILTER	ELH4400
MOTAQUIP	LVFL790
MULLER FILTER	FO634
PURFLUX	LS391, LS391A
SOFIMA	S3573R
TRUCKTEC AUTOMOTIVE	0718060
UFI	2357300
VAICO	V102102, V109599
WIX FILTERS	WL7494

Compatible with the following OEM references

AUDI	03C115561D, 03C115561E, 03C115561H
CUPRA	03C115561D, 03C115561E, 03C115561H
SEAT	03C115561D, 03C115561E, 03C115561H
SKODA	03C115561D, 03C115561E, 03C115561H
VW	03C115561D, 03C115561E, 03C115561H
VW (SVW)	03C115561D, 03C115561E

Other references

70571456

Passenger/LCV Vehicles

Vehicle	Body	Fuel	From	To	Drive	Valves	BHP	KW
AUDI A1 (8X1, 8XK) 1.2 TFSI	Hatchback	Petrol	05/2010	04/2015	FWD	8	86	63
AUDI A1 (8X1, 8XK) 1.4 TFSI	Hatchback	Petrol	01/2011	04/2015	FWD	16	185	136
AUDI A1 (8X1, 8XK) 1.4 TFSI	Hatchback	Petrol	07/2010	04/2015	FWD	16	122	90
Construction Year from: 07/2010
AUDI A1 Sportback (8XA, 8XF) 1.2 TFSI	Hatchback	Petrol	01/2012	04/2015	FWD	8	86	63
AUDI A1 Sportback (8XA, 8XF) 1.4 TFSI	Hatchback	Petrol	11/2011	04/2015	FWD	16	122	90
AUDI A1 Sportback (8XA, 8XF) 1.4 TFSI	Hatchback	Petrol	11/2011	04/2015	FWD	16	185	136
AUDI A3 (8P1) 1.2 TSI	Hatchback	Petrol	04/2010	08/2012	FWD	8	105	77
AUDI A3 (8P1) 1.4 TFSI	Hatchback	Petrol	06/2010	08/2012	FWD	16	125	92
Construction Year from: 06/2010
AUDI A3 Convertible (8P7) 1.2 TFSI	Convertible	Petrol	03/2010	05/2013	FWD	8	105	77
AUDI A3 Convertible (8P7) 1.4 TFSI	Convertible	Petrol	02/2011	05/2013	FWD	16	125	92
AUDI A3 Limousine (8VS, 8VM) 1.4 TFSI	Saloon	Petrol	09/2013	08/2016	FWD	16	125	92
Engine Code: CXSB
AUDI A3 Sportback (8PA) 1.2 TSI	Hatchback	Petrol	04/2010	03/2013	FWD	8	105	77
AUDI A3 Sportback (8PA) 1.4 TFSI	Hatchback	Petrol	06/2010	03/2013	FWD	16	125	92
Construction Year from: 06/2010
SEAT ALHAMBRA (710, 711) 1.4 TSI	MPV	Petrol	06/2010	04/2015	FWD	16	150	110
SEAT ALTEA (5P1) 1.2 TSI	MPV	Petrol	04/2010	07/2015	FWD	8	105	77
SEAT ALTEA (5P1) 1.4 TSI	MPV	Petrol	06/2010	07/2015	FWD	16	125	92
Construction Year from: 06/2010; Vehicle Identification Number (VIN) from: 5P_8_090 001
SEAT ALTEA XL (5P5, 5P8) 1.2 TSI	MPV	Petrol	04/2010	07/2015	FWD	8	105	77
SEAT ALTEA XL (5P5, 5P8) 1.4 TSI	MPV	Petrol	06/2010	07/2015	FWD	16	125	92
Construction Year from: 06/2010; Vehicle Identification Number (VIN) from: 5P_8_090 001
SEAT IBIZA Mk IV (6J5, 6P1) 1.2 TSI	Hatchback	Petrol	09/2010	03/2012	FWD	8	105	77
SEAT IBIZA Mk IV (6J5, 6P1) 1.2 TSI	Hatchback	Petrol	08/2012	05/2015	FWD	8	86	63
SEAT IBIZA Mk IV (6J5, 6P1) 1.4 TSI	Hatchback	Petrol	06/2009	05/2015	FWD	16	150	110
SEAT IBIZA Mk IV (6J5, 6P1) 1.6 LPG	Hatchback	Petrol/Liquified Petroleum Gas (LPG)	05/2011	05/2015	FWD	16	81	60
SEAT IBIZA Mk IV SC (6J1, 6P5) 1.2 TSI	Hatchback	Petrol	09/2010	05/2015	FWD	8	105	77
SEAT IBIZA Mk IV SC (6J1, 6P5) 1.2 TSI	Hatchback	Petrol	08/2012	05/2015	FWD	8	86	63
SEAT IBIZA Mk IV SC (6J1, 6P5) 1.4 TSI	Hatchback	Petrol	01/2009	05/2015	FWD	16	150	110
SEAT IBIZA Mk IV SC (6J1, 6P5) 1.4 TSI Cupra	Hatchback	Petrol	06/2010	05/2015	FWD	16	180	132
Construction Year from: 06/2010
SEAT IBIZA Mk IV SC (6J1, 6P5) 1.6 LPG	Hatchback	Petrol/Liquified Petroleum Gas (LPG)	05/2011	05/2015	FWD	16	81	60
SEAT IBIZA Mk IV ST (6J8, 6P8) 1.2 TSI	Estate	Petrol	09/2010	05/2015	FWD	8	105	77
SEAT IBIZA Mk IV ST (6J8, 6P8) 1.2 TSI	Estate	Petrol	09/2012	05/2015	FWD	8	86	63
SEAT IBIZA Mk IV ST (6J8, 6P8) 1.4 TSI	Estate	Petrol	02/2012	05/2015	FWD	16	150	110
SEAT LEON (1P1) 1.2 TSI	Hatchback	Petrol	02/2010	12/2012	FWD	8	105	77
SEAT LEON (1P1) 1.4 TSI	Hatchback	Petrol	06/2010	12/2012	FWD	16	125	92
Construction Year from: 06/2010
SEAT TOLEDO IV (KG3) 1.2 TSI	Hatchback	Petrol	07/2012	06/2015	FWD	8	86	63
SEAT TOLEDO IV (KG3) 1.2 TSI	Hatchback	Petrol	07/2012	06/2015	FWD	8	105	77
SEAT TOLEDO IV (KG3) 1.4 TSI	Hatchback	Petrol	07/2012	06/2015	FWD	16	122	90
SEAT TOLEDO IV (KG3) 1.6	Hatchback	Petrol	07/2013	06/2015	FWD	16	105	77
SKODA FABIA II (542) 1.2 TSI	Hatchback	Petrol	03/2010	12/2014	FWD	8	105	77
SKODA FABIA II (542) 1.2 TSI	Hatchback	Petrol	03/2010	12/2014	FWD	8	86	63
SKODA FABIA II (542) 1.4 TSI RS	Hatchback	Petrol	05/2010	12/2014	FWD	16	180	132
SKODA FABIA II (542) 1.6	Hatchback	Petrol	04/2007	12/2014	FWD	16	105	77
Engine Code: CFNA
SKODA FABIA II Combi (545) 1.2 TSI	Estate	Petrol	03/2010	12/2014	FWD	8	105	77
SKODA FABIA II Combi (545) 1.2 TSI	Estate	Petrol	03/2010	12/2014	FWD	8	86	63
SKODA FABIA II Combi (545) 1.4 TSI RS	Estate	Petrol	05/2010	12/2014	FWD	16	180	132
SKODA FABIA II Combi (545) 1.6	Estate	Petrol	10/2007	12/2014	FWD	16	105	77
Engine Code: CFNA
SKODA OCTAVIA II (1Z3) 1.2 TSI	Hatchback	Petrol	03/2010	06/2013	FWD	8	105	77
Construction Year from: 03/2010
SKODA OCTAVIA II (1Z3) 1.4 TSI	Hatchback	Petrol	07/2010	06/2013	FWD	16	122	90
Construction Year from: 07/2010
SKODA OCTAVIA II Combi (1Z5) 1.2 TSI	Estate	Petrol	03/2010	04/2013	FWD	8	105	77
Construction Year from: 03/2010
SKODA OCTAVIA II Combi (1Z5) 1.4 TSI	Estate	Petrol	07/2010	06/2013	FWD	16	122	90
Construction Year from: 07/2010
SKODA RAPID (NH3, NK3, NK6) 1.2 LPG	Hatchback	Petrol/Liquified Petroleum Gas (LPG)	07/2012	05/2015	FWD	8	86	63
SKODA RAPID (NH3, NK3, NK6) 1.2 TSI	Hatchback	Petrol	07/2012	05/2015	FWD	8	86	63
SKODA RAPID (NH3, NK3, NK6) 1.2 TSI	Hatchback	Petrol	07/2012	05/2015	FWD	8	105	77
SKODA RAPID (NH3, NK3, NK6) 1.4 TSI	Hatchback	Petrol	07/2012	06/2015	FWD	16	122	90
SKODA RAPID (NH3, NK3, NK6) 1.6	Hatchback	Petrol	07/2012	06/2015	FWD	16	105	77
SKODA RAPID Spaceback (NH1) 1.2 TSI	Hatchback	Petrol	07/2012	05/2015	FWD	8	86	63
SKODA RAPID Spaceback (NH1) 1.2 TSI	Hatchback	Petrol	07/2012	05/2015	FWD	8	105	77
SKODA RAPID Spaceback (NH1) 1.4 TSI	Hatchback	Petrol	07/2012	06/2015	FWD	16	122	90
SKODA RAPID Spaceback (NH1) 1.6	Hatchback	Petrol	07/2012	06/2015	FWD	16	105	77
SKODA ROOMSTER (5J7) 1.2 TSI	MPV	Petrol	03/2010	05/2015	FWD	8	105	77
SKODA ROOMSTER (5J7) 1.2 TSI	MPV	Petrol	03/2010	05/2015	FWD	8	86	63
SKODA ROOMSTER (5J7) 1.6	MPV	Petrol	09/2006	05/2015	FWD	16	105	77
Engine Code: CFNA
SKODA ROOMSTER Praktik (5J) 1.2 TSI	Estate Van	Petrol	03/2010	05/2015	FWD	8	86	63
SKODA SUPERB II (3T4) 1.4 TSI	Hatchback	Petrol	07/2010	05/2015	FWD	16	125	92
Construction Year from: 07/2010
SKODA SUPERB II Estate (3T5) 1.4 TSI	Estate	Petrol	07/2010	05/2015	FWD	16	125	92
Construction Year from: 07/2010
SKODA YETI (5L) 1.2 TSI	SUV	Petrol	03/2010	05/2015	FWD	8	105	77
Construction Year from: 03/2010
SKODA YETI (5L) 1.4 TSI	SUV	Petrol	07/2010	05/2015	FWD	16	122	90
Construction Year from: 07/2010
VW BEETLE (5C1, 5C2) 1.2 TSI	Hatchback	Petrol	07/2011	07/2019	FWD	8	105	77
VW BEETLE (5C1, 5C2) 1.4 TSI	Hatchback	Petrol	10/2011	07/2016	FWD	16	160	118
VW BEETLE Convertible (5C7, 5C8) 1.2 TSI	Convertible	Petrol	12/2011	07/2019	FWD	8	105	77
VW BEETLE Convertible (5C7, 5C8) 1.4 TSI	Convertible	Petrol	12/2011	07/2016	FWD	16	160	118
VW CADDY III Box Body/MPV (2KA, 2KH, 2CA, 2CH) 1.2 TSI	Box Body/MPV	Petrol	09/2010	05/2015	FWD	8	86	63
VW CADDY III Box Body/MPV (2KA, 2KH, 2CA, 2CH) 1.2 TSI	Box Body/MPV	Petrol	09/2010	05/2015	FWD	8	105	77
VW CADDY III Estate (2KB, 2KJ, 2CB, 2CJ) 1.2 TSI	MPV	Petrol	09/2010	05/2015	FWD	8	86	63
VW CADDY III Estate (2KB, 2KJ, 2CB, 2CJ) 1.2 TSI	MPV	Petrol	09/2010	05/2015	FWD	8	105	77
VW CC B7 (358) 1.4 TSI	Coupe	Petrol	11/2011	12/2016	FWD	16	160	118
VW CC B7 (358) 1.4 TSI MultiFuel	Coupe	Petrol/Ethanol	11/2011	12/2016	FWD	16	160	118
VW EOS (1F7, 1F8) 1.4 TSI	Convertible	Petrol	07/2010	08/2015	FWD	16	122	90
Construction Year from: 07/2010; Vehicle Identification Number (VIN) from: 1F_9_000 001
VW EOS (1F7, 1F8) 1.4 TSI	Convertible	Petrol	11/2010	08/2015	FWD	16	160	118
Construction Year from: 11/2010
VW GOLF PLUS V (5M1, 521) 1.2 TSI	Hatchback	Petrol	05/2010	12/2013	FWD	8	86	63
VW GOLF PLUS V (5M1, 521) 1.2 TSI	Hatchback	Petrol	04/2010	12/2013	FWD	8	105	77
Construction Year from: 04/2010
VW GOLF PLUS V (5M1, 521) 1.4 TSI	Hatchback	Petrol	07/2010	12/2013	FWD	16	122	90
Construction Year from: 07/2010
VW GOLF PLUS V (5M1, 521) 1.4 TSI	Hatchback	Petrol	07/2010	12/2013	FWD	16	160	118
Construction Year from: 07/2010
VW GOLF VI (5K1) 1.2 TSI	Hatchback	Petrol	05/2010	11/2012	FWD	8	86	63
VW GOLF VI (5K1) 1.2 TSI	Hatchback	Petrol	04/2010	11/2012	FWD	8	105	77
Construction Year from: 04/2010
VW GOLF VI (5K1) 1.4 TSI	Hatchback	Petrol	07/2010	11/2012	FWD	16	122	90
Construction Year from: 07/2010
VW GOLF VI (5K1) 1.4 TSI	Hatchback	Petrol	07/2010	11/2012	FWD	16	160	118
Construction Year from: 07/2010
VW GOLF VI Convertible (517) 1.2 TSI	Convertible	Petrol	03/2011	05/2016	FWD	8	105	77
VW GOLF VI Convertible (517) 1.4 TSI	Convertible	Petrol	11/2011	05/2016	FWD	16	122	90
VW GOLF VI Convertible (517) 1.4 TSI	Convertible	Petrol	03/2011	05/2016	FWD	16	160	118
VW GOLF VI Convertible (517) 1.4 TSI	Convertible	Petrol	11/2013	05/2016	FWD	16	125	92
Engine Code: CXSB
VW GOLF VI Estate (AJ5) 1.2 TSI	Estate	Petrol	04/2010	07/2013	FWD	8	105	77
Construction Year from: 04/2010
VW GOLF VI Estate (AJ5) 1.2 TSI	Estate	Petrol	07/2010	07/2013	FWD	8	86	63
VW GOLF VI Estate (AJ5) 1.4 TSI	Estate	Petrol	07/2010	07/2013	FWD	16	122	90
Construction Year from: 07/2010
VW GOLF VI Estate (AJ5) 1.4 TSI	Estate	Petrol	07/2009	07/2013	FWD	16	160	118
VW JETTA III (1K2) 1.4 TSI	Saloon	Petrol	07/2010	10/2010	FWD	16	122	90
Construction Year from: 07/2010
VW JETTA III (1K2) 1.4 TSI	Saloon	Petrol	07/2010	10/2010	FWD	16	160	118
Construction Year from: 07/2010
VW JETTA IV (162, 163, AV3, AV2) 1.2 TSI	Saloon	Petrol	10/2010	12/2017	FWD	8	105	77
VW JETTA IV (162, 163, AV3, AV2) 1.4 TSI	Saloon	Petrol	04/2011	12/2017	FWD	16	160	118
VW JETTA IV (162, 163, AV3, AV2) 1.4 TSI	Saloon	Petrol	05/2011	12/2017	FWD	16	122	90
VW JETTA IV (162, 163, AV3, AV2) 1.4 TSI	Saloon	Petrol	04/2011	12/2017	FWD	16	150	110
VW JETTA IV (162, 163, AV3, AV2) 1.6	Saloon	Petrol	12/2011	04/2018	FWD	16	105	77
VW JETTA IV (162, 163, AV3, AV2) 1.6	Saloon	Petrol	03/2013	03/2016	FWD	16	86	63
VW PASSAT B6 (3C2) 1.4 TSI	Saloon	Petrol	07/2010	07/2010	FWD	16	122	90
Construction Year from: 07/2010
VW PASSAT B6 (3C2) 1.4 TSI EcoFuel	Saloon	Petrol/Compressed Natural Gas (CNG)	07/2010	07/2010	FWD	16	150	110
Construction Year from: 07/2010
VW PASSAT B6 Estate (3C5) 1.4 TSI	Estate	Petrol	07/2010	11/2010	FWD	16	122	90
Construction Year from: 07/2010
VW PASSAT B6 Estate (3C5) 1.4 TSI EcoFuel	Estate	Petrol/Compressed Natural Gas (CNG)	07/2010	11/2010	FWD	16	150	110
Construction Year from: 07/2010
VW PASSAT B7 (362) 1.4 TSI	Saloon	Petrol	08/2010	12/2014	FWD	16	122	90
VW PASSAT B7 (362) 1.4 TSI	Saloon	Petrol	11/2012	12/2014	FWD	16	160	118
VW PASSAT B7 (362) 1.4 TSI EcoFuel	Saloon	Petrol/Compressed Natural Gas (CNG)	08/2010	12/2014	FWD	16	150	110
VW PASSAT B7 (362) 1.4 TSI MultiFuel	Saloon	Petrol/Ethanol	11/2010	12/2014	FWD	16	160	118
VW PASSAT B7 Estate (365) 1.4 TSI	Estate	Petrol	08/2010	12/2014	FWD	16	122	90
VW PASSAT B7 Estate (365) 1.4 TSI	Estate	Petrol	11/2012	12/2014	FWD	16	160	118
VW PASSAT B7 Estate (365) 1.4 TSI EcoFuel	Estate	Petrol/Compressed Natural Gas (CNG)	08/2010	12/2014	FWD	16	150	110
VW PASSAT B7 Estate (365) 1.4 TSI MultiFuel	Estate	Petrol/Ethanol	11/2010	12/2014	FWD	16	160	118
VW PASSAT CC B6 (357) 1.4 TSI MultiFuel	Coupe	Petrol/Ethanol	01/2011	01/2012	FWD	16	160	118
VW POLO V (6R1, 6C1) 1.2 TSI	Hatchback	Petrol	05/2011	05/2014	FWD	8	90	66
VW POLO V (6R1, 6C1) 1.2 TSI	Hatchback	Petrol	04/2010	05/2022	FWD	8	105	77
Construction Year from: 04/2010
VW POLO V (6R1, 6C1) 1.4 GTI	Hatchback	Petrol	05/2010	05/2014	FWD	16	180	132
VW POLO V (6R1, 6C1) 1.6 BiFuel	Hatchback	Petrol/Liquified Petroleum Gas (LPG)	01/2011	05/2014	FWD	16	82	60
VW POLO V Saloon (602, 604, 612, 614) 1.6	Saloon	Petrol	11/2010	05/2015	FWD	16	86	63
VW POLO V Saloon (602, 604, 612, 614) 1.6	Saloon	Petrol	05/2010	05/2022	FWD	16	105	77
VW SCIROCCO III (137, 138) 1.4 TSI	Coupe	Petrol	07/2010	11/2017	FWD	16	160	118
Construction Year from: 07/2010
VW SCIROCCO III (137, 138) 1.4 TSI	Coupe	Petrol	08/2008	11/2017	FWD	16	122	90
Engine Code: CMSB
VW SCIROCCO III (137, 138) 1.4 TSI	Coupe	Petrol	11/2013	11/2017	FWD	16	125	92
Engine Code: CXSB
VW SHARAN (7N1, 7N2) 1.4 TSI	MPV	Petrol	05/2010	11/2015	FWD	16	150	110
VW SHARAN Box Body/MPV (7N1, 7N2) 1.4 TSI	Box Body/MPV	Petrol	05/2010	11/2015	FWD	16	150	110
VW TIGUAN (5N_) 1.4 TSI	SUV	Petrol	05/2011	07/2018	FWD	16	160	118
VW TIGUAN (5N_) 1.4 TSI	SUV	Petrol	07/2010	07/2018	FWD	16	150	110
Construction Year from: 07/2010
VW TIGUAN (5N_) 1.4 TSI	SUV	Petrol	08/2010	07/2018	FWD	16	122	90
VW TIGUAN (5N_) 1.4 TSI 4motion	SUV	Petrol	05/2011	07/2018	AWD	16	160	118
VW TIGUAN (5N_) 1.4 TSI 4motion	SUV	Petrol	07/2010	07/2018	AWD	16	150	110
Construction Year from: 07/2010
VW TIGUAN VAN (5N_) 1.4 TSI (5N1)	SUV Van	Petrol	08/2010	05/2011	FWD	16	122	90
VW TOURAN (1T1, 1T2) 1.4 TSI	MPV	Petrol	05/2010	05/2010	FWD	16	170	125
Construction Year from: 05/2010; Engine Code: CAVB
VW TOURAN (1T3) 1.2 TSI	MPV	Petrol	05/2010	05/2015	FWD	8	105	77
VW TOURAN (1T3) 1.4 TSI	MPV	Petrol	07/2010	05/2015	FWD	16	140	103
Construction Year from: 07/2010
VW TOURAN (1T3) 1.4 TSI	MPV	Petrol	07/2010	05/2015	FWD	16	170	125
Construction Year from: 07/2010
VW TOURAN (1T3) 1.4 TSI EcoFuel	MPV	Petrol/Compressed Natural Gas (CNG)	07/2010	05/2015	FWD	16	150	110
Construction Year from: 07/2010
VW TOURAN Box Body/MPV (1T3) 1.4 TSI	Box Body/MPV	Petrol	05/2010	05/2015	FWD	16	170	125
VW TOURAN Box Body/MPV (1T3) 1.4 TSI	Box Body/MPV	Petrol	05/2010	05/2015	FWD	16	140	103

Mahle, employ 49,000 people at over 100 production plants with 3,000 development engineers. Aftermarket product is in the Mahle brand and is in OE quality.

Returns

We provide a simple no-nonsense returns policy:

1. Always contact us first. We cannot process a return if you do not email us.
2. We can only accept returns if they are either genuinely faulty or in pristine condition (have not been fitted and in original unmarked packaging).
3. Returns received by us 30 days or more after the date of despatch will not be accepted unless specifically agreed beforehand.
4. We will process your return within 2 working days and will act quickly to action whatever we have agreed over email (refund, replacement or exchange).
