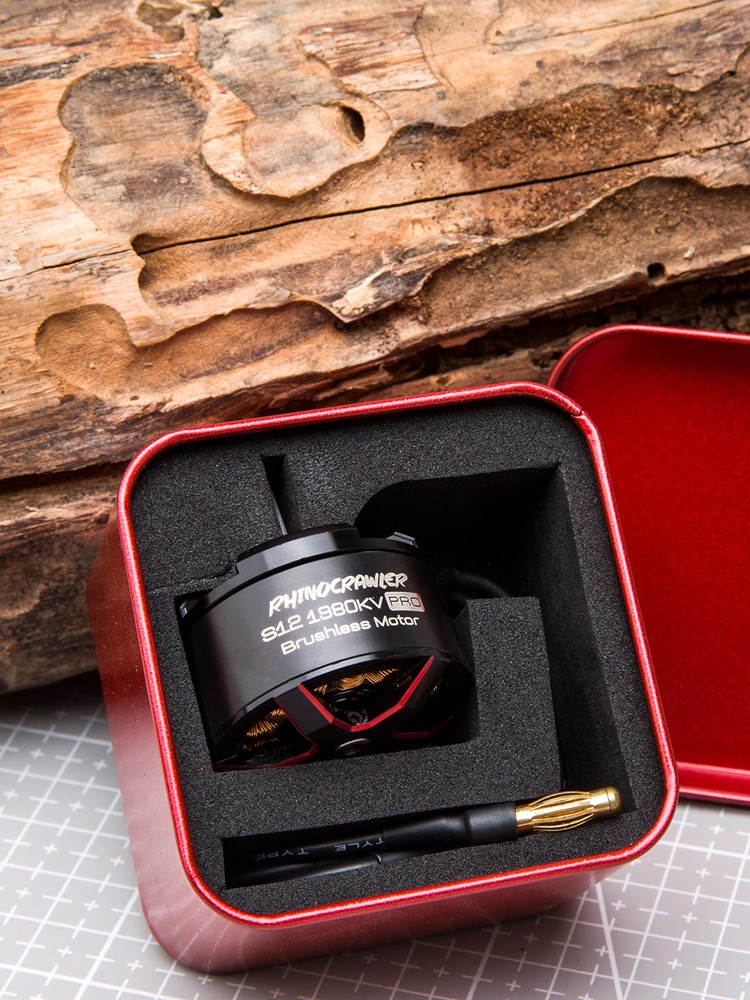

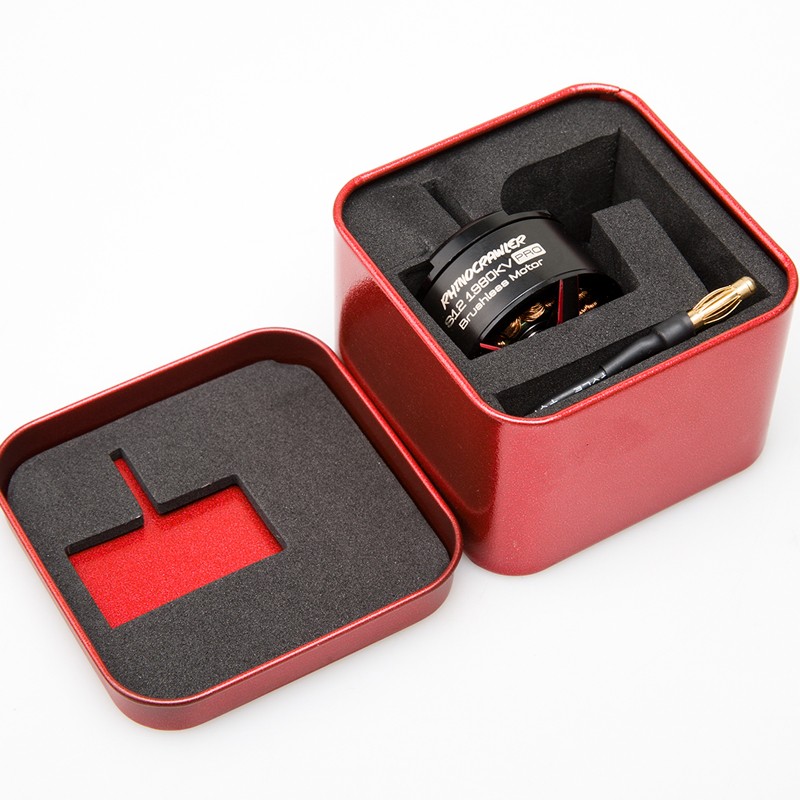

RhinoCrawler RM-S12 Pro - version brushless motor represents a significant upgrade base on S12. First, the magnet structure has been meticulously optimized, By precisely adjusting the shape, and material composition of the magnets, material composition of the magnets, their magnetic properties are notably enhanced. This allows for a more efficient interaction between the magnetic field and the moving parts within the motor.

Secondly, the copper wire specifications have been improved, intensive process of manual wire - winding is employed for every single coil. This painstaking approach ensures that the copper wire slot - fill factor is maximized. As a result, the electrical resistance is reduced, which effectively cuts down the load current during operation.

With the load current decreased, the energy loss is minimized, leading to a remarkable improvement in the overall efficiency of the motor. This enhanced efficiency not only provides more power but also means that the motor consumes less energy under the same workload. In the context of a vehicle powered by this motor, even with a powerful and consistent output, the Vehicle can operate for a longer time.



Featrues:

1:10 rigs

Competitive RC Rock Crawling

16ga silicon motor leads(Length:140mm)



Specs:

KV: 1980KV

14 pole 12 slot stator

8.4V -16.8V (2-4S) LiPo

1/8" D (3.17mm) shaft output

25mm Mounting holes for M3 screws

87.3g with wires and 4.0mm connector

35mm diameter x 24mm long

28x12mm stator
