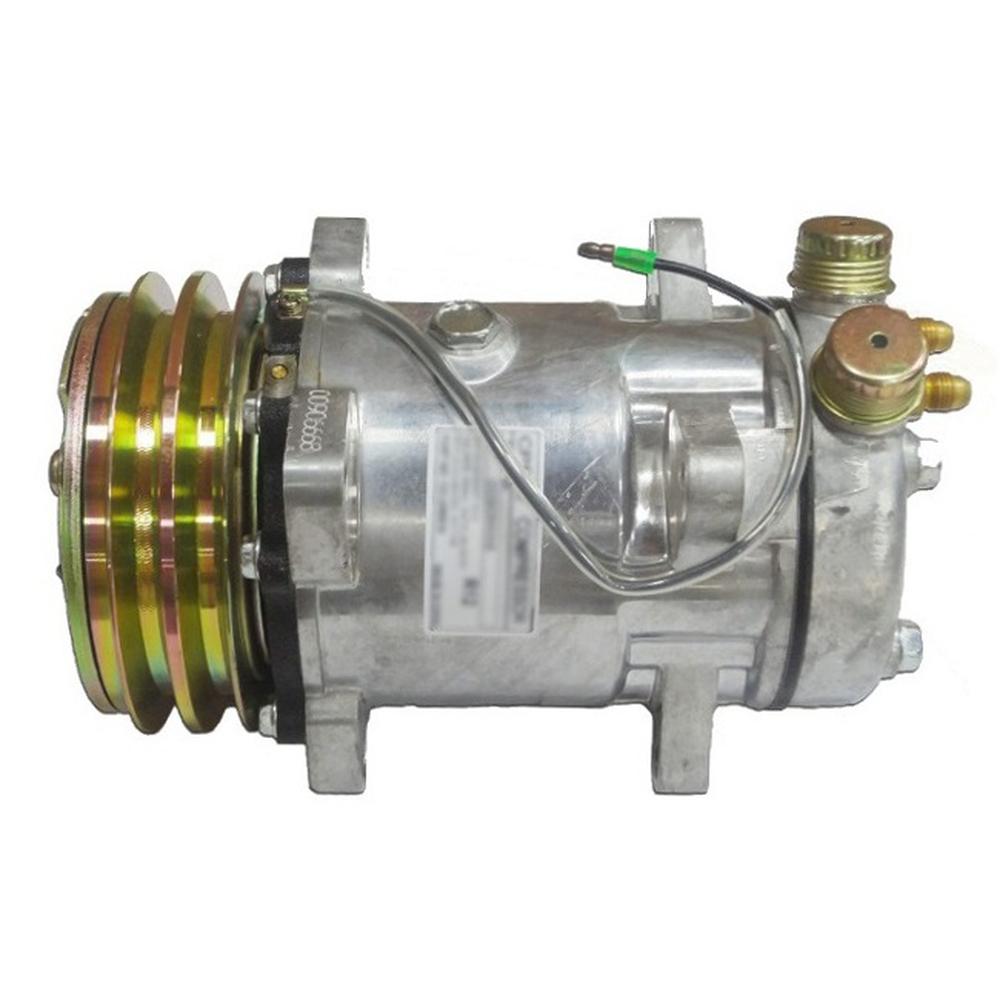

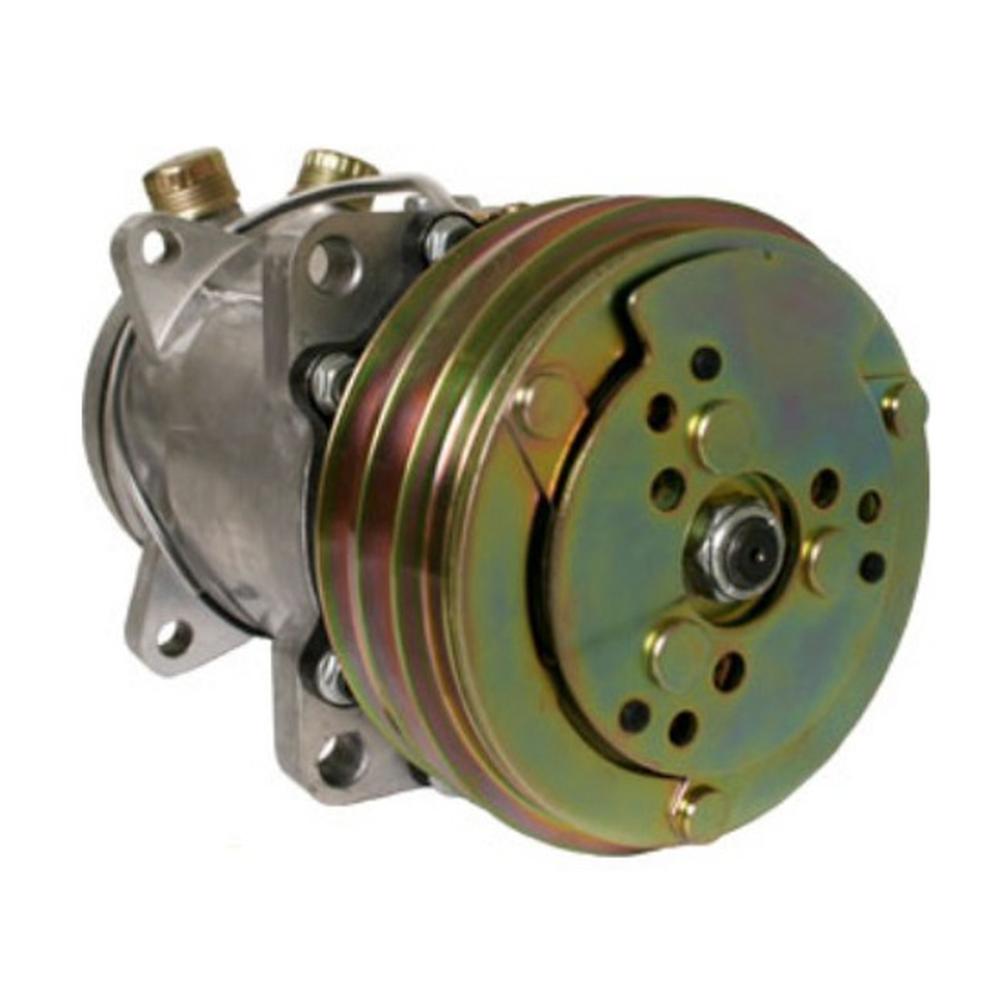

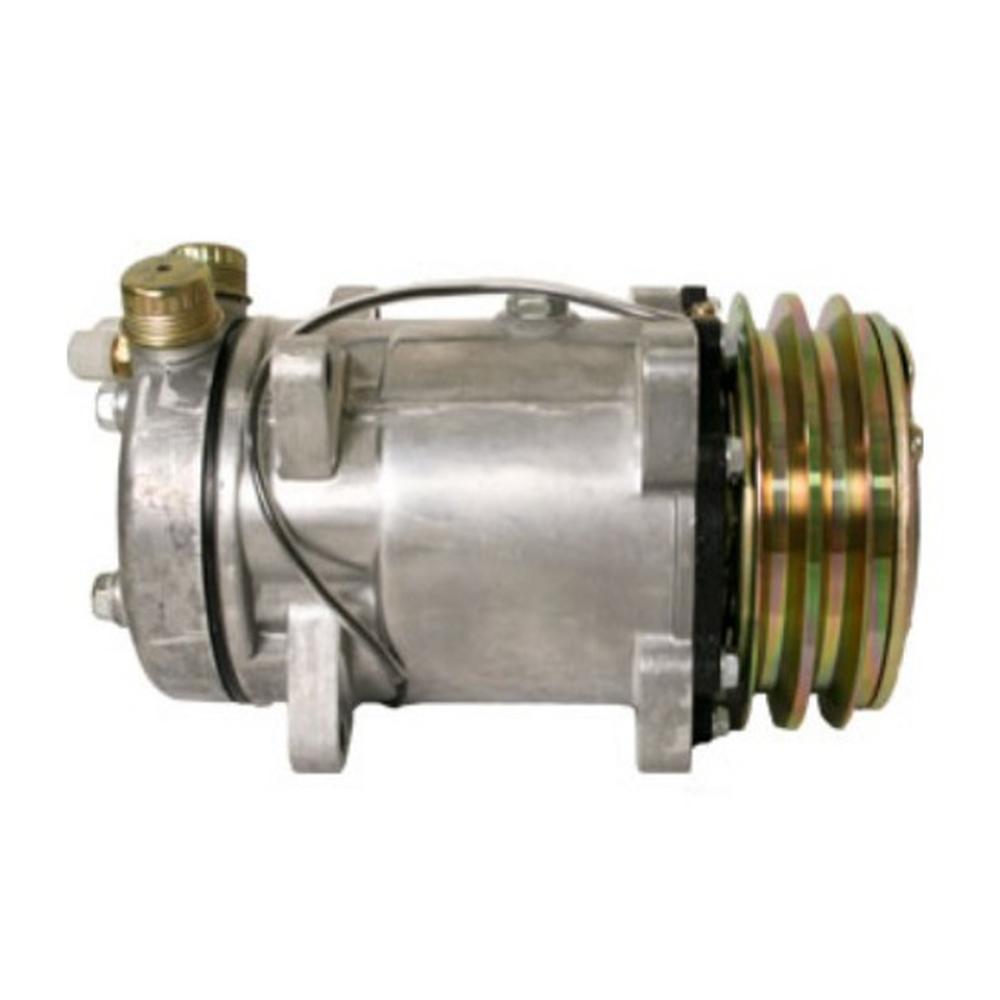

DESCRIPTION This Sanden SD5H14-style air conditioning compressor with clutch is a direct aftermarket replacement for the cab A/C system on a wide range of agricultural tractors sold under the Fits Allis Chalmers (AGCO), White, Fiat, Steiger, Deutz, and Same nameplates. The compressor features a vertical 1-inch tube O-ring fitting, a 2-groove pulley (5.19-inch / 132mm diameter), 12-volt clutch coil at the 12 o'clock position, R134 PAG oil compatibility, and an oil capacity of approximately 6.99 oz. (207cc). Compressor head type is C. Fits Allis Chalmers: 6670, 6680, 6690, 7600, 7630, 7650, 8610, 8630, 9130, 9150, 9170, 9190, 9435, 9455, 9630 (s/n 921001 and later), 9635, 9650 (s/n 941001 and later), 9655, 9670 (s/n 961001 and later), 9675, 9690 (s/n 981001 and later), 9695, 9815 White (Oliver/Minneapolis-Moline): 2-85, 2-88, 2-110, 2-135 (s/n 299208 and later), 2-155 (s/n 299208 and later), 2-180 (s/n 301922 and later), 4-210, 4-225, 4-270, 60 American, 80 American, 100, 120, 125, 140, 145, 160, 170, 185, 195, 6065 (s/n 51001 and later), 6085 (s/n 1566 and later), 6105 (s/n 1402 and later), 6124, 6125, 6144, 6145 (s/n 641001 and later), 6175 (s/n 661001 and later), 6195 (s/n 681001 and later), 2-105 Fiat: F100, F100DT, F110, F110DT, F115, F115DT, F130, F130DT, F140, F140DT, 140-90, 140-90DT, 160-90, 160-90DT, 180-90, 180-90DT Steiger: Bearcat, CM225, CM250, CM280, CM325, CM360, KM225, KM280, KM325, KM360, SM325, Tiger, WC Series I/II, BC Series I/II, CM Series IV, KM Series IV, SM Series IV, CU-Industrial Series, CA-Industrial Series Deutz: D6507, D6507C, D7007, D7007C, D7207, D7807, D7807C AGCO: GT55A, GT65A, GT75A, 8360 AGCOSTAR, 8425 AGCOSTAR Same: Row Crop 90 Note - Serial number restrictions apply to several models listed above. Verify your serial number against the ranges shown before ordering. 72162168, 72201567, 72275276, 72276373, 303373000, 30-3373029, 303373029, 351224T9, 351224T91, 500-1434, 500-496, 500-676, 504-1427, 504-1434, 504-1443, 51219592, 5744781, 9114, 4525, 6625522, 6677, 6678, U4525, U6677, U6678 A-72162168, 351224T9-R, AMX10131 New aftermarket replacement part - not remanufactured, not used.One New Aftermarket Replacement A/C Compressor with Clutch Fits Allis Chalmers, White, Fiat, Steiger, Deutz, and AGCO Tractors
Specifications
Compatible Models
Replaces Part Number(s):
Aftermarket Interchange Numbers
