Product Description

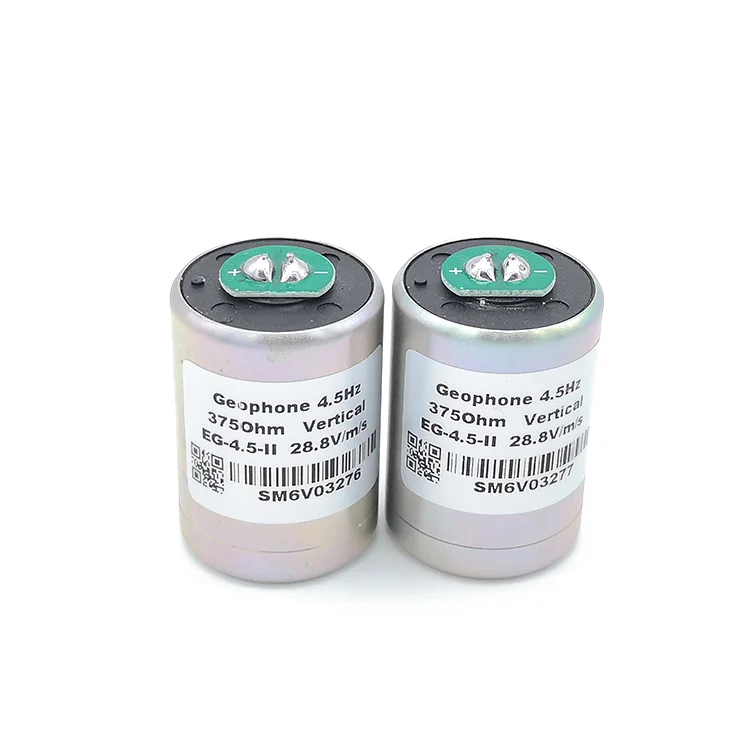

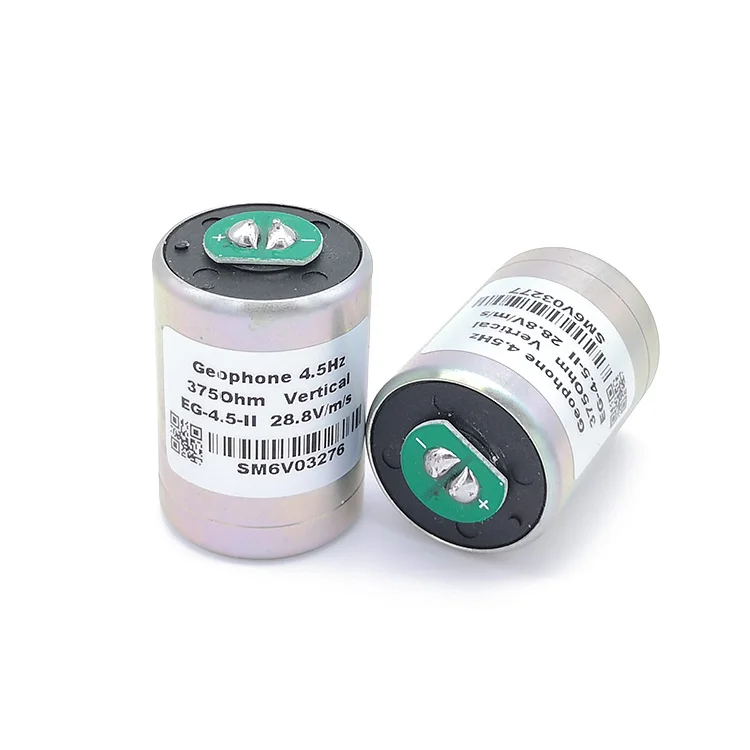

Geophone Element 4.5Hz Vertical
Geophone Response Curve and Phase Lag of Geophone 4.5Hz
Specification
All parameters specified here in are rated at a temperature 20°C±2°C .
|
Type
|
EG-4.5-II
|
|
Natural Frequency ( Hz )
|
4.5±10%
|
|
Coil resistance(Ω)
|
375±5%
|
|
Damping
|
0.6±5%
|
|
Open circuit intrinsic voltage sensitivity ( v/m/s )
|
28.8 v/m/s ±5%
|
|
Harmonic distortion ( % )
|
0.2%
|
|
Typical Spurious Frequency (Hz )
|
150Hz
|
|
Moving Mass ( g )
|
11.3g
|
|
Typical case to coil motion p-p ( mm )
|
4mm
|
|
Allowable Tilt
|
20º
|
|
Operating Temperature Range
|
-40°C to +100°C
|
|
Height ( mm )
|
36mm
|
|
Diameter ( mm )
|
25.4mm
|
|
Weight ( g )
|
86g
|
|
|
