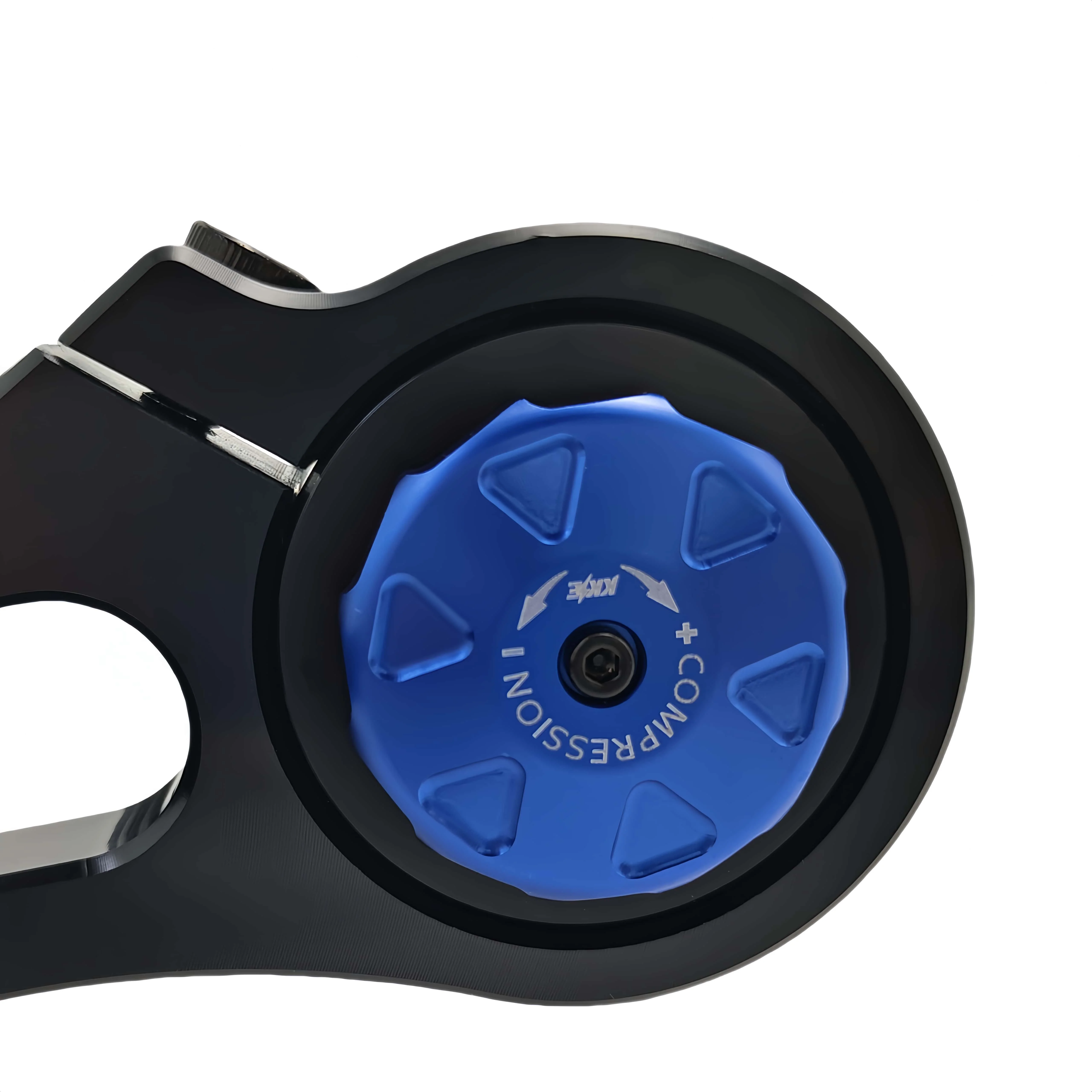

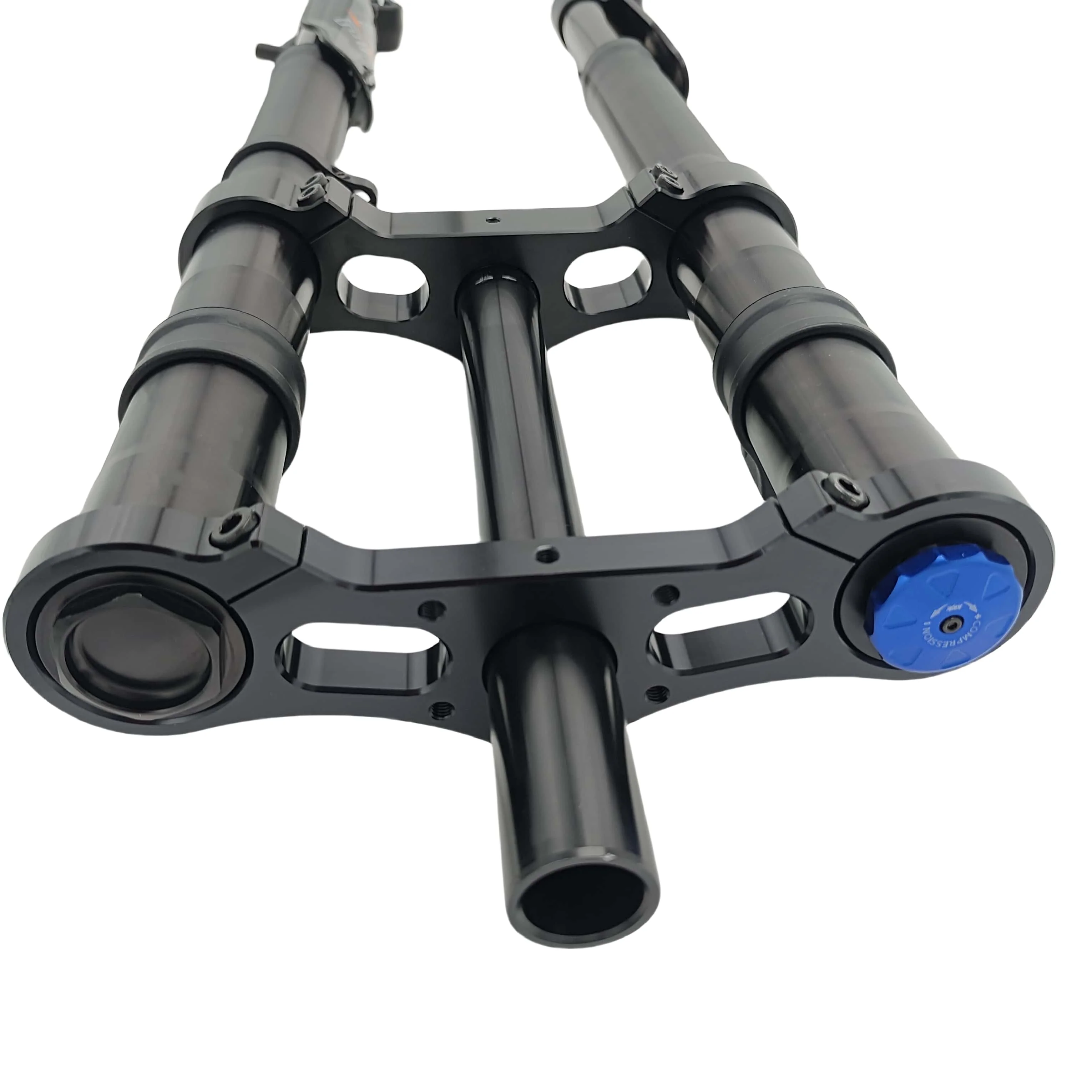

Compression Adjustment Knob (Blue)

Compression adjustment function:Rotate clockwise to increase the compression damping value and make the shock absorber stiffer.

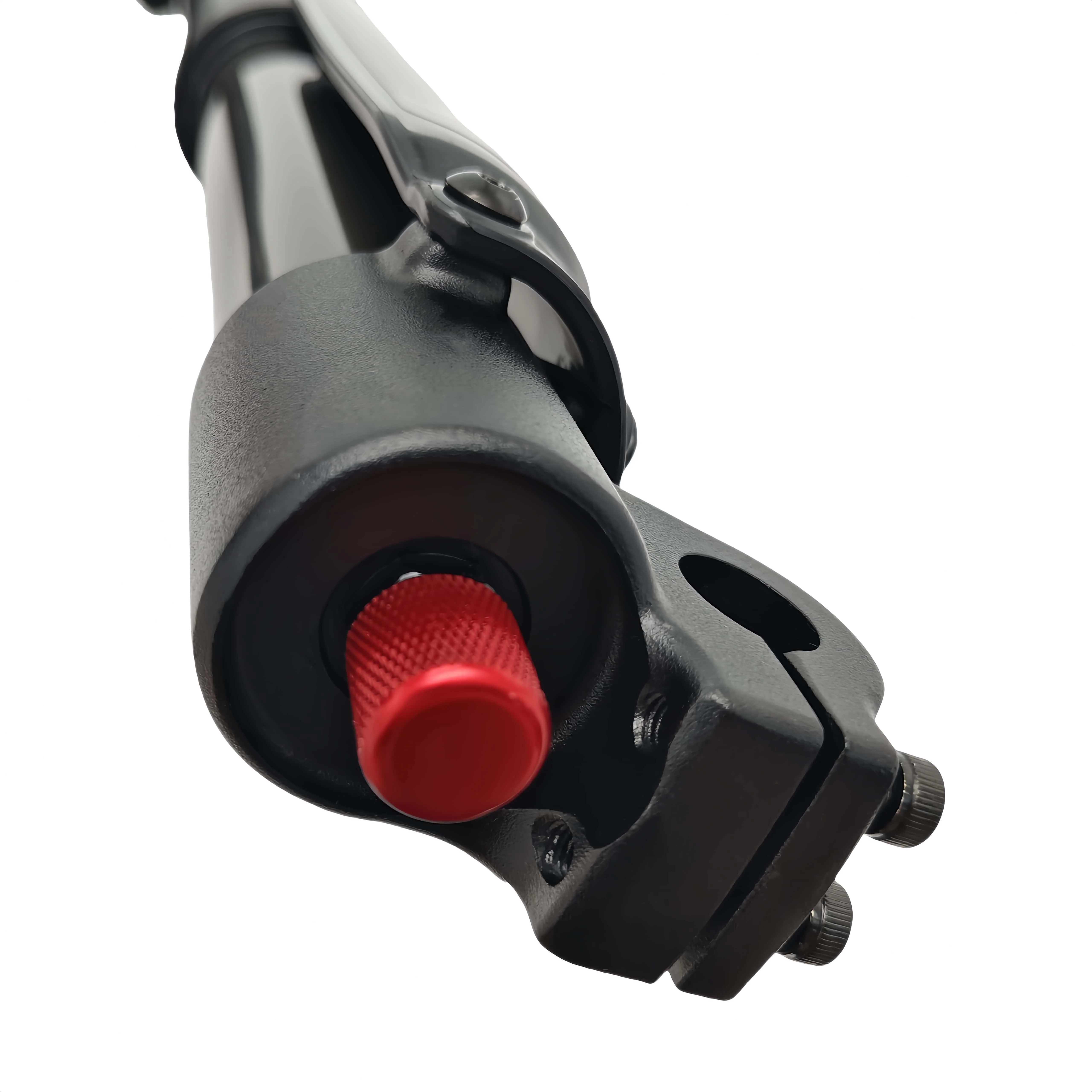

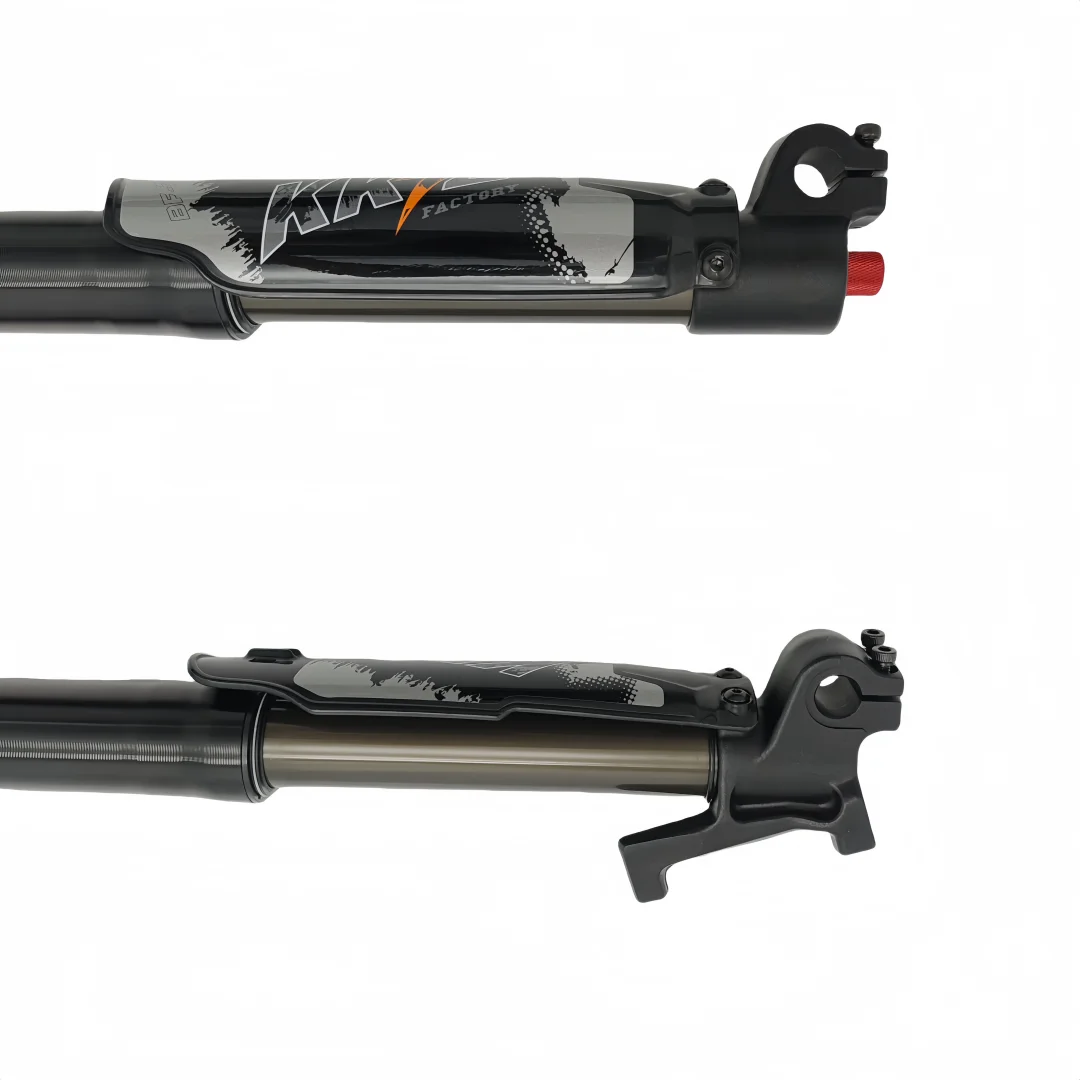

Reset Adjustment Knob (Red)

Rotate clockwise to slow down the rebound speed.







Specification:



Brand: KKE 660MM

Wheel size: 20/24 inch

Alex to crown height: 660±3mm ( 25.98 inch )

Travel: 163±2mm

Steerer tube: 28.6mm (1.13 inch) (Straight)

Drop out/Crown material: AL

Outer tube: 42mm (1.65 inch) / AL

Inner tube: 30mm(1.18 inch) /AL Hard Anodized

Down tube: 15mm ( 0.59 inch ) x135mm; Thru-axle Design AL-6061

Features: Inverted fork

Inner structure: Coil spring / Air spring

Adjustments: Preload / Rebound / Air Pressure Adjustable

Riding style: Snow / Fat Bike

Brakes: disc brakes

Color: Black



Brand: KKE 750MM

Wheel size: 26/27.5 inch

Alex to crown height: 750±3mm (29.53 inch )

Travel: 219±2mm

Steerer tube: 28.6±0.1mm (1.13 inch) (Straight)

Drop out/Crown material: AL

Outer tube: 42mm (1.65 inch) / AL

Inner tube: 34mm(1.34 inch) /AL Hard Anodized

Down tube: 15mm ( 0.59 inch ) x135mm; Thru-axle Design AL-6061

Features: Inverted fork

Inner structure: Coil spring / Air spring

Adjustments: Preload / Rebound

Riding style: Snow / Fat Bike

Brakes: Disc brakes

Color: Black
