Product Description
| |
||
| Products Specifications | ||
| System | CPU | RK3568,Quad-core cortex A17,1.8G |
| RAM | 2GB | |
| Internal memory | 16GB | |
| Operation system | Android | |
| Display | Panel | 10.1"LCD IPS panel |
| Resolution | 1280*800 | |
| Touch screen | 10-Point capacitive touch | |
| Active area | 216.96(H)x135.6mm(V) | |
| Viewing angle | 85/85/85/85(L/R/U/D) | |
| Display mode | Normally black ,IPS | |
| Contrast ratio | 800 | |
| Luminance | 300cd/m2 | |
| Aspect Ratio | 16:10 | |
| Network | WIFI | 802.11b/g/n 100M/1000M ethernet |
| BLE | BT 4.0 | |
| Ethernet | 10M/100M | |
| I/O ports | Card slot | SD card |
| USB | USB Host | |
| USB | USB for serial | |
| Micro USB | Micro USB OTG | |
| RJ45 with POE | RJ45 ,support POE | |
| POE | IEEE802.3at | |
| Power jack | DC power input | |
| Earphone | 3.5mm earphone | |
| Micphone | Yes | |
| Media plays | Video format | MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc.,support up to 4K |
| Audio format | MP3/WMA/AAC etc. | |
| Photo | jpeg | |
| Other | VESA | 75*75MM |
| NFC | 13.56MHz(Optional) | |
| Camera | Wide-angle 200W camera/Binocular camera(optional) | |
| Microphone | Microphone | |
| Speaker | 2*1.5W | |
| LED Light bar | LED light bar with RGB and mixed color | |
| Working temp | 0--40degree | |
| Certificates | CE/FCC/RoHS | |
| Language | Multi-language | |
Features:
(1) 10.1" touch screen with light bar
(2) RK3568 Quad core
(3) Running Android 11 OS
(4) 2GB RAM , 16GB ROM
(5) Landscape mode, G- sensor support
(6) Power supply support AC 110V ~240V and 48V POE
(7) POE / Front NFC fuction option

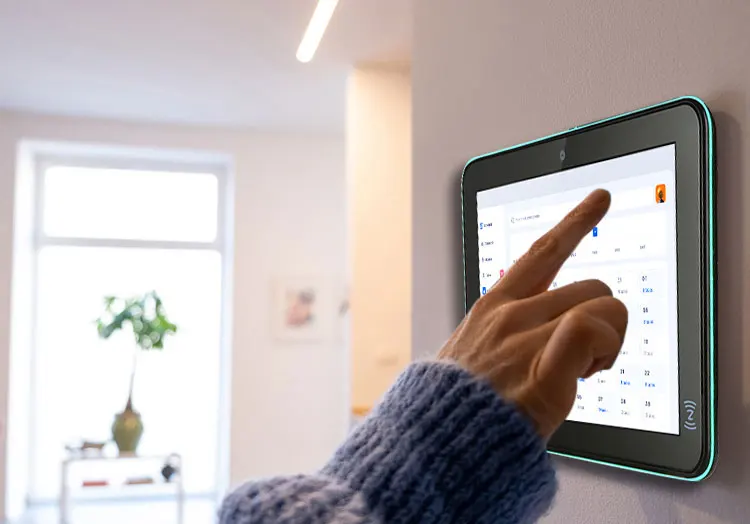

Scene Application
