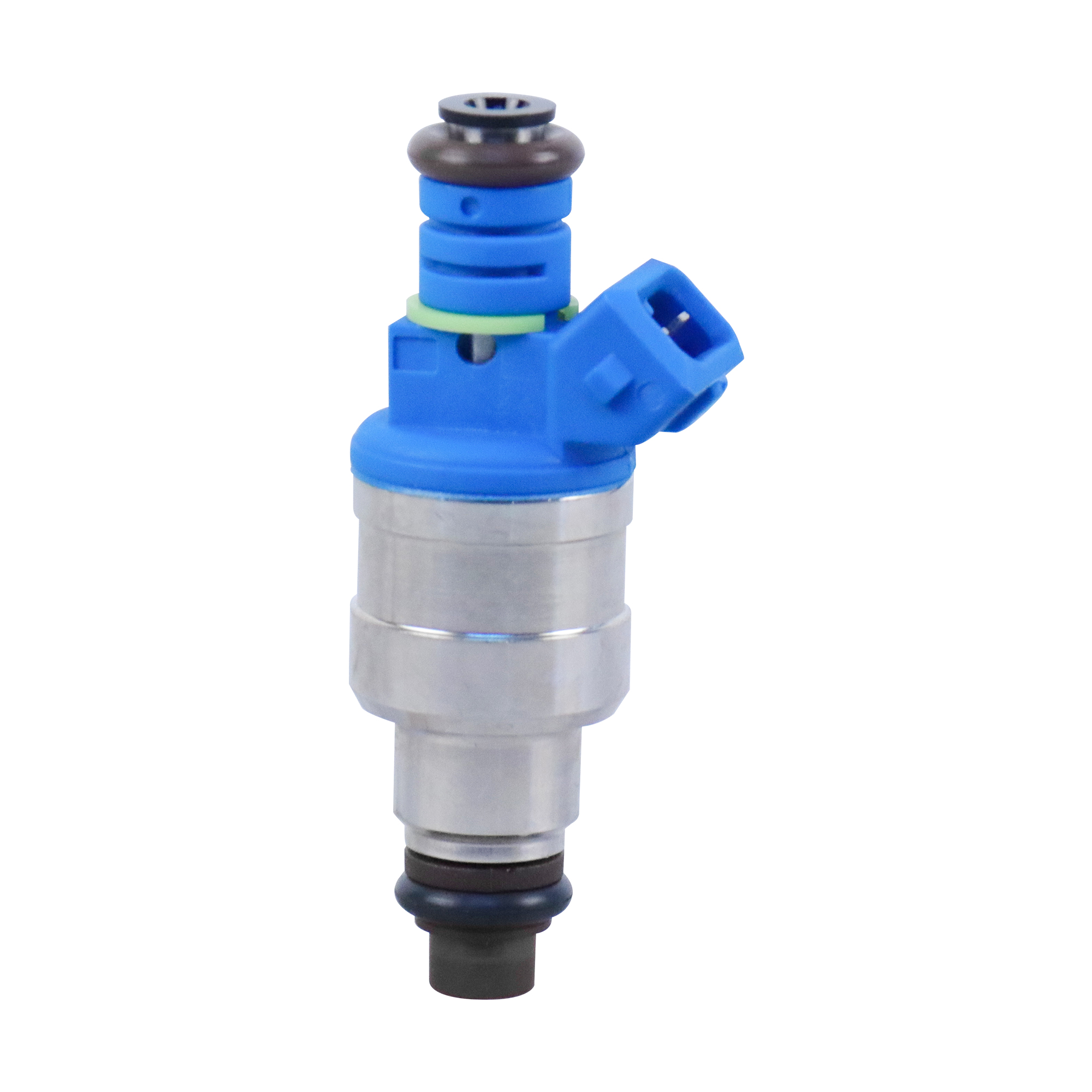

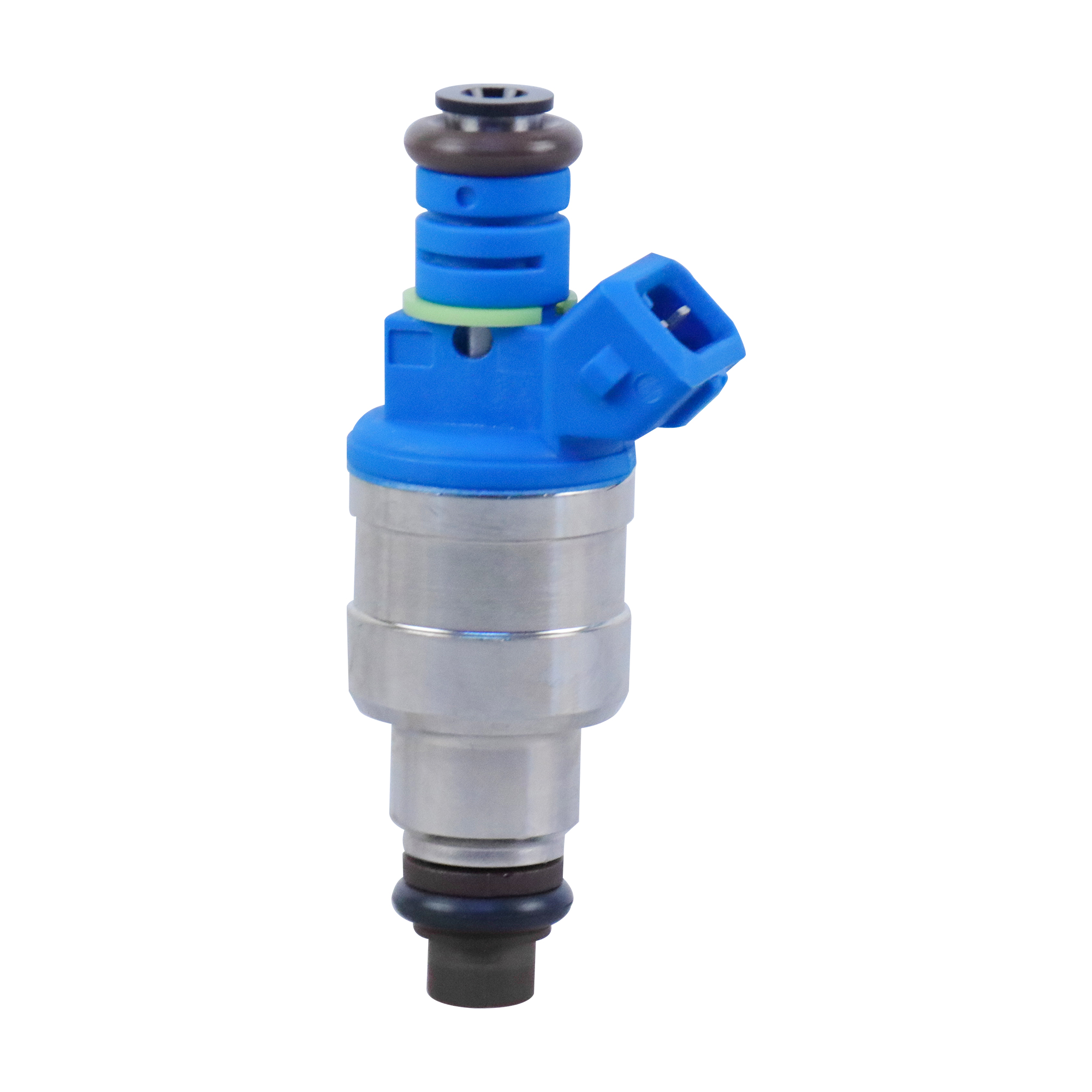

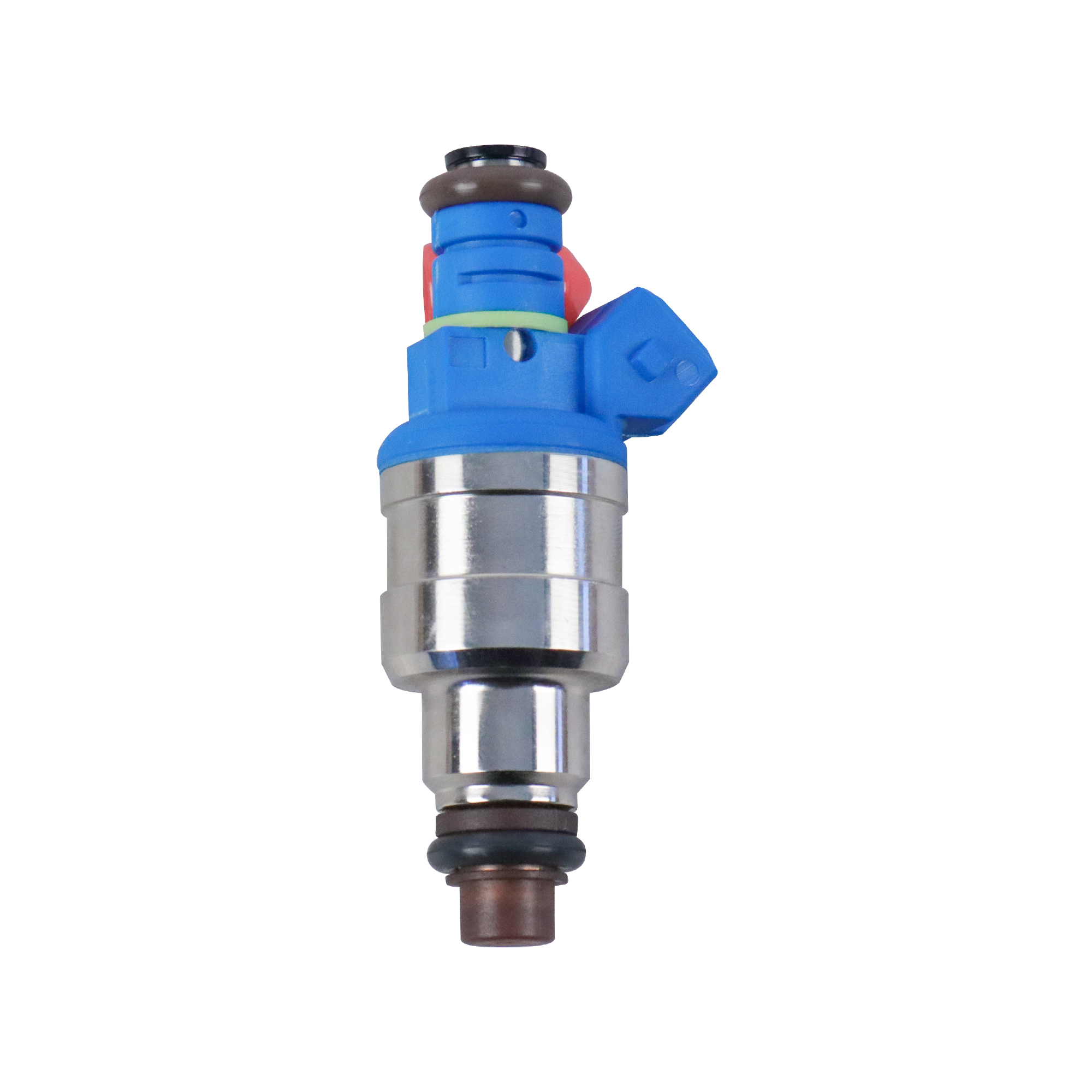

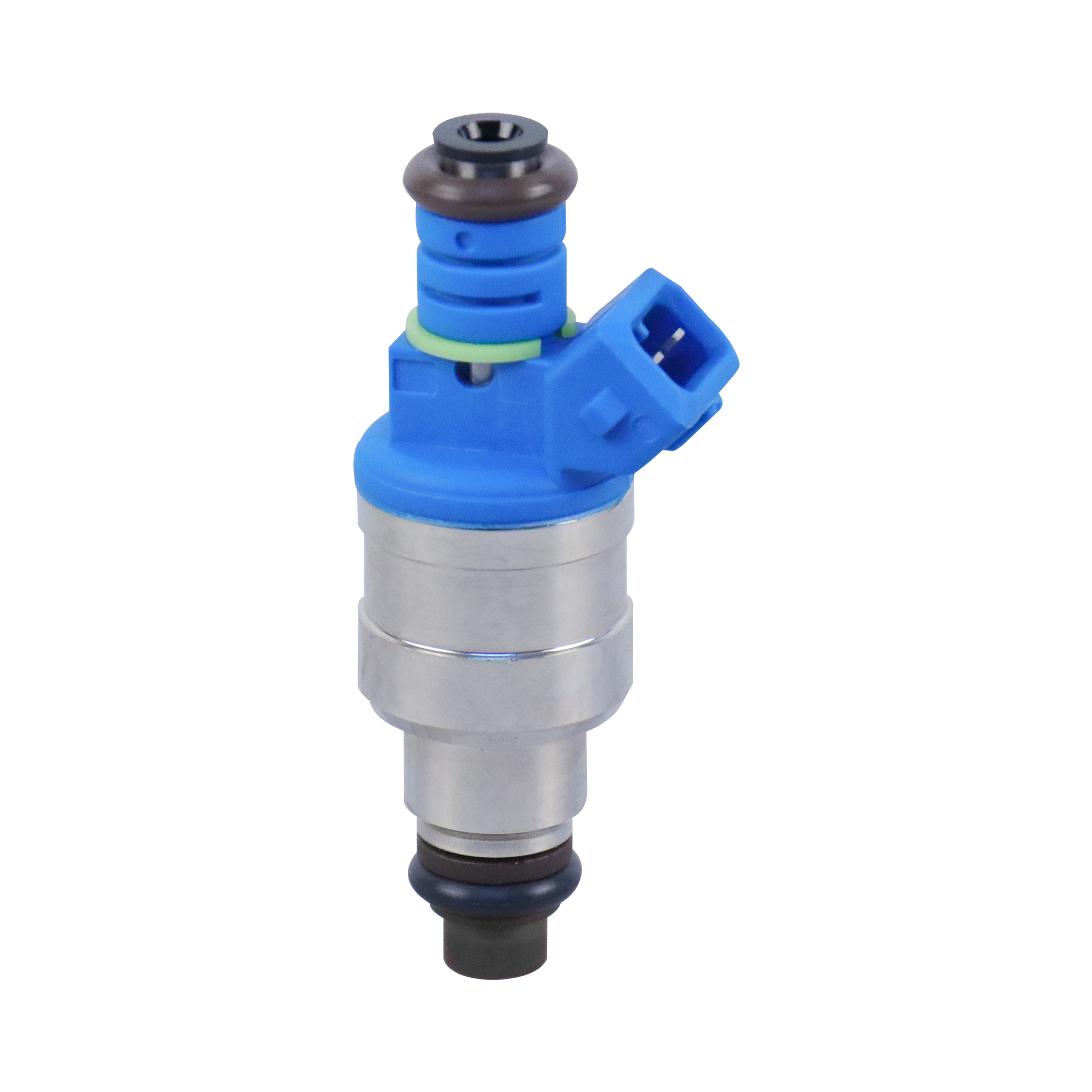

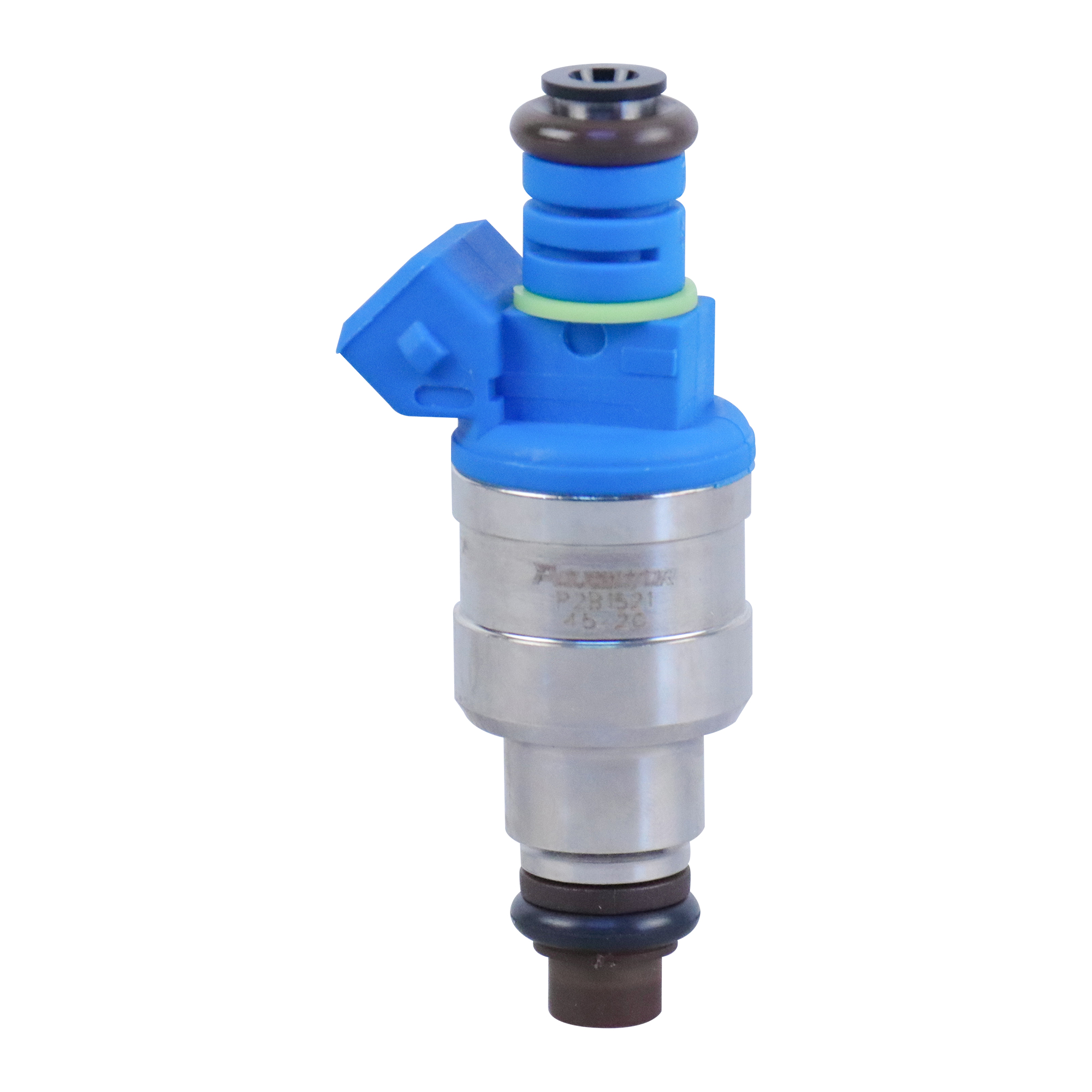

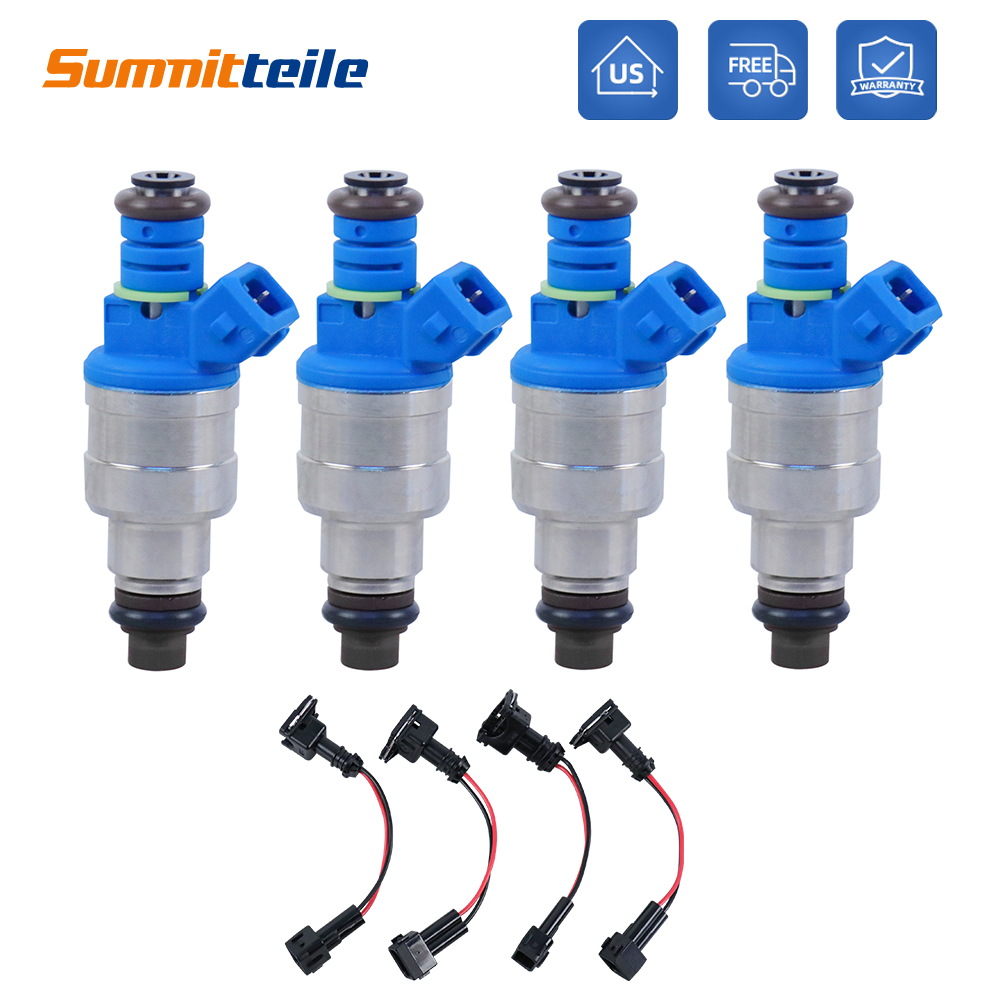

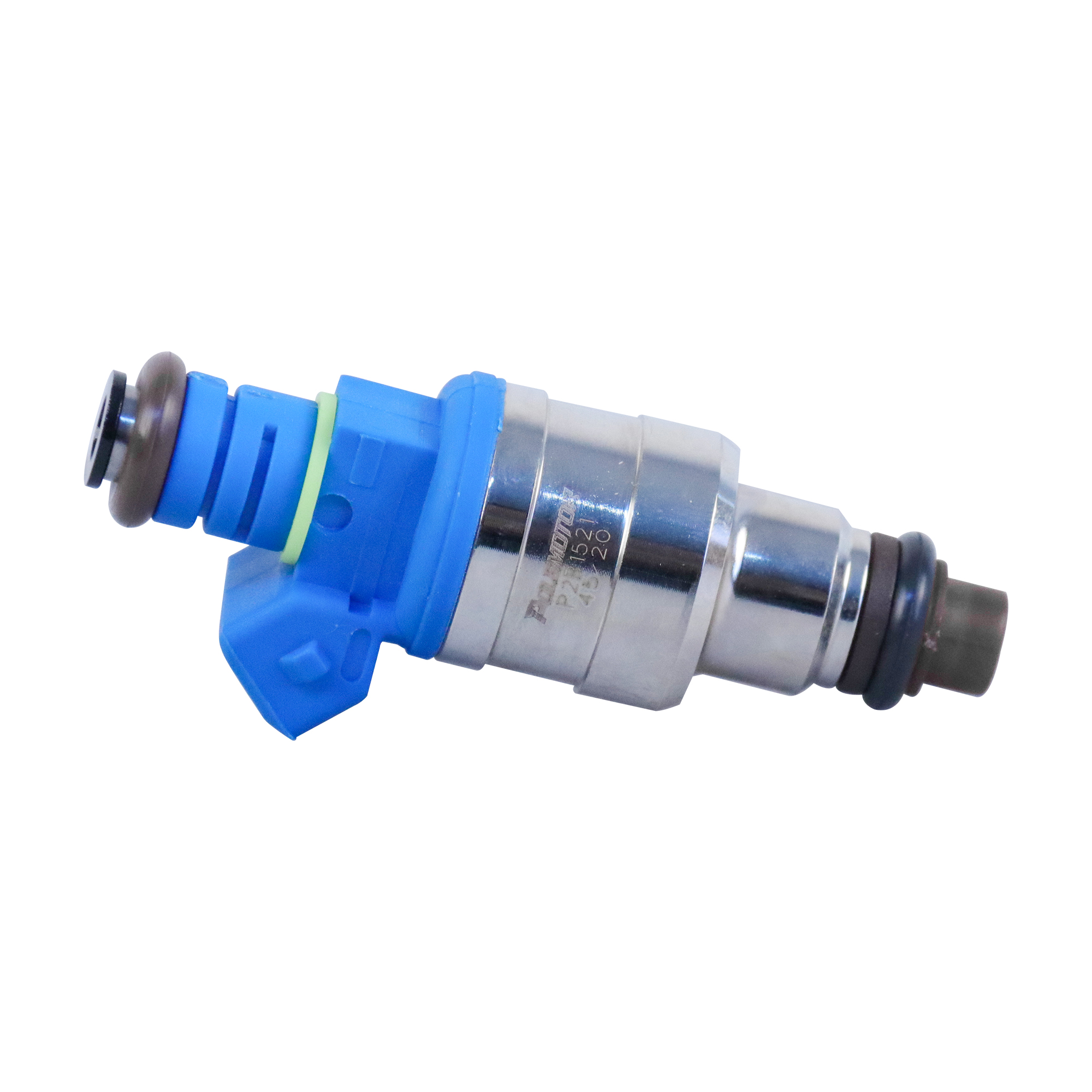

4PCS Blue Fuel Injectors 750CC EV1 For Mazda Miata Scion TC Toyota Celica GTS

ONE YEAR WARRANTY





These fuel injectors are not made by the original equipment manufacturers(OEM)(BOSCH & VDO etc.)They have been 100% tested and exactly match the internal coil resistance and fuel flow rate of OEM fuel injectors.The individual flow characteristics and fuel atomization of above fuel injectors are almost same to or superior to the OEM and will help accelerate response time , save gasoline and improve MPG.



Features:

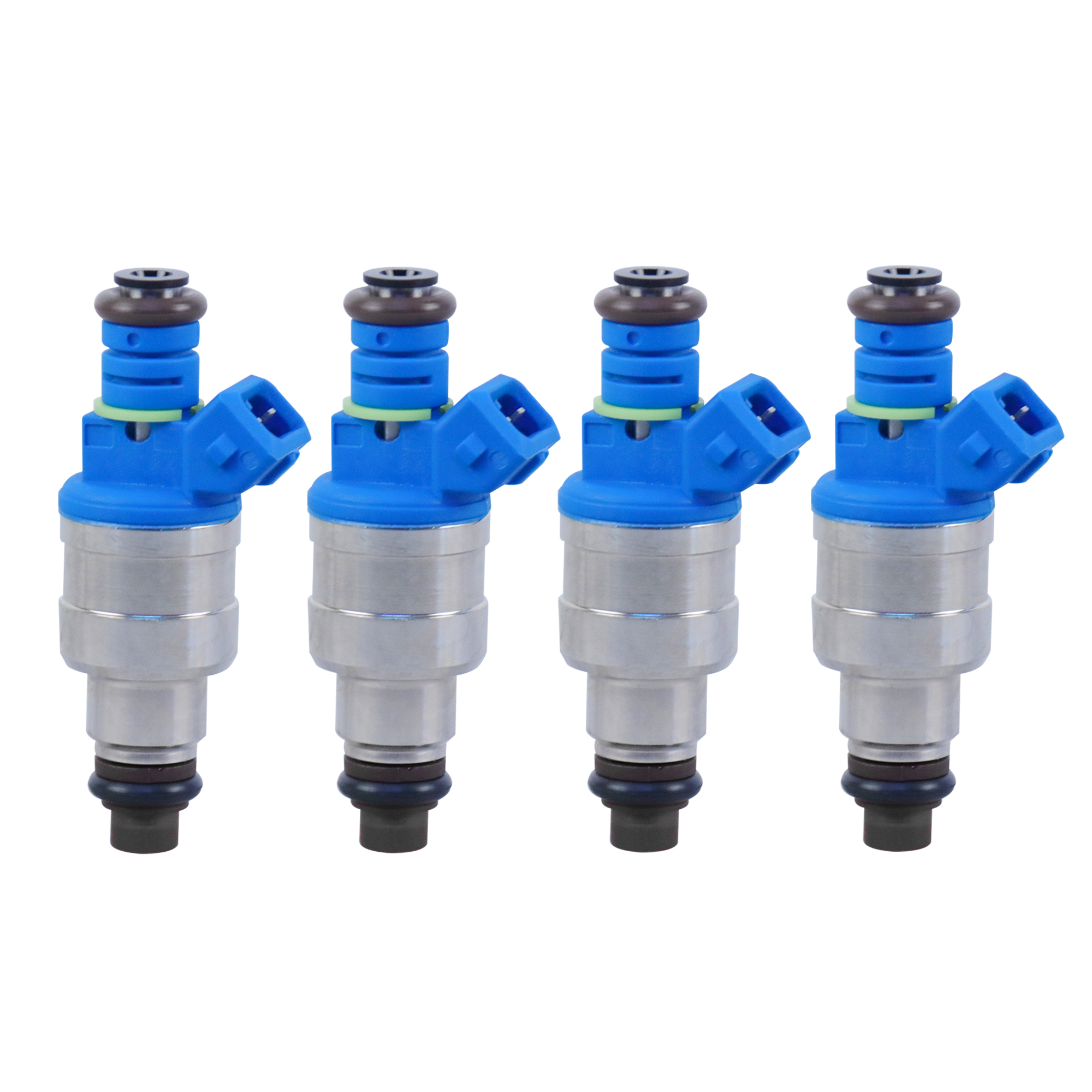

Quantity: 4 Fuel Injectors

Condition: 100% BRAND NEW

O-Rings Included: Yes, preinstalled

Injector Design: Metal & composite plastic

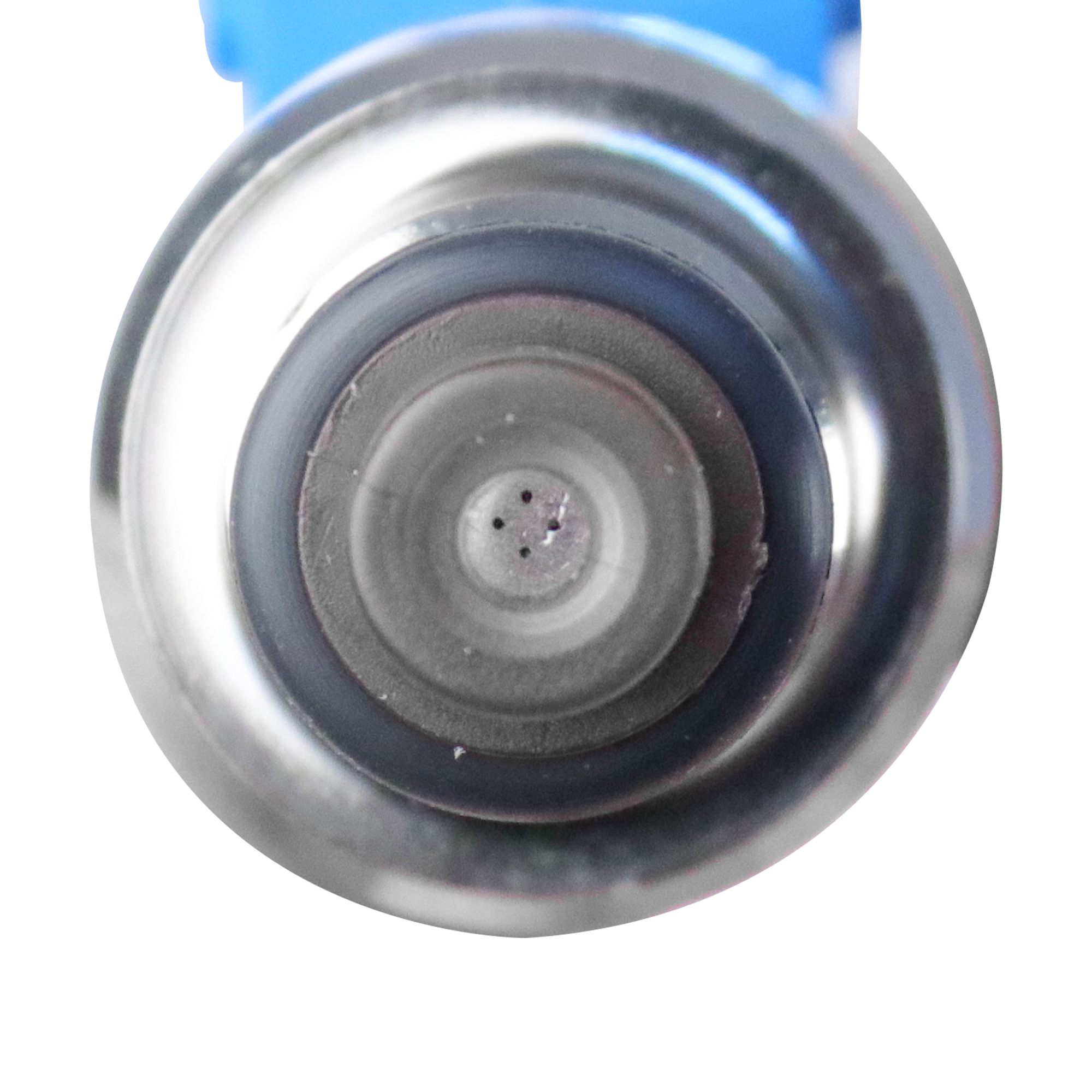

Nozzle Design: one hole disc

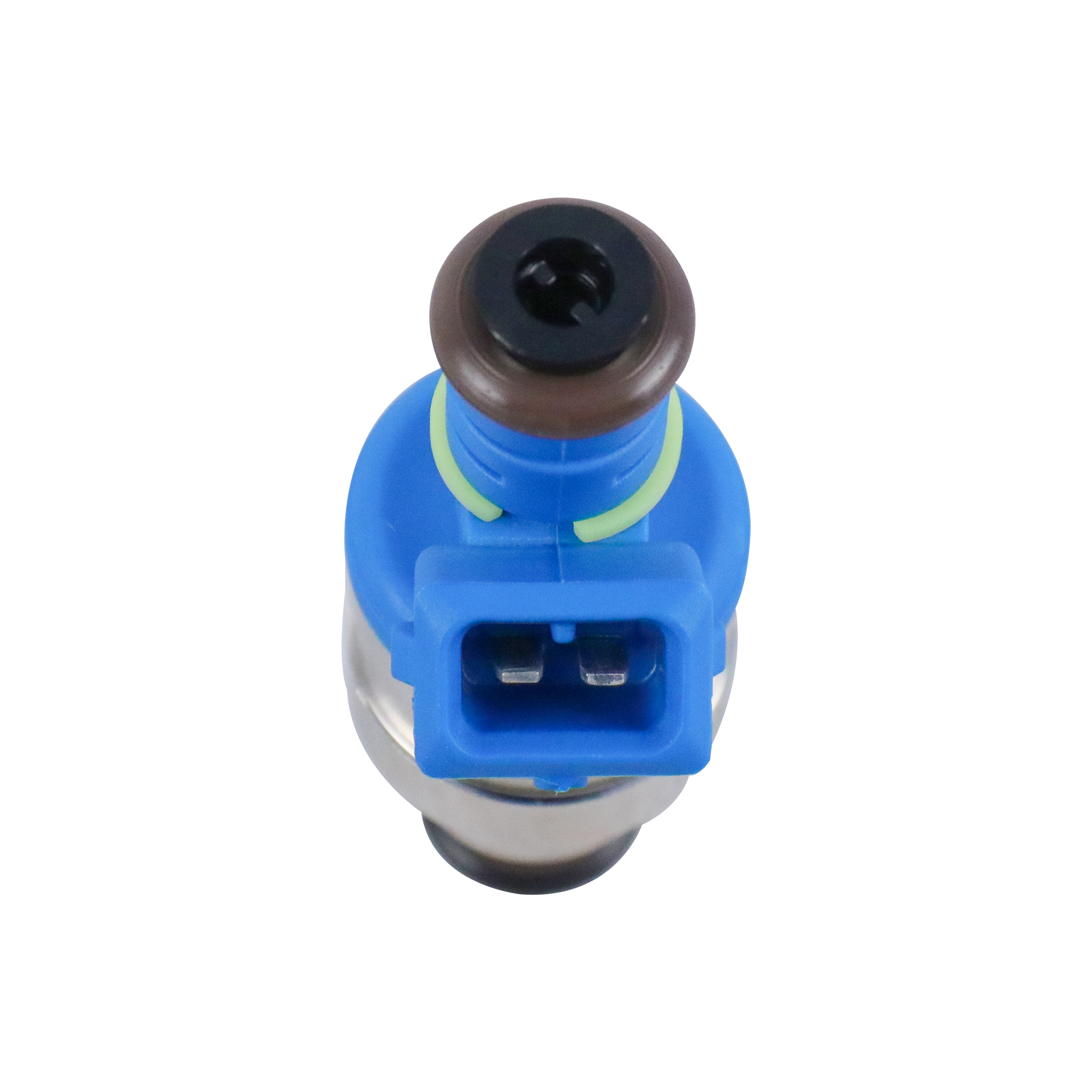

Connector Type:  EV1

Filter Design: Basket filter design at inlet

Fuel Delivery: Upgraded One-hole disc fuel delivery nozzle for superior fuel atomization





Technical Data:

Coil Resistance: 12.5 Ohms / High Impedance
Static Flow Rate: 750 cc/min @ 43.5PSI ( 300kPa )
Gain: 0.12ms/MG
Offset: 0.055ms
Turn on time @ 14VDC: 1.14ms
Turn off time: 0.85ms @ 300KPa

Amperage: 1.0 Amps
Pressure: Min 30PSIG/ Max 100PSIG
Variance:3%







Mechanical Spec:

Length: 3" (76mm)

Top O-Ring Diameter: 11mm



Application:

These high performance injectors will fit all of the following models
ALL Mitsubishi Eclipse Turbo (4G63T) (Standard is Low Impedance, but these High Impedance can also be used)
ALL Mitsubishi Lancer Evolution (Models 1-9 including EVO VIII, IX) (Standard is Low Impedance, but these High Impedance can also be used)
ALL Eagle Talon Turbo (4G63T) (Standard is Low Impedance, but these High Impedance can also be used)
ALL Plymouth Laser Turbo (4G63T) (Standard is Low Impedance, but these High Impedance can also be used)
ANY 4G63T Engine (Standard is Low Impedance, but these High Impedance can also be used)

Fit for 1985-1987 Toyota MR-2 (Standard is Low Impedance, but these High Impedance can also be used)
Fit for 1988-1991 Toyota MR-2
Fit for 2000-2005 Toyota Celica GTS
Fit for 1990-2005 Mazda Miata
Fit for 1986-1988 Mazda Rx-7 ALL Models
Fit for 1989-1992 Mazda Rx-7 Turbo
Fit for 2005-2011 Scion TC
Fit for 2004-2011 Scion XB

All Toyota Celica GTS 2000+ Engines
All 2.4L Scion Engines
Any Lotus Elise with GTS Engine
Any Lotus Exige with GTS Engine

Note:
· All INJECTORS INCLUDE FREE EV1 CLIPS

· THESE HIGH PERFORMANCE INJECTORS WILL REQUIRE ECU TUNING

· Shipping Cost : Free to all 50 USA states

· After shipping, the tracking No. available by message
· We ship to eBay address
· No returns are accepted without an RMA number.

· Refund is valid within 60 days after the date delivered
· Refund will be given as money back(only order value) or replacement
· The money less the freight cost will be refunded due to their own fault
· Item must be returned in original packing same as reached

· Buyers are responsible for the return shipping cost.
· Buyers pay return and replacement shipping cost
· We will not refund any labor cost

· Any question will be replied within 24 hours except the weekend and holiday.
