ONE YEAR WARRANTY
Features

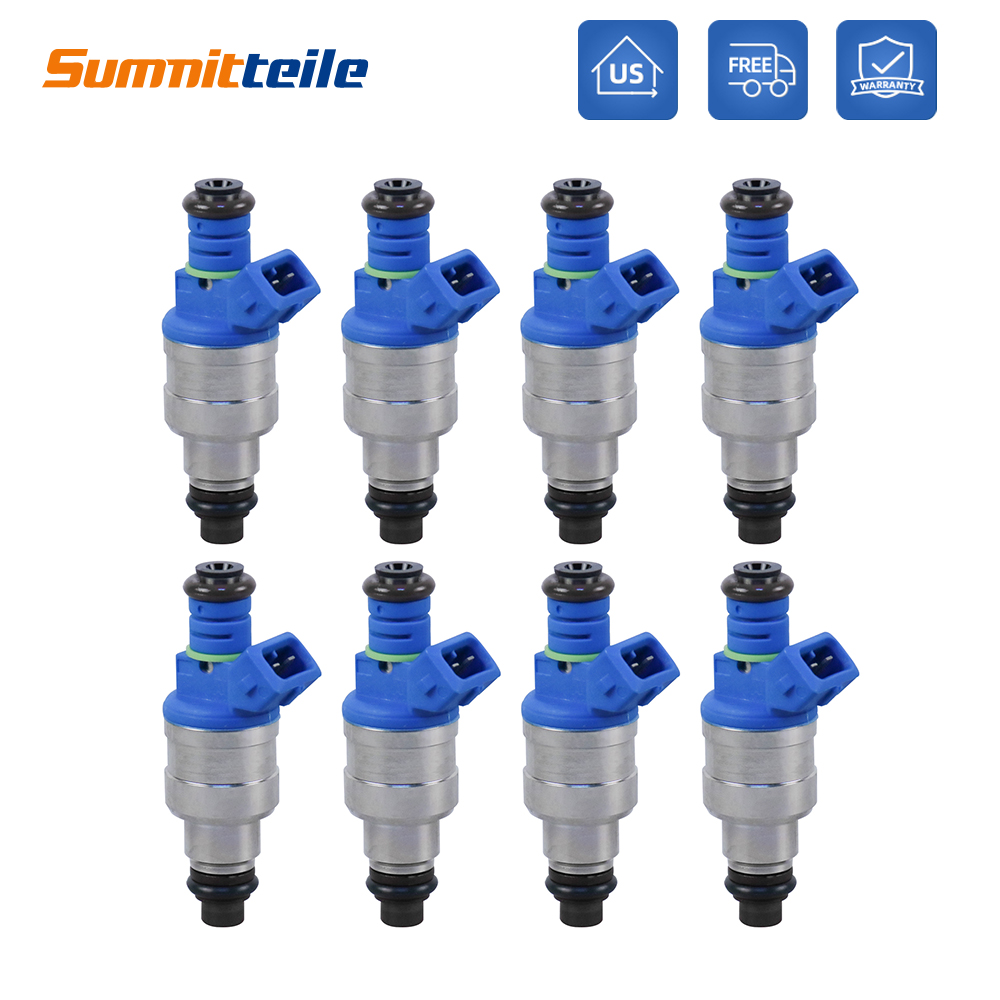

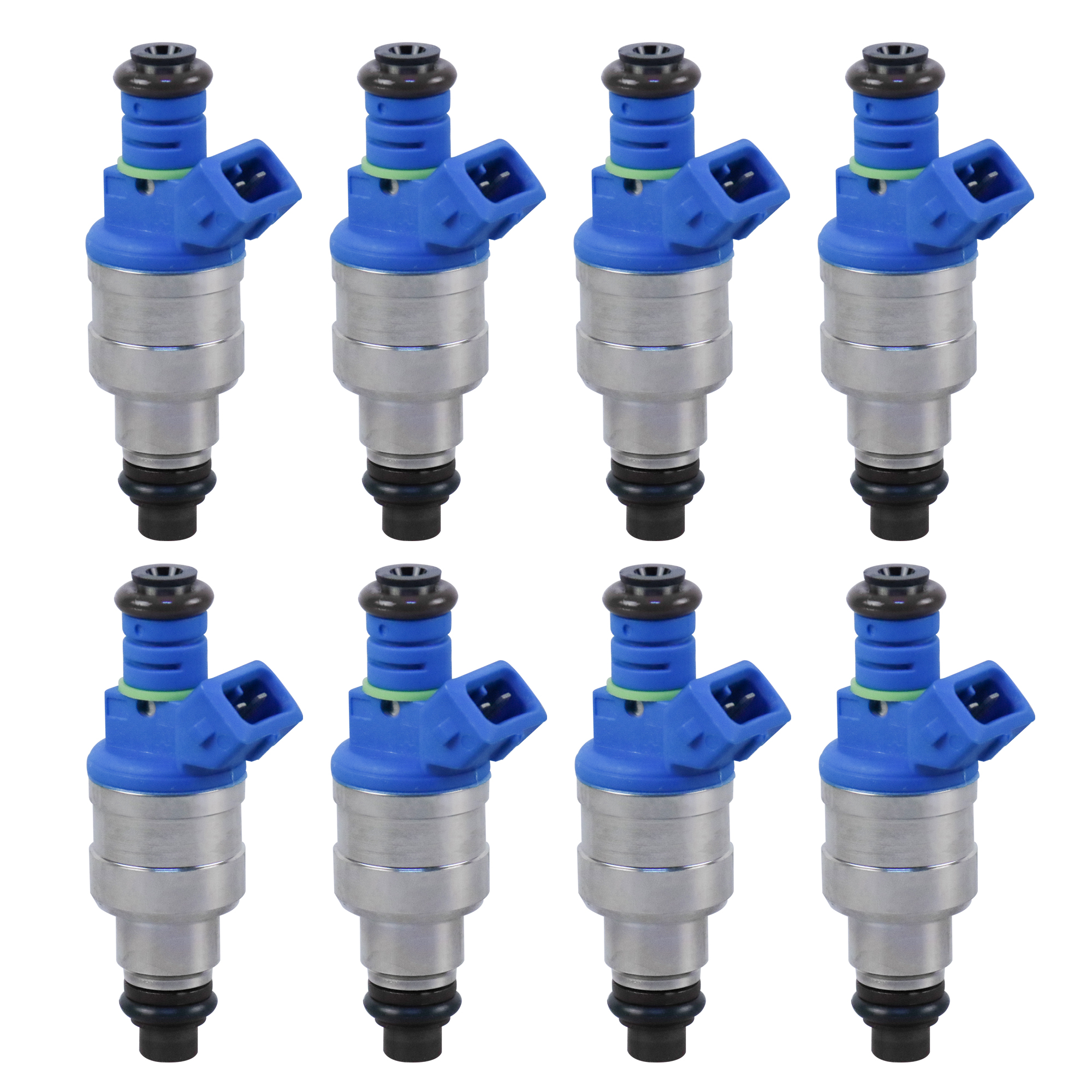

Quantity: 8 Fuel Injectors
Condition: 100% BRAND NEW

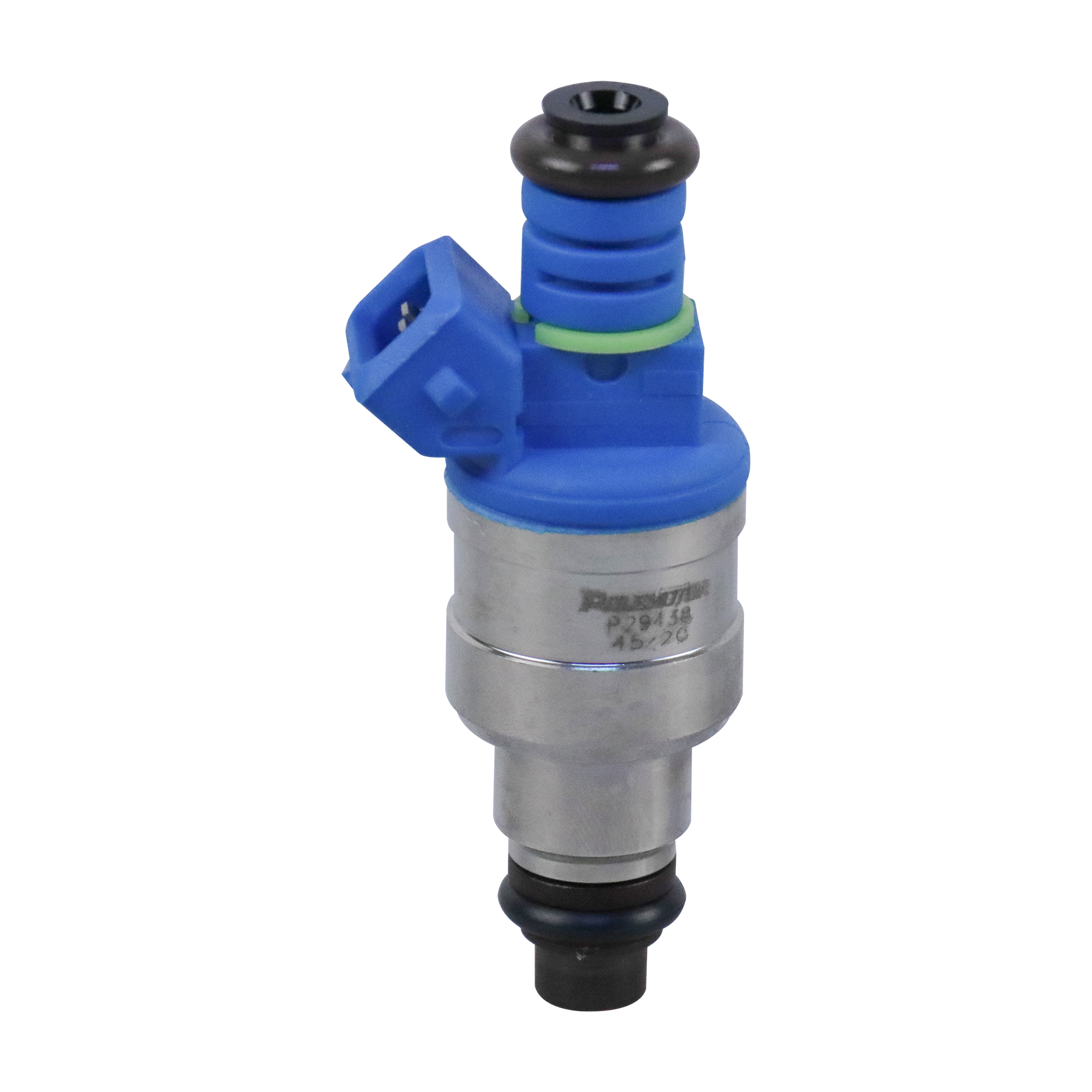

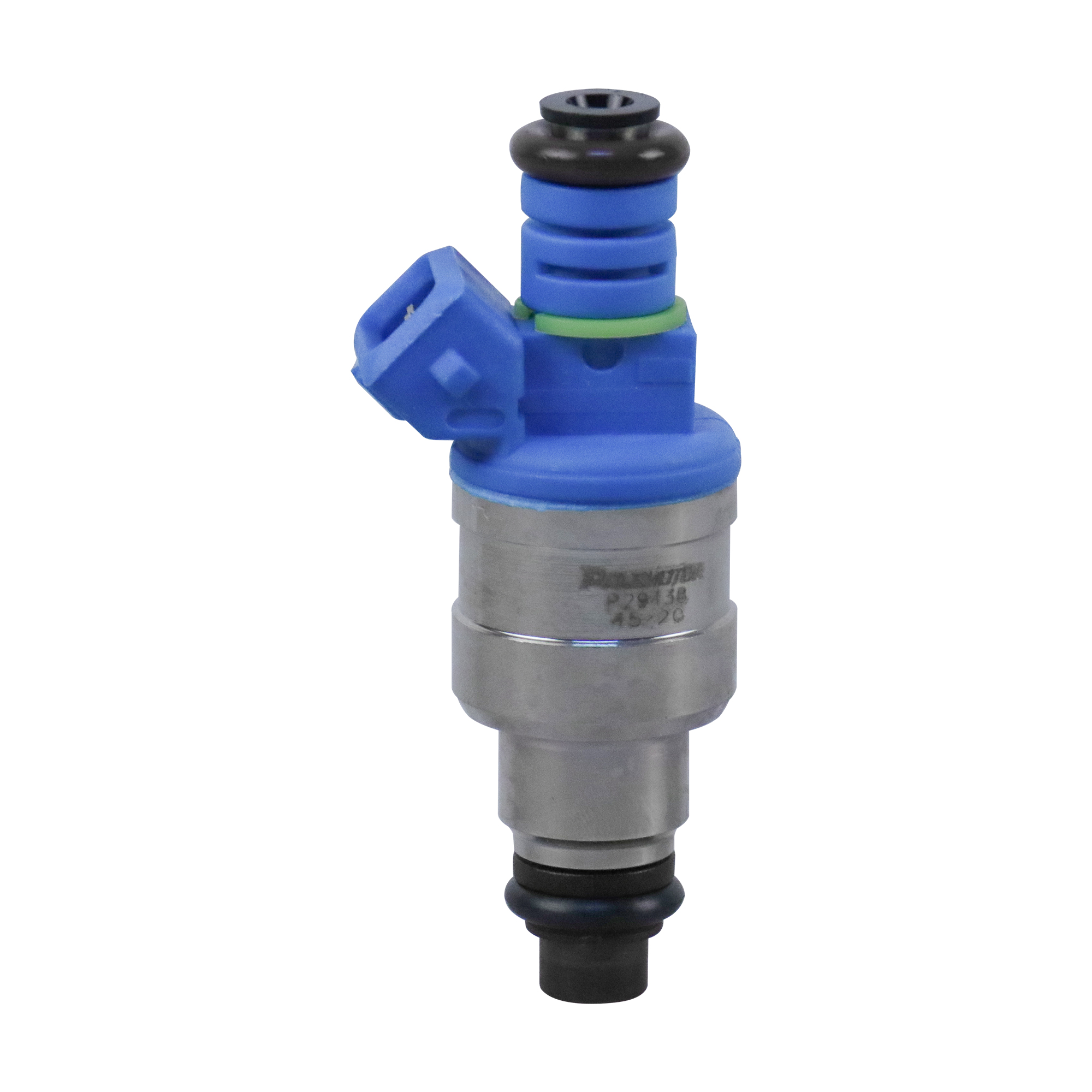

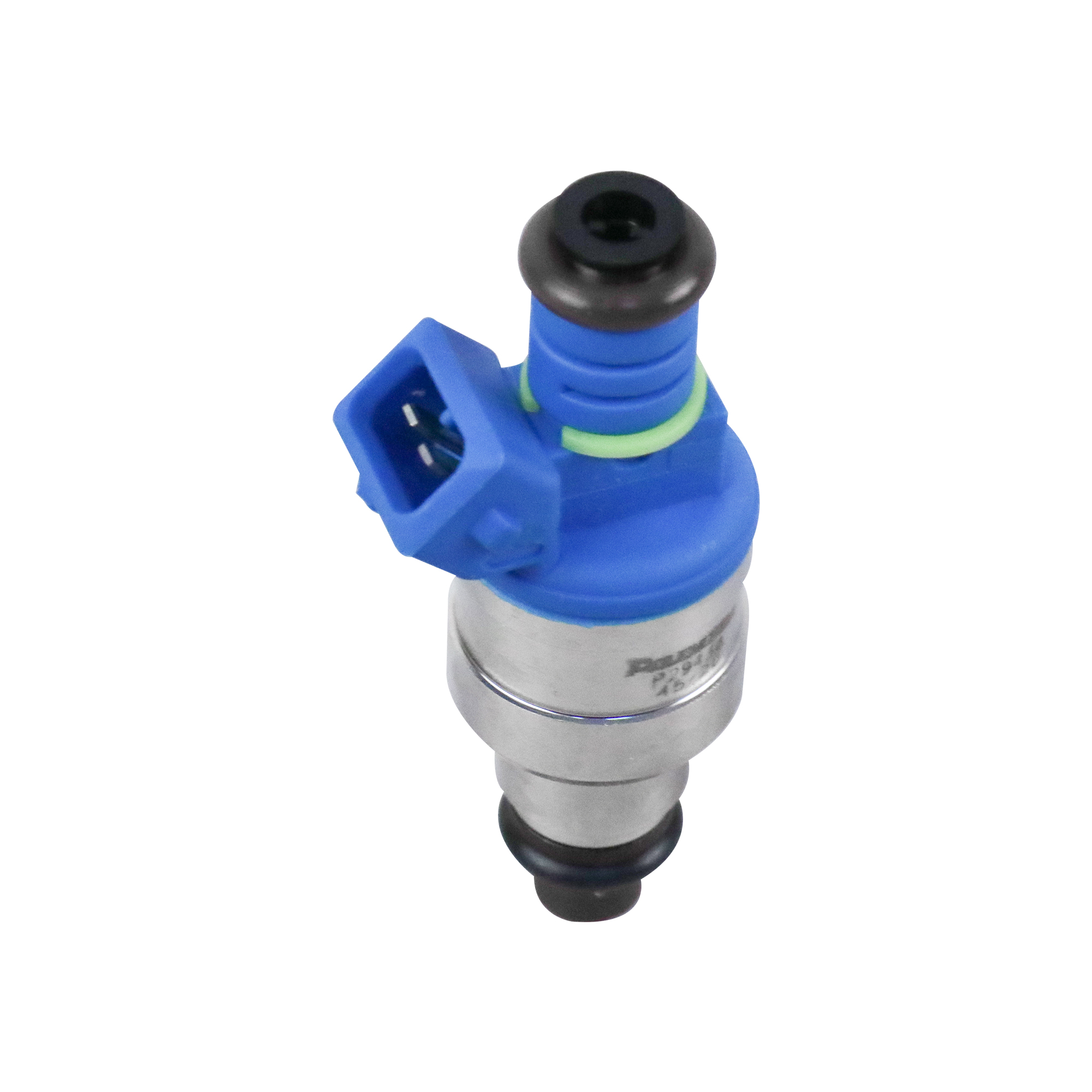

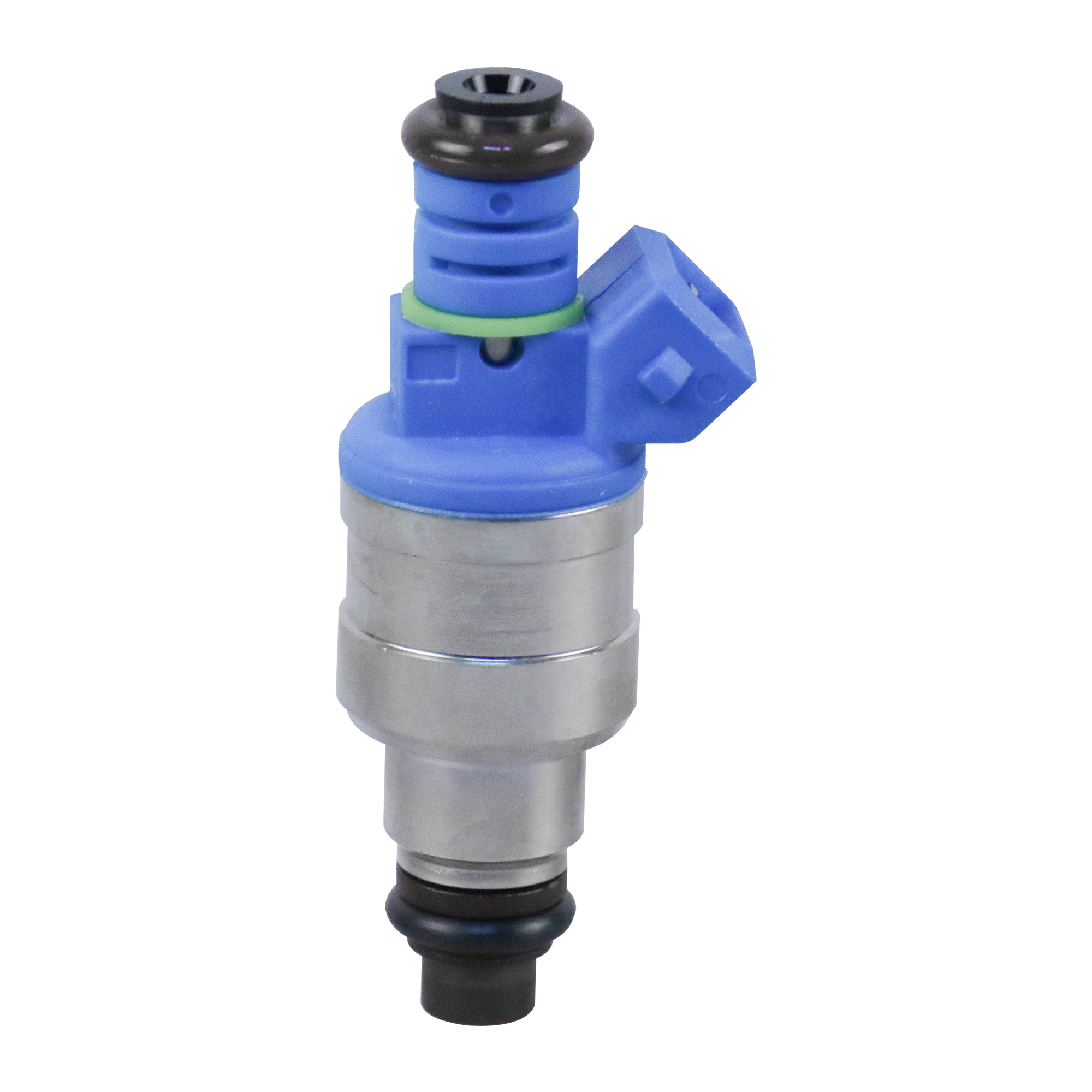

Design: Bosch GEN III EV1 Style Fuel Injector
O-Rings Included: Yes, preinstalled
Injector Design: Metal & composite plastic

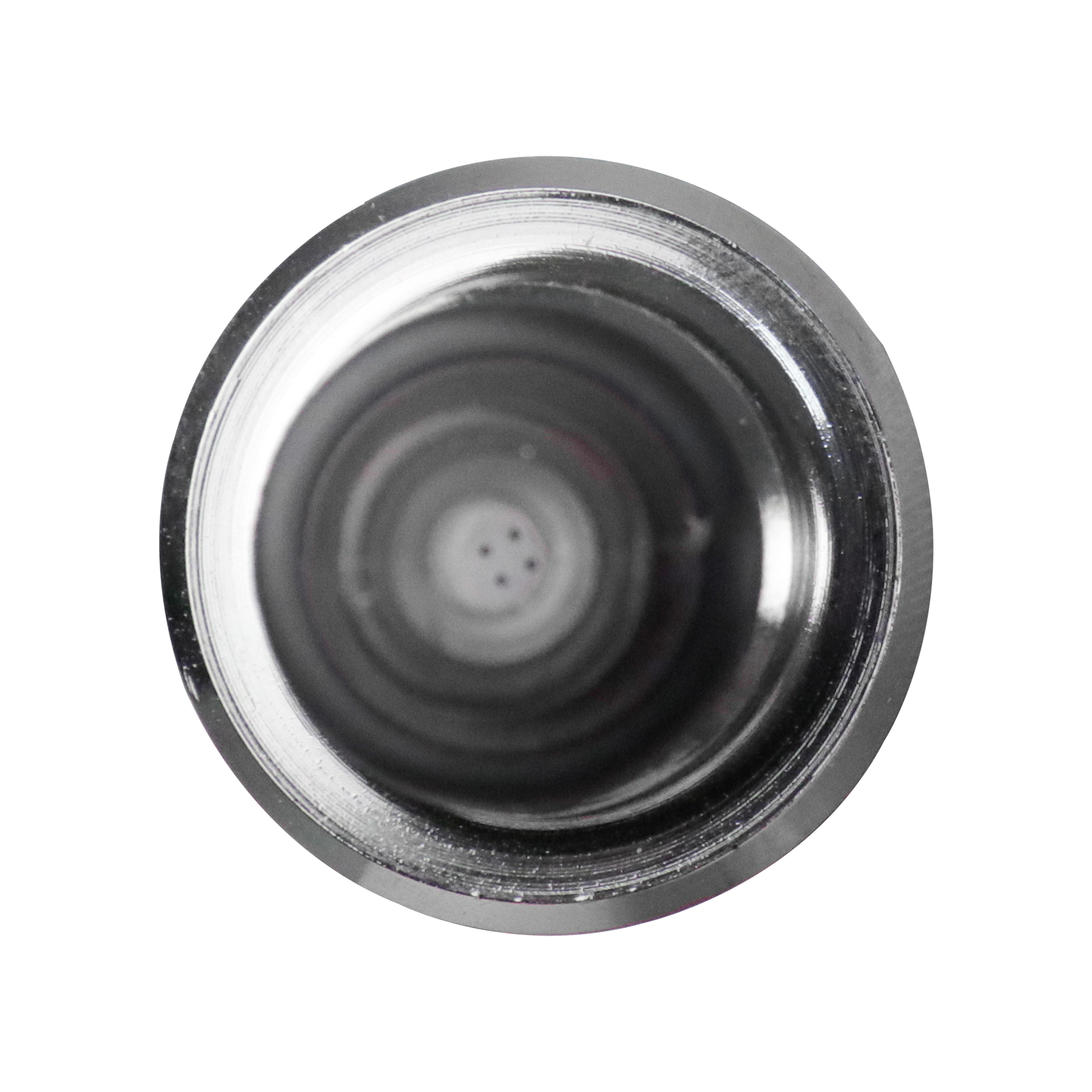

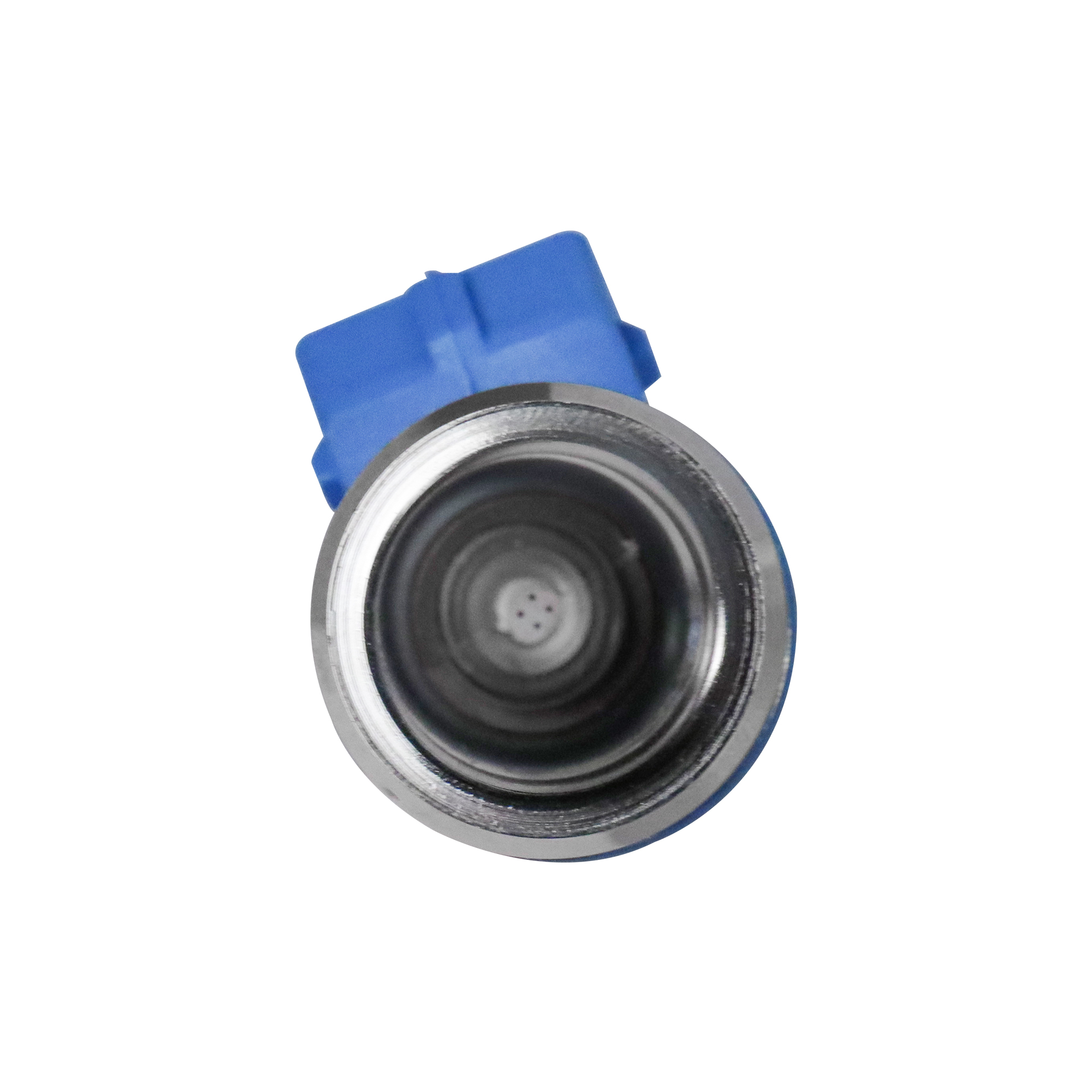

Orifice Type: 4 holes Disc

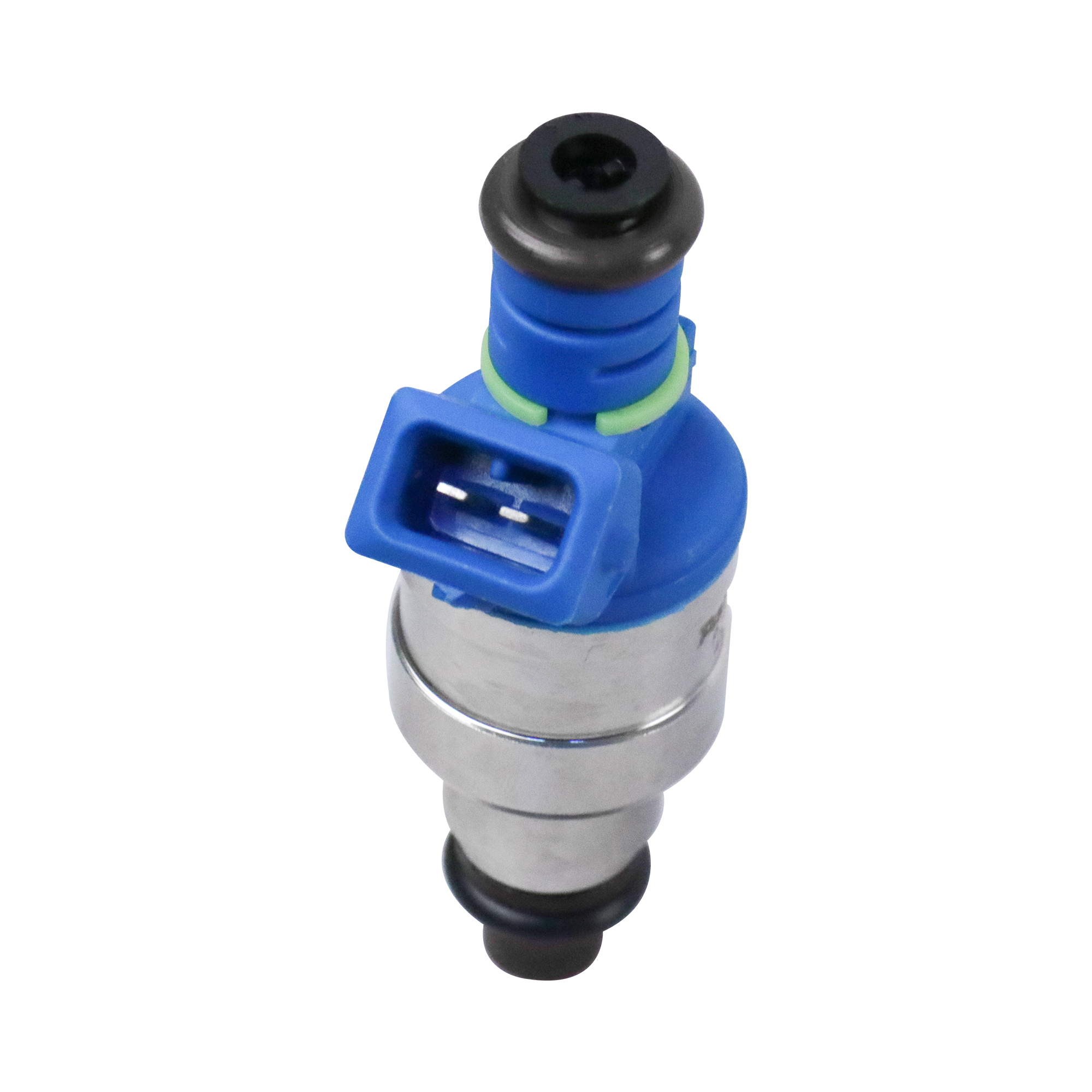

Connector Type: Bosch EV1
Filter Design: Basket filter design at inlet
Spray Pattern: 15 Degree Spray Cone
Condition: 100% BRAND NEW
Design: Bosch GEN III EV1 Style Fuel Injector
O-Rings Included: Yes, preinstalled
Injector Design: Metal & composite plastic
Orifice Type: 4 holes Disc
Connector Type: Bosch EV1
Filter Design: Basket filter design at inlet
Spray Pattern: 15 Degree Spray Cone
Specification
Coil Resistance: 12 Ohms / High Impedance
Static Flow Rate: 215cc/min at 43PSI
Gain: 0.12ms/MG
Offset: 0.055ms
Turn on time @ 14VDC: 1.14ms
Turn off time: 0.85ms @ 300KPa
Amperage: 1.0 Amps
Pressure: Min 30PSIG/ Max 100PSIG
Variance:2 %
Length: 3" (74mm)
O-ring to O-ring Length: 2 1/2 inches, 63 mm
Diameter: 16mm
O-Ring Diameter: 14.5mm
Static Flow Rate: 215cc/min at 43PSI
Gain: 0.12ms/MG
Offset: 0.055ms
Turn on time @ 14VDC: 1.14ms
Turn off time: 0.85ms @ 300KPa
Amperage: 1.0 Amps
Pressure: Min 30PSIG/ Max 100PSIG
Variance:2 %
Length: 3" (74mm)
O-ring to O-ring Length: 2 1/2 inches, 63 mm
Diameter: 16mm
O-Ring Diameter: 14.5mm
These High Impedance fuel injectors have been 100% tested and exactly match the internal coil resistance and fuel flow rate of OEM fuel injectors.The individual flow characteristics and fuel atomization of above fuel injectors are almost same to or superior to the OEM and will help accelerate response time , save gasoline and improve MPG.
The following is one installation instruction sample for 1995 Corvette LS1 for reference
