Product Description


Operating Status Description:
Headlights: When the headlight switch is activated, the front and rear headlights illuminate.
Horn: When the horn button is pressed, the horn sounds; releasing the button cancels the horn.
Brake Lights: When the brake signal line is properly connected to the controller's low-voltage brake signal, the brake lights illuminate when braking and turn off when braking is released (on the KT controller, some brake lights may remain constantly illuminated, with brighter illumination during braking, which is a normal phenomenon).
Turn signals: When the turn signal switch is moved to the designated direction, the corresponding turn signal begins to operate and flash, with a flashing frequency of approximately 800ms per flash.

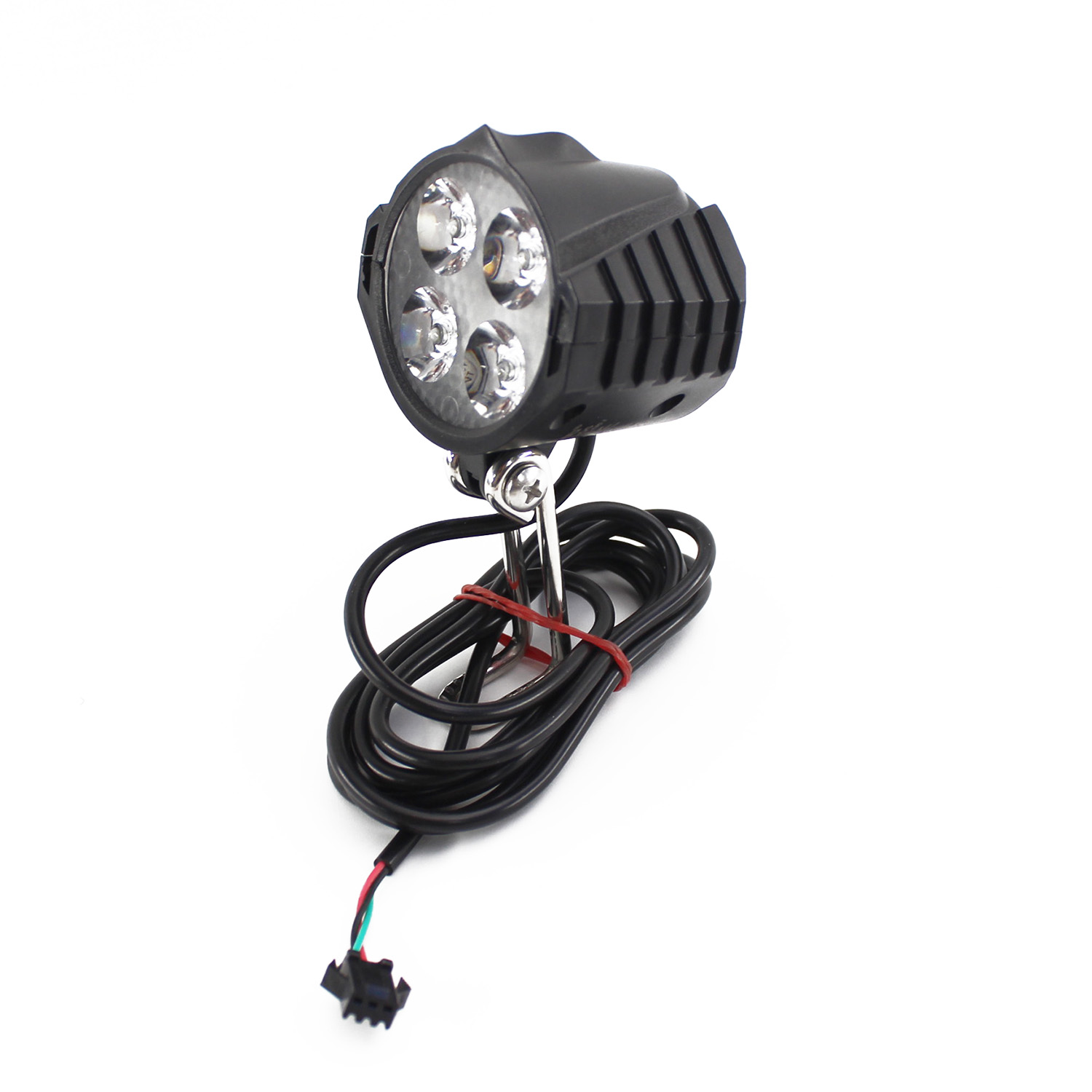

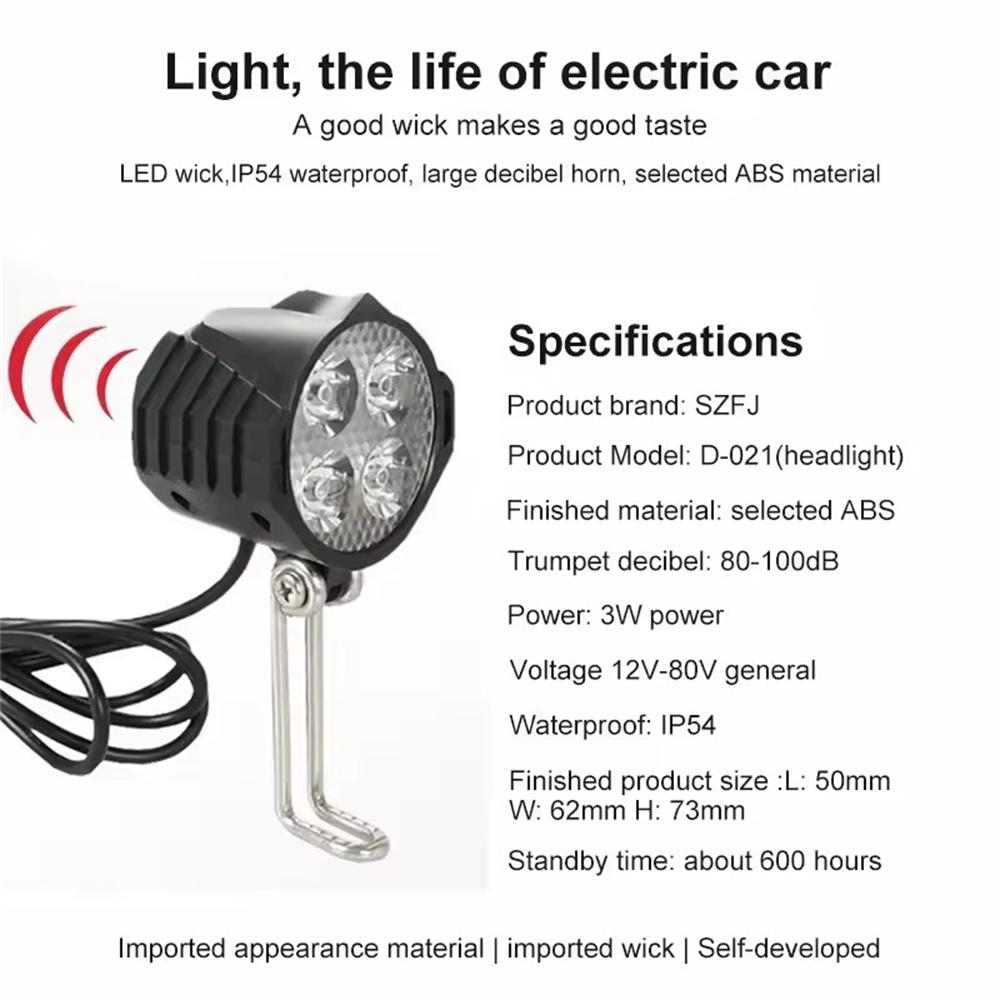

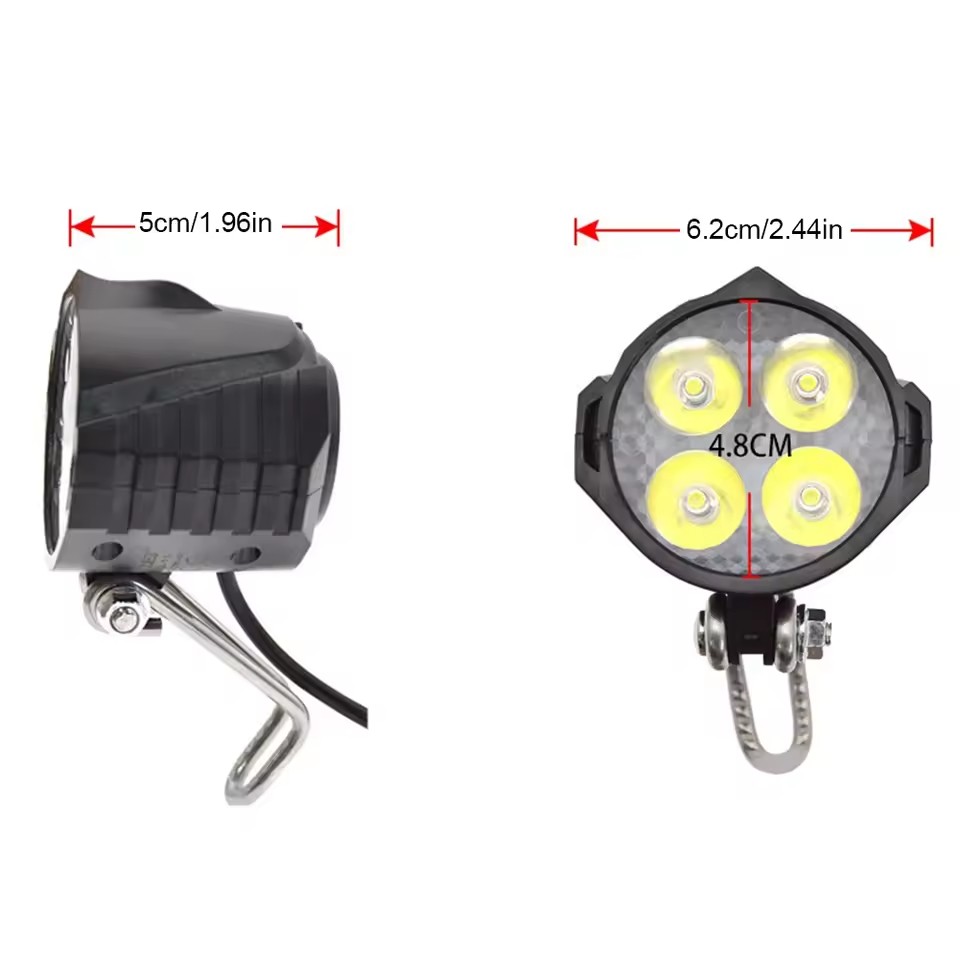

Front light parameters ED21:
1. Front light net weight: 100g
2. Housing material: Plastic
3. Operating voltage range: 12V-60V
4. Power: 59mA/2.8W
5. Luminous flux: 180-220LM
6. Horn power: 44mA/2.1W
7. Horn volume: 80-100dB
8. Wire sequence: Red-Horn+   Black-GND  Green-Lamp+
9. GB certification, CE certification
10. Product Dimensions: 62 x 50 x 70 mm
11. Cable Length: Approximately 1.5 m

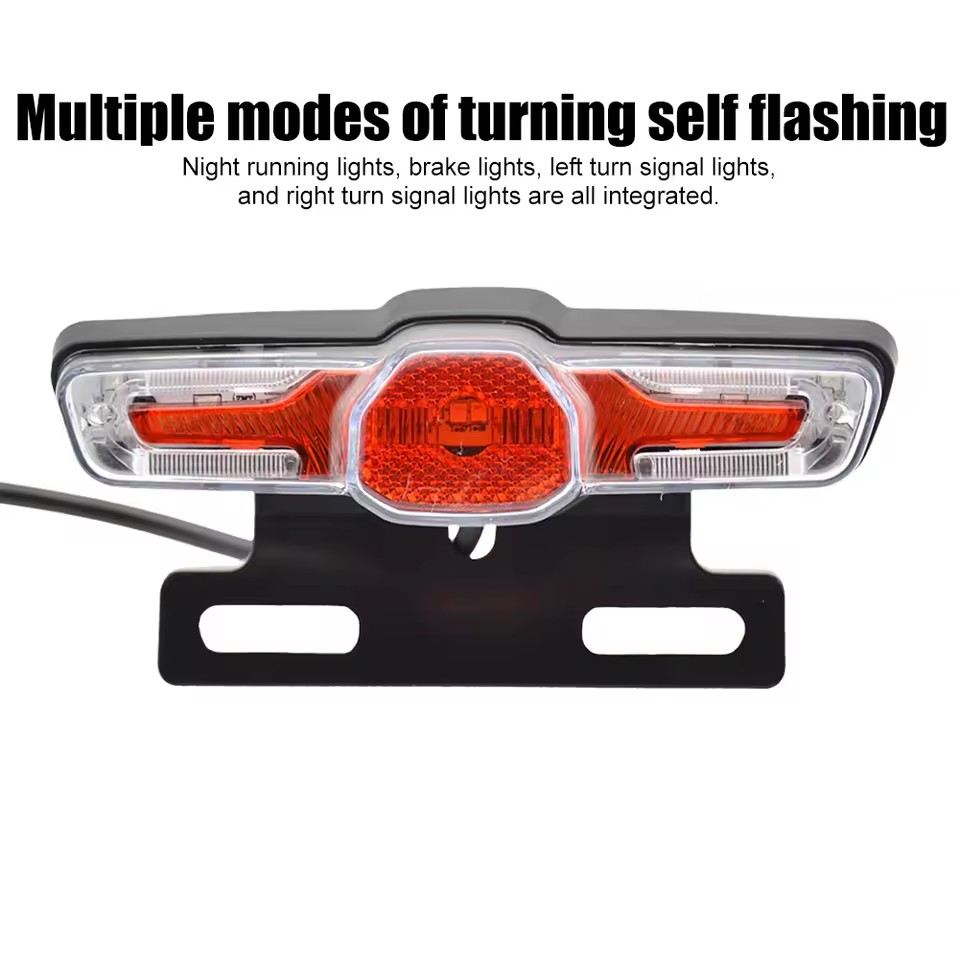

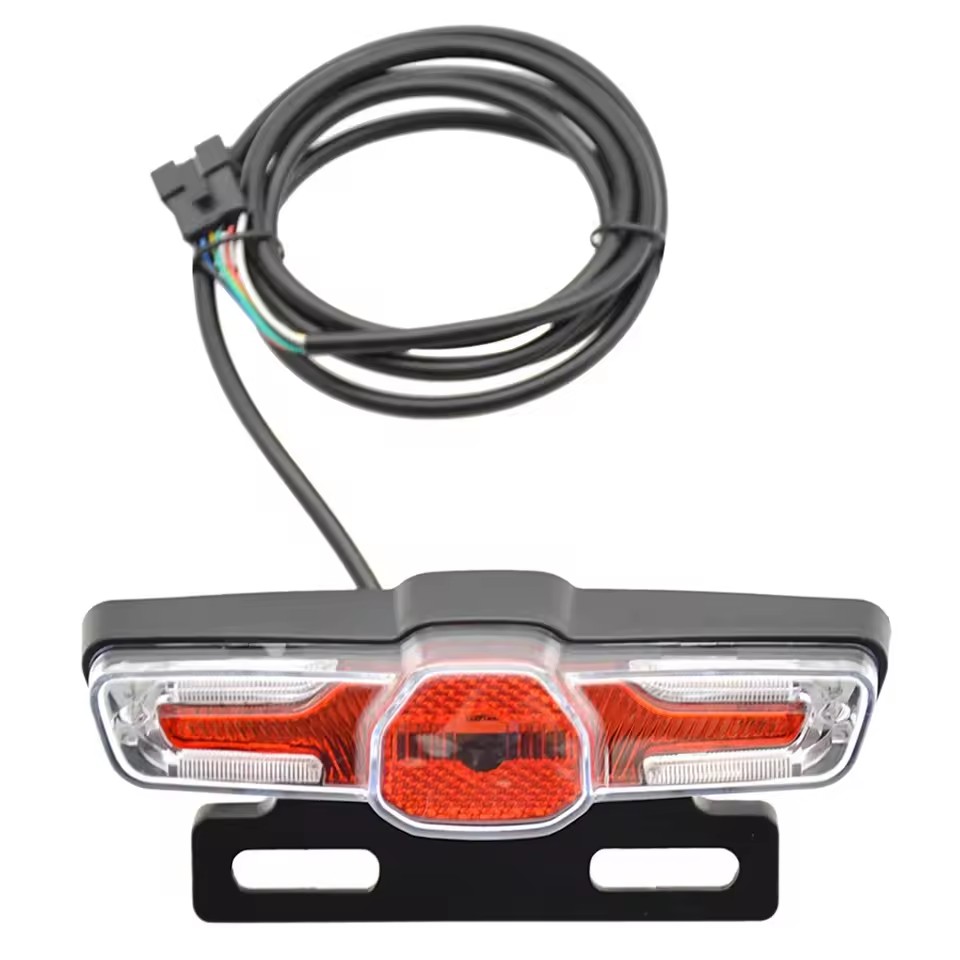

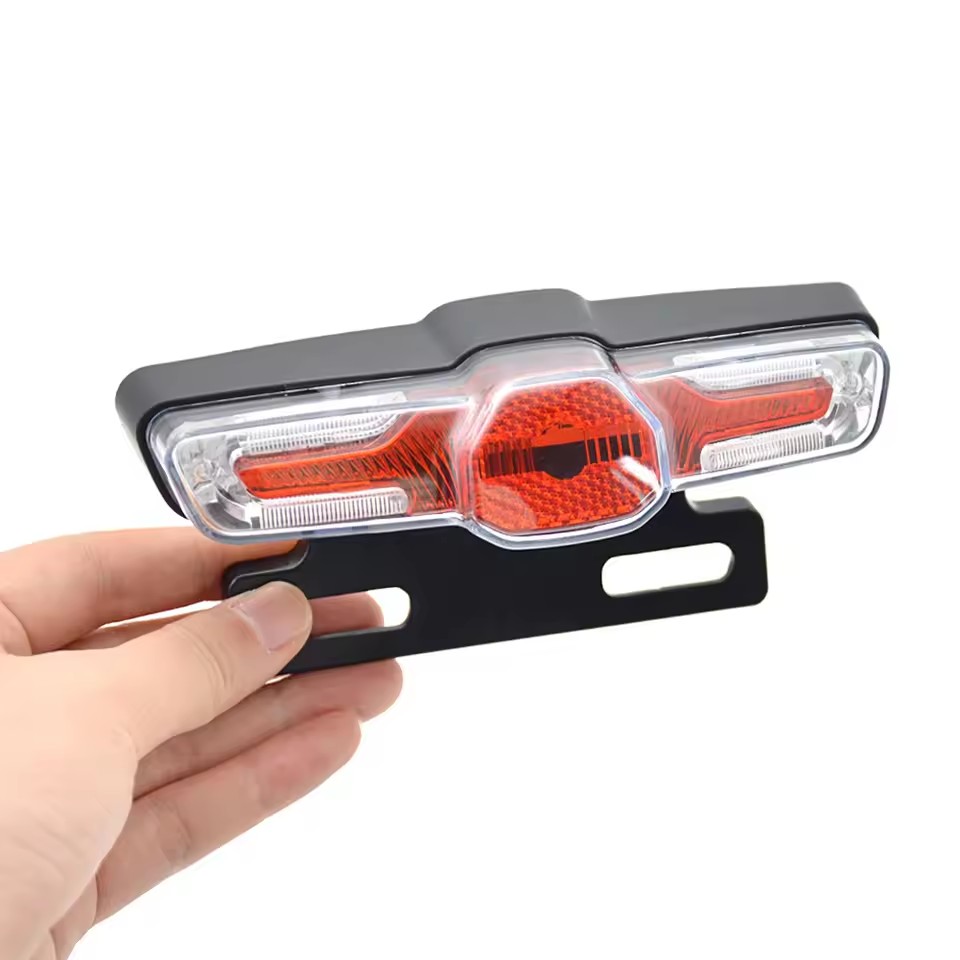

Tail Light Parameters ED05:
1. Tail Light Net Weight: 120 g
2. Housing Material: Plastic
3. Applicable Voltage Range: 24-60V
4. Power: 1.5W
5. Number of Light Sources: 14
6. Luminous flux: 15LM

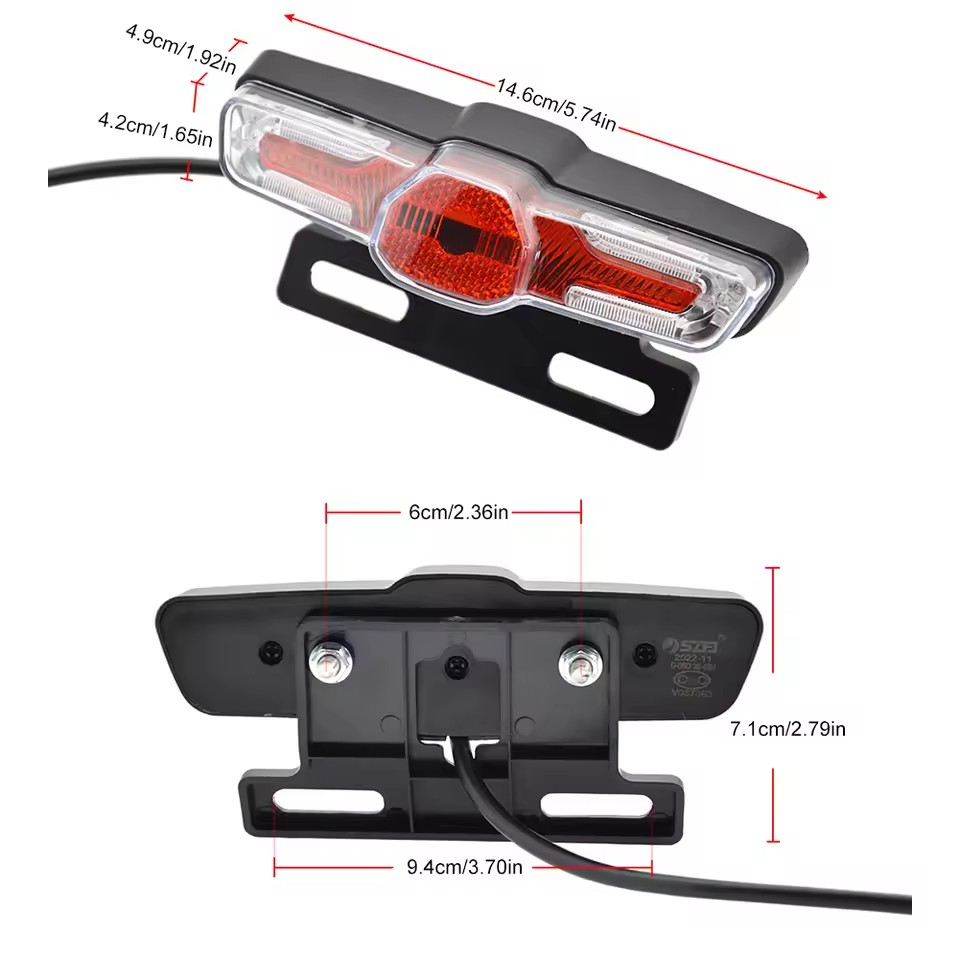

7. Product dimensions: 132 x 65 x 40 mm
8. CQC certification: CQC19134228085
9. Cable length: approximately 1.5 m

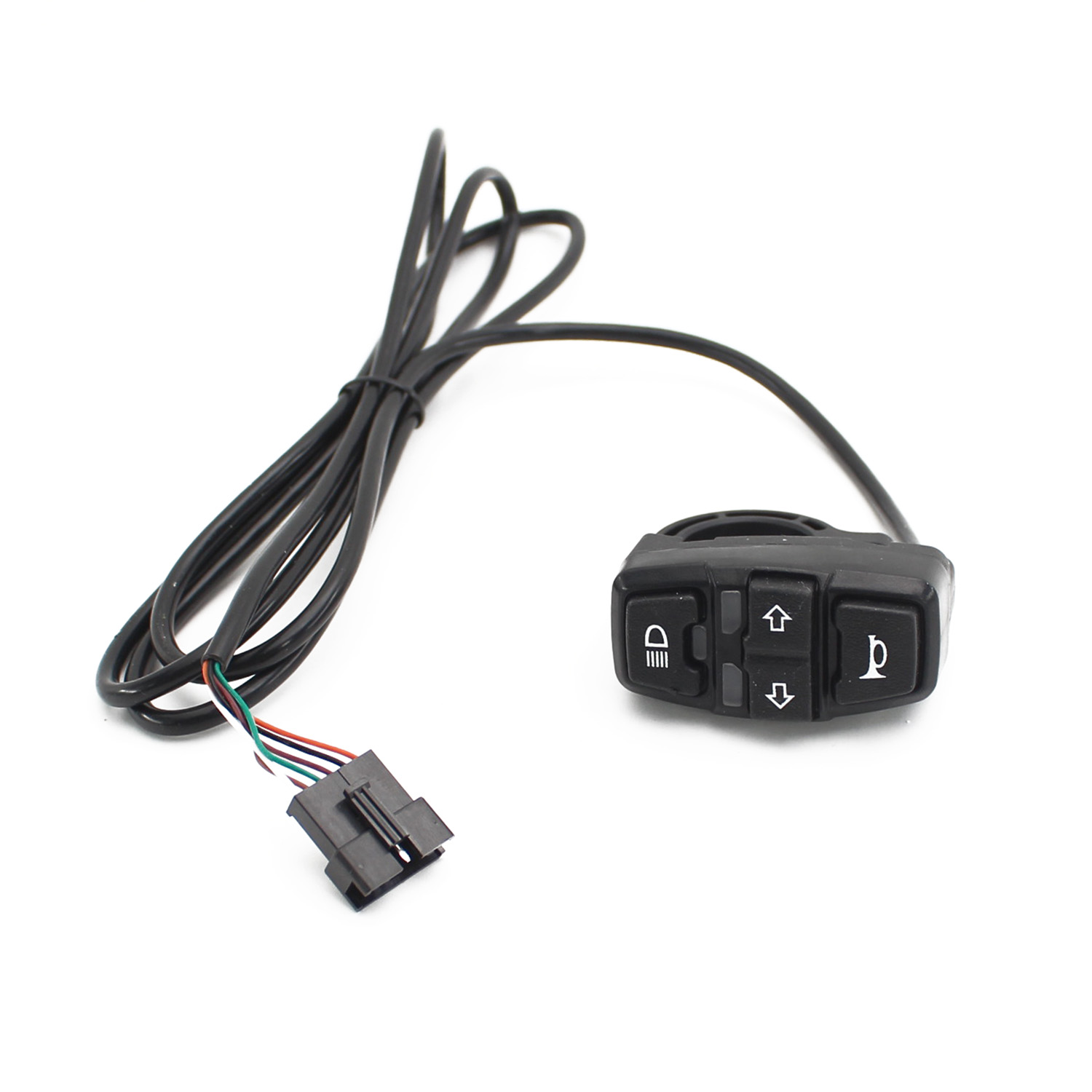

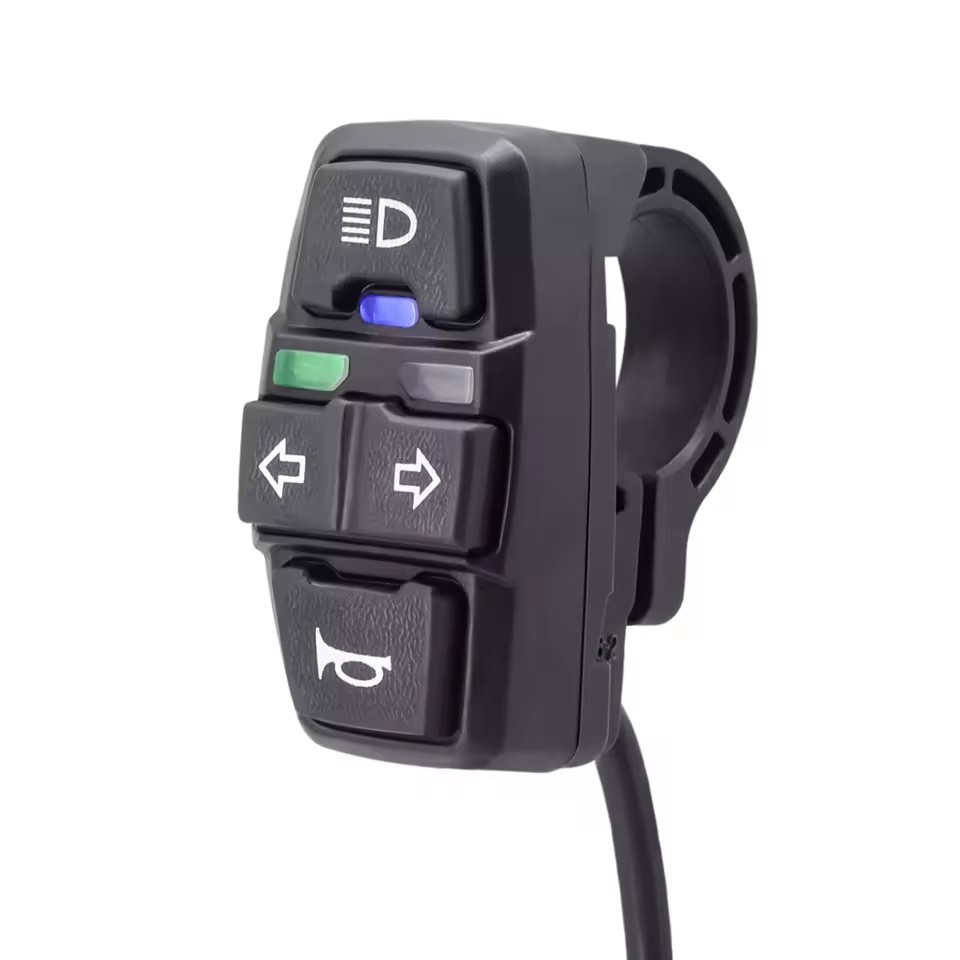

Switch parameters ED3362:
1. Switch net weight: 92 g
2. Housing material: plastic
Product dimensions: 26 x 53 x 61 mm
Cable length: approximately 1.5 m

Seat cushion mount bracket:
Product net weight: approximately 60 g
Screw material: 304 stainless steel screws + nuts
Bracket material: ABS plastic

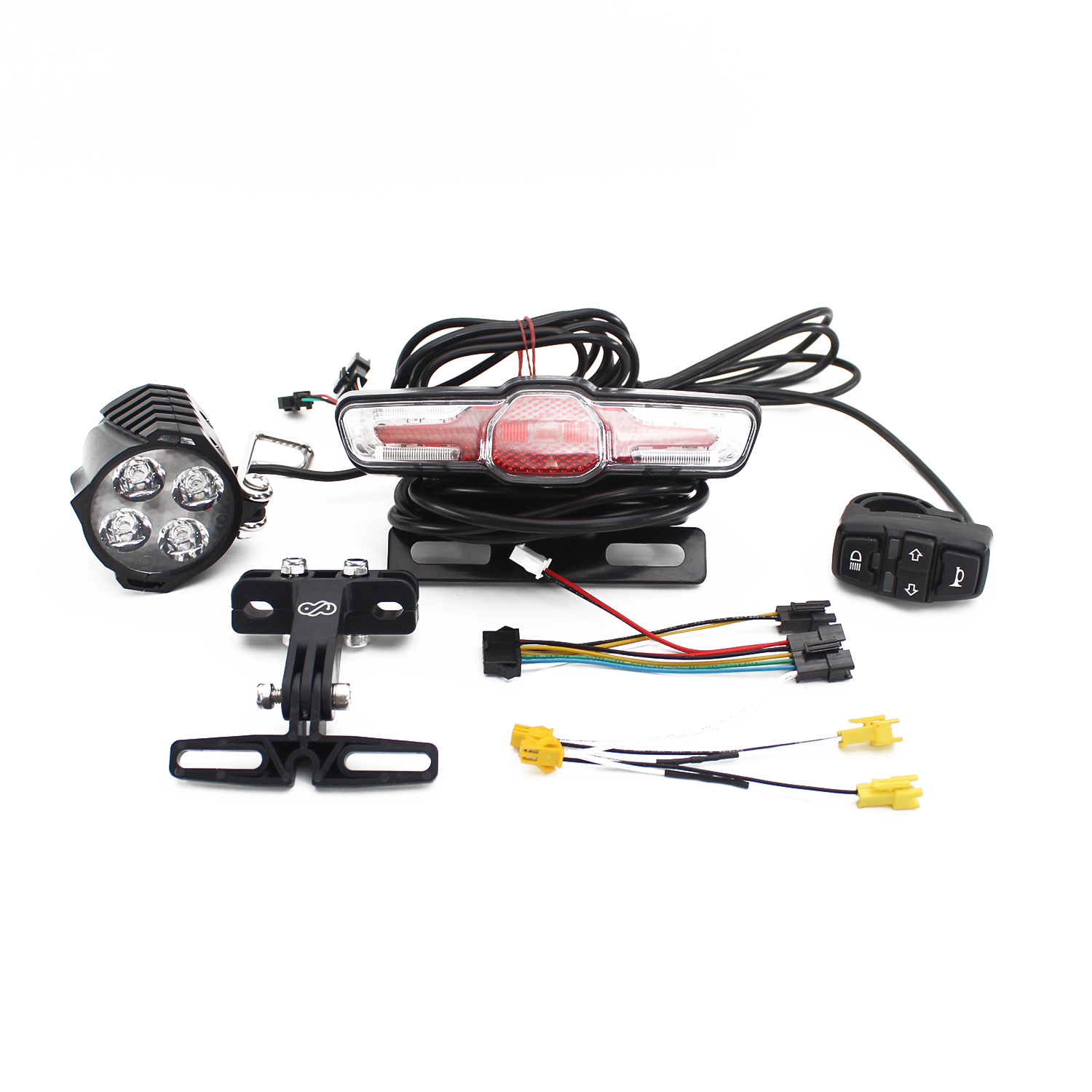

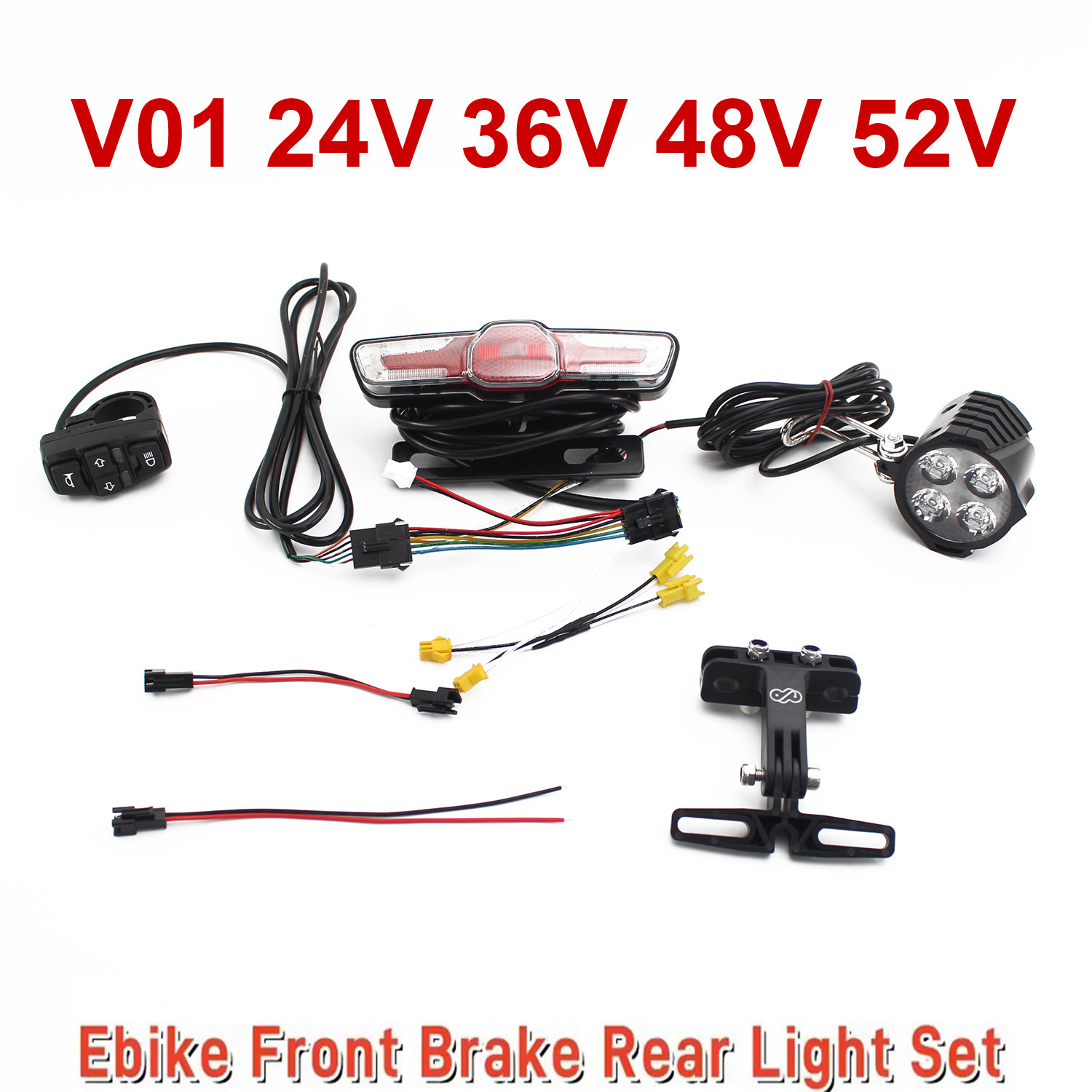

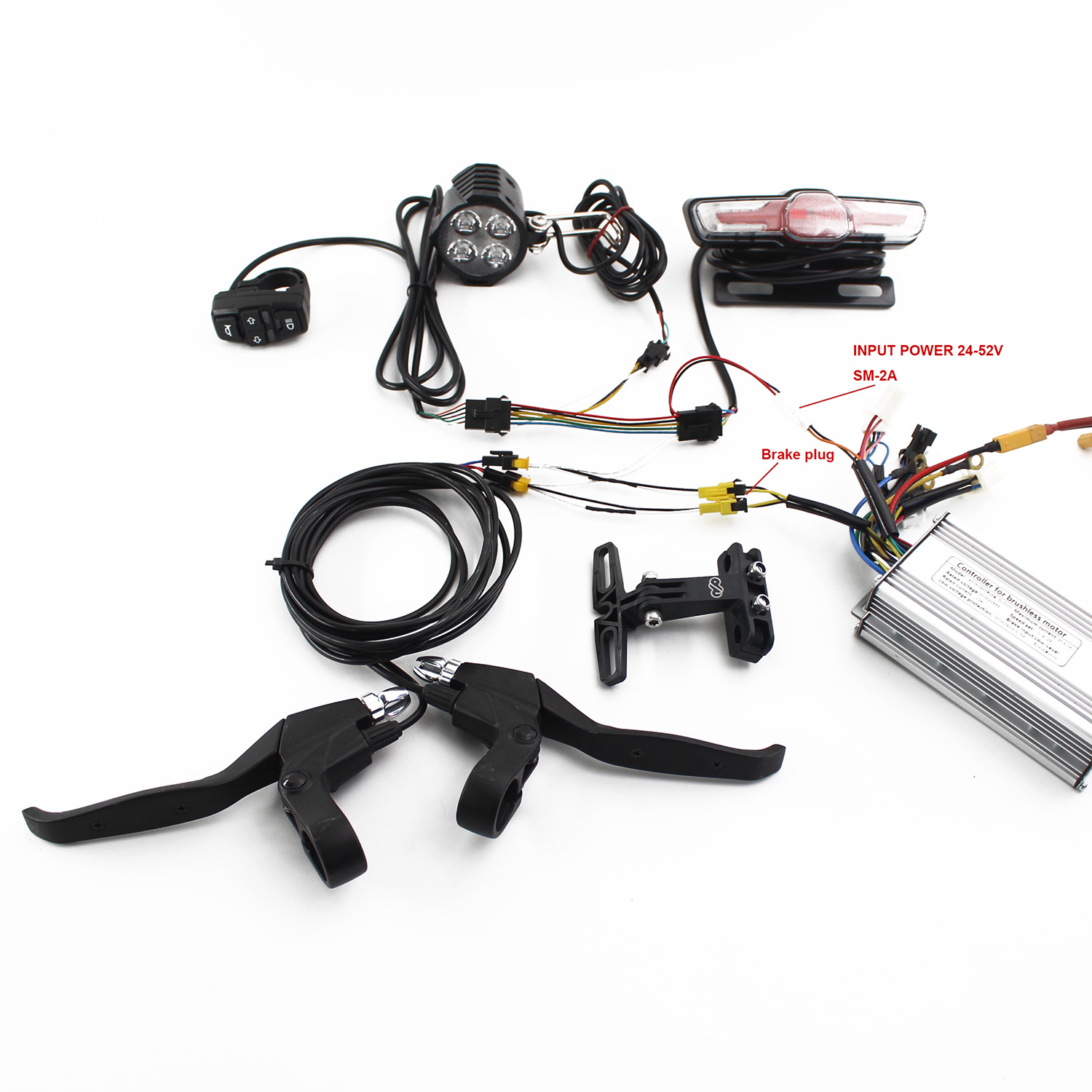

Packaging contents:
1 x front light
1 x three-in-one switch
1 x rear light

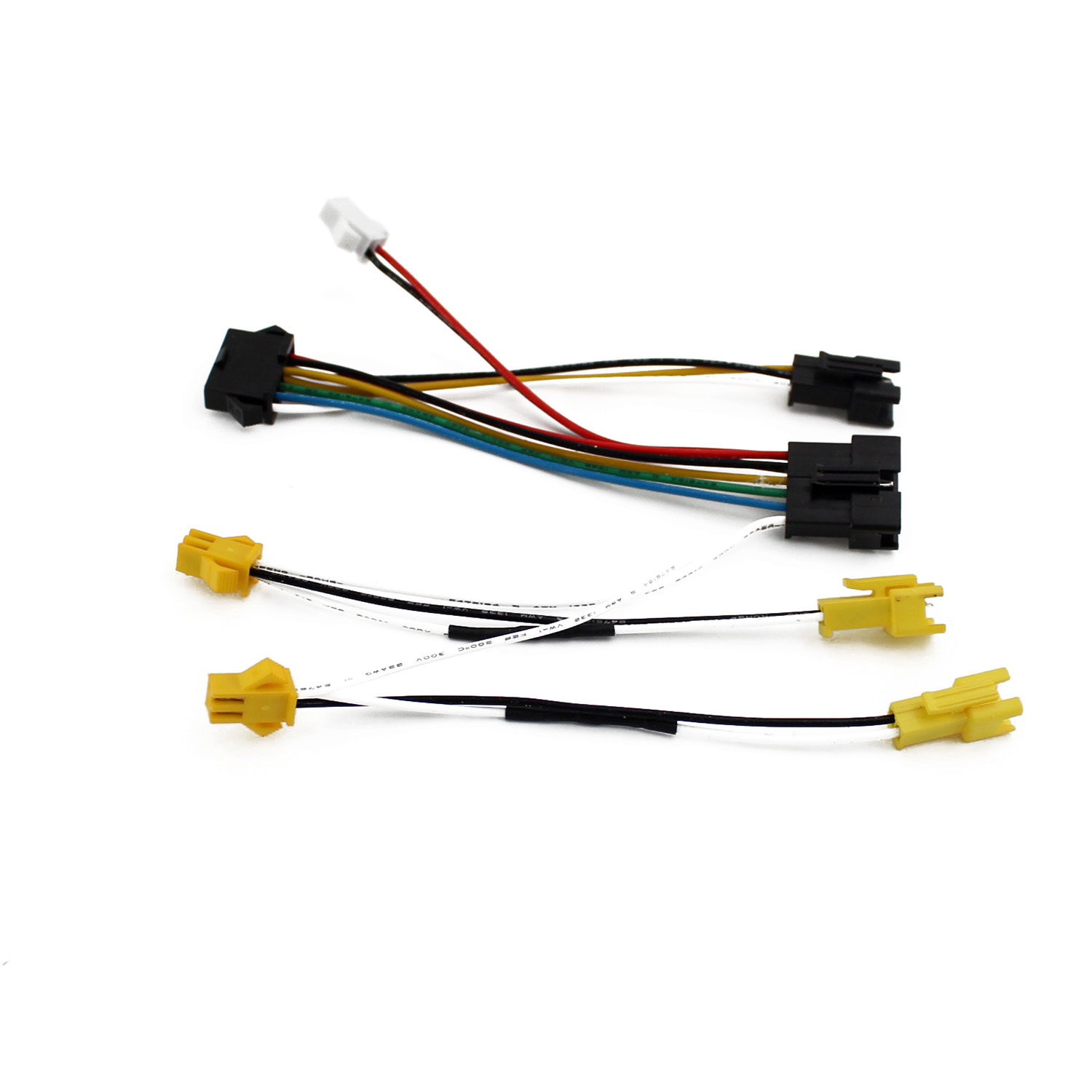

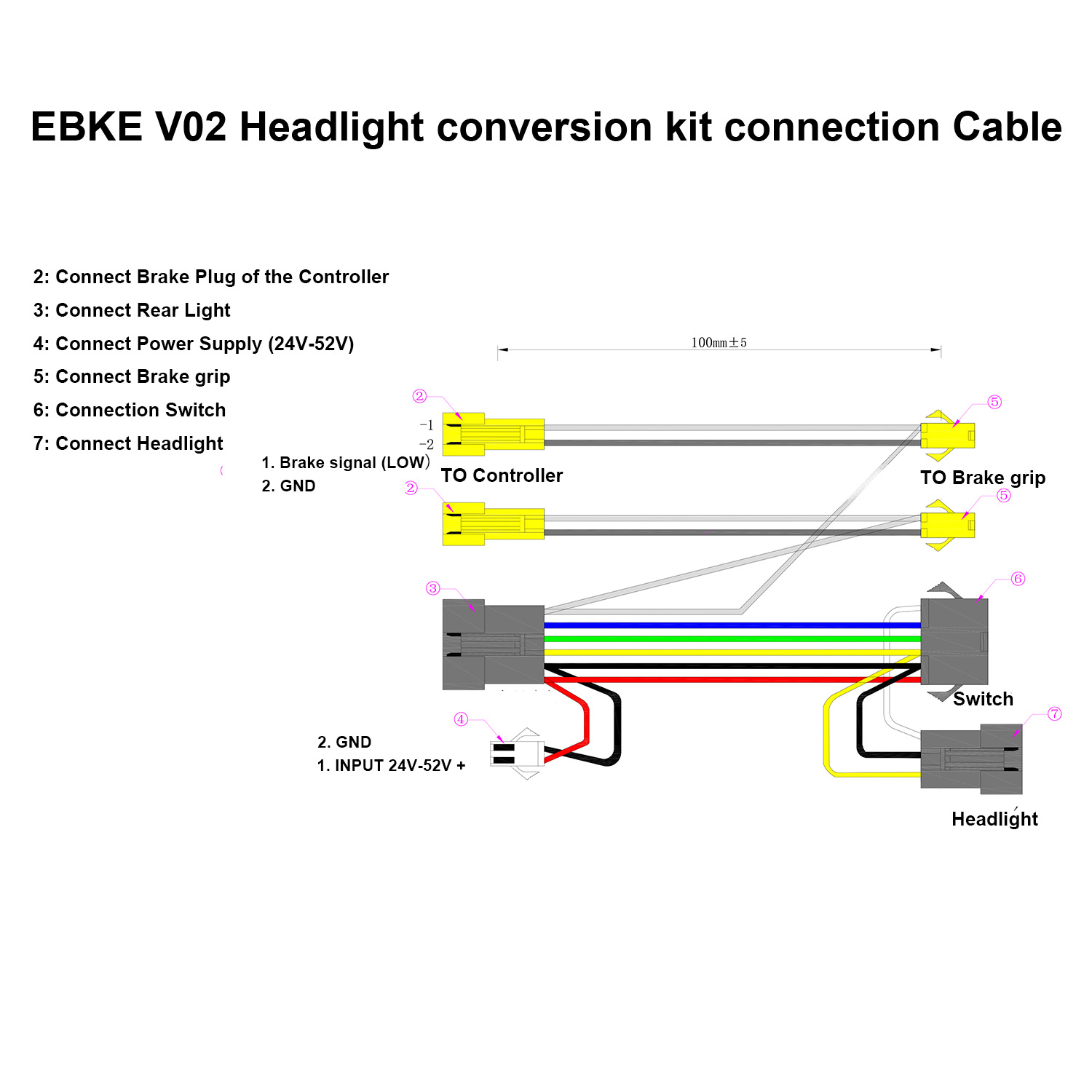

1 x light assembly adapter cable
1 x Seat-mounted rear light mounting bracket
1 x SM power conversion cable *1
