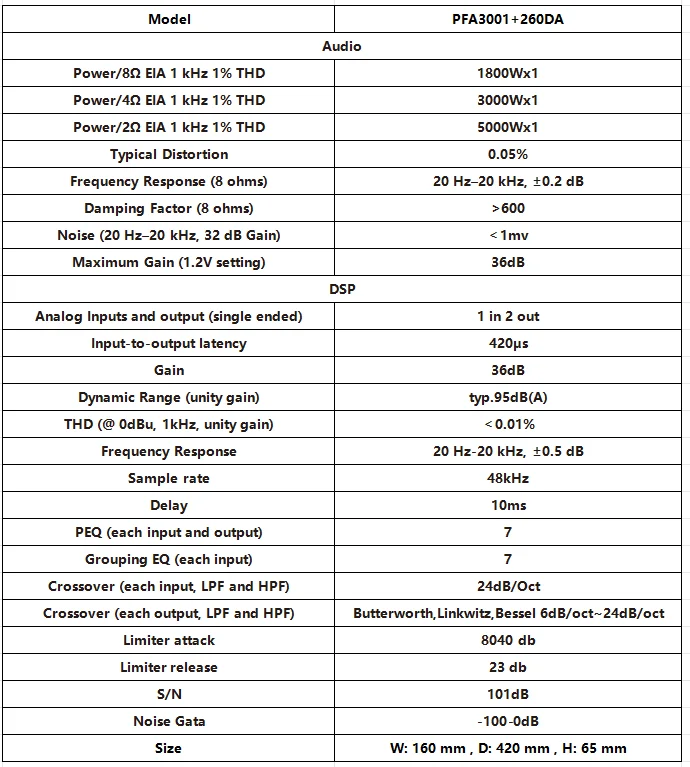

Power/8Ω EIA 1 kHz 1% THD
|
1800Wx1
|
|
Power/4Ω EIA 1 kHz 1% THD
|
3000Wx1
|
|
Power/2Ω EIA 1 kHz 1% THD
|
5000Wx1
|
|
Output Circuitry
|
Class D
|
|
Analog inputs and output
|
1 in 2 out
|
|
Channel
|
1
|
Key features.
1.Thermal protection.Power limiting,Short circuit and overload output protection permanent signal limiter.
2. Auxiliary output voltage:+/-15V regulated,.1000mA max,.+5V1000mA max.
3.Straight-through output and bypass output.
4.Mute command temperature controlled internal Fan and output.
5.DSP based or Analog processing plugin optional boards.
2. Auxiliary output voltage:+/-15V regulated,.1000mA max,.+5V1000mA max.
3.Straight-through output and bypass output.
4.Mute command temperature controlled internal Fan and output.
5.DSP based or Analog processing plugin optional boards.
