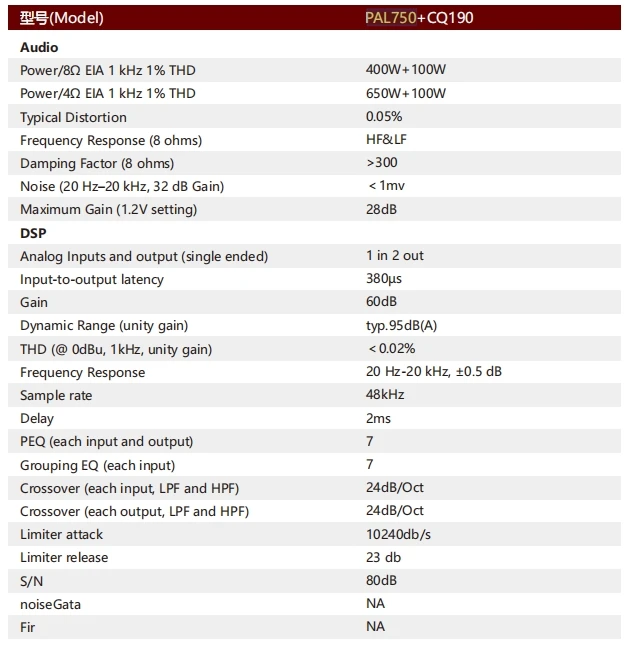

Specification
|
|
|
|
Channels
|
2
|
|
Power/8Ω EIA 1 kHz 1% THD
|
400W+100W
|
|
Power/4Ω EIA 1 kHz 1% THD
|
650W+100W
|
|
Frequency Response 8 ohms
|
Hf&Lf
|
|
Analog Inputts and Output
|
1 in 2 out
|
Key features:
1.Thermal protection.Power limiting,Short circuit and overload output protection Permanent signal limiter.
2. Auxiliary output voltage:+/-15Vregulated,1000mAmax,+5V1000mA max.
3.Straight-through output and bypass output.
4.Mute command temperature controlled internal Fan and output

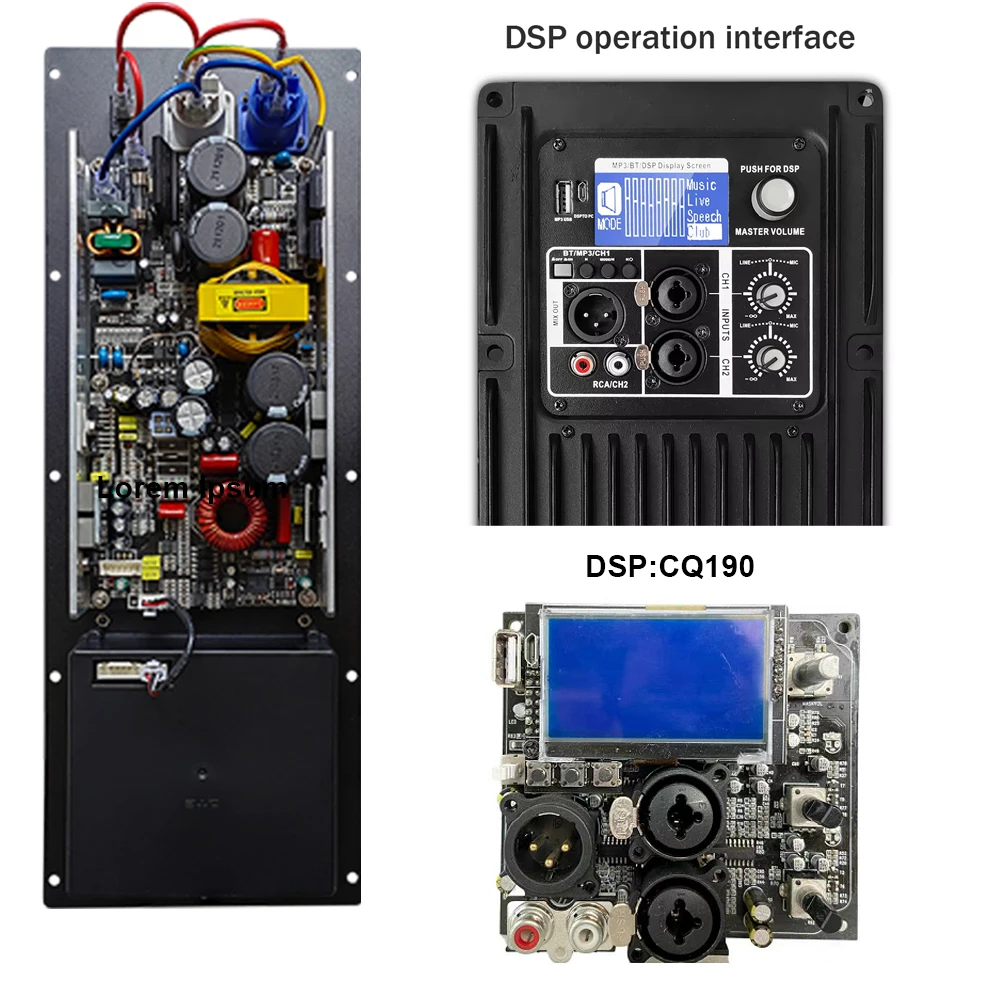

5.DSP based or Analog processing plugin optional boards.
2. Auxiliary output voltage:+/-15Vregulated,1000mAmax,+5V1000mA max.
3.Straight-through output and bypass output.
4.Mute command temperature controlled internal Fan and output
5.DSP based or Analog processing plugin optional boards.
