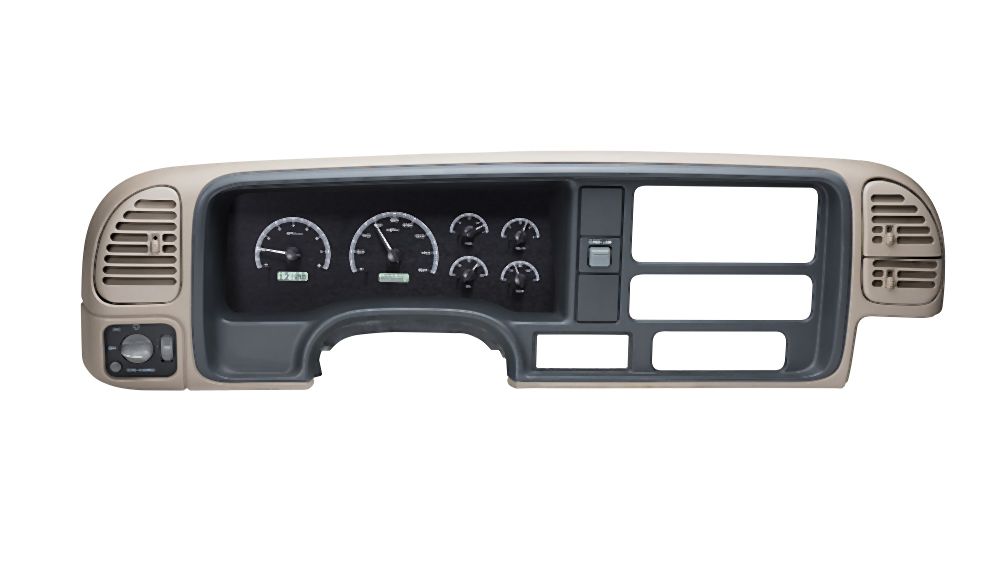

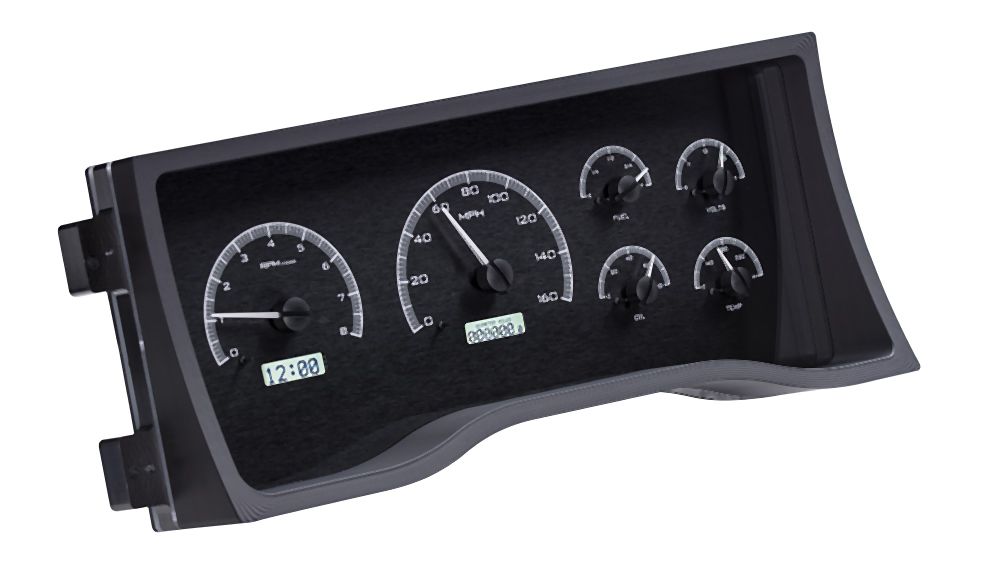

Dakota Digital 1995-1998 Chevrolet Pickup VHX Black / White LED Gauge Kit VHX-95C-PU-K-W

Dakota Digital 1995-1998 Chevrolet Pickup VHX Black / White LED Gauge Kit VHX-95C-PU-K-W

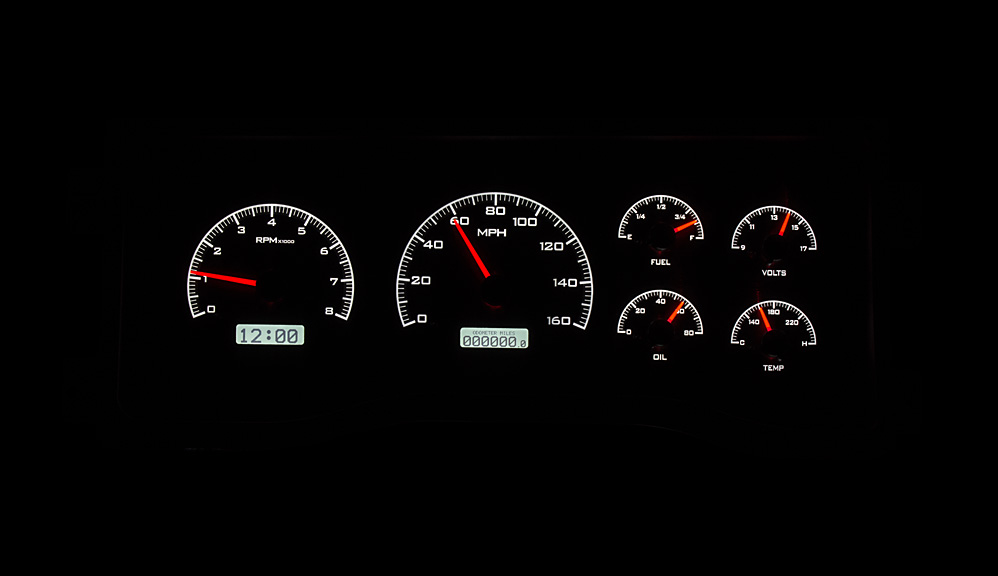

Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday’s traditional approach to instrumentation. A few of the features which you don’t normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems. Completely engineered and manufactured at our facility in Sioux Falls, South Dakota, the VHX series has completely revolutionized the instrumentation industry!System replaces the entire factory instrument cluster and lens assembly, fully remade with a billet aluminum housing and optical grade polycarbonate lenses.* Shown in OEM bezel/ trim/ fascia for demonstration purposes only (not included).* Requires the GSS-3000 - Gear Shift Sensor to display gear position (sold seperately).

Analog Gauges

• Speedometer: 0 -120 MPH (optional metric version 0- 195 kmh)

• Tachometer: 0- 8,000 RPM

• Oil Pressure: 0- 80 psi

• Water Temperature: 100- 260°F (optional metric version 40- 120°C)

• Fuel Level: E, 1/4, 1/2, 3/4, F

• Volmeter: 9- 17 VDC

• Lighting: Back lit technology is popular with performance instrumentation due to precise lighting allowing you see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator and digital message center is lit by a series of LEDs behind the gauge face.

Digital Message Center

Standard Displays

• Odometer (One time user settable, Million Mile)
• Dual (A/B) Trip Meter (0- 9,999.9)
• Clock (12 hour)
• Estimated Range/ Miles to Empty

  Performance Meters

• 0- 60 MPH Timer (0- 100 kmh)
• 1/4 and 1/8 mile time
• 1/4 and 1/8 mile end speed (trap speed)
• High speed recall
• High RPM recall

  Gauges

• Speedometer:0-255 MPH/kmh)
• Tachometer: 0- 9,900 RPM
• Oil Pressure: 0-100 psi displayed in 1 psi increments
• Water Temperature: 100- 300°F/ 40- 150°C displayed in 1°F/ C increments
• Voltmeter: 9- 17 VDC
• Fuel Level : 0-99% full

  Lighting

• Auto-contrasting LCD display for optimal view in the brightest of sunlight.
• LED backlit at night to match/ complete the look at night.

  Built-In Indicators

• Turn Signals (Left/ Right)
• High Beam
• Check Engine
• Parking Brake
• Cruise Control (On/ On & Engaged when vehicle is equipped)
• Gear Position (Optional GSS-3000 sensor required)
• 4 x 4 (When vehicle is equipped)
• Wait to Start (When vehicle is equipped)

  Note: Not all OEM indicator lamp functions will be replaced.

Included

• Water Temperature Sensor : 1/8’ NPT, ground isolated sensor with a 10 ft harness.
• Oil Pressure Sensor : 1/8’ NPT solid state sensor with a 10 ft harness.
• Cable Driven Speed Sensor:Replaces OEM style speedometer cables with a 10 ft harness. Sensor requires approximately 5’ clearance extending between the cable drive output and any obstruction.
• Bushings: Each kit comes with 1/8’ to 1/4’, 3/8’ and 1/2’ NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.
• Control Box: Dimensions: 5.5’ x 3.5’x 1’



Calibration

Push Button Control

Dakota Digital instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers.

Optional Add-ons

DIM-1 - Light Dimming Knob: Although Dakota Digital instrument systems are programmable for both day and night intensity levels, the DIM-1 will allow rotary, or on-the-fly brightness adjustment added convenience.

STA-1000 - OBD II Speedometer/ Tachometer Interface: The STA-1000 plugs directly into the OBDII diagnostic connector, providing a user-adjustable traditional Speedometer, Tachometer and Check-Engine output for your choice of aftermarket instruments.

SGI-100BT - Universal Speedometer and Tachometer Interface:The functionality of three devices in one 4 x 2 x 1 case! The SGI-100BT can adjust/split/recalibrate an electronic speed signal, calibrate a tach signal, and aid in the creation and adjustment of a gas tach signal for diesel swap applications!

BIM-01-2 - ODB II/ Can Interface Module: The BIM-01-2 OBD-II (J1850/CAN) Interface connects directly to the ECM diagnostic port to extract engine and transmission data and supply it to the VFD/ VHX/ HDX/ RTX instrument, making installation a breeze.

BIM-01-2-HLLY - Holley EFI Interface Module: The BIM-01-2-HLLY is designed to read the engine information from the Holley Terminator (including X and X Max), HP, Sniper (except Sniper 2), or Dominator EFI kits. The BIM-01-2-HLLY module is a direct plug in using the supplied 2 or 4 pin harness for simple connection to the Holley EFI system.

PAC-2800BT- Electronic Fan Controller 70 Amp with Bluetooth Control: The PAC-2800BT was designed for the ultimate in flexibility and to be a simple add-on in any application using an electric fan. Included is a 70amp relay, enough for even the most power hungry of cooling fans. Fully programmable, the PAC-2800BT will work with your existing water temp gauge, operating from the temperature sending unit already installed. A dedicated sending unit can be installed for applications without a water temp gauge.

GSS-3000 - Universal Gear Position Sensor: All Instrument packages contain a gear shift indicator display allowing the transmission gear position (Park, Reverse, etc.) to be shown within the message center. The GSS-3000 accommodates automatic transmissions with 2- 4 forward gears and enjoys a simple and straightforward installation.

GPS-50-2 - GPS Speed/ Compass Sender/ BIM: Highly advanced electronic and software design allow the GPS-50-2 to work unlike anything else, with accelerometers and predictive software to compensate for times when GPS inherently struggles: overpasses, mountains, tunnels, heavy tree cover, large buildings, passing large vehicles, etc. Unique electronic architecture provides for negligible current usage when off, yet lightning fast start-up and signal acquisition. Updating the speed information 10 times per second provides tremendous accuracy, while the integrated omni-directional antenna provides for a wide range of installation flexibility.

Many more options available. Contact us for more details!

Fitment:

• 1995 Chevrolet B7 B7T042
• 1996 Chevrolet B7 B7T042
• 1997 Chevrolet B7 B7T042
• 1998 Chevrolet B7 B7T042
• 2000 Chevrolet B7 B7T042
• 1995-1996 Chevrolet B7 B7T042
• 1996-1997 Chevrolet B7 B7T042
• 1997-1998 Chevrolet B7 B7T042
• 1998-1999 Chevrolet B7 B7T042
• 1999-2000 Chevrolet B7 B7T042
• 1995 Chevrolet C1500 Base
• 1996 Chevrolet C1500 Base
• 1997 Chevrolet C1500 Base
• 1995-1996 Chevrolet C1500 Base
• 1996-1997 Chevrolet C1500 Base
• 1997-1998 Chevrolet C1500 Base
• 1998-2000 Chevrolet C1500 Base
• 1995 Chevrolet C1500 Cheyenne
• 1996 Chevrolet C1500 Cheyenne
• 1997 Chevrolet C1500 Cheyenne
• 1998 Chevrolet C1500 Cheyenne
• 1995-1996 Chevrolet C1500 Cheyenne
• 1996-1997 Chevrolet C1500 Cheyenne
• 1997-1998 Chevrolet C1500 Cheyenne
• 1999 Chevrolet C1500 LS
• 1995 Chevrolet C1500 Silverado
• 1996 Chevrolet C1500 Silverado
• 1997 Chevrolet C1500 Silverado
• 1998 Chevrolet C1500 Silverado
• 1995-1996 Chevrolet C1500 Silverado
• 1996-1997 Chevrolet C1500 Silverado
• 1997-1998 Chevrolet C1500 Silverado
• 1995 Chevrolet C1500 WT
• 1996 Chevrolet C1500 WT
• 1997 Chevrolet C1500 WT
• 1998 Chevrolet C1500 WT
• 1995-1996 Chevrolet C1500 WT
• 1996-1997 Chevrolet C1500 WT
• 1997-1998 Chevrolet C1500 WT
• 1995 Chevrolet C1500 Suburban Base
• 1996 Chevrolet C1500 Suburban Base
• 1997 Chevrolet C1500 Suburban Base
• 1998 Chevrolet C1500 Suburban Base
• 1999 Chevrolet C1500 Suburban Base
• 1995-1996 Chevrolet C1500 Suburban Base
• 1996-1997 Chevrolet C1500 Suburban Base
• 1997-1998 Chevrolet C1500 Suburban Base
• 1998-1999 Chevrolet C1500 Suburban Base
• 1995 Chevrolet C1500 Suburban LS
• 1996 Chevrolet C1500 Suburban LS
• 1997 Chevrolet C1500 Suburban LS
• 1998 Chevrolet C1500 Suburban LS
• 1999 Chevrolet C1500 Suburban LS
• 1995-1996 Chevrolet C1500 Suburban LS
• 1996-1997 Chevrolet C1500 Suburban LS
• 1997-1998 Chevrolet C1500 Suburban LS
• 1998-1999 Chevrolet C1500 Suburban LS
• 1995 Chevrolet C1500 Suburban LT
• 1996 Chevrolet C1500 Suburban LT
• 1997 Chevrolet C1500 Suburban LT
• 1999 Chevrolet C1500 Suburban LT
• 1995-1996 Chevrolet C1500 Suburban LT
• 1996-1997 Chevrolet C1500 Suburban LT
• 1995 Chevrolet C2500 400 SS
• 1995-1996 Chevrolet C2500 400 SS
• 1996-1997 Chevrolet C2500 400 SS
• 1997-1998 Chevrolet C2500 400 SS
• 1998-1999 Chevrolet C2500 400 SS
• 1995 Chevrolet C2500 60th Anniversary
• 1999 Chevrolet C2500 Austera
• 1995 Chevrolet C2500 Base
• 1996 Chevrolet C2500 Base
• 1997 Chevrolet C2500 Base
• 1999 Chevrolet C2500 Base
• 2000 Chevrolet C2500 Base
• 1995-1996 Chevrolet C2500 Base
• 1996-1997 Chevrolet C2500 Base
• 1997-1998 Chevrolet C2500 Base
• 1998-1999 Chevrolet C2500 Base
• 1999-2000 Chevrolet C2500 Base
• 1995 Chevrolet C2500 Cheyenne
• 1996 Chevrolet C2500 Cheyenne
• 1997 Chevrolet C2500 Cheyenne
• 1998 Chevrolet C2500 Cheyenne
• 1995-1996 Chevrolet C2500 Cheyenne
• 1996-1997 Chevrolet C2500 Cheyenne
• 1997-1998 Chevrolet C2500 Cheyenne
• 1998-1999 Chevrolet C2500 Cheyenne
• 1995 Chevrolet C2500 Custom
• 1995-1996 Chevrolet C2500 Custom
• 1996-1997 Chevrolet C2500 Custom
• 1997-1998 Chevrolet C2500 Custom
• 1998-1999 Chevrolet C2500 Custom
• 1999 Chevrolet C2500 LS
• 2000 Chevrolet C2500 LS
• 1999-2000 Chevrolet C2500 LS
• 1995 Chevrolet C2500 Silverado
• 1996 Chevrolet C2500 Silverado
• 1997 Chevrolet C2500 Silverado
• 1998 Chevrolet C2500 Silverado
• 1995-1996 Chevrolet C2500 Silverado
• 1996-1997 Chevrolet C2500 Silverado
• 1997-1998 Chevrolet C2500 Silverado
• 1995 Chevrolet C2500 WT
• 1998 Chevrolet C2500 WT
• 1995 Chevrolet C2500 Suburban Base
• 1996 Chevrolet C2500 Suburban Base
• 1997 Chevrolet C2500 Suburban Base
• 1998 Chevrolet C2500 Suburban Base
• 1999 Chevrolet C2500 Suburban Base
• 1995-1996 Chevrolet C2500 Suburban Base
• 1996-1997 Chevrolet C2500 Suburban Base
• 1997-1998 Chevrolet C2500 Suburban Base
• 1998-1999 Chevrolet C2500 Suburban Base
• 1995 Chevrolet C2500 Suburban LS
• 1996 Chevrolet C2500 Suburban LS
• 1997 Chevrolet C2500 Suburban LS
• 1998 Chevrolet C2500 Suburban LS
• 1999 Chevrolet C2500 Suburban LS
• 1995-1996 Chevrolet C2500 Suburban LS
• 1996-1997 Chevrolet C2500 Suburban LS
• 1997-1998 Chevrolet C2500 Suburban LS
• 1998-1999 Chevrolet C2500 Suburban LS
• 1995 Chevrolet C2500 Suburban LT
• 1996 Chevrolet C2500 Suburban LT
• 1997 Chevrolet C2500 Suburban LT
• 1995-1996 Chevrolet C2500 Suburban LT
• 1996-1997 Chevrolet C2500 Suburban LT
• 1995-1998 Chevrolet C35 Base
• 1995-1998 Chevrolet C35 Cheyenne
• 1995 Chevrolet C35 Custom
• 1997-1998 Chevrolet C35 Heavy Duty
• 1995-1998 Chevrolet C35 Tipico
• 1995 Chevrolet C3500 Base
• 1996 Chevrolet C3500 Base
• 1997 Chevrolet C3500 Base
• 1999 Chevrolet C3500 Base
• 2000 Chevrolet C3500 Base
• 1995-1996 Chevrolet C3500 Base
• 1996-1997 Chevrolet C3500 Base
• 1999-2000 Chevrolet C3500 Base
• 1995 Chevrolet C3500 Cheyenne
• 1996 Chevrolet C3500 Cheyenne
• 1997 Chevrolet C3500 Cheyenne
• 1998 Chevrolet C3500 Cheyenne
• 1995-1996 Chevrolet C3500 Cheyenne
• 1996-1997 Chevrolet C3500 Cheyenne
• 1997-1998 Chevrolet C3500 Cheyenne
• 1999 Chevrolet C3500 LS
• 2000 Chevrolet C3500 LS
• 1999-2000 Chevrolet C3500 LS
• 1995 Chevrolet C3500 Silverado
• 1996 Chevrolet C3500 Silverado
• 1997 Chevrolet C3500 Silverado
• 1998 Chevrolet C3500 Silverado
• 1995-1996 Chevrolet C3500 Silverado
• 1996-1997 Chevrolet C3500 Silverado
• 1997-1998 Chevrolet C3500 Silverado
• 1995 Chevrolet C3500HD Base
• 1996 Chevrolet C3500HD Base
• 1997 Chevrolet C3500HD Base
• 1998 Chevrolet C3500HD Base
• 1999 Chevrolet C3500HD Base
• 2000 Chevrolet C3500HD Base
• 1995-1996 Chevrolet C3500HD Base
• 1996-1997 Chevrolet C3500HD Base
• 1997-1998 Chevrolet C3500HD Base
• 1998-1999 Chevrolet C3500HD Base
• 1999-2000 Chevrolet C3500HD Base
• 1995-1996 Chevrolet C60 Kodiak C6H042
• 1995-1996 Chevrolet C70 Kodiak C7H042
• 1995-1996 Chevrolet C70 Kodiak C7H064
• 1995 Chevrolet K1500 Base
• 1996 Chevrolet K1500 Base
• 1997 Chevrolet K1500 Base
• 1995-1996 Chevrolet K1500 Base
• 1996-1997 Chevrolet K1500 Base
• 1995 Chevrolet K1500 Cheyenne
• 1996 Chevrolet K1500 Cheyenne
• 1997 Chevrolet K1500 Cheyenne
• 1998 Chevrolet K1500 Cheyenne
• 1995-1996 Chevrolet K1500 Cheyenne
• 1996-1997 Chevrolet K1500 Cheyenne
• 1997-1998 Chevrolet K1500 Cheyenne
• 1999 Chevrolet K1500 LS
• 1995 Chevrolet K1500 Silverado
• 1996 Chevrolet K1500 Silverado
• 1997 Chevrolet K1500 Silverado
• 1998 Chevrolet K1500 Silverado
• 1995-1996 Chevrolet K1500 Silverado
• 1996-1997 Chevrolet K1500 Silverado
• 1997-1998 Chevrolet K1500 Silverado
• 1995 Chevrolet K1500 WT
• 1996 Chevrolet K1500 WT
• 1997 Chevrolet K1500 WT
• 1998 Chevrolet K1500 WT
• 1995-1996 Chevrolet K1500 WT
• 1996-1997 Chevrolet K1500 WT
• 1997-1998 Chevrolet K1500 WT
• 1995 Chevrolet K1500 Suburban Base
• 1996 Chevrolet K1500 Suburban Base
• 1997 Chevrolet K1500 Suburban Base
• 1998 Chevrolet K1500 Suburban Base
• 1999 Chevrolet K1500 Suburban Base
• 1995-1996 Chevrolet K1500 Suburban Base
• 1996-1997 Chevrolet K1500 Suburban Base
• 1997-1998 Chevrolet K1500 Suburban Base
• 1998-1999 Chevrolet K1500 Suburban Base
• 1995 Chevrolet K1500 Suburban LS
• 1996 Chevrolet K1500 Suburban LS
• 1997 Chevrolet K1500 Suburban LS
• 1998 Chevrolet K1500 Suburban LS
• 1999 Chevrolet K1500 Suburban LS
• 1995-1996 Chevrolet K1500 Suburban LS
• 1996-1997 Chevrolet K1500 Suburban LS
• 1997-1998 Chevrolet K1500 Suburban LS
• 1998-1999 Chevrolet K1500 Suburban LS
• 1995 Chevrolet K1500 Suburban LT
• 1996 Chevrolet K1500 Suburban LT
• 1997 Chevrolet K1500 Suburban LT
• 1999 Chevrolet K1500 Suburban LT
• 1995-1996 Chevrolet K1500 Suburban LT
• 1996-1997 Chevrolet K1500 Suburban LT
• 1995 Chevrolet K2500 Base
• 1996 Chevrolet K2500 Base
• 1997 Chevrolet K2500 Base
• 1999 Chevrolet K2500 Base
• 2000 Chevrolet K2500 Base
• 1995-1996 Chevrolet K2500 Base
• 1996-1997 Chevrolet K2500 Base
• 1999-2000 Chevrolet K2500 Base
• 1995 Chevrolet K2500 Cheyenne
• 1996 Chevrolet K2500 Cheyenne
• 1997 Chevrolet K2500 Cheyenne
• 1998 Chevrolet K2500 Cheyenne
• 1995-1996 Chevrolet K2500 Cheyenne
• 1996-1997 Chevrolet K2500 Cheyenne
• 1997-1998 Chevrolet K2500 Cheyenne
• 1999 Chevrolet K2500 LS
• 2000 Chevrolet K2500 LS
• 1999-2000 Chevrolet K2500 LS
• 1995 Chevrolet K2500 Silverado
• 1996 Chevrolet K2500 Silverado
• 1997 Chevrolet K2500 Silverado
• 1998 Chevrolet K2500 Silverado
• 1995-1996 Chevrolet K2500 Silverado
• 1996-1997 Chevrolet K2500 Silverado
• 1997-1998 Chevrolet K2500 Silverado
• 1995 Chevrolet K2500 WT
• 1998 Chevrolet K2500 WT
• 1995 Chevrolet K2500 Suburban Base
• 1996 Chevrolet K2500 Suburban Base
• 1997 Chevrolet K2500 Suburban Base
• 1998 Chevrolet K2500 Suburban Base
• 1999 Chevrolet K2500 Suburban Base
• 1995-1996 Chevrolet K2500 Suburban Base
• 1996-1997 Chevrolet K2500 Suburban Base
• 1997-1998 Chevrolet K2500 Suburban Base
• 1998-1999 Chevrolet K2500 Suburban Base
• 1995 Chevrolet K2500 Suburban LS
• 1996 Chevrolet K2500 Suburban LS
• 1997 Chevrolet K2500 Suburban LS
• 1998 Chevrolet K2500 Suburban LS
• 1999 Chevrolet K2500 Suburban LS
• 1995-1996 Chevrolet K2500 Suburban LS
• 1996-1997 Chevrolet K2500 Suburban LS
• 1997-1998 Chevrolet K2500 Suburban LS
• 1998-1999 Chevrolet K2500 Suburban LS
• 1995 Chevrolet K2500 Suburban LT
• 1996 Chevrolet K2500 Suburban LT
• 1997 Chevrolet K2500 Suburban LT
• 1995-1996 Chevrolet K2500 Suburban LT
• 1996-1997 Chevrolet K2500 Suburban LT
• 1995 Chevrolet K3500 Base
• 1996 Chevrolet K3500 Base
• 1997 Chevrolet K3500 Base
• 1999 Chevrolet K3500 Base
• 2000 Chevrolet K3500 Base
• 1995-1996 Chevrolet K3500 Base
• 1996-1997 Chevrolet K3500 Base
• 1999-2000 Chevrolet K3500 Base
• 1995 Chevrolet K3500 Cheyenne
• 1996 Chevrolet K3500 Cheyenne
• 1997 Chevrolet K3500 Cheyenne
• 1998 Chevrolet K3500 Cheyenne
• 1995-1996 Chevrolet K3500 Cheyenne
• 1996-1997 Chevrolet K3500 Cheyenne
• 1997-1998 Chevrolet K3500 Cheyenne
• 1999 Chevrolet K3500 LS
• 2000 Chevrolet K3500 LS
• 1999-2000 Chevrolet K3500 LS
• 1995 Chevrolet K3500 Silverado
• 1996 Chevrolet K3500 Silverado
• 1997 Chevrolet K3500 Silverado
• 1998 Chevrolet K3500 Silverado
• 1995-1996 Chevrolet K3500 Silverado
• 1996-1997 Chevrolet K3500 Silverado
• 1997-1998 Chevrolet K3500 Silverado
• 1995-1998 Chevrolet S10 Base
• 1995-1998 Chevrolet S10 LS
• 1995-1998 Chevrolet S10 SS
• 1995-1998 Chevrolet S10 ZR2
• 1995-2000 GMC B7 B7T042
• 1997 GMC C1500 Sierra GT
• 1995-1999 GMC C1500 Sierra SL
• 1995-1999 GMC C1500 Sierra SLE
• 1995-1999 GMC C1500 Sierra SLT
• 1995-1998 GMC C1500 Sierra Special
• 1995-1999 GMC C1500 Suburban Base
• 1995-1999 GMC C1500 Suburban SLE
• 1995-1999 GMC C1500 Suburban SLT
• 1995-2000 GMC C2500 Sierra SL
• 1995-2000 GMC C2500 Sierra SLE
• 1995-2000 GMC C2500 Sierra SLT
• 1995-1999 GMC C2500 Suburban Base
• 1995-1999 GMC C2500 Suburban SLE
• 1995-1999 GMC C2500 Suburban SLT
• 1995-2000 GMC C3500 Sierra SL
• 1995-2000 GMC C3500 Sierra SLE
• 1995-2000 GMC C3500 Sierra SLT
• 1995-2000 GMC C3500HD Base
• 1995-1999 GMC K1500 Sierra SL
• 1995-1999 GMC K1500 Sierra SLE
• 1995 GMC K1500 Sierra SLS
• 1995-1999 GMC K1500 Sierra SLT
• 1995-1998 GMC K1500 Sierra Special
• 1995-1999 GMC K1500 Suburban Base
• 1995-1999 GMC K1500 Suburban SLE
• 1995-1999 GMC K1500 Suburban SLT
• 1995-2000 GMC K2500 Sierra SL
• 1995-2000 GMC K2500 Sierra SLE
• 1995-2000 GMC K2500 Sierra SLT
• 1995-1999 GMC K2500 Suburban Base
• 1995-1999 GMC K2500 Suburban SLE
• 1995-1999 GMC K2500 Suburban SLT
• 1995-2000 GMC K3500 Sierra SL
• 1995-2000 GMC K3500 Sierra SLE
• 1995-2000 GMC K3500 Sierra SLT
• 1995 GMC Yukon Base
• 1999-2000 GMC Yukon Denali
• 1996-1997 GMC Yukon SL
• 1995-2000 GMC Yukon SLE
• 1995-2000 GMC Yukon SLT

Note: Image is for reference only, actual product may vary slightly.
