Product Name: DC 3.3V 5V 4CH AES Encryption Encoding & Decoding Remote Control Module 433M ASK OOK RF Wireless Transceiver Board
Package inlcuded:
(It is recommended to choose to buy a kit):
(It is recommended to choose to buy a kit):
Description:

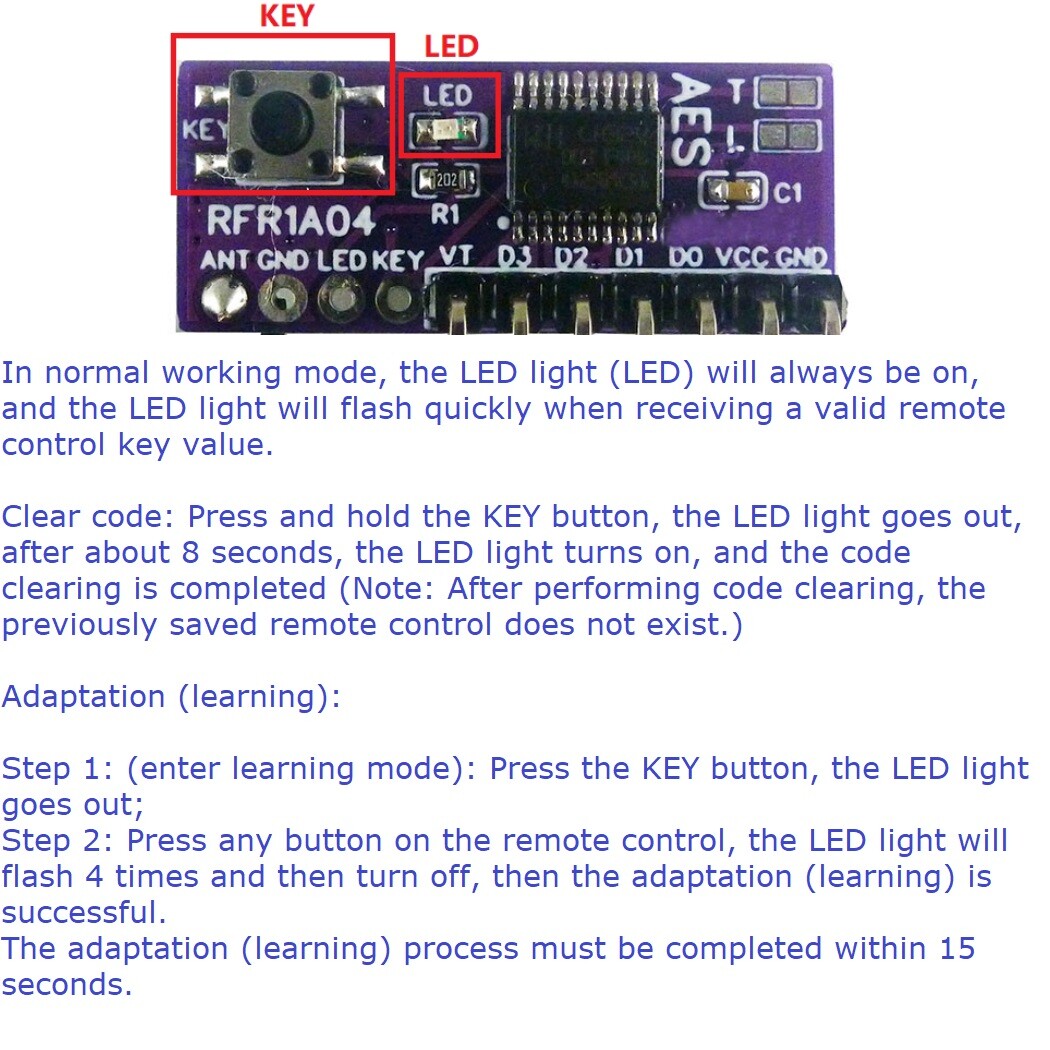

RFR1A04 Decoder Receiver:
Working voltage: DC 3-5V;
Working current: standby current is about 8mA (DC 3.3V);

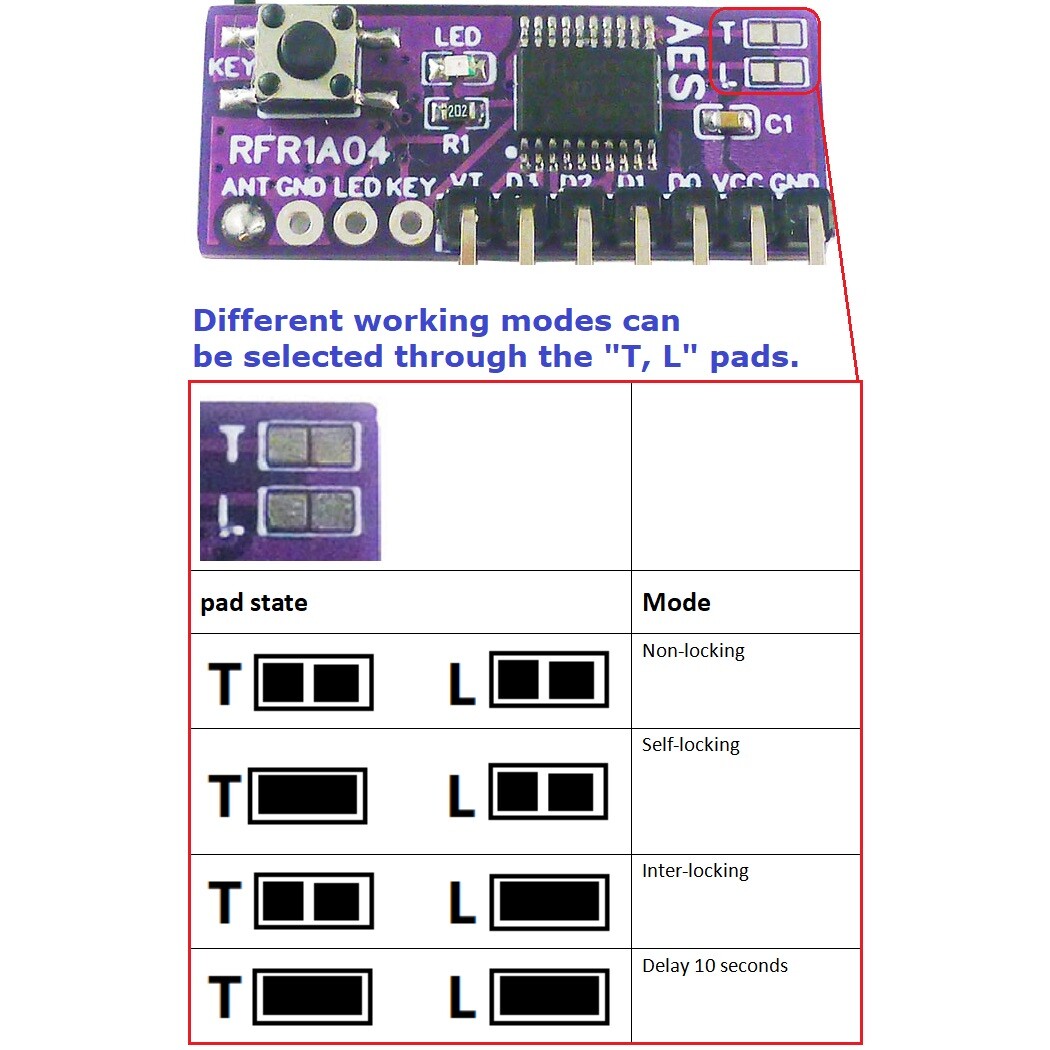

Working mode: Non-locking, Self-locking, Inter-locking and time delay of 10 seconds;
Decoding method: AES-128 decoding;
Working principle: Superheterodyne Reception;
Receive mode: OOK/ASK;
Working frequency: 433.92mhz;
Receive sensitivity: -108dbm;
Remote control distance: 30-40 meters (Stretch the antenna,Transmitter is RFT1C04/RFT2D04)
Output level: 3-5V TTL level, maximum current 20MA (to add current limiting resistor);
Decoding type: learning code, used with RFT1C04, RFT2D04 remote control, can store up to 32 remote control keys;
Size: 29x18x10mm;
Weight: <=3 grams.
RFR1A04 Decoder Receiver:
Working voltage: DC 3-5V;
Working current: standby current is about 8mA (DC 3.3V);
Working mode: Non-locking, Self-locking, Inter-locking and time delay of 10 seconds;
Decoding method: AES-128 decoding;
Working principle: Superheterodyne Reception;
Receive mode: OOK/ASK;
Working frequency: 433.92mhz;
Receive sensitivity: -108dbm;
Remote control distance: 30-40 meters (Stretch the antenna,Transmitter is RFT1C04/RFT2D04)
Output level: 3-5V TTL level, maximum current 20MA (to add current limiting resistor);
Decoding type: learning code, used with RFT1C04, RFT2D04 remote control, can store up to 32 remote control keys;
Size: 29x18x10mm;
Weight: <=3 grams.
RFT1C04 Encoder Transmitter:
Operating voltage: DC 2.8V~3.6V (3.3V recommended);
Operating current: Transmitting Current <=15mA (Antenna and power supply both affect the transmit current), Standby current 100nA(0.1uA);
Encoding method: AES 128 encoding;
Modulation method: ASK/OOK;
transmit power: <= 12dBm (both antenna and power supply affect transmit power);
transmitting frequency: 433.92MHz;
Remote control distance: 40-50 meters (Stretch the antenna,Receiver is RFR1A04/RFR2B04)
Operating temperature: -40℃~85℃;
Dimensions: 24.3x18.2x4mm;
Weight: <=2g.
Note:
The working voltage of the receiver is DC 2.8-5V;
The working voltage of the transmitter is DC 2.8-3.6V
For more information, please contact me
