Products Description
Item Name

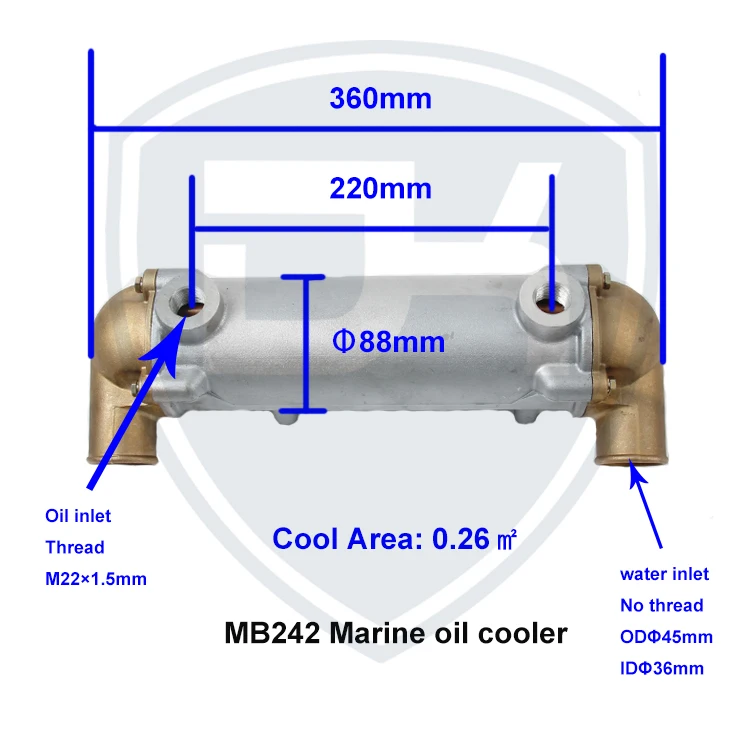

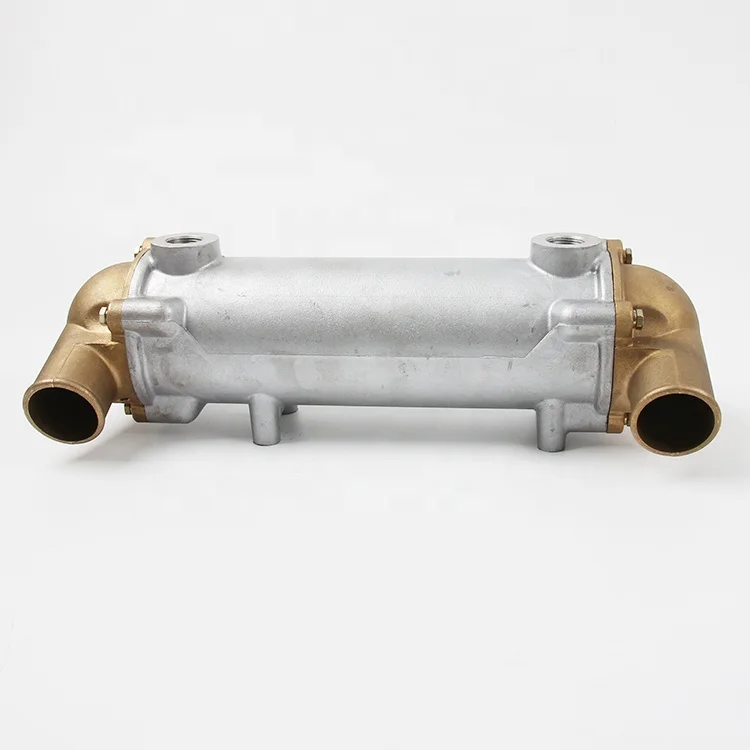

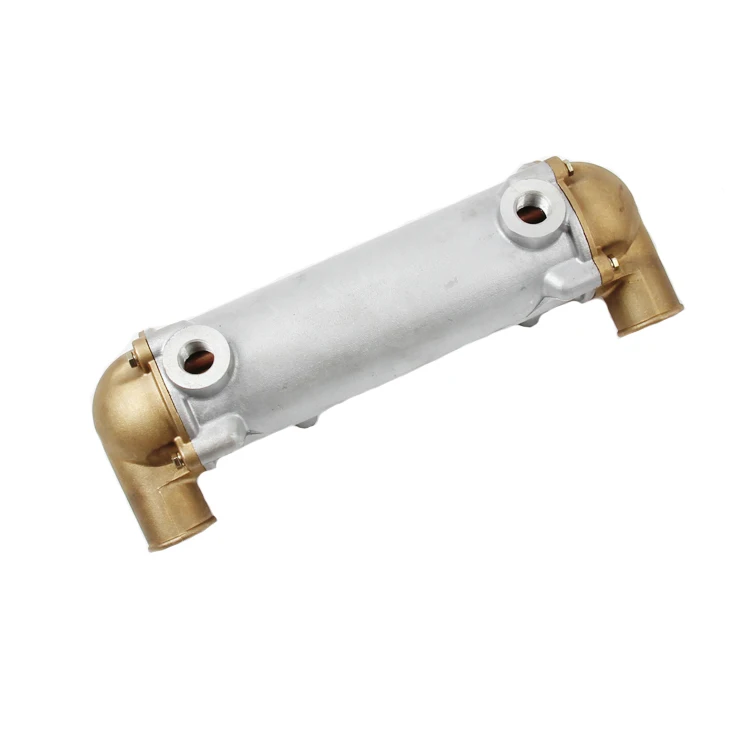

242 Marine oil cooler tube heat exchanger

MOQ
1 PCs
Cooling surface
0.26㎡
Working medium
oil
Working oil temperature
75℃
Working oil pressure
1.8Mpa
Oil flow
1.5m³/h
Water temperature
32℃
Cooling water flow
2.0m³/h
Water pressure
0.2Mpa
Heat exchange capacity
7065w

1. The shell is made by Gravity casting, have good structure,stable sealing performance
2. The oil cooler adopts a naked tube ( with no rolled fins on the surface) type heat transfer tube,have
large cooling area and nice cooling effect
3. The cooling pipe adopts high quality brass pipe and processed into finned radiating fin, has strong
corrosion proof ability and high intensity
4. 100% inspection before shipping, Make sure all the oil cooler is not leakage
5. The oil cooler is widely used in finishing, transport,working,special boats, Ocean large-power vessels
and etc
