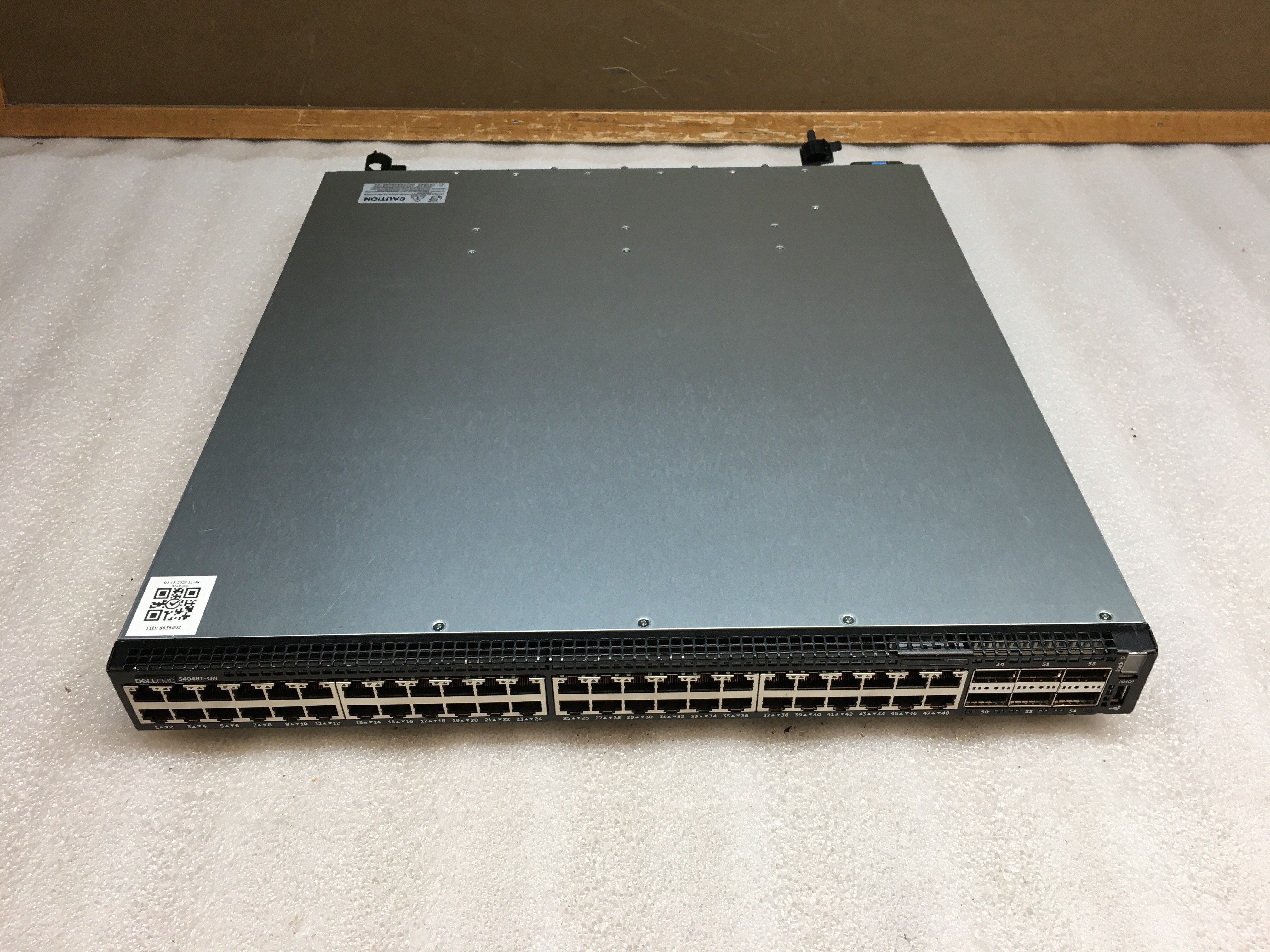

Dell EMC S4048T-ON E13W 48-Port 10 Gigabit Ethernet Switch with 6x 40GbE QSFP+

Boost your network performance with the Dell EMC S4048T-ON, a high-density top-of-rack switch built for modern data center environments. Featuring 48 x 10GBase-T ports and 6 x 40GbE QSFP+ uplink ports, this switch is designed to handle high-throughput workloads with low latency and exceptional reliability.

Specifications

Model: S4048T-ON
Ports: 48 x 10GBase-T and 6 x 40GbE QSFP+
Switching Capacity: Up to 1.44 Tbps
Forwarding Rate: Over 1 Billion packets per second
Layer Support: L2 and L3 with advanced routing protocols
Operating System: Open Networking Compatible (OS10, ONIE)
Latency: Consistently under 600 nanoseconds
MAC Address Table: Up to 136,000 MAC addresses
Power Supplies: Dual, hot-swappable
Cooling: Front-to-Back or Back-to-Front airflow options

Key Features

High-density switching with 48 10GBase-T ports
Six 40GbE QSFP+ uplink ports for non-blocking throughput
ONIE (Open Network Install Environment) support for flexible OS deployment
Low latency ideal for high-performance computing (HPC) environments
Energy-efficient design with redundant, hot-swappable power supplies and fans

Important Notes

Minor scratches, scuffs, and scrapes from previous use and storage.

Included

No Accessories Included

Not Included

Power adapter/cable
Rack ears or mounting kit
Network cables
Console cable
User manual/documentation
Original packaging

Username: admin

Password: admin

show commands:

ORL-AGGSW01# show version

Dell EMC Networking OS10 Enterprise

OS Version: 10.5.2.7

Build Version: 10.5.2.7.374

Build Time: 2021-07-28T04:48:16+0000

System Type: S4048T-ON

Architecture: x86_64

Up Time: 00:07:19

ORL-AGGSW01# show system

Node Id : 1

MAC : 4c:d9:8f:ef:96:66

Number of MACs : 256

Up Time : 00:07:25

-- Unit 1 --

Status : up

System Identifier : 1

Down Reason : user-triggered

Digital Optical Monitoring : disable

System Location LED : off

Required Type : S4048T

Current Type : S4048T

Hardware Revision : A01

Software Version : 10.5.2.7

Physical Ports : 48x10GbE, 6x40GbE

BIOS : 3.27.0.0-3

System CPLD : 12

Master CPLD : 13

-- Power Supplies --

PSU-ID Status Type AirFlow Fan Speed(rpm) Status

----------------------------------------------------------------

1 fail

2 up AC REVERSE 1 11696 up

-- Fan Status --

FanTray Status AirFlow Fan Speed(rpm) Status

----------------------------------------------------------------

1 up REVERSE 1 7992 up

2 7992 up

2 up REVERSE 1 8008 up

2 8024 up

3 up REVERSE 1 8008 up

2 7975 up

4 up REVERSE 1 7975 up

2 7975 up

ORL-AGGSW01# show users

Index Line User Role Application Idle Login-Time Location Privilege-Level

----- ----- ------------------------------ ------ ------------ ----- -------------------------- ------------------------------------------------ ---------------

1 ttyS0 admin sysadmin clish 2.1s 2025-04-14 T 21:04:25Z console 15

ORL-AGGSW01# show vlan

Codes: * - Default VLAN, M - Management VLAN, R - Remote Port Mirroring VLANs,

@ - Attached to Virtual Network, P - Primary, C - Community, I - Isolated

Q: A - Access (Untagged), T - Tagged

NUM Status Description Q Ports

* 1 Inactive A Eth1/1/1,1/1/4-1/1/8,1/1/11-1/1/32,1/1/37-1/1/40,1/1/49-1/1/52

A Po1,3,11,128

10 Inactive T Po1,3,128

89 Inactive T Po1,3,128

90 Inactive iSCSI_LAN T Eth1/1/25

T Po1,3,128

100 Inactive VMHosts_MGNTNetwork T Eth1/1/25

T Po1,3,128

A Eth1/1/41-1/1/44

4001 Inactive NSC-CORE-TRANSIT16 T Eth1/1/25

T Po1,3,128

4003 Inactive NSC-CORE-TRANSIT48 T Eth1/1/25

T Po1,3,128

4004 Inactive Transit Uplinks_ToFirewalls T Eth1/1/25

T Po1,3,128

A Eth1/1/2

4020 Inactive T Eth1/1/25

T Po1,3,128

4021 Inactive T Eth1/1/25

T Po1,3,128

4022 Inactive T Eth1/1/25

T Po1,3,128

4023 Inactive T Eth1/1/25

T Po1,3,128

4024 Inactive T Eth1/1/25

T Po1,3,128

4025 Inactive T Eth1/1/25

T Po1,3,128

4026 Inactive T Eth1/1/25

T Po1,3,128

4027 Inactive T Eth1/1/25

T Po1,3,128

4028 Inactive T Eth1/1/25

T Po1,3,128

4029 Inactive T Eth1/1/25

T Po1,3,128

4030 Inactive T Eth1/1/25

T Po1,3,128

4031 Inactive T Eth1/1/25

T Po1,3,128

4032 Inactive T Eth1/1/25

T Po1,3,128

4033 Inactive T Eth1/1/25

T Po1,3,128

4034 Inactive T Eth1/1/25

T Po1,3,128

4035 Inactive T Eth1/1/25

T Po1,3,128

4036 Inactive T Eth1/1/25

T Po1,3,128

4037 Inactive T Eth1/1/25

T Po1,3,128

4038 Inactive T Eth1/1/25

T Po1,3,128

4039 Inactive T Eth1/1/25

T Po1,3,128

4040 Inactive T Eth1/1/25

T Po1,3,128

4041 Inactive T Eth1/1/25

T Po1,3,128

4042 Inactive T Eth1/1/25

T Po1,3,128

4043 Inactive T Eth1/1/25

T Po1,3,128

4044 Inactive T Eth1/1/25

T Po1,3,128

4045 Inactive T Eth1/1/25

T Po1,3,128

4046 Inactive T Eth1/1/25

T Po1,3,128

4047 Inactive T Eth1/1/25

T Po1,3,128

4048 Inactive T Eth1/1/25

T Po1,3,128

4049 Inactive T Eth1/1/25

T Po1,3,128

4050 Inactive T Eth1/1/25

T Po1,3,128

4051 Inactive T Eth1/1/25

T Po1,3,128

4052 Inactive T Eth1/1/25

T Po1,3,128

4053 Inactive T Eth1/1/25

T Po1,3,128

4054 Inactive T Eth1/1/25

T Po1,3,128

4055 Inactive T Eth1/1/25

T Po1,3,128

4056 Inactive T Eth1/1/25

T Po1,3,128

4057 Inactive T Eth1/1/25

T Po1,3,128

4058 Inactive T Eth1/1/25

T Po1,3,128

4059 Inactive T Eth1/1/25

T Po1,3,128

4060 Inactive T Eth1/1/25

T Po1,3,128

4061 Inactive T Eth1/1/25

T Po1,3,128

4062 Inactive T Eth1/1/25

T Po1,3,128

4063 Inactive T Eth1/1/25

T Po1,3,128

4064 Inactive T Eth1/1/25

T Po1,3,128

4065 Inactive T Eth1/1/25

T Po1,3,128

4066 Inactive T Eth1/1/25

T Po1,3,128

4067 Inactive T Eth1/1/25

T Po1,3,128

4068 Inactive T Eth1/1/25

T Po1,3,128

4069 Inactive T Eth1/1/25

T Po1,3,128

4070 Inactive T Eth1/1/25

T Po1,3,128

4071 Inactive T Eth1/1/25

T Po1,3,128

4072 Inactive T Eth1/1/25

T Po1,3,128

4073 Inactive T Eth1/1/25

T Po1,3,128

4074 Inactive T Eth1/1/25

T Po1,3,128

4075 Inactive T Eth1/1/25

T Po1,3,128

4076 Inactive T Eth1/1/25

T Po1,3,128

4077 Inactive T Eth1/1/25

T Po1,3,128

4078 Inactive T Eth1/1/25

T Po1,3,128

4079 Inactive T Eth1/1/25

T Po1,3,128

4080 Inactive Maximus_InSideInt T Eth1/1/25

T Po1,3,128

4081 Inactive RGNext_OutSideVLAN T Eth1/1/25

T Po1,3,128

4082 Inactive RGNext_InSideVLAN T Eth1/1/25

T Po1,3,128

4083 Inactive CADMUS_SDWANEXT T Eth1/1/25

T Po1,3,128

4084 Inactive CADMUS_SDWANINT T Eth1/1/25

T Po1,3,128

4085 Inactive CACI_Network T Eth1/1/25

T Po1,3,128

4086 Inactive vMotion T Eth1/1/25

T Po1,3,128

4087 Inactive VM_Provisioning T Eth1/1/25

T Po1,3,128

4088 Inactive vSphere_Replication T Eth1/1/25

T Po1,3,128

4089 Inactive SDDC_Backup T Eth1/1/25

T Po1,3,128

A Eth1/1/33-1/1/36

4090 Inactive Oracle_ODANetwork T Eth1/1/25

T Po1,3,128

4091 Inactive VPLS/Transit T Eth1/1/1,1/1/25

T Po1,3,128

4092 Inactive vSAN T Eth1/1/25

T Po1,3,128

4093 Inactive NSX_VTEP T Eth1/1/25

T Po1,3,128

4094 Inactive

ORL-AGGSW01# show interface status

--------------------------------------------------------------------------------------------------

Port Description Status Speed Duplex Mode Vlan Tagged-Vlans

--------------------------------------------------------------------------------------------------

Eth 1/1/1 <VPLS> to RW .. down 0 full T 1 4091

Eth 1/1/2 Fortinet FW .. down 0 full A 4004 -

Eth 1/1/3 down 0 full -

Eth 1/1/4 down 0 full A 1 -

Eth 1/1/5 down 0 full A 1 -

Eth 1/1/6 down 0 full A 1 -

Eth 1/1/7 down 0 full A 1 -

Eth 1/1/8 down 0 full A 1 -

Eth 1/1/9 PEER-LINK/VLT.. down 0 full -

Eth 1/1/10 PEER-LINK/VLT.. down 0 full -

Eth 1/1/11 down 0 full A 1 -

Eth 1/1/12 down 0 full A 1 -

Eth 1/1/13 down 0 full A 1 -

Eth 1/1/14 down 0 full A 1 -

Eth 1/1/15 down 0 full A 1 -

Eth 1/1/16 down 0 full A 1 -

Eth 1/1/17 down 0 full A 1 -

Eth 1/1/18 down 0 full A 1 -

Eth 1/1/19 down 0 full A 1 -

Eth 1/1/20 down 0 full A 1 -

Eth 1/1/21 down 0 full A 1 -

Eth 1/1/22 down 0 full A 1 -

Eth 1/1/23 down 0 full A 1 -

Eth 1/1/24 down 0 full A 1 -

Eth 1/1/25 CUST FORT-FW .. down 0 full T 1 90,100,4001,4003-4004,4020-4093

Eth 1/1/26 down 0 full A 1 -

Eth 1/1/27 down 0 full A 1 -

Eth 1/1/28 down 0 full A 1 -

Eth 1/1/29 down 0 full A 1 -

Eth 1/1/30 down 0 full A 1 -

Eth 1/1/31 down 0 full A 1 -

Eth 1/1/32 down 0 full A 1 -

Eth 1/1/33 down 0 full A 4089 -

Eth 1/1/34 down 0 full A 4089 -

Eth 1/1/35 down 0 full A 4089 -

Eth 1/1/36 down 0 full A 4089 -

Eth 1/1/37 down 0 full A 1 -

Eth 1/1/38 down 0 full A 1 -

Eth 1/1/39 down 0 full A 1 -

Eth 1/1/40 down 0 full A 1 -

Eth 1/1/41 down 0 full A 100 -

Eth 1/1/42 down 0 full A 100 -

Eth 1/1/43 down 0 full A 100 -

Eth 1/1/44 down 0 full A 100 -

Eth 1/1/45 ORAGGSW01 Por.. down 0 full -

Eth 1/1/46 ORAGGSW01 Por.. down 0 full -

Eth 1/1/47 VPC1/VLT Trun.. down 0 full -

Eth 1/1/48 VPC2/VLT Trun.. down 0 full -

Eth 1/1/49 down 0 full A 1 -

Eth 1/1/50 down 0 full A 1 -

Eth 1/1/51 down 0 full A 1 -

Eth 1/1/52 down 0 full A 1 -

Eth 1/1/53 Prim TRUNK OR.. down 0 full -

Eth 1/1/54 Prim TRUNK OR.. down 0 full -

--------------------------------------------------------------------------------------------------

Specifications

Functional Condition:

F3 - Key Functions Working

Equipment in this category has undergone testing to confirm that its core functionalities are operational. Essential functions that a typical user would expect are verified working. Secondary functions or software may not be present or configured. Units may be missing components or parts that are not essential to key functions.

Cosmetic Condition:

C4 - Used Good

Good overall used condition. Some light scratches or scuffs. No dents, dings or cracks.

Data Sanitization:

S3 - Data Clear

Device has been sanitized by one of the following methods: Factory Reset, NIST 800-88 Clear, or DOD 5220.22

Mpn

S4048T-ON

Function Tests

Powers On

Passed

Physical Inspection

Passed

Functions

Passed

Buttons

Passed
