Miranda Grass Valley Densite (6) IPG-3901 SDI/IP Gateway Densite 4K/3G/HD +3TRP
Miranda Grass Valley Densite (6) IPG-3901 SDI/IP Gateway Densite 4K/3G/HD +3TRP
Miranda Grass Valley Densite (6) IPG-3901 SDI/IP Gateway Densite 4K/3G/HD +3TRP
Functional Condition: Fully Functional
Cosmetic Condition: Good
CONDITION:
Functional: Fully Functional
Cosmetic: Good
Scroll down for additional photos
Overview:

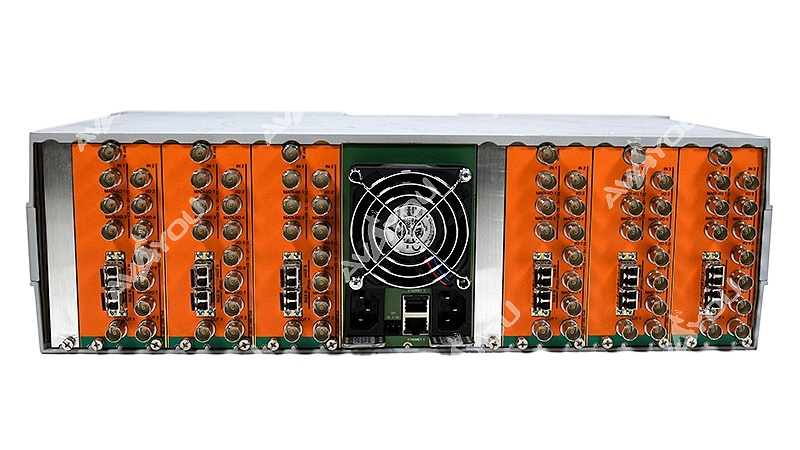

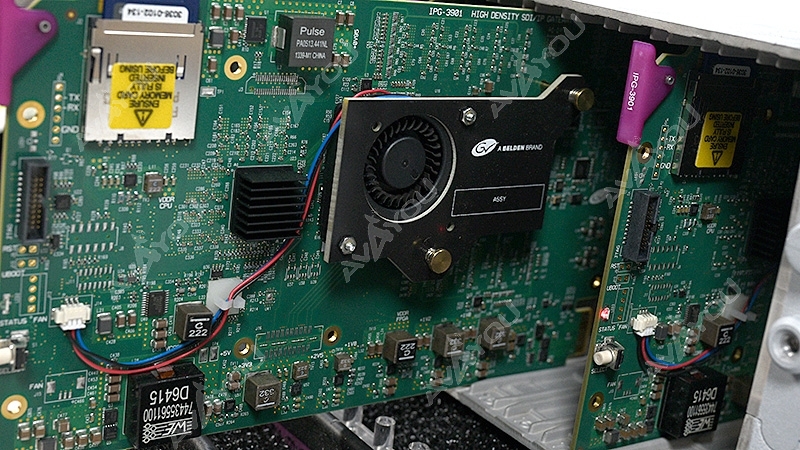

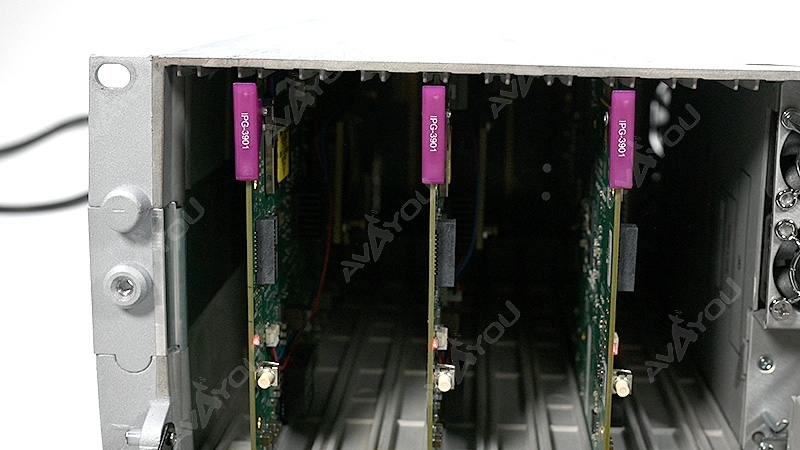

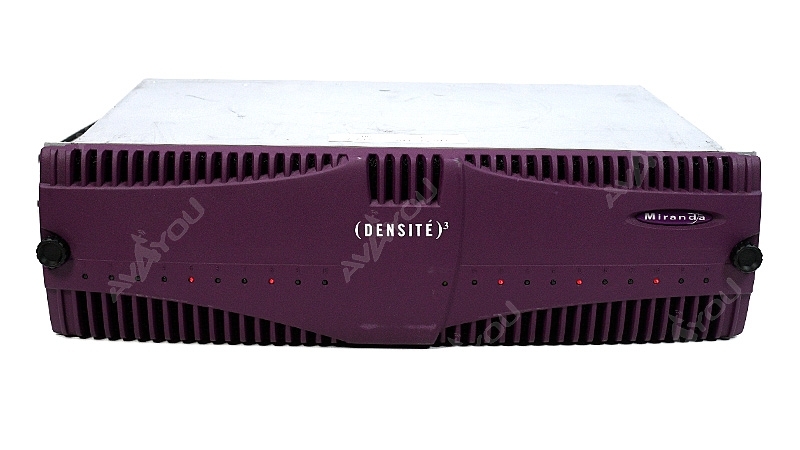

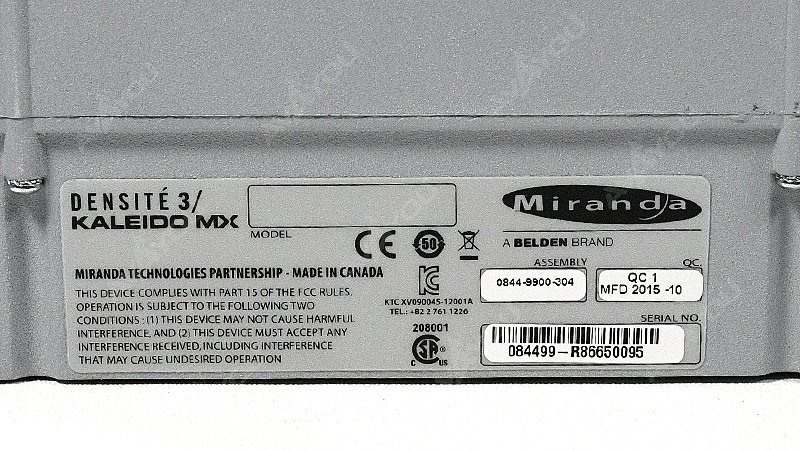

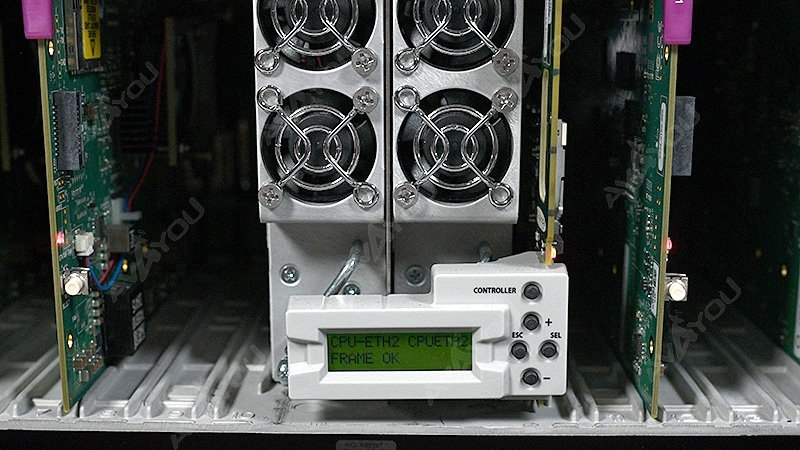

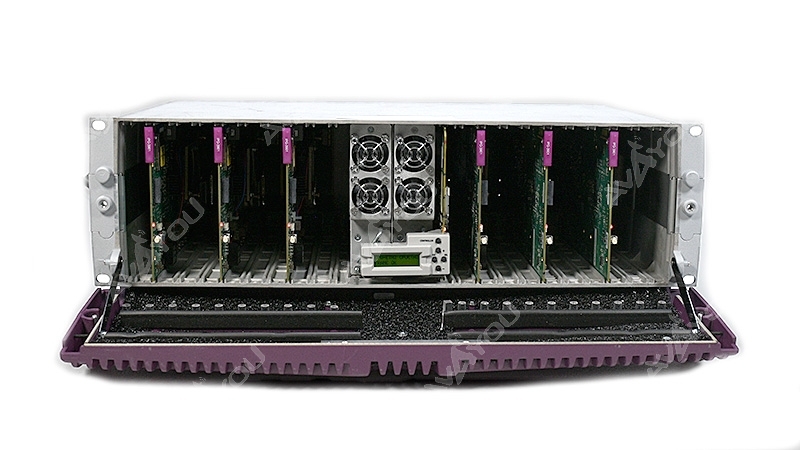

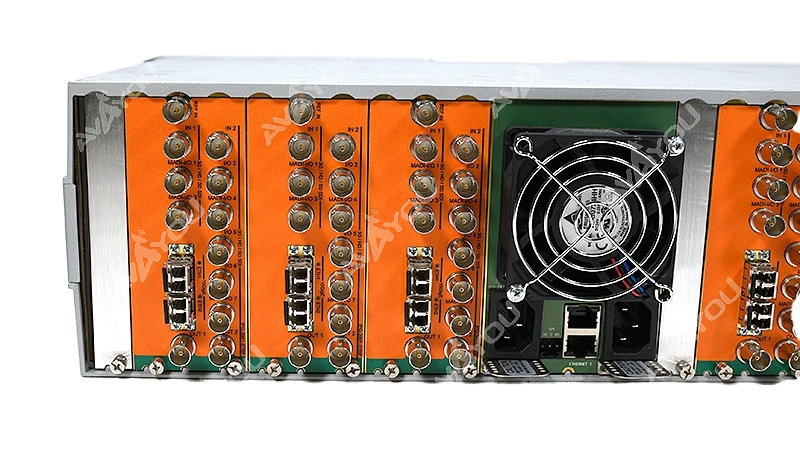

For sale is ONE (1) used Miranda Densite 3 frame with six IP gateway cards. Some of the cooling fans on the cards have whining noise indicating it is time to replace the fan. Densite 3RU frame is Kaleido MX. Actual photos are showed. Power cords are not included unless otherwise mentioned. If you are looking for any other Miranda modular cards - we probably have them. Thousands of cards available. Check out our inventory.
SKU# 7039
Description:
The Densité IP Gateway (IPG-3901) plug-and-play modules is a 3 RU module for the Densité 3 frame, which offers bidirectional IP/SDI conversion. The Gateway operates with 10 GigE audio/video video-over-IP, supporting 4K UHD/3G/HD/SD-SDI formats. The IPG-3901 v2.3 gateway module furthers the end-to-end support of IP for Grass Valley product lines by now offering support for Video Services Forum Technical Recommendation 04 (VSF TR-04), enabling independent routing of AES audio alongside SMPTE ST 2022-6 video and interconnection to audio devices supporting AES67 open standard for audio over IP.
With the addition of into PIX TICO (license not enabled) mezzanine encoding and decoding option on the gateway, customers have a convenient way to add 4K to their workflow and move 4K across the production facility. TICO mezzanine compression is visually lossless 4:1 compression, which is lightweight and fast, perfectly suitable for live production. The IPG-3901 with purchasable TICO option provides either two (2) encodes OR two (2) decodes OR one (1) encode and one (1) decode per card.
Features:
  • Bidirectional transport of 4K UHD/3G/HD/SD-SDI video signal over 10 GigE port
  • TR-04 support where each video signal is converted using SMPTE ST 2022-6 along with AES67 de-embedding/embedding of up to 16 audio channels per I/O
  • Redundancy mode with full compliance of SMPTE ST 2022-7 Class A of all IP essences where each module connects up to 3x3 3G or 5x5 HD/SD signals
  • Aggregation mode where both network ports are combined for a total IP bandwidth of 20 GigE: Provides higher 3G transmission capability per IPG-3901 card such as the transfer of 4K UHD uncompressed over Quad Link 3G using a single IPG-3901 card
  • Large frame buffer on every IP receiver provides support for server originated bursty sources
  • Quad Link 3G in 2SI and square division supported as per SMPTE ST 425-5
  • Simultaneous HD and 4K
  • 3G monitoring of 4K UHD signals
