Product Description
Specification
|

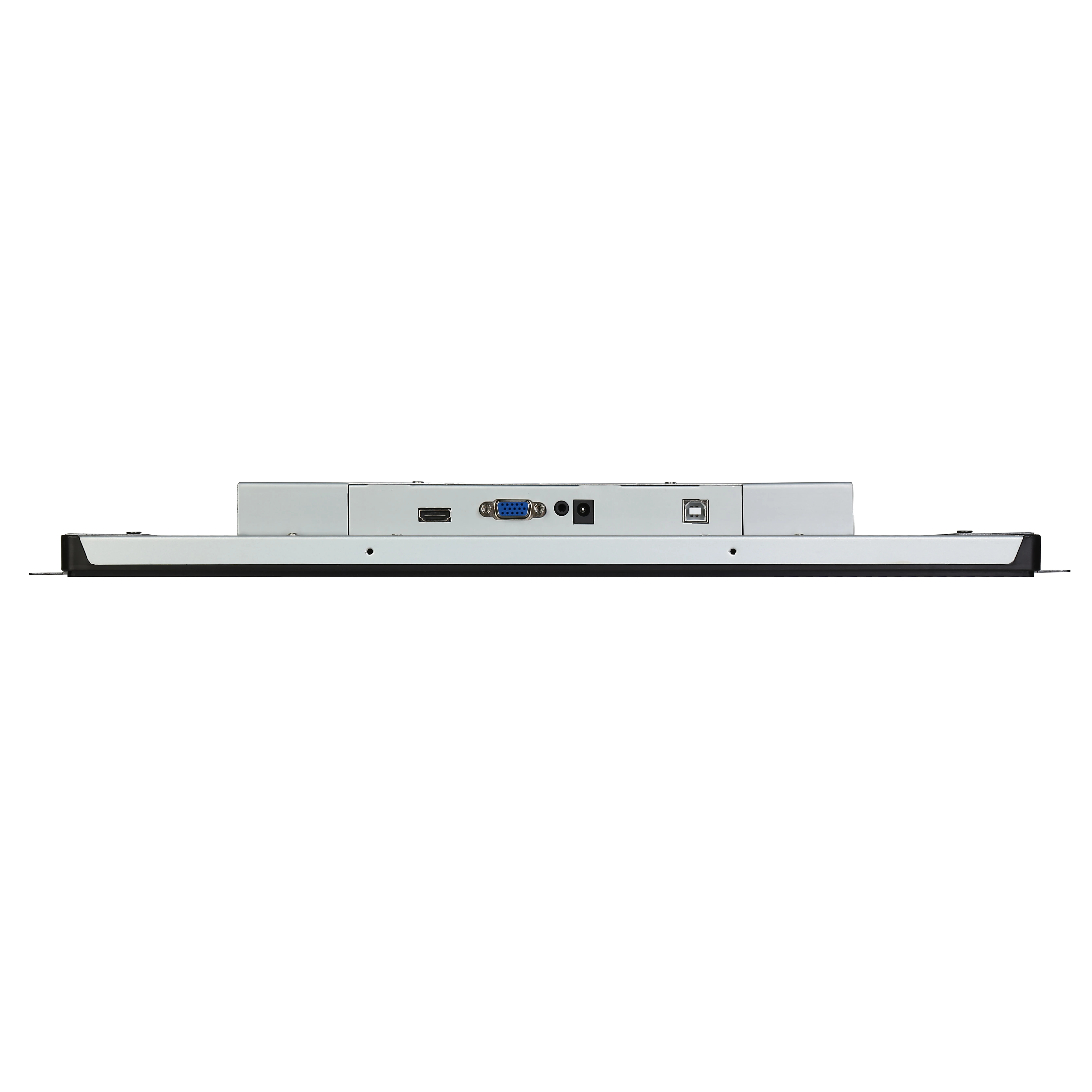

I/O Interface
|
1×USB for touch,1×VGA,1xHDMI
|
|
|
|
OSD control
|
Brightness, contrast ratio, auto adjustment, H/V position, language select etc.
|
|
|
|
Support OS
|
Android
|
|
|
|
LCD panel
|
|
|
|
|
Panel size
|
17" widescreen
|
|
|
|
Display ratio
|
4:3
|
|
|
|
Resolution
|
1280*1024
|
|
|
|
Brightness
|
350nits, 700-1000nits sunlight readable optional
|
|
|
|
Response time
|
15ms
|
|
|
|
Contrast ratio
|
1000:1
|
|
|
|
View angle
|
85°/85°/80°/80° (R/L/U/D)
|
|
|
|
Touch panel
|
|
|
|
|
Touch screen Type
|
10 points projective capacitive touch
|
|
|
|
Touch Interface
|
USB
|
|
|
|
Touch response time
|
<8ms
|
|
|
|
Luminousness
|
75-85%
|
|
|
|
Power Supply
|
|
|
|
|
External Power Supply
|
AC 100 - 240V
|
|
|
|
Working voltage
|
DC 12V
|
|
|
|
Power consumption
|
≤50W
|
|
|
|
Operating Environment
|
|
|
|
|
Temperature range
|
operating: -10 to 60°C, storage :-20 to 70°C
|
|
|
|
Relative humidity
|
5%~95% @ 40° C, non-condensing
|
|
|
|
Vibration
|
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
|
|
|
|
Packing Details
|
|
|
|
|
Accessories
|
Power adapter, VGA cable,HDMI cable,DVI cable, USB touch cable, touch pen,Touch driver disk,Remote Control, Stander optional
|
|
|
|
Other
|
|
|
|
|
Mounting (options)
|
1) provide wall brackets for wall-mounting, VESA 100×100mm
|
|
|
|
|
2) provide stable metal holder to support the monitor
|
|
|
|
Certification
|
CE, FCC,RoHS
|
|
|
|
Warranty
|
1 year warranty
|
|
|
Industrial Panel PC/All in one computer/touch screen industrial tablet/industrial monitor/Capacitive(Resistive) touch monitor/Industrial Android PC
Size: 7'', 8'', 10.1, 10.4'', 12.1'', 13.3'', 15'', 15.6'', 17'', 18.5'', 19'', 21.5'',27’’,32’’,43’’ 55'',65''
Drop shipping/after-service/made-in-China/manufacturer/No M.O.Q.
Product Usage
Product Features:
01.Support embedded,wall-mounted,desktop,VESAsupport.
02.Black color.
03.IP66 grade water-proof,dust-proof for front panel.
04.Working temperature:-20-70 degree.
05.365Days*24hours all-weather working.
06.Support boot strap with electricity.
07.3mm bezel thin front panel,embedded cabinet suitable.
08.Aluminum alloy shell,good mechanical properties,better performance of heat dissipation.
09.Adopt industrial control HD LCD screen +LED backlight screen,highlight picture,perfect color.
10.Compatible with various industrial systems/application.
11.Support non-touch,resistive touch,capacitive touch.
12.Whole system is equipped with WI-FI module,more convenient.
13.Build-in 2.0 speakers,support 1080P HD video.
14.CE,FCC,CCC,ROHS certificate.
15.Complete machine triple protection:explosion-proof, flameproof, moisture-proof.
16.Shock resistance standard reach GB2423,protection during transportation/working on the sea.
17.Anti-static level of contact 4KV(customized MAX 6KV),air 8KV( customized MAX 16KV).
18.Anti surge design,it is proper functioning during Instantaneous voltage rising into 280v.
