Fearures:

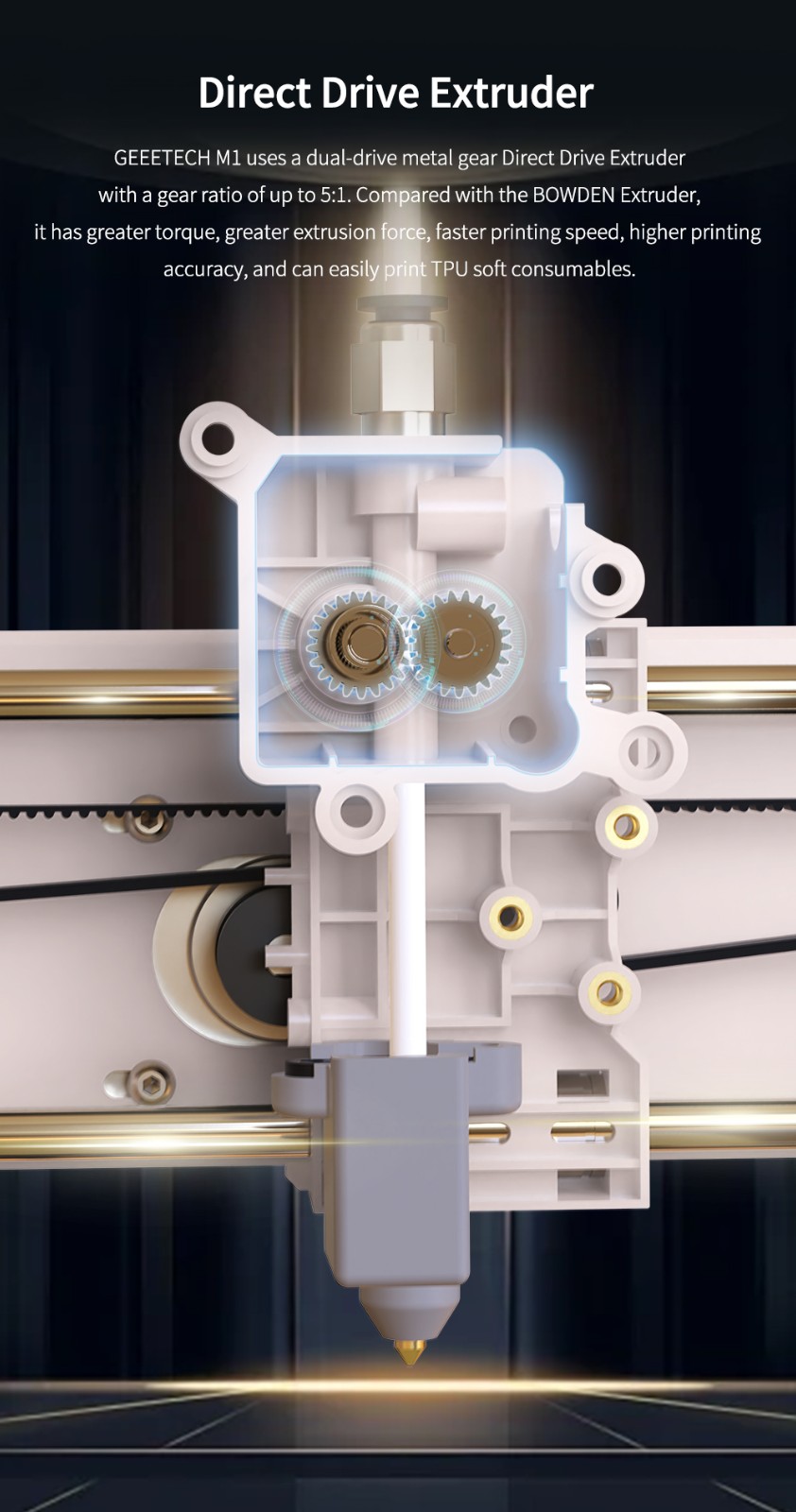

[Greater Extrusion Force & Higher Printing Accuracy] 5:1 ratio dual-drive metal gear Direct Drive Extruder;

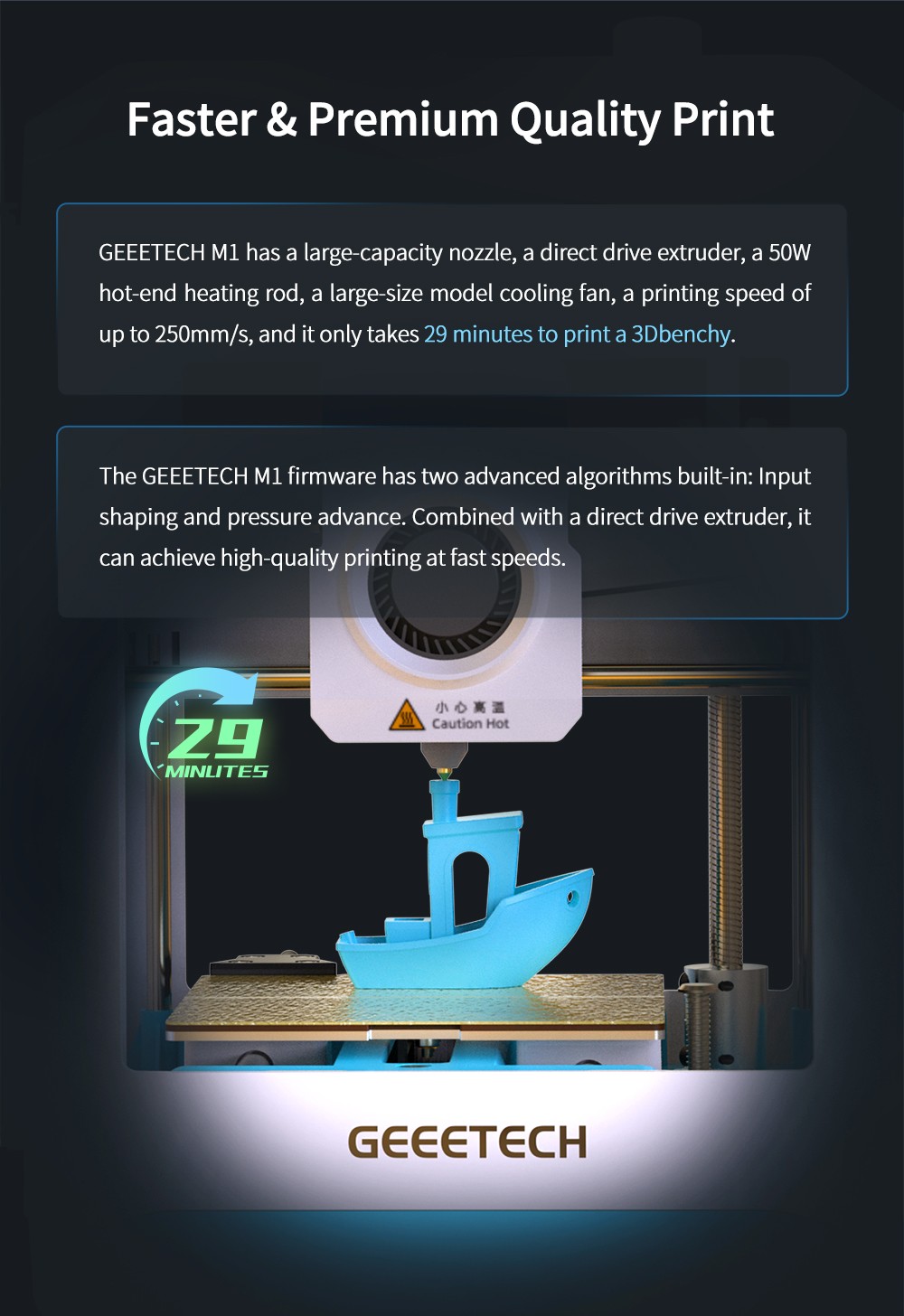

[High-Speed & Premium Quality Print] Up to 250mm/s print speed, Geeetech M1 uses advanced algorithms built-in: Input shaping and pressure advance;

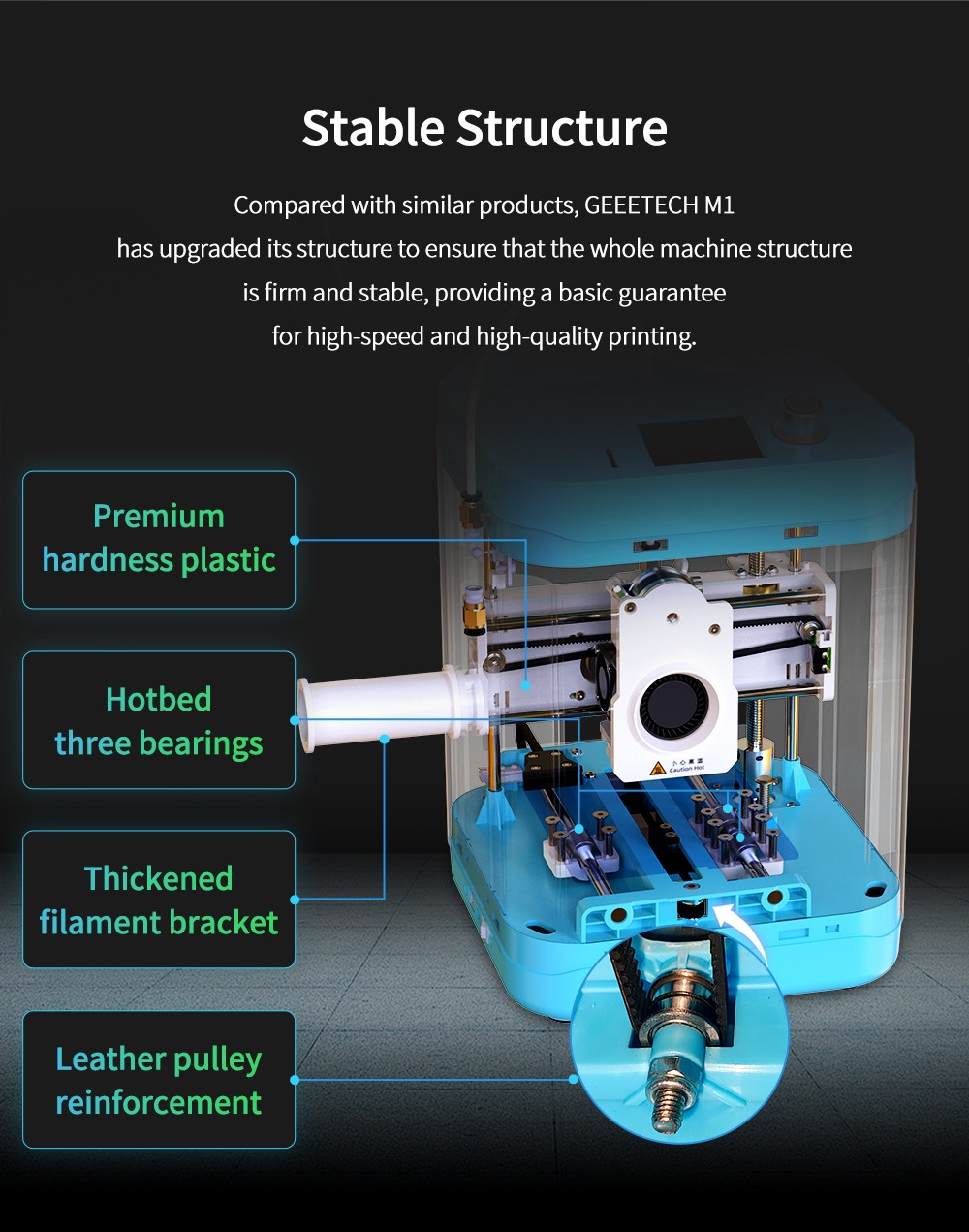

[Upgraded Firm and Stable Structure] Equipped with reinforced Leather pulley, hotbed three bearings, and thickened filament bracket;

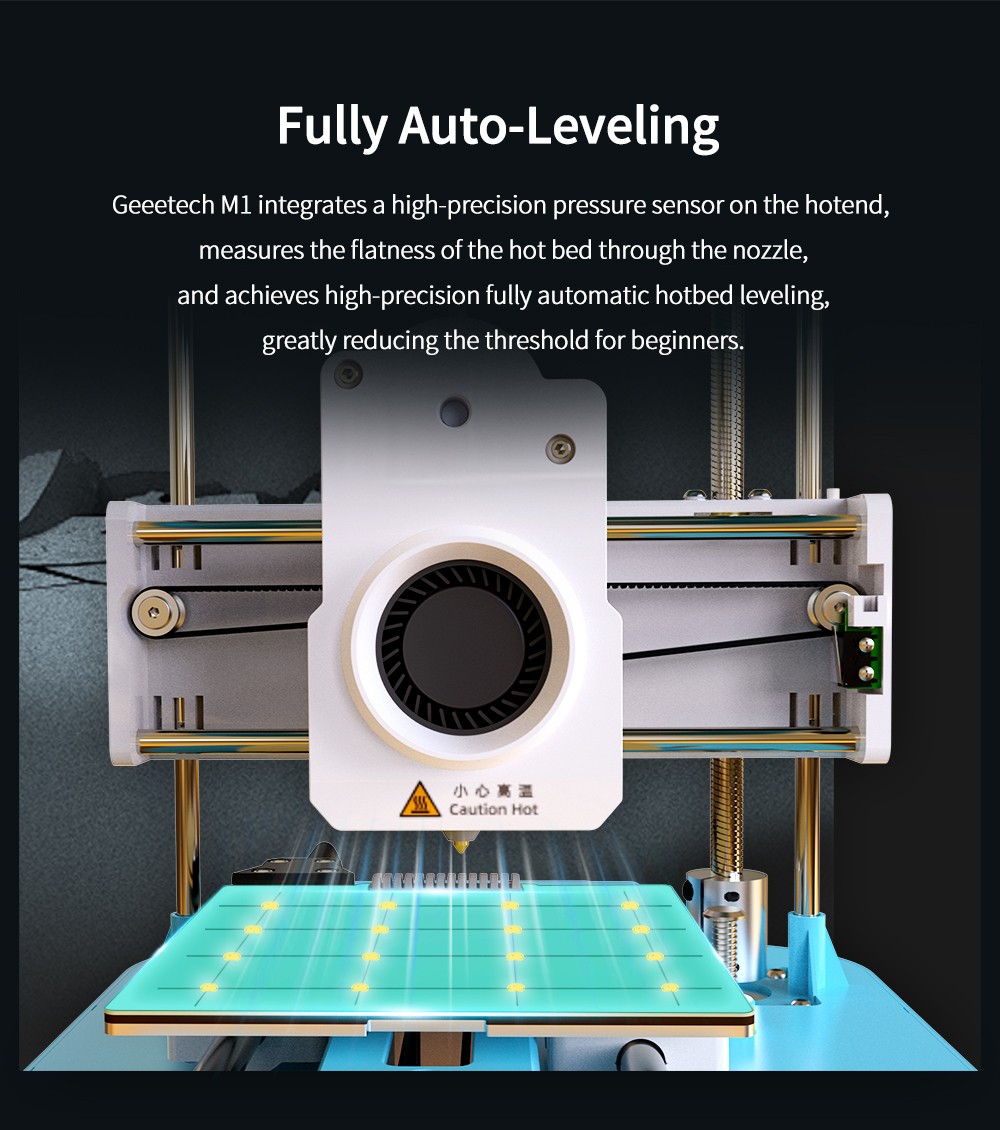

[Fully Automatic 16-Point Leveling] Integrateed a high-precision pressure sensor on the hotend for elaborate measurements;

[Efficient Heat Dissipation] Geeetech M1 uses a 50×50×15mm large-size blower to improve printing speed and model quality to prevent overheating issues;

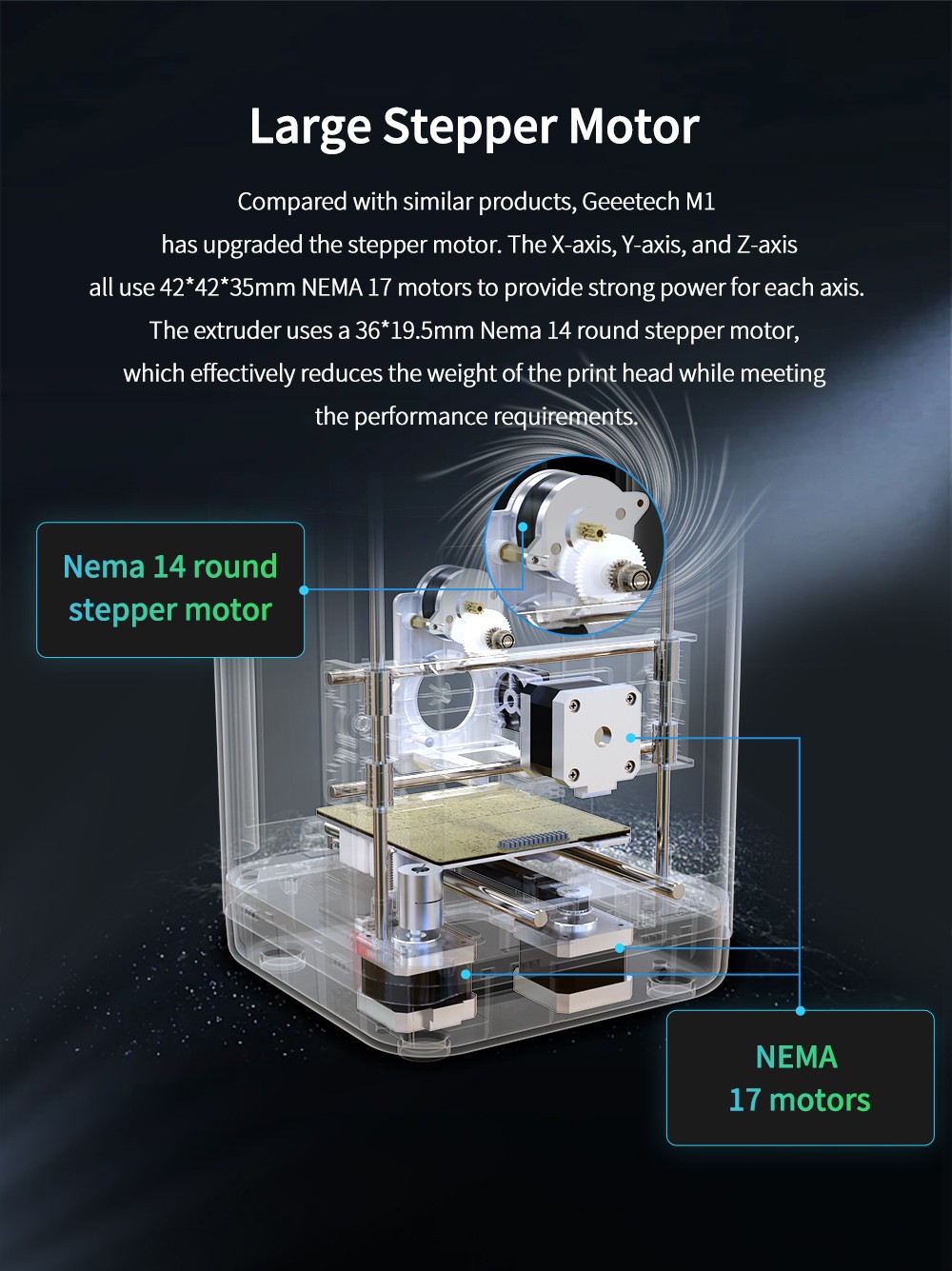

[42*42*35mm Large Stepper Motor] Providing strong power for each X-axis, Y-axis, and Z-axis;

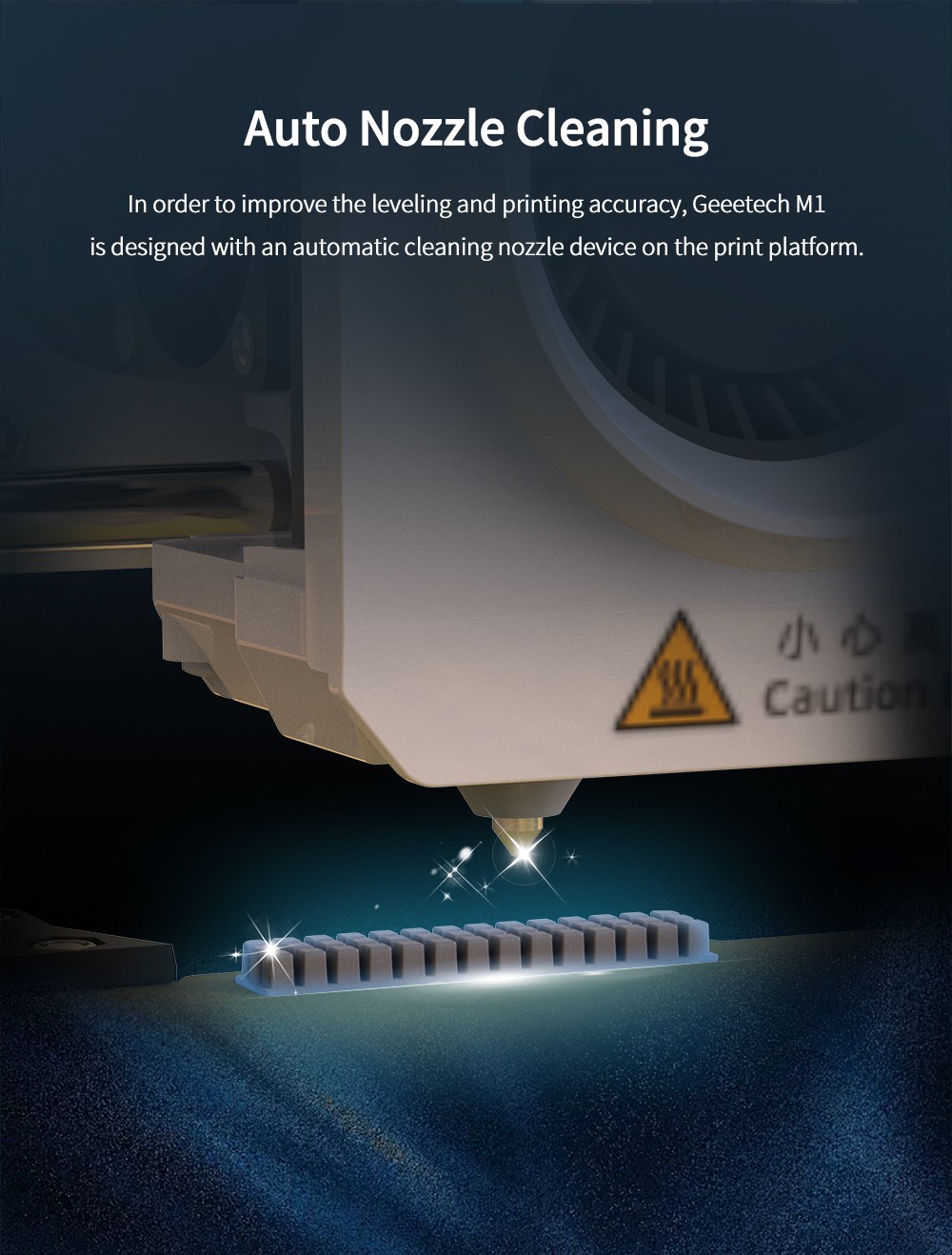

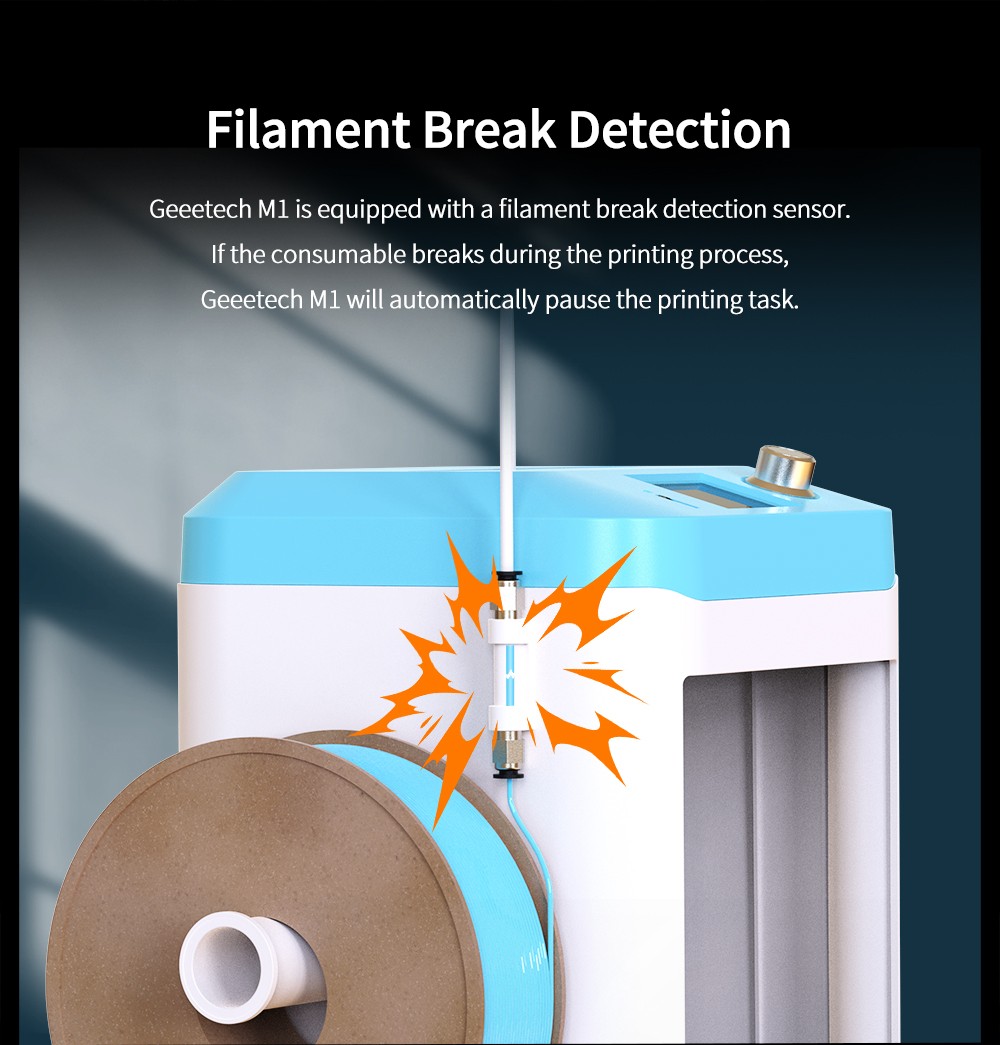

[User-Friendly & Easy to Start] M1 mini 3D Printer also offers a 2.4” LCD colorful screen, filament break detection, auto nozzle cleaning, and inside high brightness LED lighting.

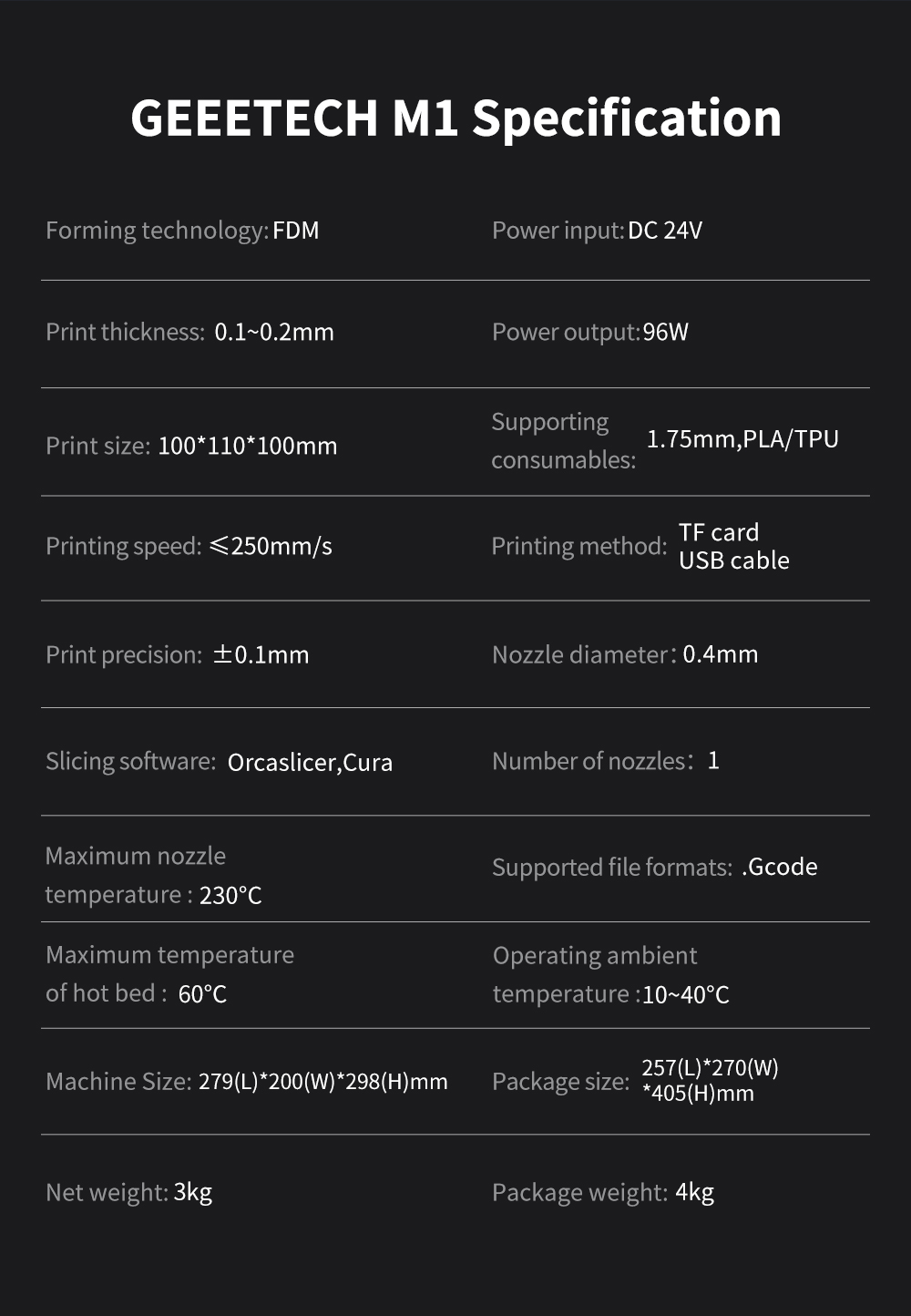

Specification:

Forming technology: FDM

Power input:DC 24V

Printer thickness:0.1-0.2mm

Power output:96W

Printer size:100*110*100

Supporting consumables: 1.75mm,PLA / TPU

Printing speed ≤250mm/s

Printing method:TF card/ USB cable

Print precision:+/- 0.1mm

Nozzle diameter: 0.4mm

Slicing software: Orcaslicer, Cura

Number of nozzles:1

Maximun nozzle temperature: 230℃

Supported file formats:Ggode

Maximun temperature of hot end: 60℃

Operating ambient temperature :10-40℃

Machine Size:279(L)*200(W)*298(H)mm

Package Size:257(L)*270(W)*405(H)mm

Net weight:3kg

Package weight:4kg
