HIKVISION 5MP DVR 4CH 8CH 16CH TURBO CCTV 1080P HDMI FULL HD CHANNEL AHD TVI CVI
Description

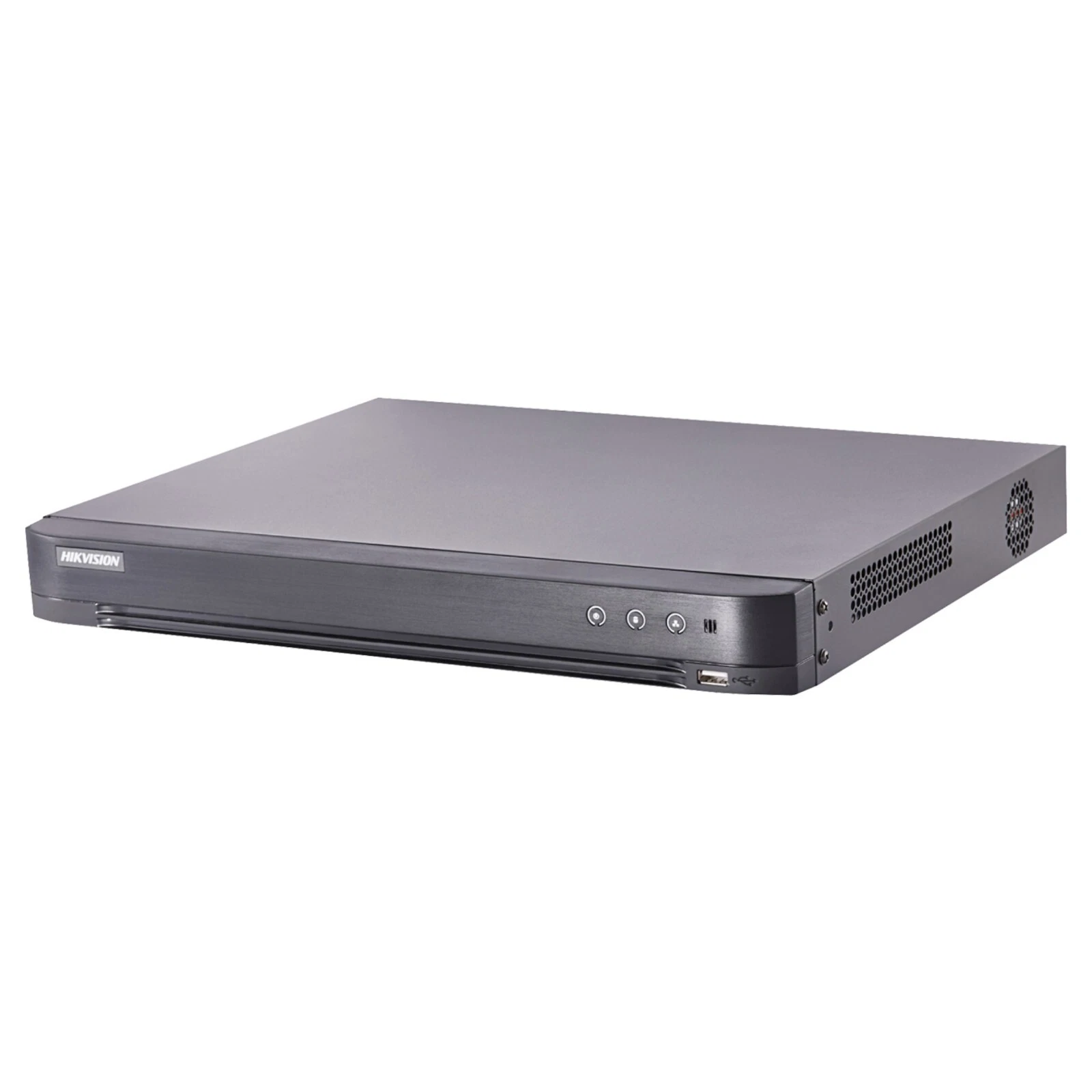

Hikvision DVR Systems - DS-7204HQHI-K1, iDS-7208HQHI-M1, iDS-7216HQHI-M1, iDS-7232HQHI-M2 - High-Definition Video Recorders for Surveillance Systems
Package Included:
- 1 x DS-7204HQHI-K1 / iDS-7208HQHI-M1 / iDS-7216HQHI-M1 / iDS-7232HQHI-M2 DVR Unit
- 1 x User manual
- 1 x Mouse
- 1 x Power adapter
- 1 x Installation accessories (e.g., screws, brackets)
The Hikvision DS-7204HQHI-K1, iDS-7208HQHI-M1, iDS-7216HQHI-M1, and iDS-7232HQHI-M2 DVR systems are designed to meet the needs of modern surveillance setups, offering high-quality recording, video compression, and multiple camera inputs.
These DVRs support both analogue and IP cameras, providing flexible and efficient solutions for home, office, and business security. With H.265+ video compression, high-definition video output, and advanced recording capabilities, these devices are perfect for high-performance surveillance environments.
Enjoy advanced features like motion detection, remote access, and easy setup, ensuring reliable and secure monitoring.
Multi-Channel Support: DS-7204HQHI-K1 supports 4 channels, iDS-7208HQHI-M1 supports 8 channels, iDS-7216HQHI-M1 supports 16 channels, and iDS-7232HQHI-M2 supports up to 32 channels, making these DVRs perfect for both small and large-scale surveillance systems.High-Definition Video Recording: Supports up to 1080p resolution for clear, detailed video playback and recording, ensuring high-quality surveillance footage.
Advanced Video Compression: Features H.265+, H.265, and H.264 video compression technologies to reduce bandwidth usage and save on storage without compromising video quality.
Flexible Storage Options: All models support SATA HDDs with a capacity of up to 6TB per drive, allowing ample space for storing long-term surveillance footage.
Multiple Video Outputs: Equipped with both VGA and HDMI outputs for flexible video display options on monitors and TVs.
Audio Support: Offers 1 x audio input and 1 x audio output, allowing for two-way communication or sound recording, enhancing security monitoring.
Reliable Network Connectivity: 1 x 10/100/1000 Mbps Ethernet port for fast and stable network connections, ideal for remote access and real-time surveillance.
Energy-Efficient: Designed to consume minimal power, with each model offering low power consumption, helping to reduce operating costs.
Compatibility
Cables
Alarm Systems Compatibility
- Integrates well with most standard alarm systems like Honeywell Vista 20P or DSC PowerSeries systems.
- Compatible with wireless alarms, including Ajax Systems Hub 2 or Dahua’s Smart Alarm System.
Mobile APP Software for Live View
- Hik-Connect: Use this app to monitor live footage and manage settings from your smartphone.
- iVMS-4500: Available for both Android and iOS for easy surveillance and camera control.
Product Compatibility:
- Compatible with Hikvision IP cameras and CCTV cameras (HD-TVI, AHD, CVI, CVBS, and IP cameras)
- Suitable for use with a wide variety of surveillance equipment such as cameras, monitors, and storage devices.
- Compatible with Hikvision's surveillance software for remote access and monitoring.
Specifications
| DS-7204HQHI-K1 | iDS-7208HQHI-M1 | iDS-7216HQHI-M1 | iDS-7232HQHI-M2 | |
|---|---|---|---|---|
| Video Input Channels | 4 Channels | 8 Channels | 16 Channels | 32 Channels |
Video Output | 1 x VGA, 1 x HDMI | 1 x VGA, 1 x HDMI | 1 x VGA, 1 x HDMI | 1 x VGA, 1 x HDMI |
Video Compression | H.265+, H.265, H.264 | H.265+, H.265, H.264 | H.265+, H.265, H.264 | H.265+, H.265, H.264 |
Max. Recording Resolution | 1080p | 1080p | 1080p | 1080p |
| Storage Capacity | 1 x SATA HDD (up to 6TB) | 1 x SATA HDD (up to 6TB) | 2 x SATA HDD (up to 6TB each) | 2 x SATA HDD (up to 6TB each) |
Audio Input/Output | 1 x Audio Input, 1 x Audio Output | 1 x Audio Input, 1 x Audio Output | 1 x Audio Input, 1 x Audio Output | 1 x Audio Input, 1 x Audio Output |
Network Interface | 1 x 10/100/1000 Mbps Ethernet | 1 x 10/100/1000 Mbps Ethernet | 1 x 10/100/1000 Mbps Ethernet | 1 x 10/100/1000 Mbps Ethernet |
Power Supply | 12V DC, 2A | 12V DC, 3A | 12V DC, 3A | 12V DC, 5A |
| Dimensions | 315mm × 245mm × 48mm | 375mm × 285mm × 48mm | 445mm × 345mm × 50mm | 480mm × 395mm × 60mm |
Weight | 1.6 kg | 2.2 kg | 3.2 kg | 4.5 kg |
Power Consumption | < 10W | < 15W | < 20W | < 25W |
This detailed breakdown ensures that you have a clear view of what each DVR model can offer and how it fits into your surveillance system setup.
