Description:

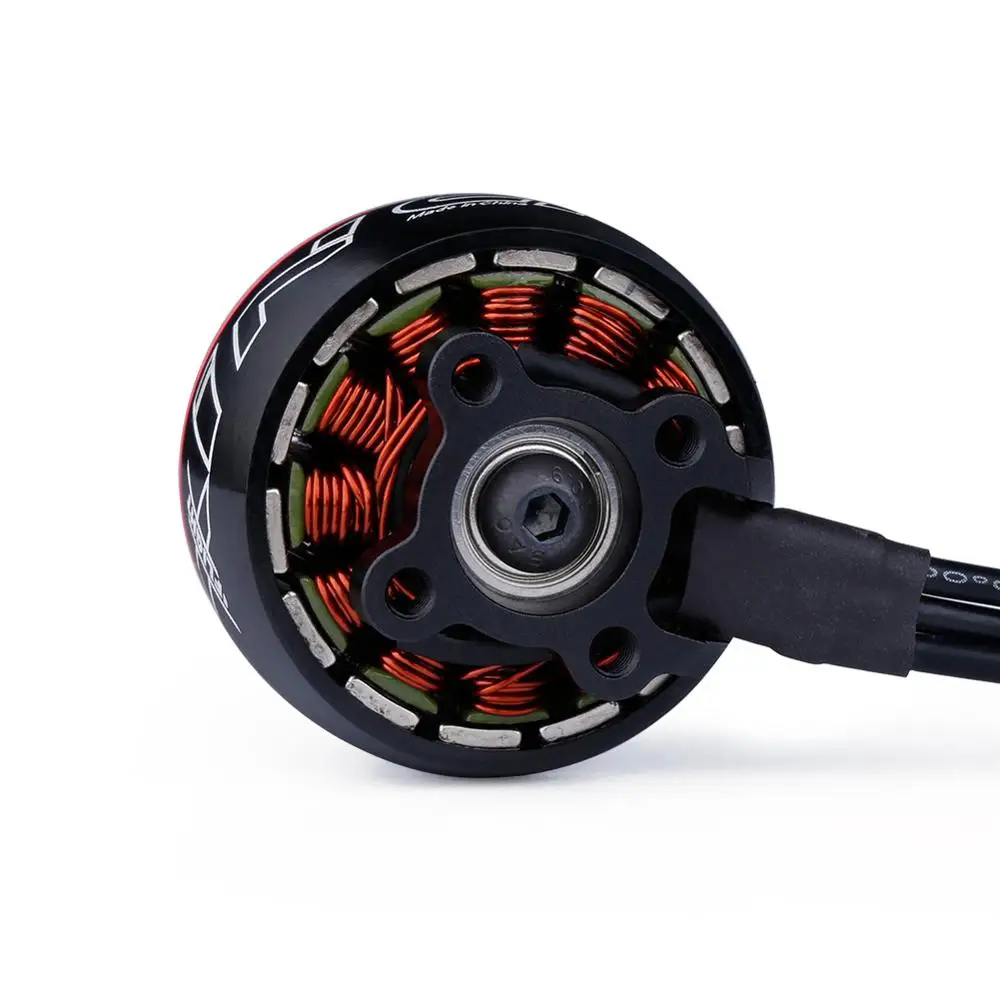

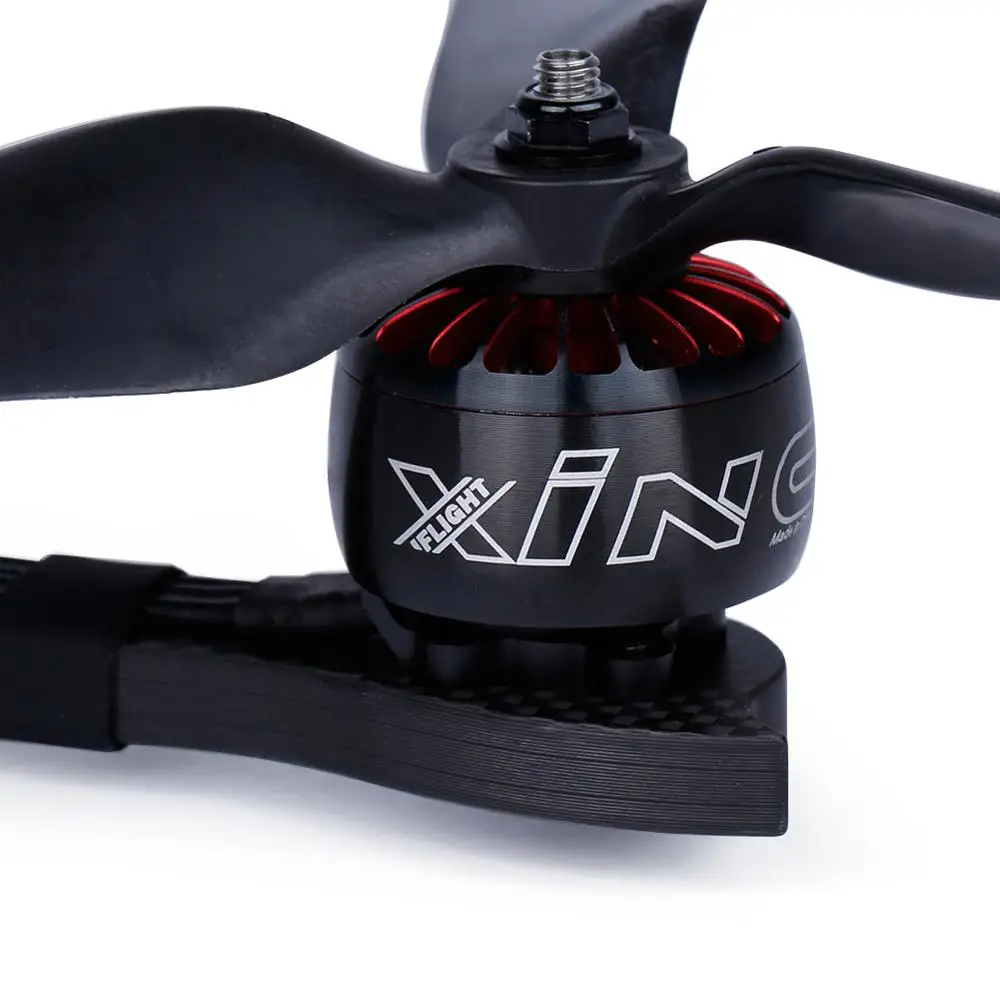

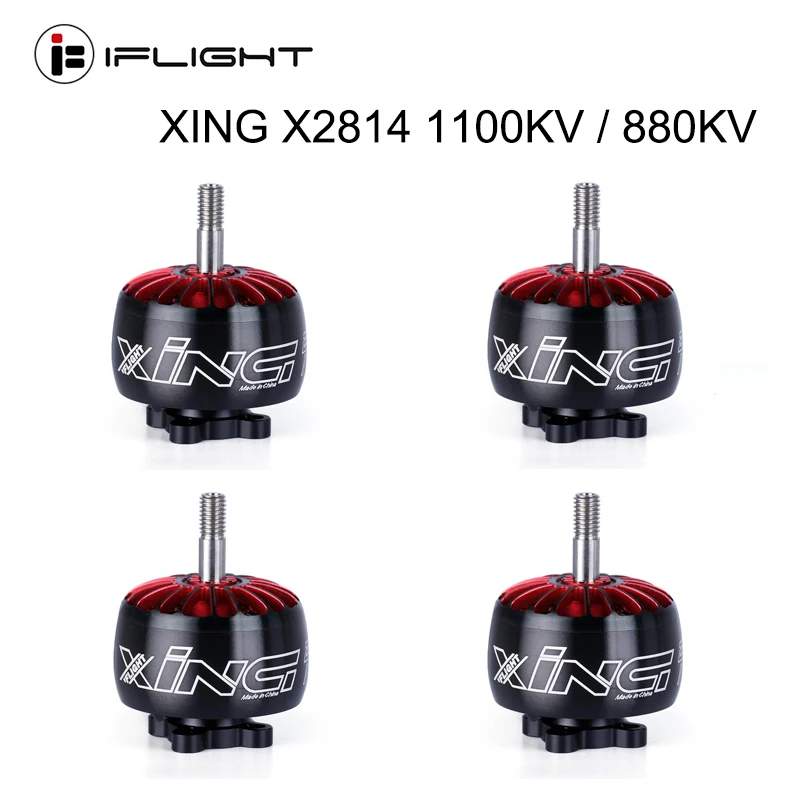

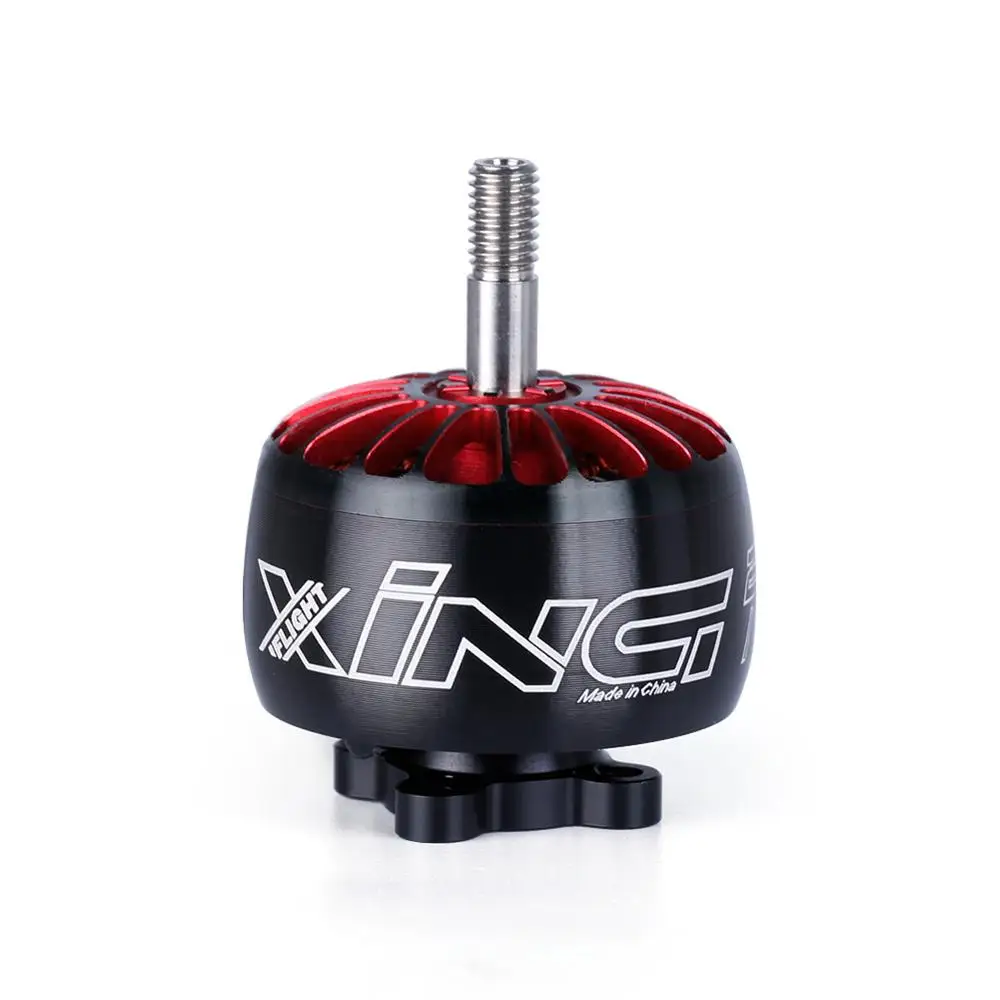

The Motor XING 2814 is designed for larger quads like 9-10 inch quad frames, which is with better efficiency in this area of frames. The XING 2814 features adopt Japan NSK bearings, N52H arc magnets. It offers incredible thrust, responsive and extremely smooth flight characteristics. The larger stator size of 2814 allows it to offer instant power to save you from those crazy mountain dives last minute. It's a great engine if you are building larger drones like 9 inch or 10 inch.

Properties:
7075 aluminum bell and base
Electromagnetically matched magnets and stator
Japanese NSK 11 * 5 * 5 bearings
N52H Arc curve magnets
Motor wires protected
Hex bolt shaft set screw
Dynamically balanced

Specification:

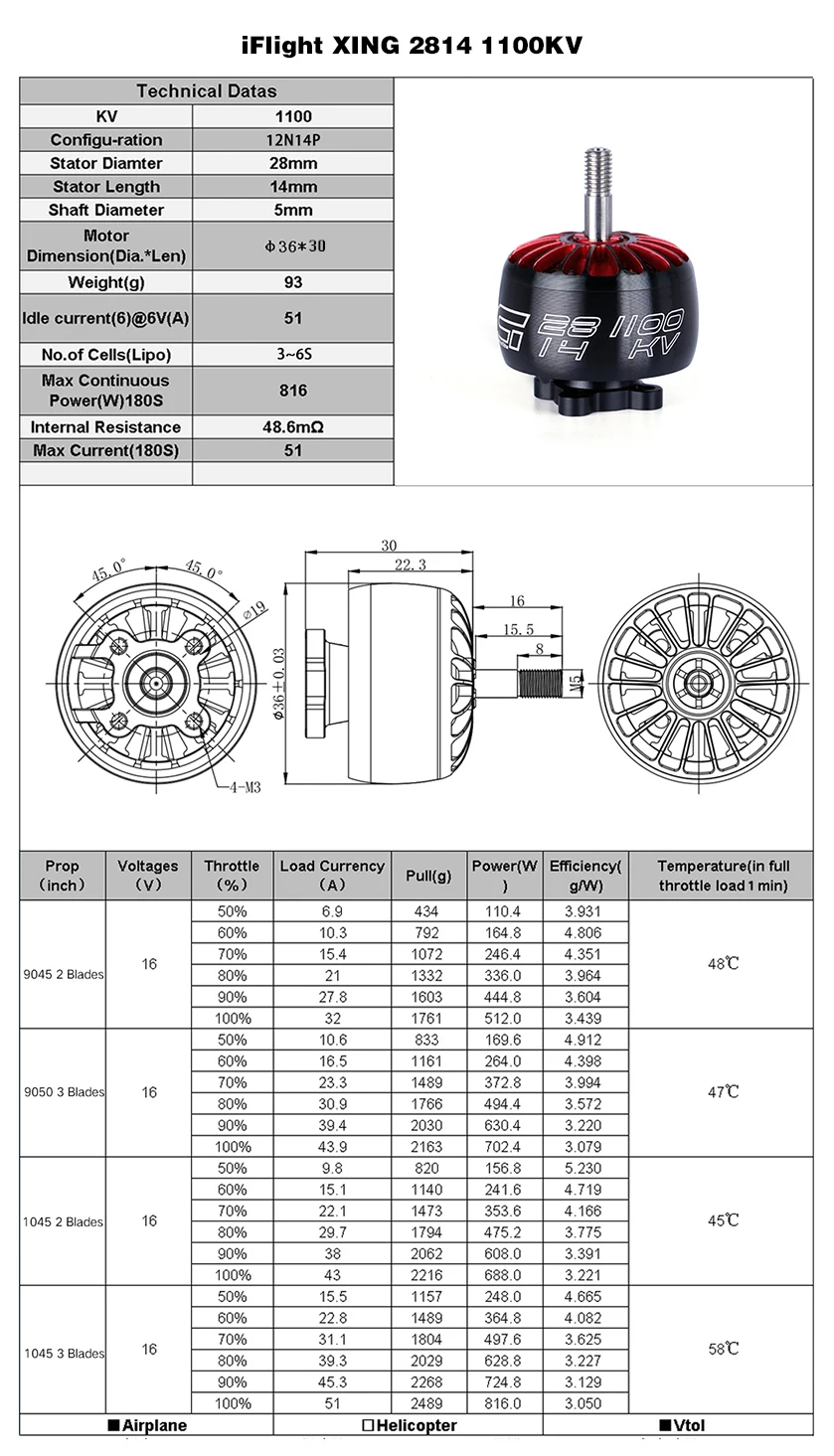

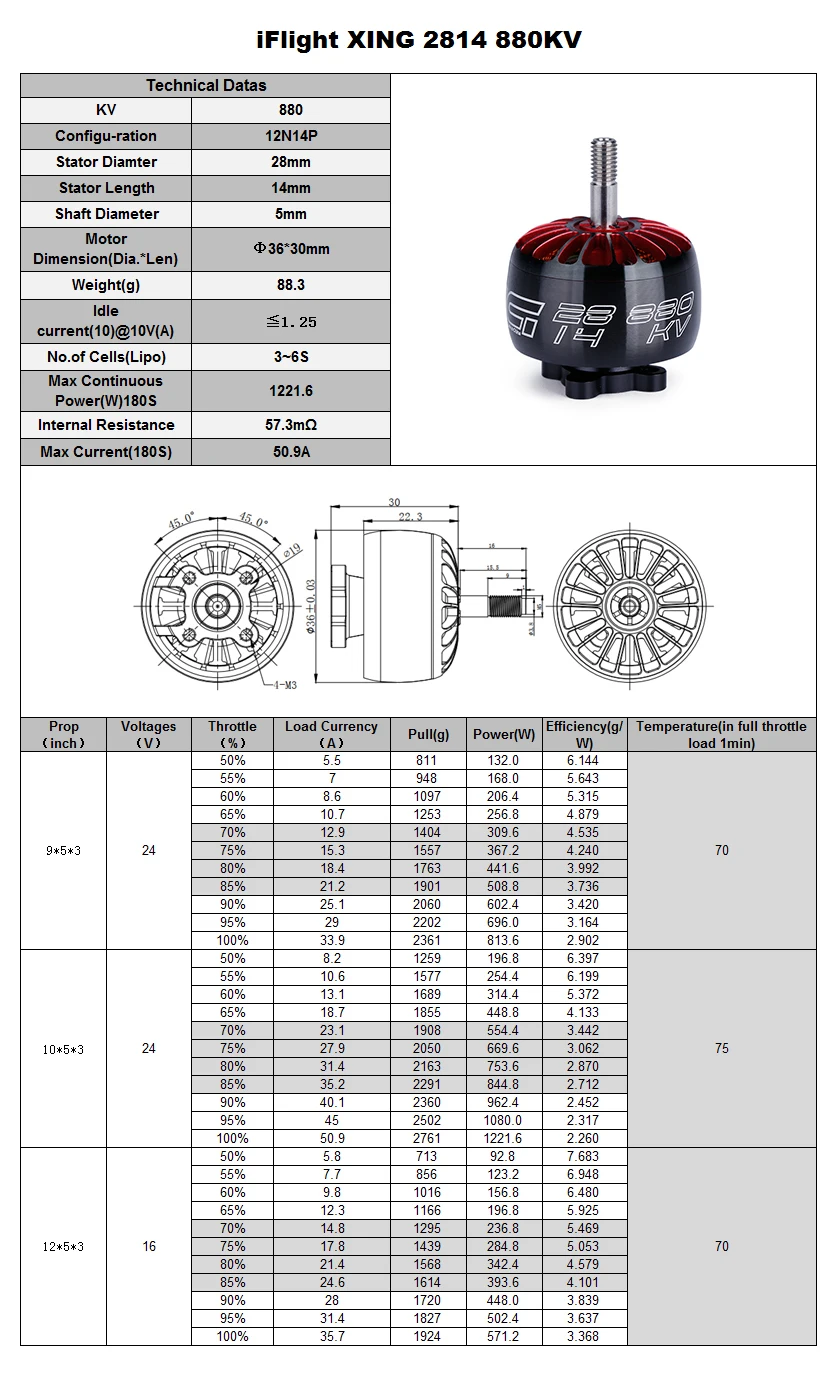

Voltage Range: 2-6S (for different KV, different power support, please refer to the Test Report to choose your suitable KV and batteries)
KV option: 880KV / 1100KV / 1700KV / 2200KV
Configuration: 12N14P
Bearing: NSK / 11 * 5 * 5
Stator diameter: 28
Stator length: 14mm
Shaft diameter: 5mm
No. of cells (Lipo): 2-6S

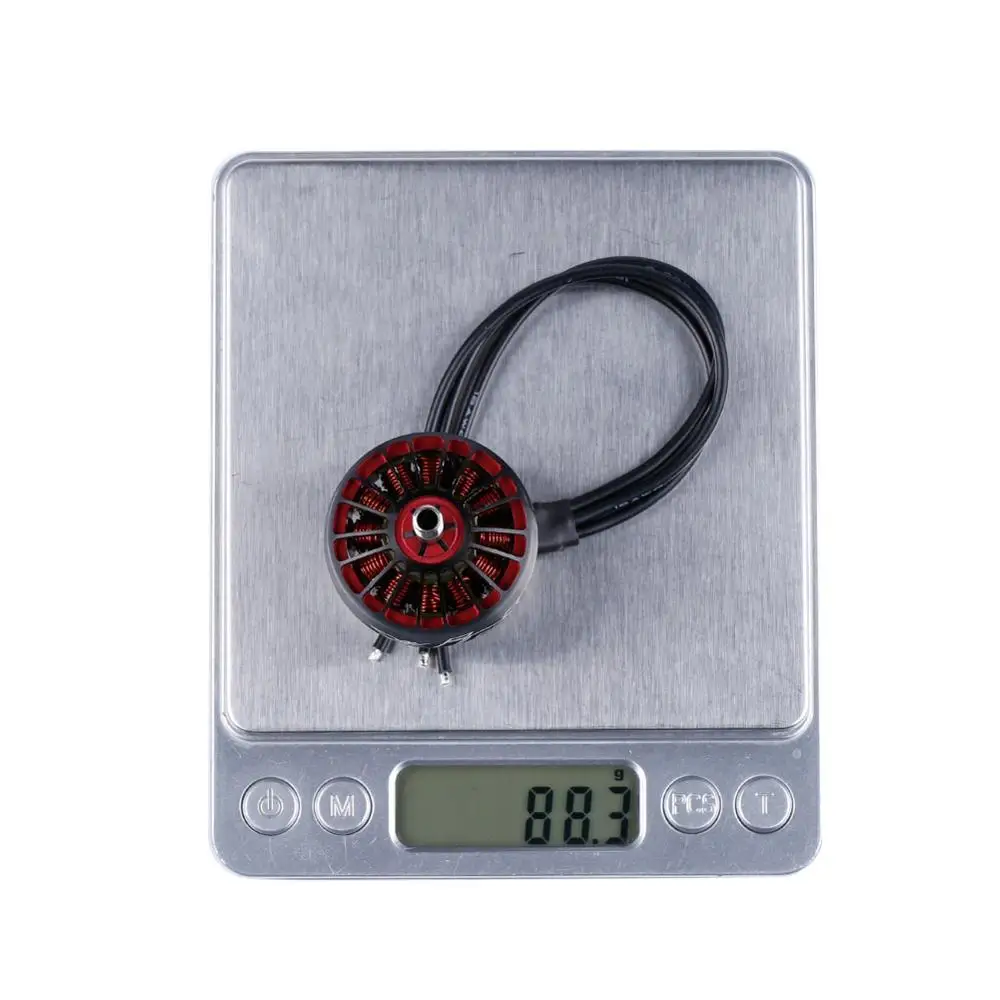

Weight: 88.3g (with a short cable)
Motor mount hole: 19 * 19? 3mm

Package include:
1/4pcs x X2814 motor
1/4pcs x M5 screw nut
4/16pcs x M3 * 8 screws
