AXISFLYING C204 2004 FPV Brushless Motor 2910/3500KV For RCFPV 3/3.5''Quadcopter
Description
With FPV trending in cinematic and commercial filming, we – Axisflying – are very proud to present you our new C cinematic motor series.
The C series motor has been developed for Cinematic FPV pilots who fly to create and have high-quality requirements.
Cinematic pilots often only have one chance to capture their best shot so they work hard to fine-tune their flying abilities and master: control, anticipation and precision. We bring you today a new cinematic motor to help you enhance your cinematic flying skills.
The C series motor features the perfect balance required for your cinematic flights: smoothness, reactivity and high torque for a delicate control feel along high efficiency to maximize your flight time.
Forword
- C204 motor is special designed for 3inch cinewhoop and cinematic drone that need more powerful and torque.
- C204 motor is also good for 3.5inch cinewhoop of cruising fly.
- C204 motors run perfect with Gemfan D76-5 and D90-3 props
- There are 2 KV for options 2910KV @6S ,3500KV@4S

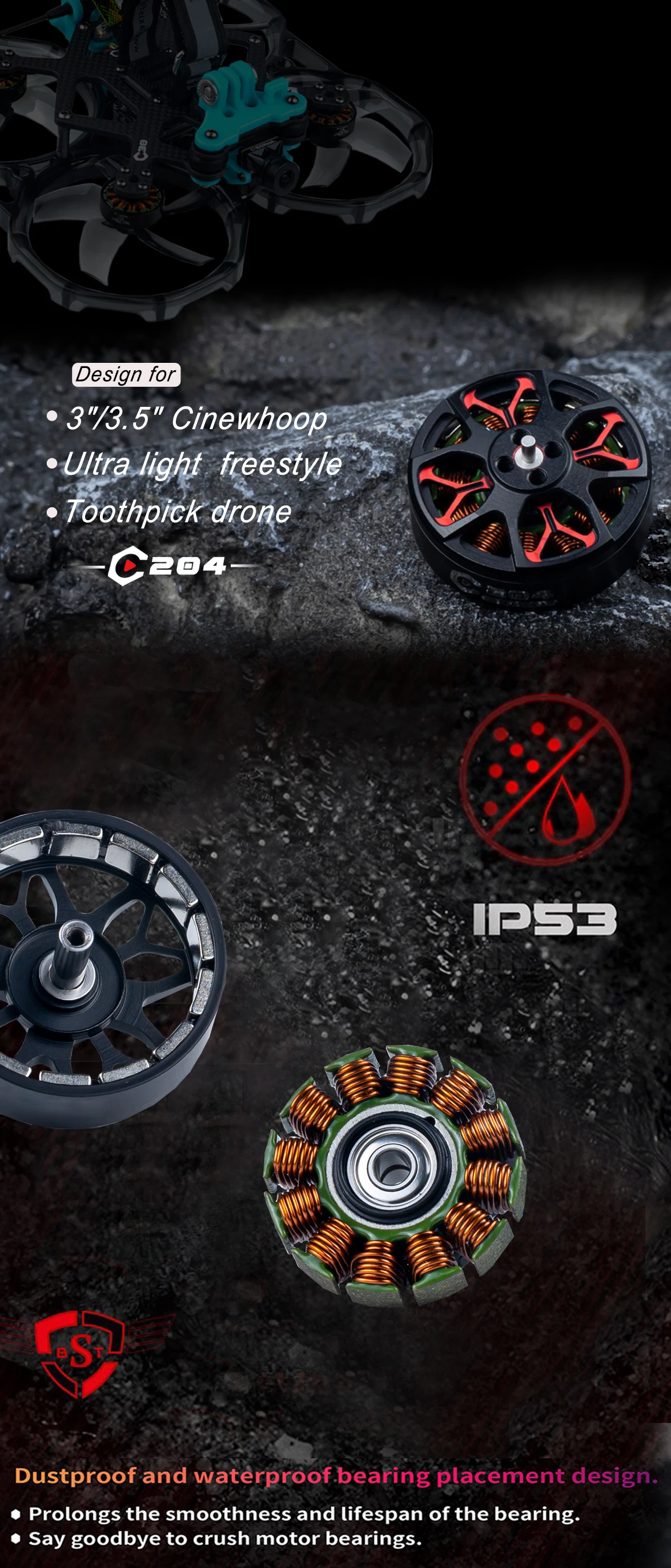

Bearing Shield Technology
- An IP53 rating dustproof and waterproof bearing placement design.
- BST protects from environmental elements and prolongs the smoothness and lifespan of the bearng .
- Increased thrust effciency and say goodbye to crush motor bearings

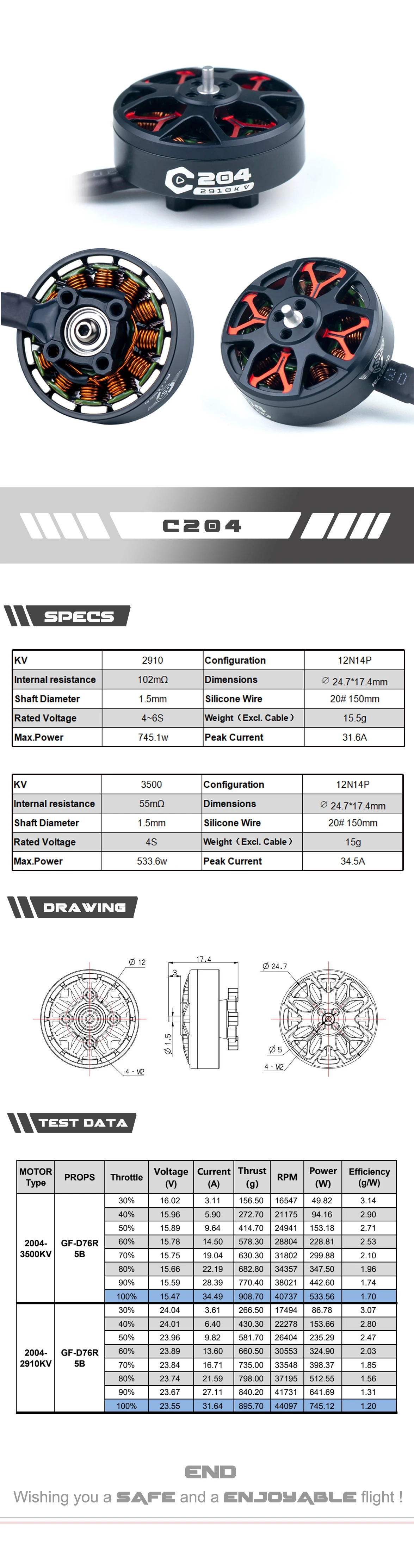

Specs
- 2910KV is for 6S / 3500 KV is for 4S

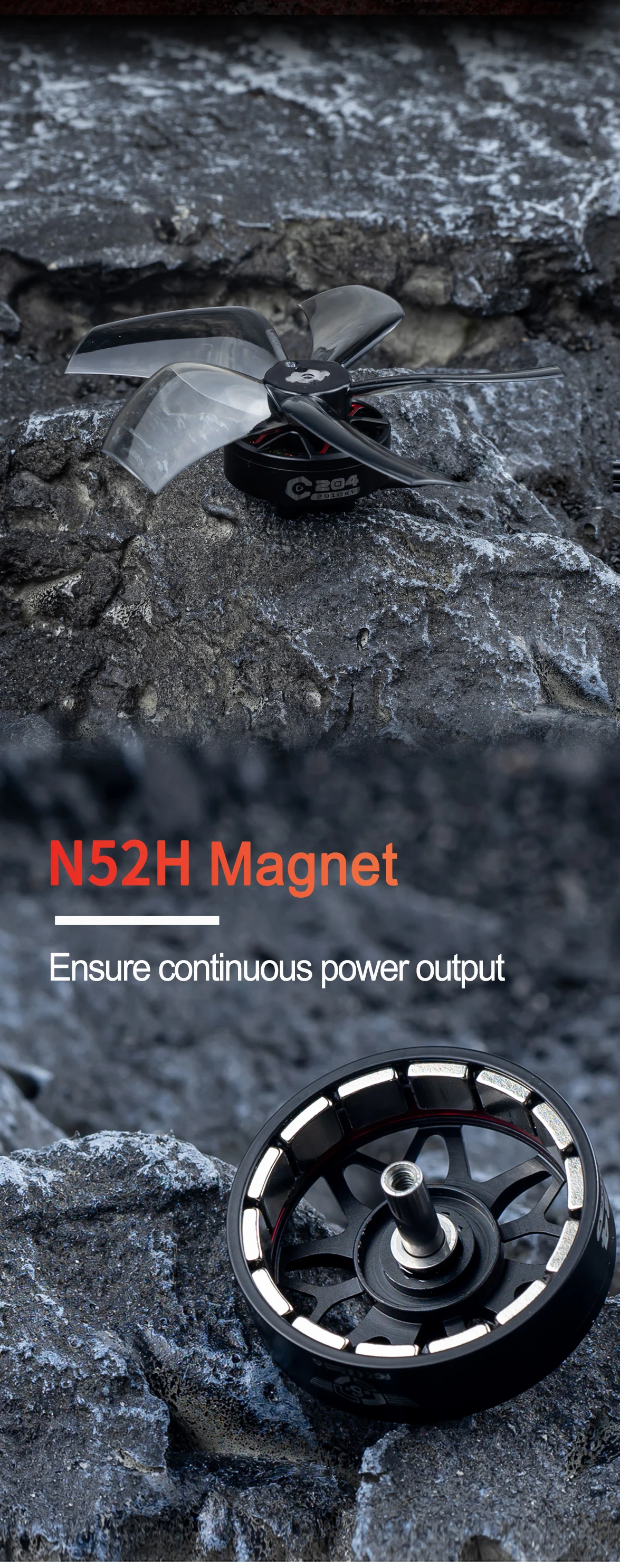

- Configuration: 12N14P / N52H arc magnet
- Motor stator size: 2004
- Motor mounting hole size: 4*M2 (Φ12mm)
- Motor cables: AWG 20#, 150MM
- Motor dimensions (Dia *Len): Φ26.9*28.8MM
- Motor weight (excluding 150MM cables) : 15g
- The motor is very powerful that can get over 0.85KG and most current is about 25A
Packing List
- 1* C204 motor
- 4* M2*5 screws for motor
- 1* M2*4 screw for lock shaft
- 2* M2*7 screws for lock props
- 1* O-ring
- 1* Washer
