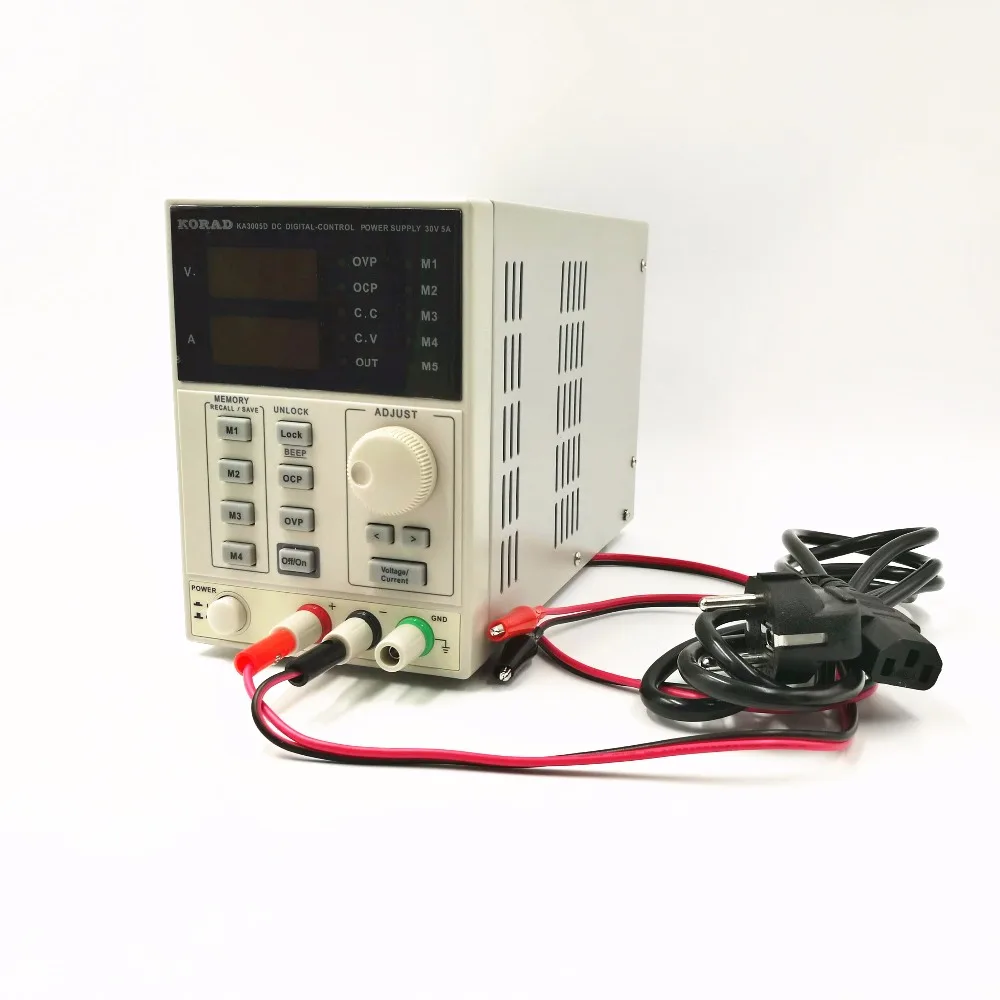

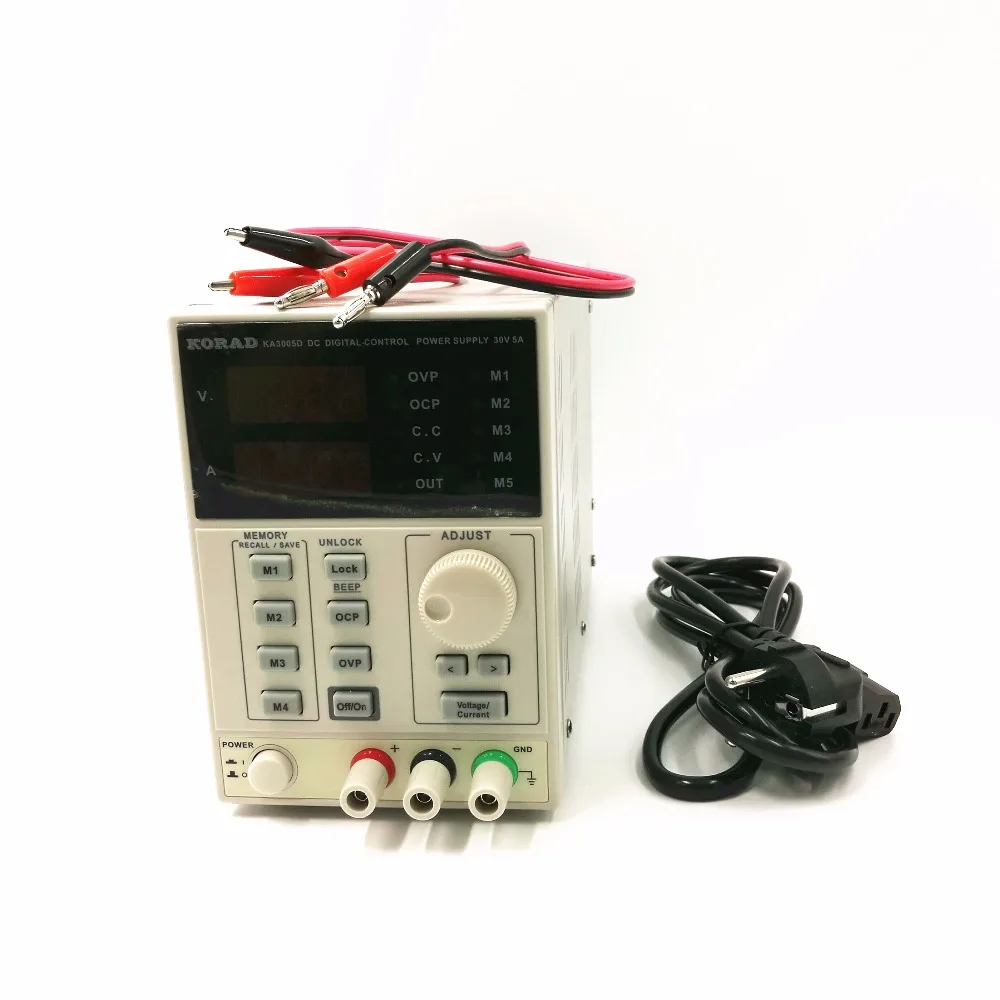

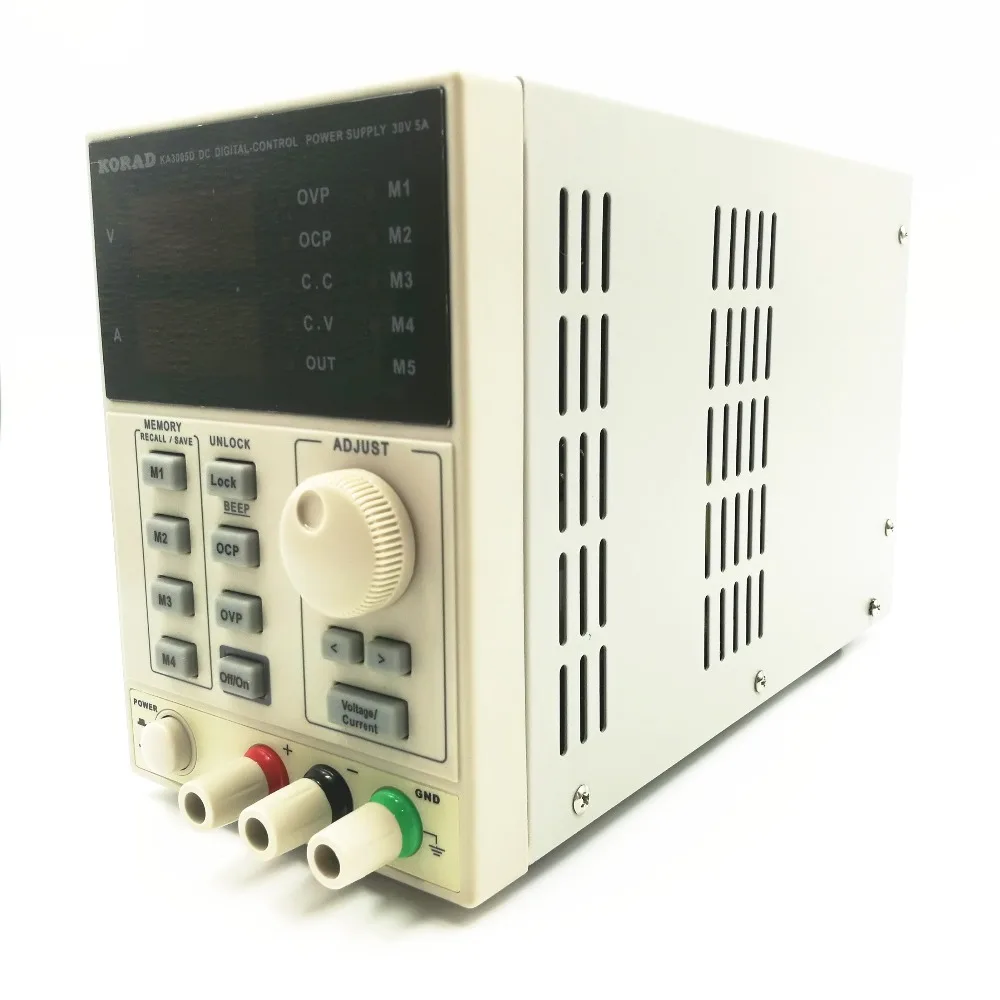

220V KA3005D high precision Adjustable Digital DC Power Supply 30V/5A for scientific research service Laboratory 0.01V 0.001A

Description:

DC Power Supply KA3005D Precision Variable Adjustable 30V 5A LAB GRADE

Main features:

Compact Design

Dual 4 Digit LED Displays

Digital Controls

Output switch control

4 sets of parameters can be stored inside for fast recall

Keyboard Lock to prevent accidental changing of set parameters

Circuit protection for over load, short circuit and over temperature.

Automatic switching between mA and A display

Quiet variable speed fan

Operating Conditions:

Input voltage:220V  +/-10%

Frequency range: 50- 60Hz

Operating temperature: 32-104 F  (0-40 )

Operating humidity: < 80%RH

Storage temperature: 32-158 F  (0-70 )

Storage humidity: < 70%RH

Stable Voltage:

Output Voltage Range: 0-30V Continuously adjustable
Setup Resolution: 10 mV

Setup Accuracy: <0.05% +20 mV

Ripple: < 1mVRMS

Read back Accuracy: 10 mV

Temp. Coefficient: < 0.1% + 10mV

Read back Temp. Coefficient: < 100 ppm+10 mV

Stable Current:

Output Current Range: 0-5A  Continuously adjustable

Setup Resolution: 1 mA

Setup Accuracy: <0.1% +3 mA

Ripple: < 3mARMS

Read back Accuracy: 1 mA

Temp. Coefficient: < 0.1% + 5mA

Read back Temp. Coefficient: < 100 ppm+5 mA

Weight: 9.5 lbs. (4.3 Kg)

Dimensions: 4.3 x 6.1 x 10.25 inches  (110 x 156 x 260mm)
