750C display

Bafang 750C Display LCD Screen with 5 Pin Female Plug Waterproof Connector Use for BBS01 BBS02 BBSHD Motor Conversion Kit

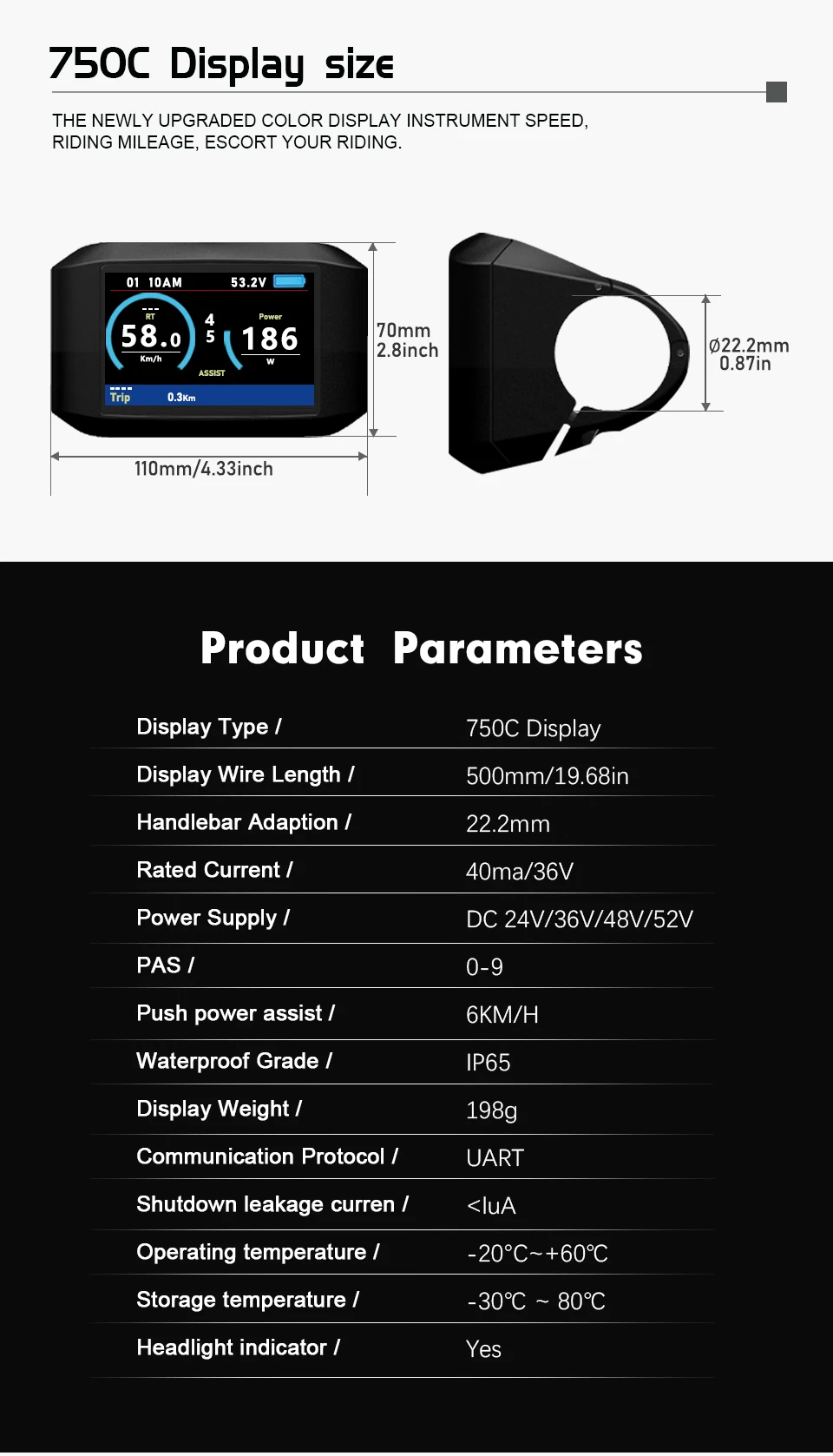

  Specification

• Power supply: 24V/36V/48V/52V

• Weight:198g

• Rated current:40mA/36V

• Support levels mode: 0-9

• Rated operating current : 40mA

• Max output current to controller : 100mA

• Off leakage current < 1uA

• Operating temperature : -20～70℃

• Storage temperature : -30～80℃

• Storage humidity: 30%-70%

• Communication mode: UART

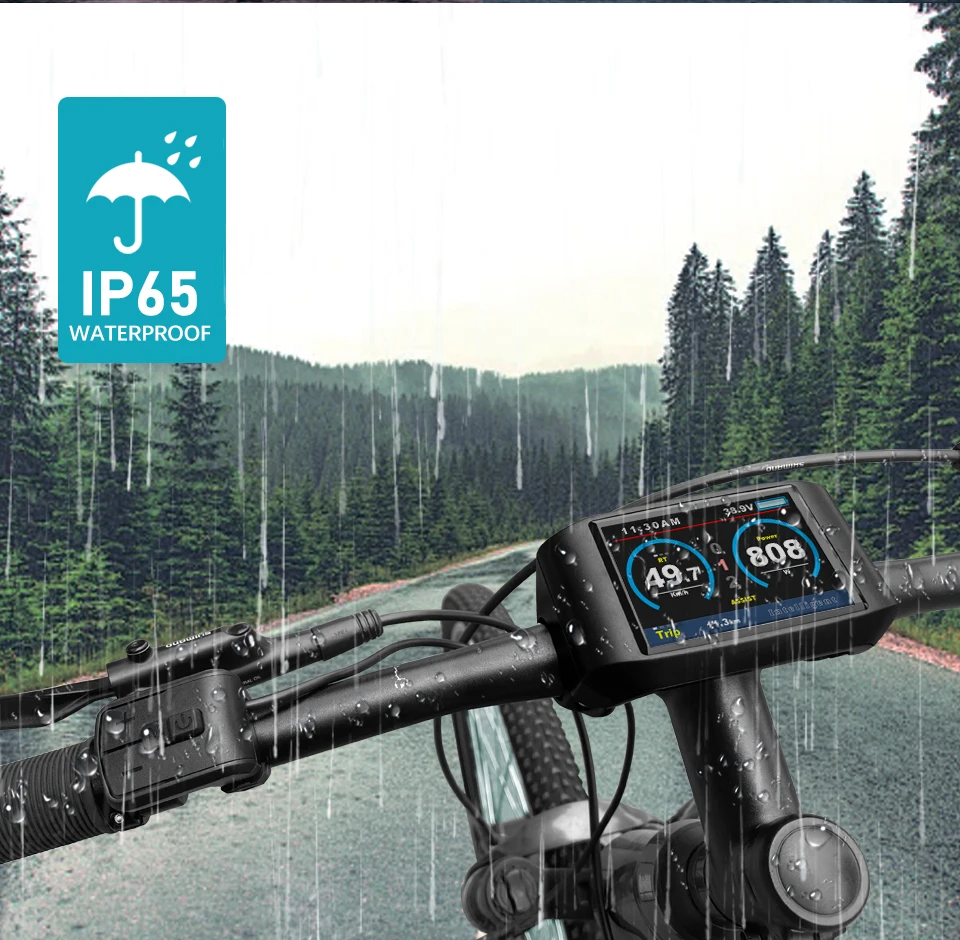

• Waterproof grade: IP65

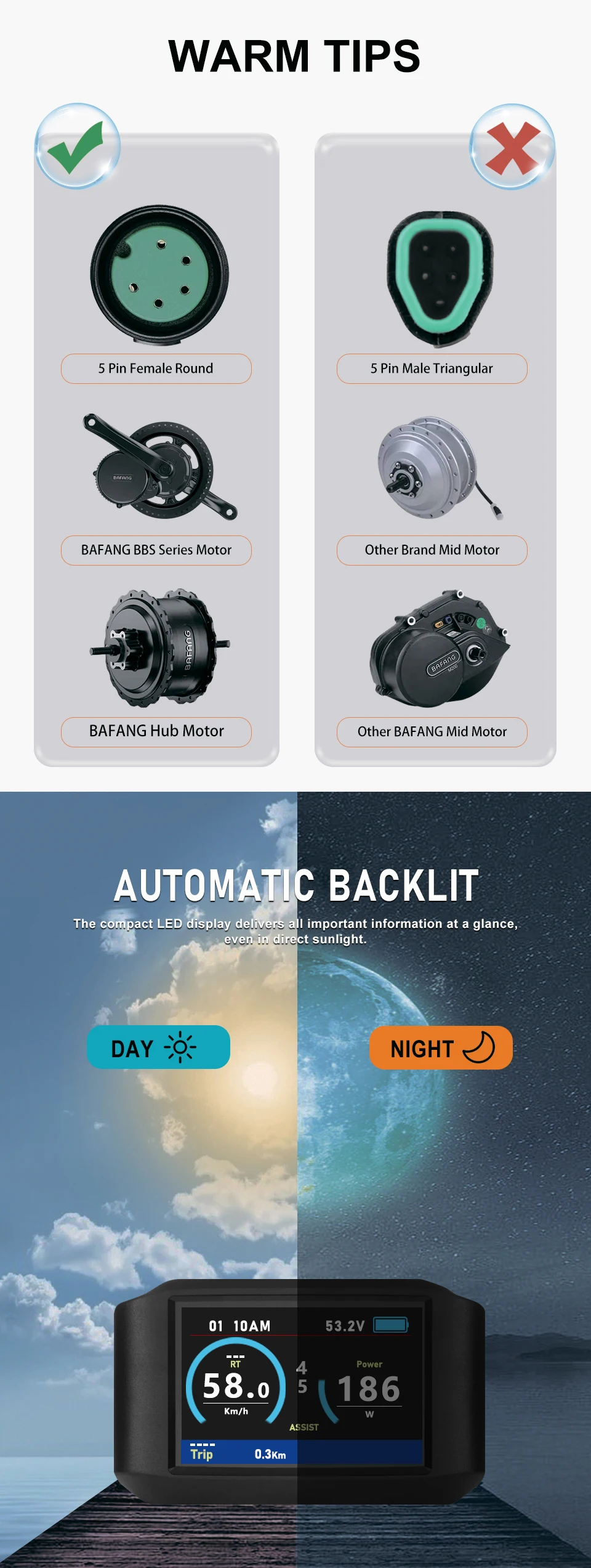

• Compatible motor: Suitable for BAFANG BBS01 BBS02 BBSHD mid mounted motor

Function Introduction

•Suitable for low temperature，Max -20℃.

•High-contrast 3.2inch IPS colorful matrix screen.

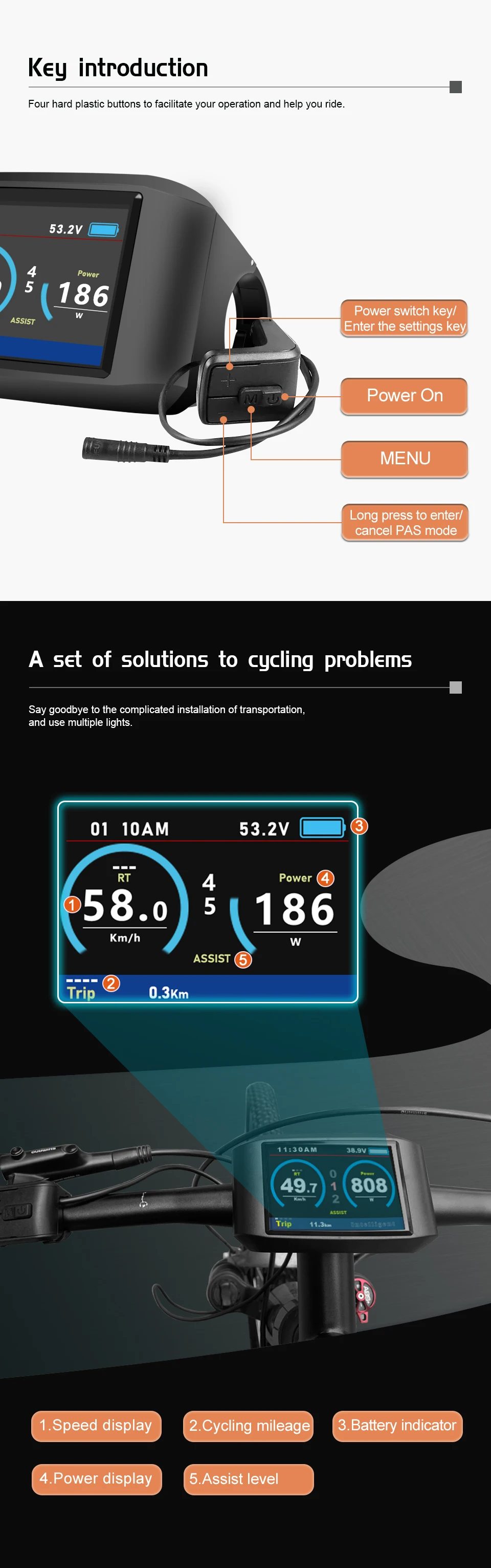

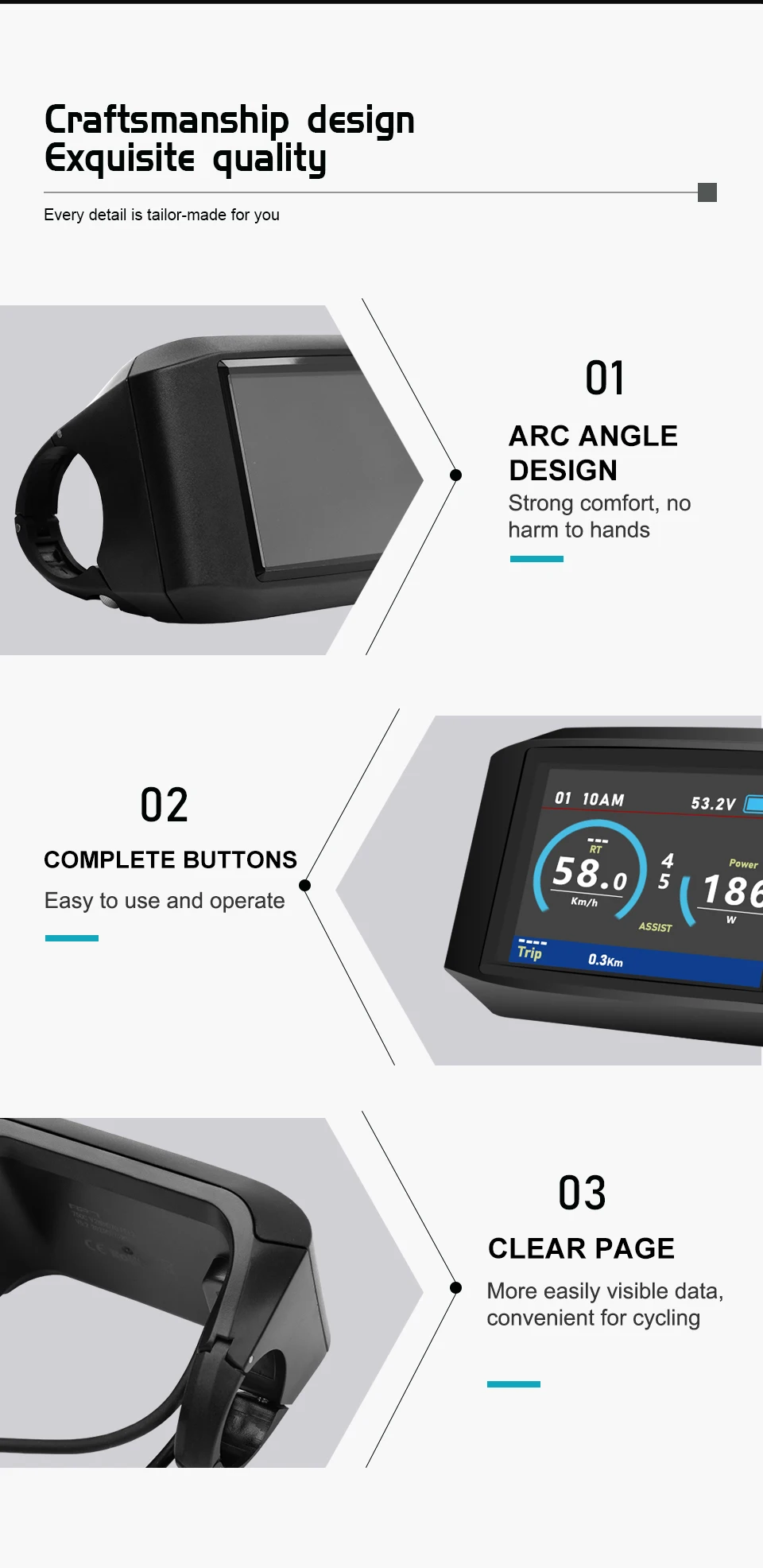

•Ergonomic external button design, easy to operate.

•Speed display: AVG SPEED, MAX SPEED, SPEED (Real-time).

•Kilometer / Mile: Can be set according to customers’ habits.

•Smart battery indicator: Provide a reliable battery indicator.

•9-level Assist : 3-level/5-level/9-level /UBE（6-level）optional.

•Mileage indicator: Odometer/ Trip distance/ Clock/ Riding time/ Range.

•Power indicator: real time power indicator, digital or analog.

•Error code indicator.

•Software upgraded: Software can be upgraded through UART.

  PACKING LIST

1.Bafang LCD display

2.Display holder and gaskets
