800S display
Bafang 800S Display Screen with 5 Pin Female Plug Waterproof Connector Use for BBS01 BBS02 BBSHD Motor Conversion Kit
Specification
•Power supply: 24V/36V/48V/52V
• Weight: 151 grams
•The rated working current of the instrument is 10mA
•The maximum working current of the instrument is 30mA
•Supply the controller with a working current of 50mA
•Interface type: 5-pin waterproof interface
•Applicable handle size: 22.2mm/0.9 inches
•Support level mode: 0-9
•Operating temperature -30~70 ℃
•Storage temperature -40~70 ℃
•Communication method: UART
•Turn off leakage current<1uA
•Waterproof rating: IP65
•Compatible motor: Suitable for BAFANG BBS01 BBS02 BBSHD mid mounted motor
Product Introduction

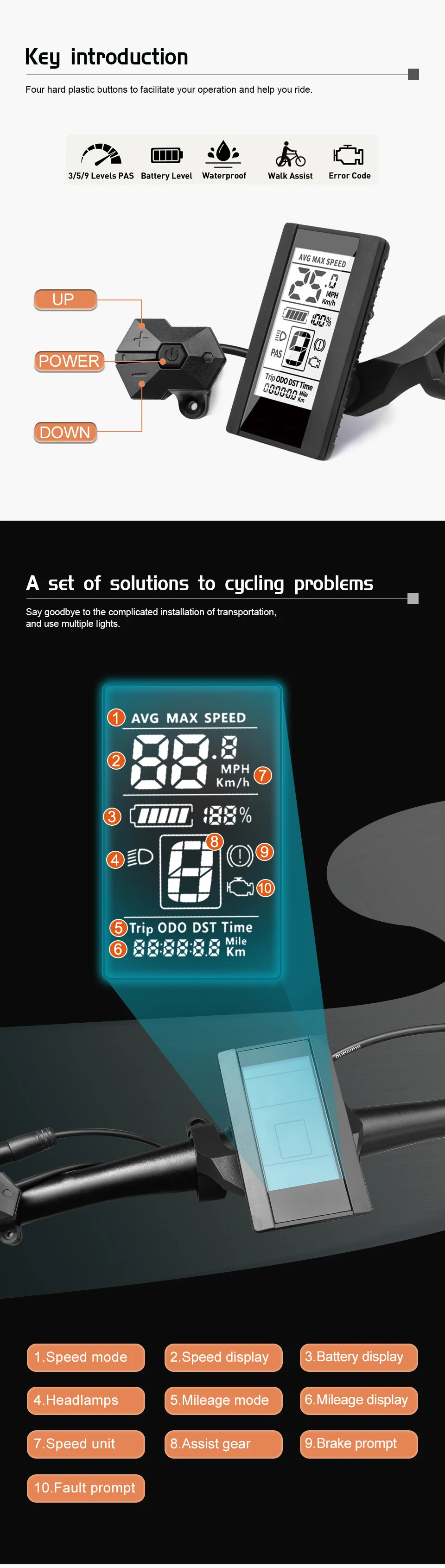

•Adopting bidirectional serial communication protocol, the external three-way button makes customer operation convenient and fast.
•Speed display: including real-time speed SPEED, maximum speed MAX SPEED, and average speed AVG SPEED.
•Kilometer/mile selection: Kilometer/mile display can be set according to customer habits.
•Intelligent battery level indicator: By optimizing algorithms to provide stable battery level prompts, it solves the problem of fluctuations in battery level of general instruments with motor start stop.
•Backlight brightness 5-level adjustment: Set the backlight brightness according to customer usage habits, with level 1 being the darkest and level 5 being the brightest.
•Up to 9 gears control: The number of gears can be set according to user needs.
•Mileage display: The maximum mileage can be displayed as 99999.9, and the accumulated mileage ODO, single mileage Trip, riding time Time, and power display P can be displayed.
•Fault prompt.
•6km assistance for implementation.
•Parameter setting: Various parameters, including gear, wheel diameter, speed limit, etc., can be set on the computer through a communication cable. Please refer to the computer parameter setting instruction
document for details.
PACKING LIST
1.Bafang LCD display
2.Display holder and gaskets
