RMStator Stator And Mosfet Regulator Rectifier Kit RM22958
SPECIFICATIONS
| Product SKU: | RM22958 |
|---|---|
| Brand: | RMStator |
| Condition: | New |
Stock image. Actual product may vary.
For additional product details or technical questions, please contact us.
Monday-Friday 9AM to 6PM Eastern Time.
Free Ground Shipping
Easy Returns
Secure Payments
Great Customer Service
Product Details
RMStator Stator And Mosfet Regulator Rectifier Kit RM22958
RMStator Stator And Mosfet Regulator Rectifier Kit RM22958

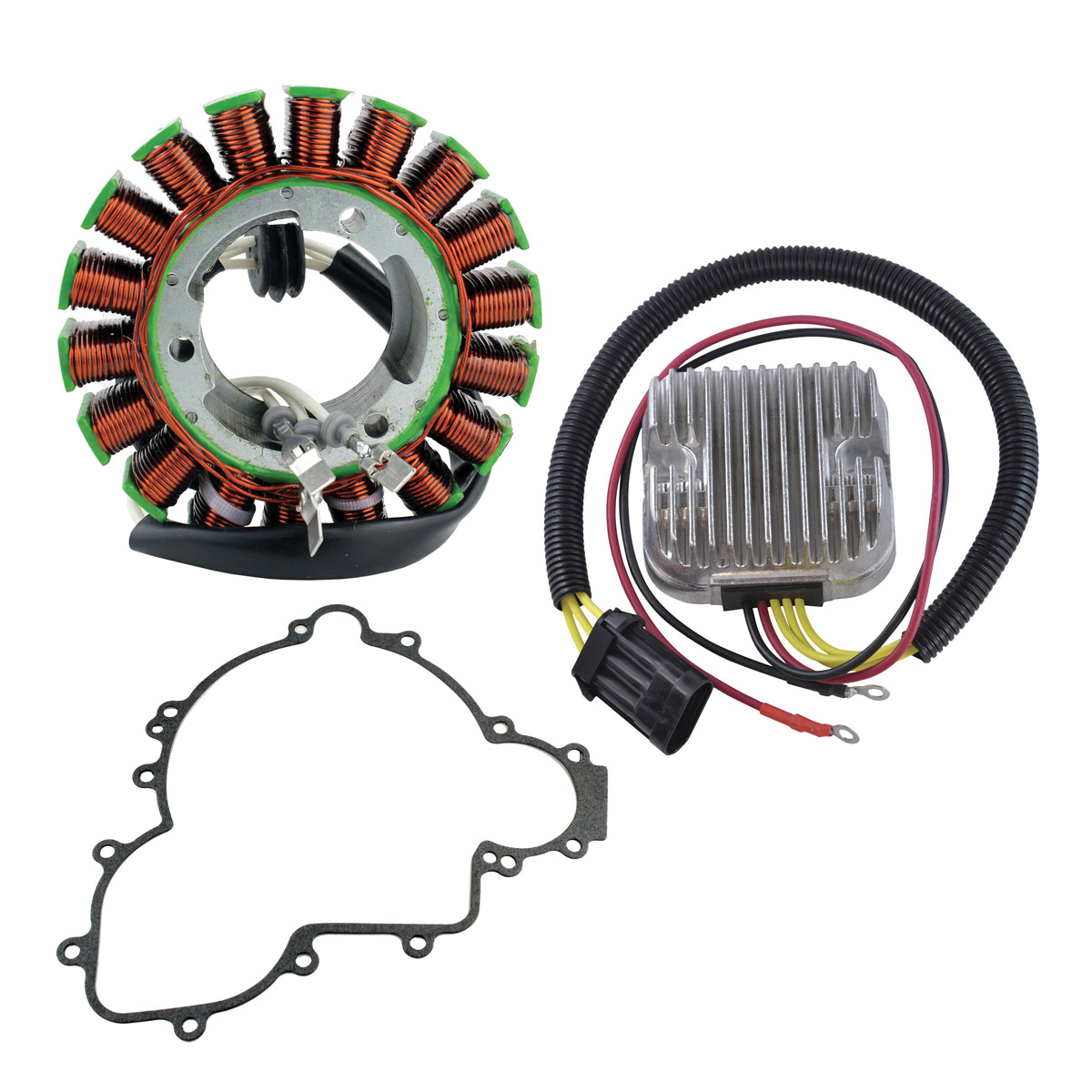

Brand New Kit Stator + Mosfet Voltage Regulator Rectifier + Crankcase Cover Gasket
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Connectors included
- The quality exceeds the OEM equipment
- All shipped products are tested

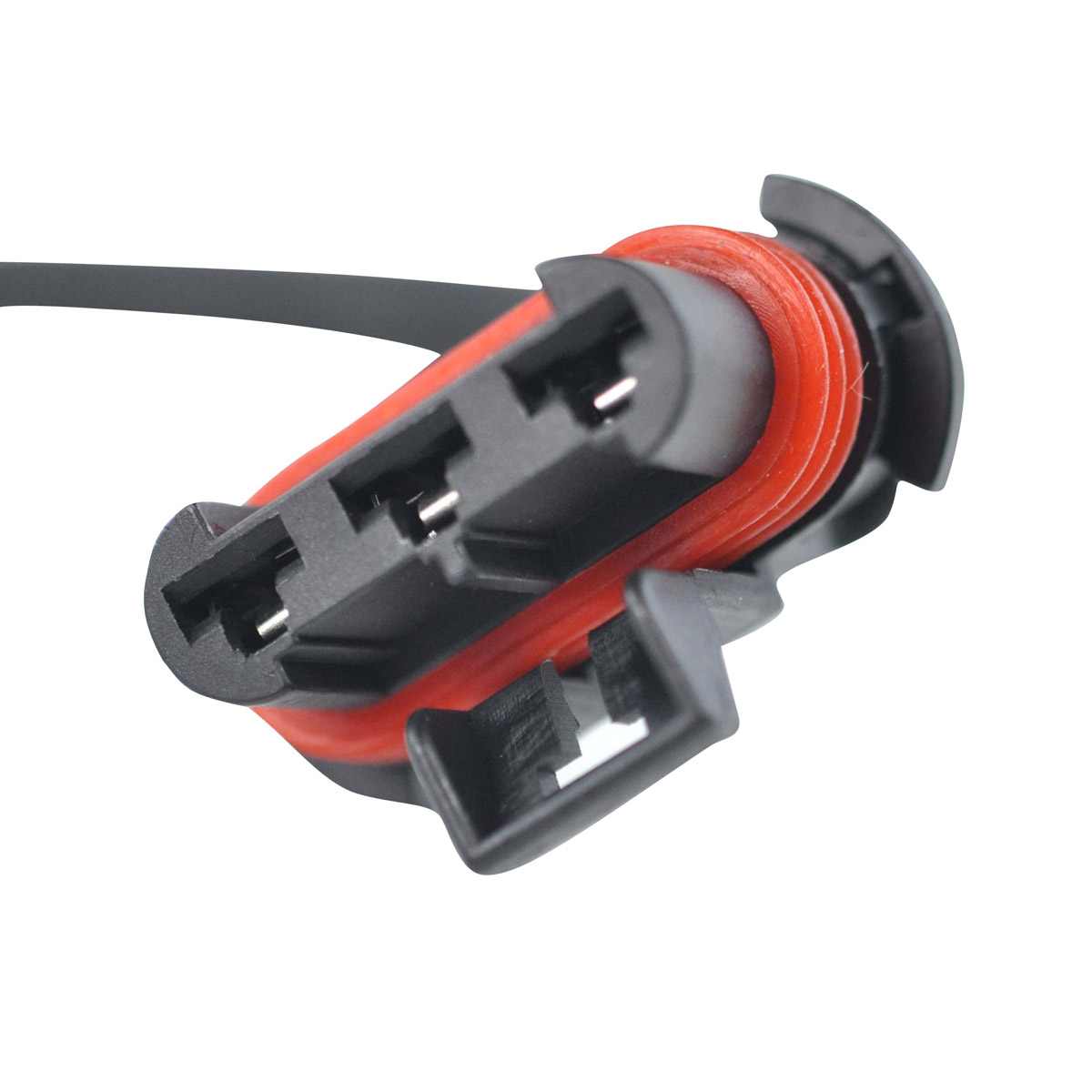

We have even included the opposite connector (main harness side) as we know these are often melted corroded defective and a major cause for repetitive electrical issues.
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

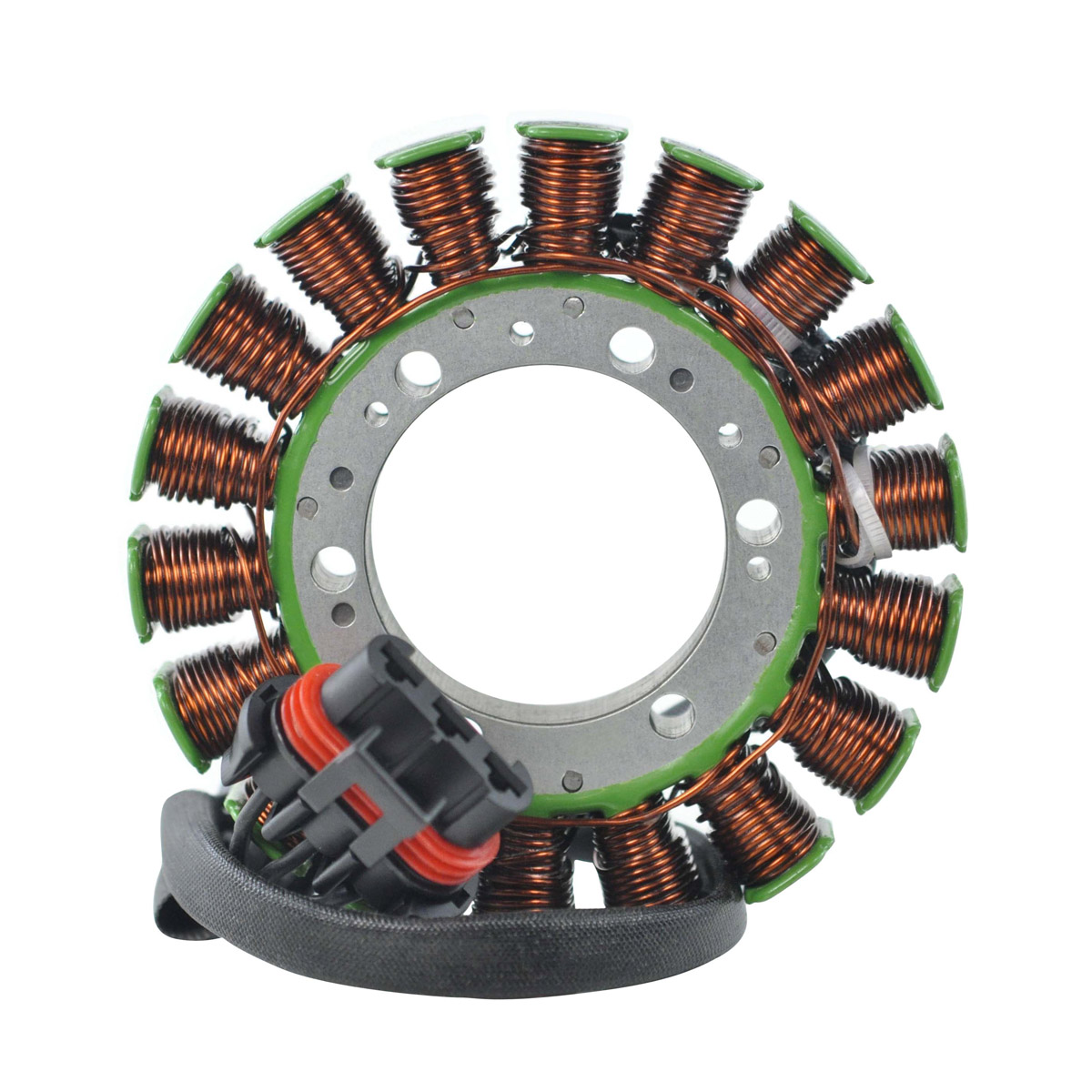

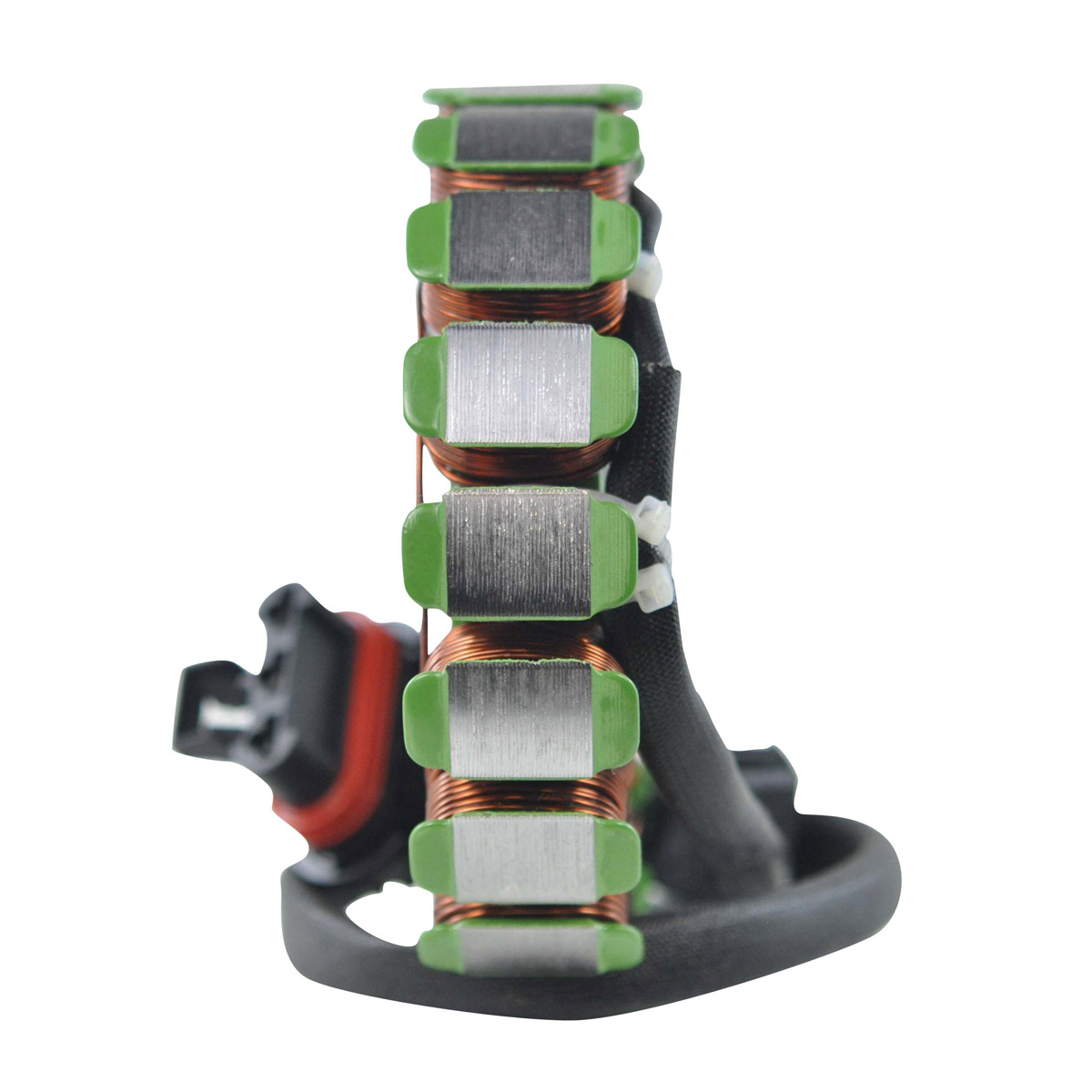

Stator- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Connector included
- Rubber grommet included

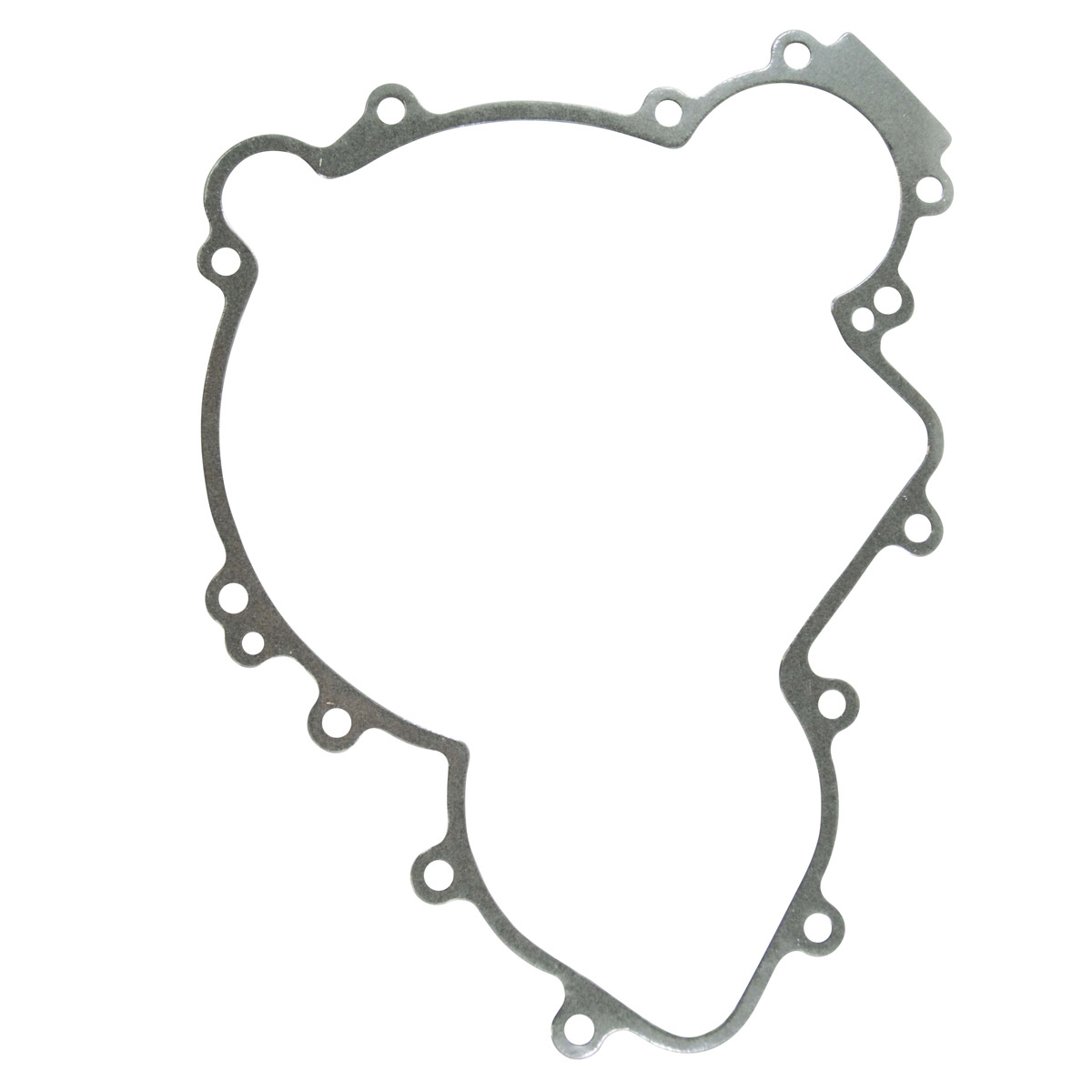

- Crankcase cover gasket included
*Please note that there are two possible stators for the models RZR XP 900 EFI & RZR XP 4 900 in 2012
Why use Mosfet Enhanced technology?
Runs cooler
Runs much cooler than the traditional Shunt voltage regulator rectifier.
Saves gas
Less load on the stator, less work, less fuel is used and you save.
Regulated energy
The power charging your battery is steadier and smooth.
?
Extended battery life
Extends the battery's life and cold cranking capacity.
More engine power
Removes stator load resulting in more engine power.
Optimized power
Optimize power delivery by switching the stator coils on or off.
With?
design
This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.

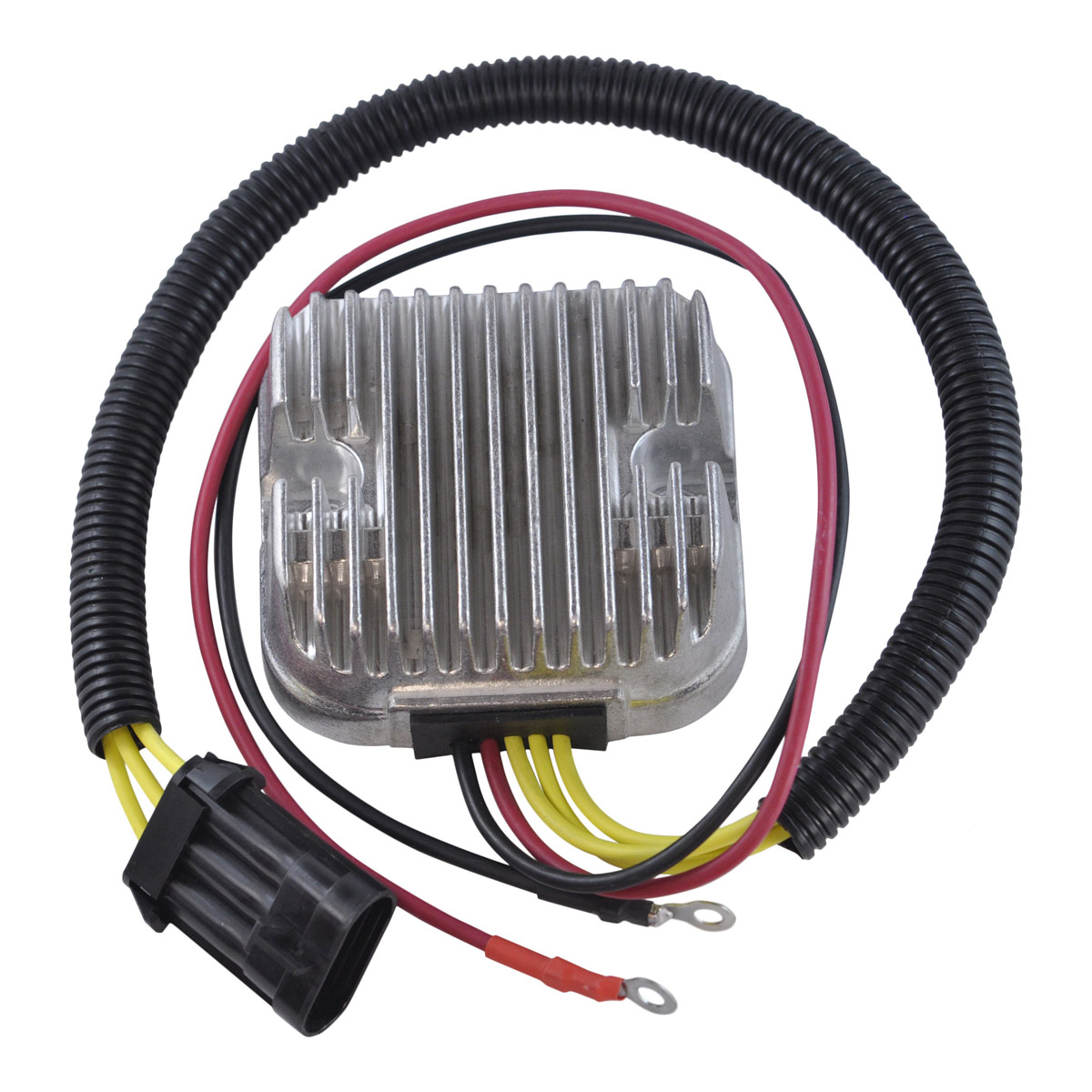

STOP BURNING YOUR REGULATOR RECTIFIER !
It is time to update or replace your voltage regulator with the advanced MOSFET type.
This modern, ultra-reliable design can handle up to 50amp peaks and 30amp continuous 3 phase, 30amp single phase.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- No assembly required
- Higher grade of electric components
- Improved heat sink and charging capabilities
- The quality exceeds the OEM equipment
- All products shipped are tested
Technical Data
Stator Dimensions :
Interior diameter : 54 mm
Exterior diameter : 126 mm
Thickness : 19 mm
Length of wires stator to grommet : 85 mm
Length of wires grommet to plug : 290 mm
Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3
Wire to wire resistance :
Alternator : Black between each Black = 0.4 ohms +/-20%
Dimensions Mosfet Voltage Regulator Rectifier:
Height : 49 mm
Width : 111 mm
Fixation holes center to center : 82 mm

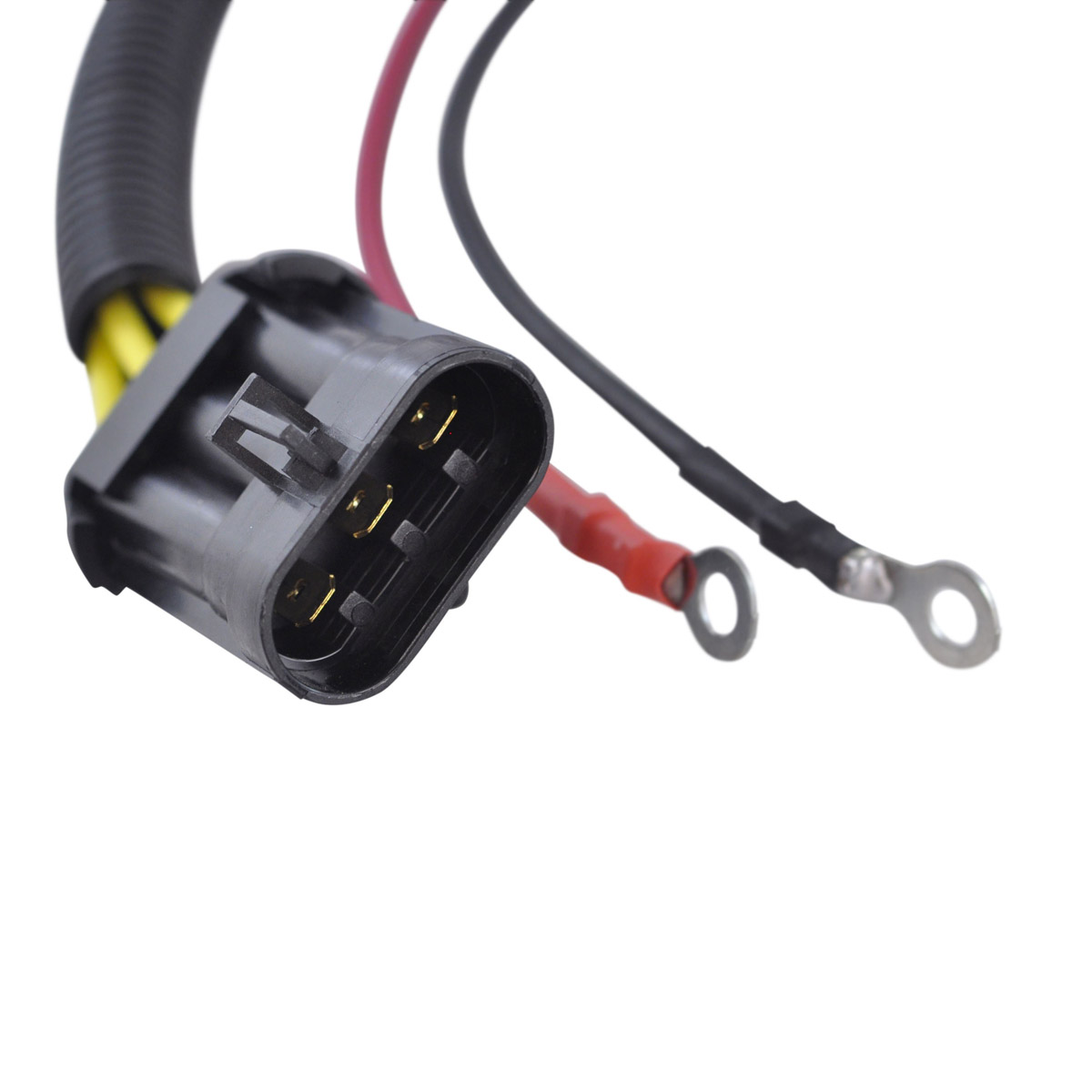

Wires length : 600 mm & 580 mm
Other specifications :
Number of plugs : 2
Number of pins : 5
Minimum Charging Voltage: 14.5V +/- 0.5V
Maximum Charging Current: 50 A/500W
Open Circuit Voltage: <15V
Operation Temperature: -20? to 85?
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM22958
Fitment:
- 2014 Polaris RZR 4 900 EPS
- 2014 Polaris RZR 4 900 EPS INTL
- 2014-2015 Polaris RZR 4 XP 1000 EPS
- 2013 Polaris RZR 4 XP 900
- 2014 Polaris RZR 900
- 2014 Polaris RZR 900 INTL
- 2016 Polaris RZR XP Turbo 900
- 2014-2016 Polaris RZR XP 1000 EPS
- 2014 Polaris RZR XP 1000 EPS INTL
- 2016 Polaris RZR XP 4 Turbo EPS 900
- 2013 Polaris RZR XP 900
Note: Image is for reference only, actual product may vary slightly.
OEM Numbers:
RM22958-R00
