3000w ZVSHigh Frequency Induction Heating Machine For Melting Gold And Silver Iron Parts Annealing + Crucible 220V
Power supply voltage: 220V AC
Melting power: 2100w
Quenching power: 500W- 3000W (varies with load)
Host size: 355*158*198mm
Packing size: 530* 230* 290mm
Logistics weight: 8.0Kg
Traditional heating methods use coal, oil, and combustible gas as energy sources. Chemical energy is converted into heat energy through combustion. After the invention of human beings and the use of electrical energy, there is an electric current through the alloy wire to heat the resistance wire to generate heat. These methods have efficiency. Low, non-clean energy, the quality of production and processing cannot guarantee consistency and other defects. Traditional heating methods have seriously affected the improvement of the manufacturing level of China's machinery industry. Induction heating technology Induction heating is a fast, efficient, accurate and repeatable A new method of non-contact heating of metals or other conductive materials.
Frequently Asked Questions
1.How high can the temperature be reached?
Answer: With our standard configuration 70ML graphite crucible (can hold 1K6 gold), it can reach 1100°C for 5 minutes, 1500°C for 10 minutes, and 1600°C for 15 minutes. If we use the special quenching coil we configured, and the workpieces that are suitable for quenching, according to the different sizes of the workpieces, the quenching process of about 800°C can be completed within one second to two or three minutes (small workpieces have a short time and large workpieces have a long time) .
2.Which metals can be melted?
Answer: Using our standard 70ML graphite crucible can melt about 1000g of gold, about 500g of silver, about 500g of copper, about 300g of aluminum, about 200g of iron (but not recommended to melt iron, iron will accelerate the oxidation of graphite crucible), the melting point of metal Different, different weight, different time, but most of them can melt within ten minutes.
3. I want to harden my workpiece, what size coil should I buy? Is the larger the coil better? After all, large coils can be put into different sizes of workpieces, and can be used for workpieces of different sizes!
Answer: Induction coil heating workpiece needs to match the size. Simply put, a large-size workpiece needs a large coil, and a small-size workpiece uses a small-size coil. If a large coil is used to heat a small workpiece, the temperature of the workpiece will not rise. Generally speaking, the workpiece The size is preferably about half of the inner diameter of the coil. Special-shaped workpieces, such as flat plates, inner holes, long flat pieces, etc.: Capacitive workpieces need to be customized with special-shaped coils. It is best to send samples to our company to test and customize the most suitable coil.
4. Can I weld the copper pipe of the air conditioner? Can I weld the turning tool?
Answer: Yes, tell us the size of your copper tube/turning tool. We can provide a coil with a suitable size for 0K~

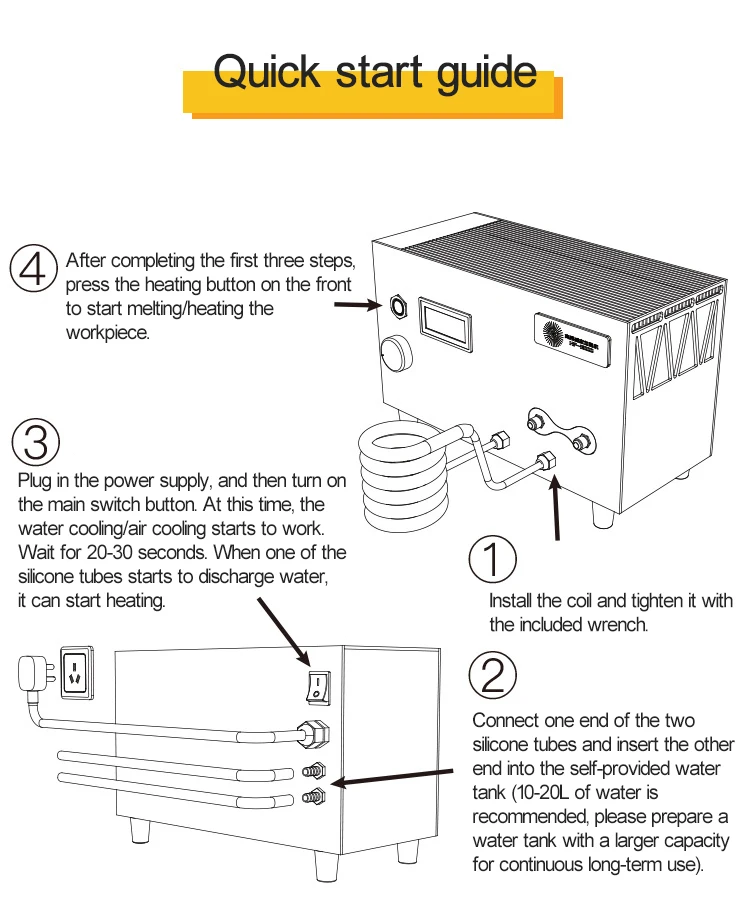

① Install the coil and tighten it with the included wrench.
② Connect one end of the two silicone tubes and insert the other end into the self-provided water tank (10-20L of water is recommended, please prepare a water tank with a larger capacity for continuous long-term use).
③ Plug in the power supply, and then turn on the main switch button. At this time, the water cooling/air cooling starts to work. Wait for 20-30 seconds. When one of the silicone tubes starts to discharge water, it can start heating.
④ After completing the first three steps, press the heating button on the front to start melting/heating the workpiece.
*note:
When there is high temperature inside the coil, please do not turn off the power or turn off the switch on the back of the machine, and let the water cooling system continue to work until it is exhausted (if it is turned off in advance, the water inside the water cooling system will boil, causing damage to the water pump).

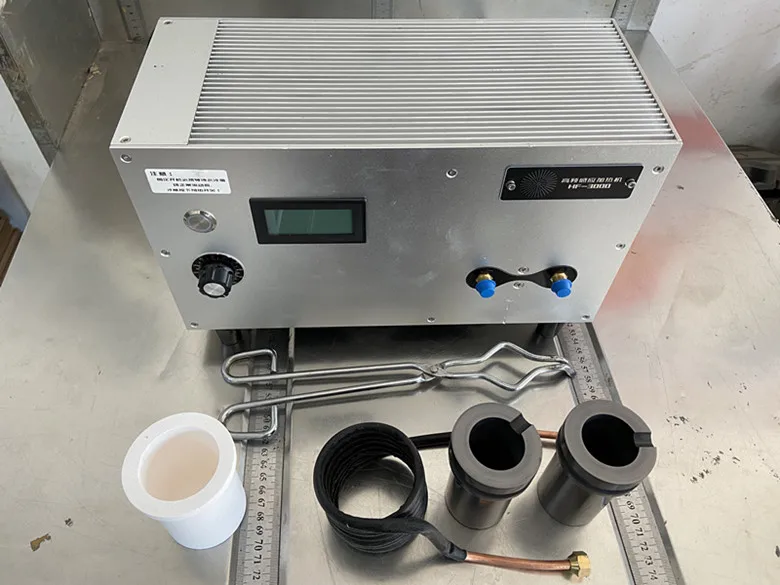

Product real show :
