Superior sound performance at amazing prices

The Alpine BBX-F1200 is a 4-channel Class A/B car amplifier delivering 280w RMS, built to Alpine's European specifications.

4 Channel Amplifier BBX-F1200

Designed for Europe

Built to Alpine's European specifications, the BBX-F1200 fits most car audio setups without modification.

• Amplifier Type: Class-A/B
• Channel Design: 4/3/2 Channel
• Thermal Control: Thermal Management Control
• Power Supply: DC-DC PWM Power Supply
• Power Supply Design: MOSFET Power
• Current Protection: Over-Current, Over-Voltage and Thermal Protection
• Crossover: Variable Low-Pass / High-Pass
• Green/red status LED

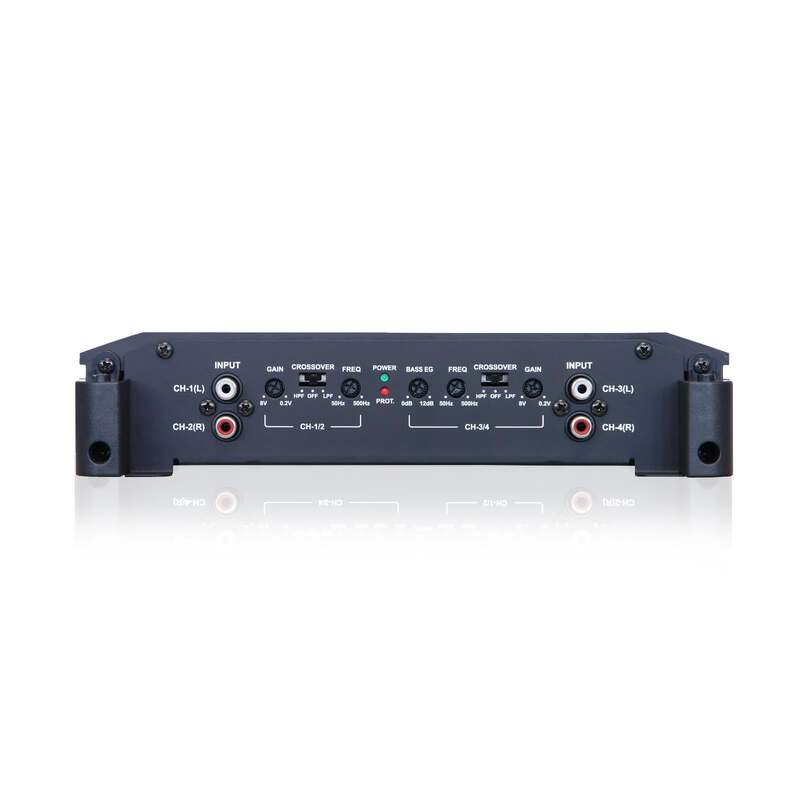

• 2 pair RCA pre-inputs

High Power, Great Value

Rated at 280w RMS, the BBX-F1200 delivers solid output without a premium price tag. It bridges down to 2 channels, giving you flexibility as your system grows.

High Pass and Low Pass Filters

Variable high-pass and low-pass filters let you set the right frequency points for your speakers. This keeps each driver working in its ideal range for cleaner, more efficient sound.

Bass EQ for Best Bass

The built-in Bass EQ lets you boost low-end output to suit your listening preference without needing extra equipment.

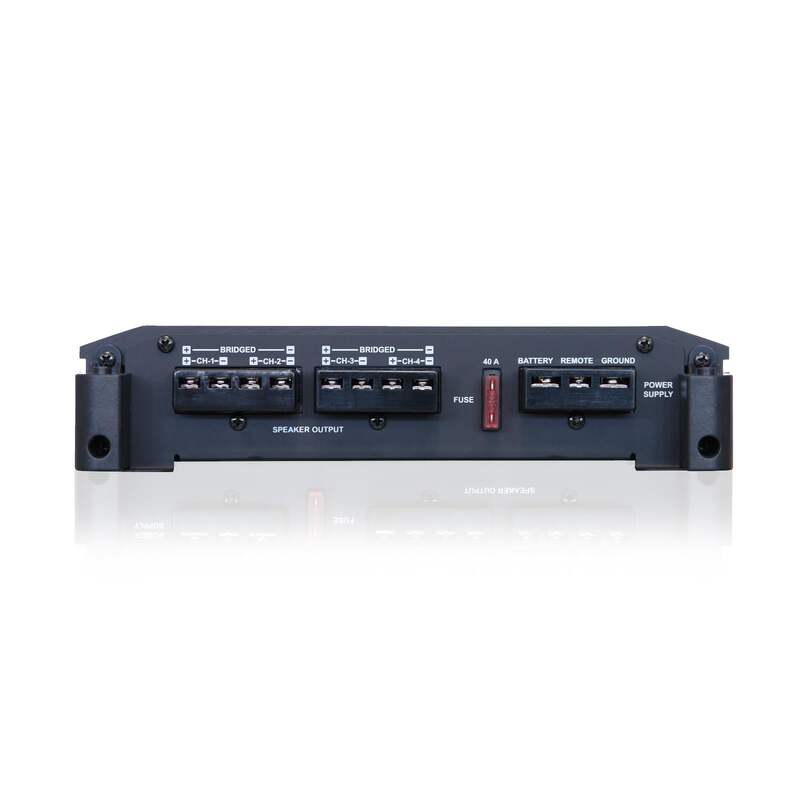

• Terminal Layout: Two-Sided
• Screw Mount / Wire Cover: Integrated Wire and Mounting Screw Terminals
• Amplifier Type: Class-A/B
• Channel Design: 4/3/2 Channel
• Thermal Control: Thermal Management Control
• Power Supply: DC-DC PWM Power Supply
• Power Supply Design: MOSFET Power
• Current Protection: Over-Current, Over-Voltage and Thermal Protection
• Crossover: Variable Low-Pass / High-Pass
• Green/red status LED
• 2 pair RCA pre-inputs
• Max Power Output Ratings
• Total Max Power: 600W
• RMS Power Ratings
• Per Channel into 4ohms (≤1%THD+N): 4 x 50W
• Per Channel into 2ohms (≤1%THD+N): 4 x 70W
• Bridged into 4ohms (≤1%THD+N): 2 x 130W
• Crossover Frequency (Variable, OFF/LPF/HPF Selectable)
• 1/2 Ch: LP/HP:  50Hz – 500Hz
• 3/4 Ch: LP/HP:  50Hz – 500Hz
• EQ (Equalizer): Bass EQ Fixed Frequency 45 Hz, Q=0.5, Variable Gain  0dB to +12dB (3/4 Ch only)
• Footprint: 330 mm x 52 mm x 240 mm
• Power Requirements: 14.4 V DC (11 V to 16 V)
• Input Sensitivity: 0.2 - 8.0 V
• Frequency Response: 5 Hz - 50 kHz (+ 0,-3 dB)
• Speaker Impedance: 4 or 2 Ω
• Signal to Noise: S/N Ratio (IHF A Weighted, Reference: rated power into 4ohms) 95 dB
• Weight: 2.7 Kg

• Alpine BBX-F1200 Amplifier
