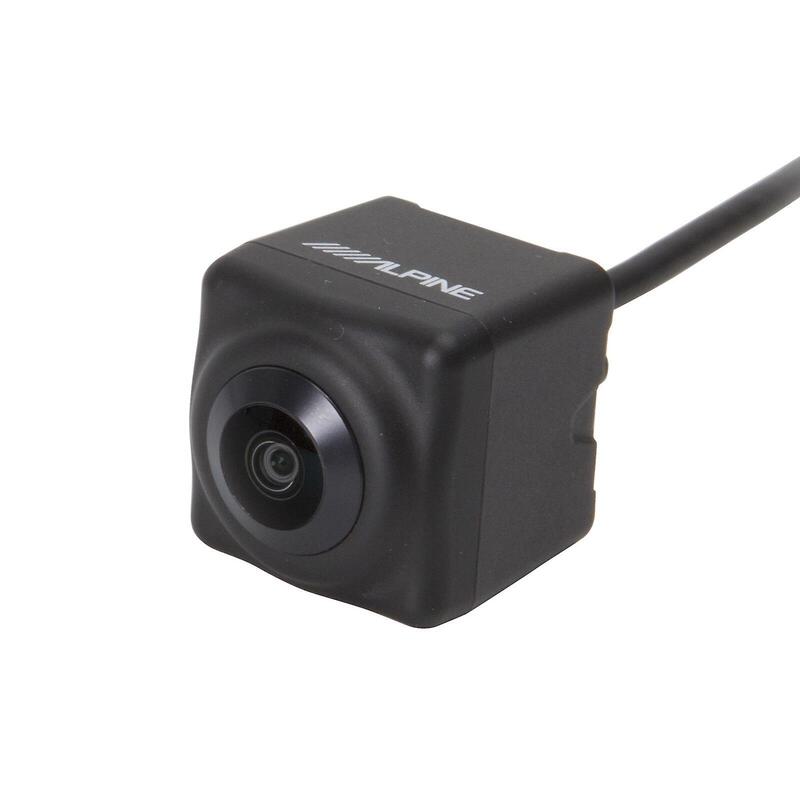

The Alpine HCE-C2100RD is an HDR multi-view reversing camera with a 1/4" CMOS sensor (1280 x 960, approx. 1.2 MP) and 180° horizontal field of view. It connects directly to compatible Alpine ILX and Halo touchscreen head units, offering four selectable views for safer parking and manoeuvring.

Designed for Alpine touchscreen monitors. For use without a touchscreen display, the separate HDR Multi View Front Camera (HCE-C2600FD) is also required. Compatible head units include the Alpine ILX-F905D Halo 9 and the Alpine ILX-705D.

Key specifications

• Image sensor: 1/4" colour CMOS, approx. 1.2 megapixels (1280 x 960)
• Views: Rear, Panorama, Corner and Top (ground) view
• Angle of field: 180° horizontal, 125° vertical
• Lens: f=1.27mm, F1.8
• Illumination range: Approx. 1.5 lx to 100 klx
• Camera size: 23.6 x 23.6 x 25.8 mm
• Operating temperature: -30°C to +70°C

HCE-C2100RD: High Dynamic Range (HDR) multi-view rear camera

HDR technology delivers improved picture quality over standard camera systems, making manoeuvring safer and easier. The camera activates automatically when reversing and mutes audio so parking sensor signals can be heard clearly. A trailer hitch guideline can also be activated.

All-new Alpine HDR cameras

Alpine's HDR cameras include several technologies designed to make driving and parking safer.

• High-resolution sensor for detailed, clear imagery
• Strong low-light performance for night-time use
• Fast exposure adjustment when moving between dark and bright environments (e.g. tunnels, underground car parks)
• Compact new connectors for straightforward installation

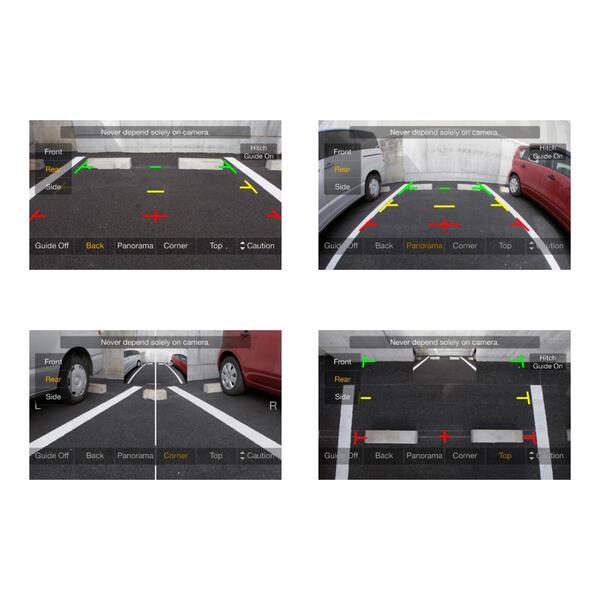

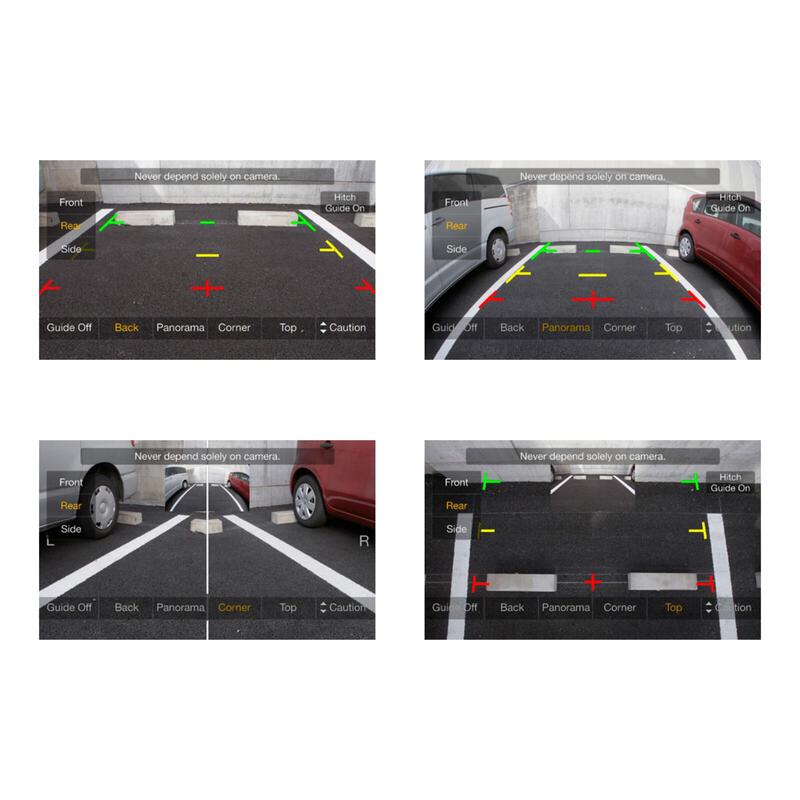

Rear View [Back]

Displays what is directly behind the vehicle. Ideal for reversing into a parking space.

Panorama View [Panorama]

Displays a wider-than-normal view behind the vehicle, useful when greater situational awareness is needed.

Corner View [Corner]

Splits the screen to show both left and right behind the vehicle simultaneously, with a picture-in-picture showing the standard rear view.

Ground View [Top]

Top View aids precise reversing — particularly useful when hitching a trailer. Also includes a picture-in-picture showing the standard rear view.

• High Dynamic Range (HDR) Rearview Image
• Direct Camera Connection
• Vehicle Reverse Signal Synchronization
• Multi View Angle Selection: Rear View [Back], Panorama View [Panorama], Ground View [Top], Corner View [Corner]
• For use with Alpine monitors with touch-screen operation
• For use without a touch-screen display, the HDR Multi View Front Camera (HCE-C2600FD), sold separately, is required.
• Mirror Image Output
• Color CMOS Image Sensor
• Automatic Exposure Adjustment
• Automatic White Balance Adjustment
• Internal Synchronization
• SPECIFICATIONS
• Camera: 23.6 x 23.6 x 25.8mm (excluding projection on the rear)
• Camera Cable Length: 0.5m
• Optional Camera Extension Cable Length (sold separately): 10m
• Power Requirement: 6.0V DC (5.0 to 9.0VDC allowable)
• Ground Type: Negative Ground
• Max. Power Consumption: 1.2W (6.0V)
• Output Image: Mirror image, CVBS (NTSC Video signal), for 16:9 wide-screen
• Image Output Impedance: 75 Ohms (1Vp-p)
• Image Sensor: 1/4" Type Color CMOS Image Sensor, Aspect Ratio 4:3
• Effective Number of Pixels: 1280 (horizontal) x 960 (vertical) approximately 1.2 Mega pixels
• Lens Focal Length: f=1.27mm
• Lens Brightness: F=1.8
• Angle of Field: Horizontal = 180° , Vertical = 125°
• Resolution (Horizontal. Center Area): 330 TV Lines
• Operating Temperature: -30°C - +70°C
• Illumination Range: Approximately 1.5Lx to 100kLx
• Weight: 32g (including cable but not including bracket and screw)

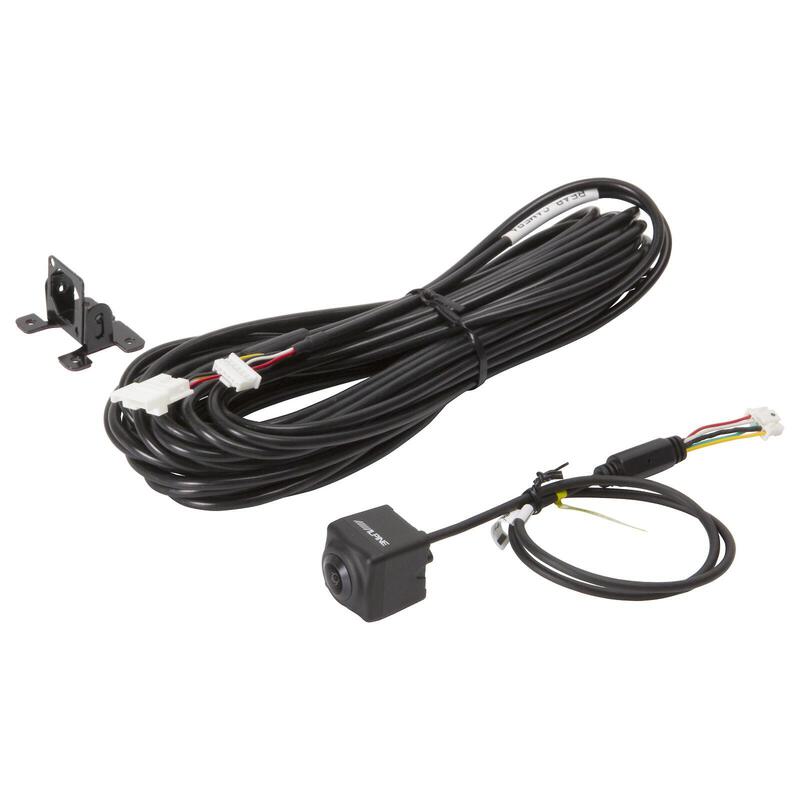

• Multi-view camera (attached harness terminated by 5-pin harness)
• Power/Video harness (with female 5-pin connector on one end and a male 6-pin connector on other end)
• 2-Piece mounting bracket
• 4 Machine screws
• 4 Self-tapping screws
• Rubber sleeve
• Rubber wedge
• 3M tape
• 5 Wire-ties
• Owner's Manual
