2.1mm DC Power Board Adapter – 10 Pk - Guitar Pedal Effects - Five Cats Pedals
These super small but handy boards solder directly to your 2.1mm
Lumberg Style dc jacks and give you more room to solder multiple
connections - we all know how small the space is inside a 1590a!

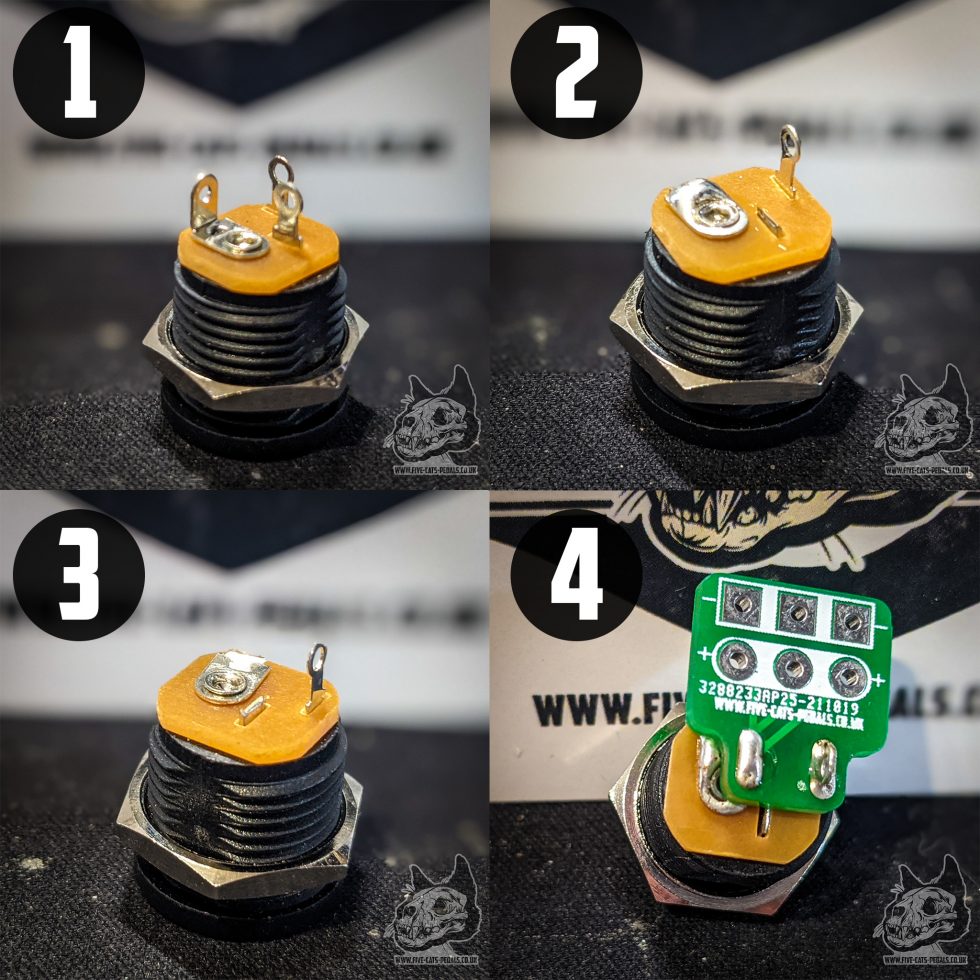

1) Standard jack
2) Cut ground and battery pin
3) Add solder to ground pin plate
4) Add board and solder!
/
Check out the pictures in the gallery to see how it works - it's very simple!
Remember - put the jack in place and the nut BEFORE you solder the board on!
Note: If you want to use these on the larger sockets, it is possible (sacrificing the battery snap pin) - see the pic below for a how to (we don't advise this, but it will work)1) Standard jack
2) Cut ground and battery pin
3) Add solder to ground pin plate
4) Add board and solder!
/
Note: This is for the PCB only, you will need to source your own components
