MAYZUM X-MAY72 X-Ray XRF Spectrometer Analyzer Testing Machine For Gold /Precious Metals
Product Description:
SDD X Ray Gold And Silver Tester , X-Ray Fluorescence Spectrometer
Original Manufacturer
Simplicity of operator
One-to-one Remote Operation Guidance
The Principle of Energy Dispersive X Fluorescence Spectrometer
The atomic electron layer is excited by high-energy X-rays, causing the transition of electrons outside the nucleus, resulting inthe release of secondary X-ray energy.
Because the energy released by different elements has different characteristics, the detection system measures these energies andquantities to calculate element content.
Because the energy released by different elements has different characteristics, the detection system measures these energies andquantities to calculate element content.
The Main Components
High VoltageX-Ray Tube-Detector
Collimator
Primary filter
Former-Amplifier
Main Amplifier
DPP
Control Module
Communication Module
Display System, etc
Collimator
Primary filter
Former-Amplifier
Main Amplifier
DPP
Control Module
Communication Module
Display System, etc
X-MAY72 Precious Metal Analyzer
X Ray Gold Testing Analyzer , X-Ray Gold Tester , XRF Metal Elements Spectrometer
Specification parameters
Performance and Configuration
Brand MAYZUM
Analysis Range ppm to 99.99%
Accuracy 0.03%
Sample Form Solid, powder, liquid
Tube Voltage 5KV ~ 50KV
High Voltage Power Supply 0 ~ 50KV
Camera HD camera
Filters Selectable customized switches
Detector Type Si-pin (Amptek, USA)
Resolution 145 ± 5 eV
Multichannel Analyzer Digital multichannel
Sample Chamber Size 310 * 270 * 80 (mm)
Test Time 5 ~ 60sec
Measuring Element 72 elements from sodium (Na) to uranium (U) between all elements
Analysis Software MAYZUM qualitative and quantitative analysis software
External Dimensions 460 * 390 * 360 (mm)
Weight 55Kg
72 element periodic table：
Advantages & Characteristics:
Advantages & Features of MAYZUM Precious Metals Analyzer：
1.Integrated an inbuilt computer with high industrial motherboard and multi-point hand touch, you don’t need to prepare other computers, bringing you super smooth experience feelings
2.Three core components inside the instrument are all imported, so it determines that the instrument can accurately distinguish from different gold samples especially 99.9% gold and 99.99% gold
3.The instruments possess own unique mode of “one-key test”, it is China first and same as Europe's top spectrometers. No matter any unknown metal material, the operators don’t need to choose test templates and software intelligently matches the best way to measure and calculate. They are capable of fast, accurate and non-destructive metal testing, making them suitable for jewelry retailers, jewelry manufacturers, precious metal refineries, pawn shops, government quality inspection departments, banks, laboratories and tertiary institutions
4.Super long warranty, confidence comes from pure European spectrometer production technology
5.The instruments have an innovative function that can help customers identify gold-plated samples
6.The users can see sample test position accurately by camera and cabin lighting system, and it can improve the testing confidence of users
7.Equipped with a variety of optical collimator, breakthrough solved test problems of tiny metal samples (such as spun gold and gold thread samples)
8.We can download and upload testing data from network, and it is easy to view and share testing results
9.Temperature drift rate of all the parts inside instrument is controlled within one over one million, ensuring the strong stability and high precision of instrument. Testing results can show 4 digits after the decimal point, beyond all domestic spectral type precious metals analyzer
10.Ultrahigh resolution, Super clear camera, Super convenient operation, Super fast detection speed, Perfect friendly interface
1.Integrated an inbuilt computer with high industrial motherboard and multi-point hand touch, you don’t need to prepare other computers, bringing you super smooth experience feelings
2.Three core components inside the instrument are all imported, so it determines that the instrument can accurately distinguish from different gold samples especially 99.9% gold and 99.99% gold
3.The instruments possess own unique mode of “one-key test”, it is China first and same as Europe's top spectrometers. No matter any unknown metal material, the operators don’t need to choose test templates and software intelligently matches the best way to measure and calculate. They are capable of fast, accurate and non-destructive metal testing, making them suitable for jewelry retailers, jewelry manufacturers, precious metal refineries, pawn shops, government quality inspection departments, banks, laboratories and tertiary institutions
4.Super long warranty, confidence comes from pure European spectrometer production technology
5.The instruments have an innovative function that can help customers identify gold-plated samples
6.The users can see sample test position accurately by camera and cabin lighting system, and it can improve the testing confidence of users
7.Equipped with a variety of optical collimator, breakthrough solved test problems of tiny metal samples (such as spun gold and gold thread samples)
8.We can download and upload testing data from network, and it is easy to view and share testing results
9.Temperature drift rate of all the parts inside instrument is controlled within one over one million, ensuring the strong stability and high precision of instrument. Testing results can show 4 digits after the decimal point, beyond all domestic spectral type precious metals analyzer
10.Ultrahigh resolution, Super clear camera, Super convenient operation, Super fast detection speed, Perfect friendly interface

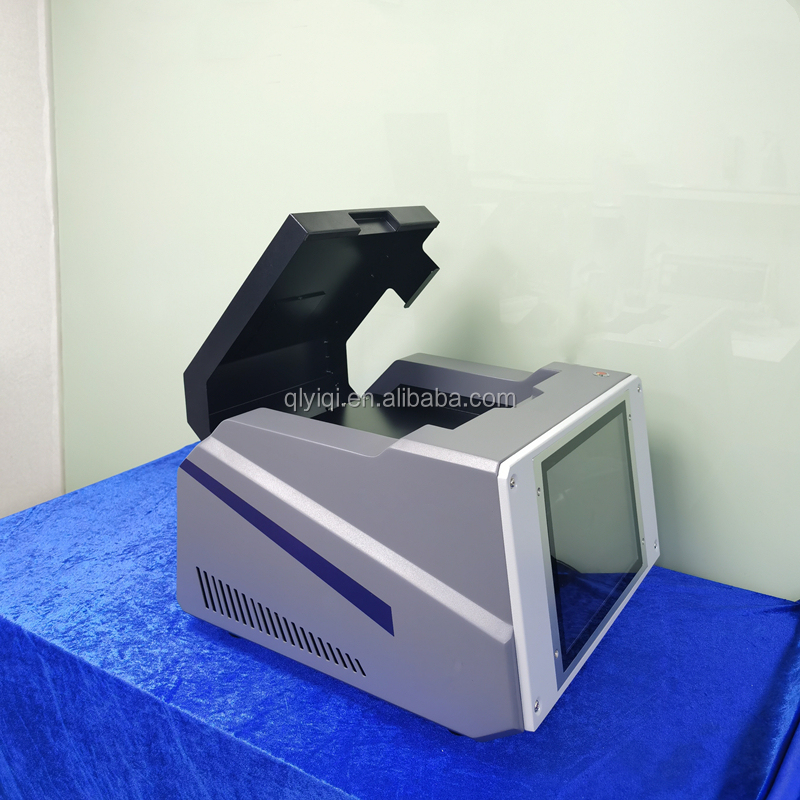

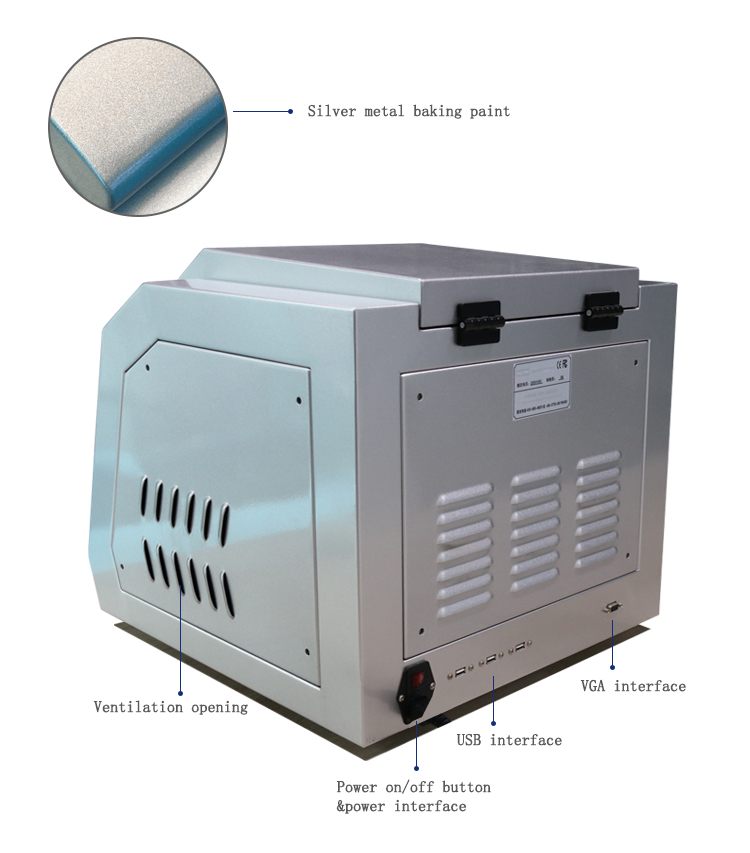

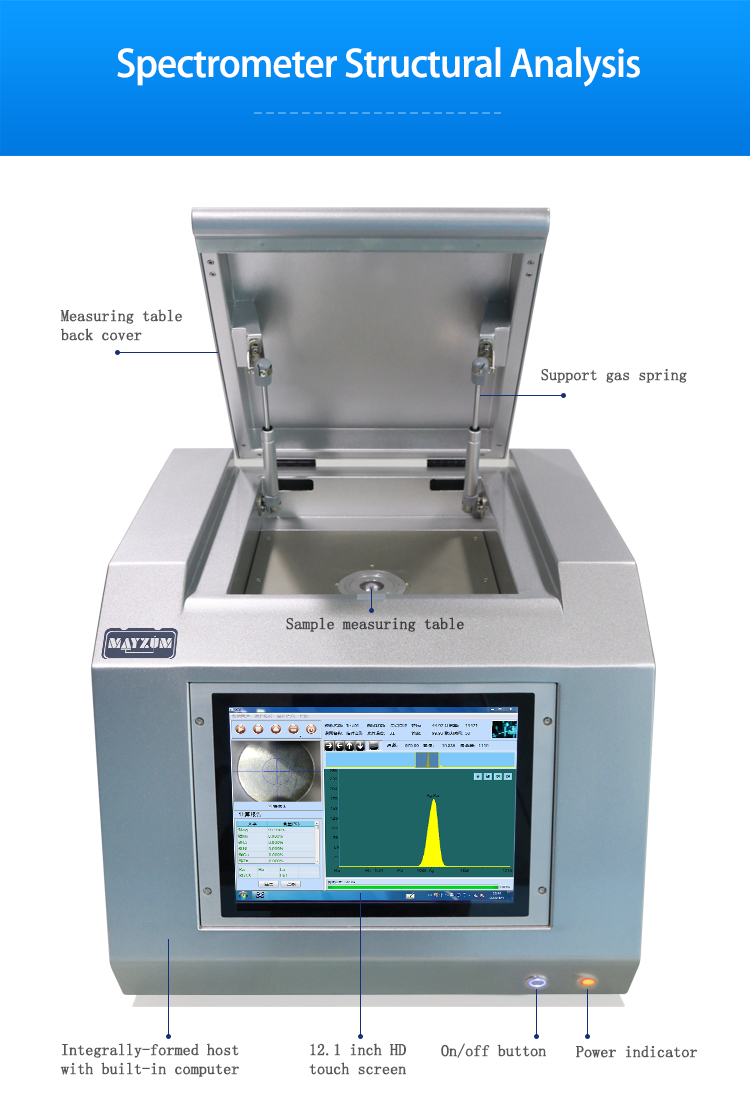

Detailed Images:
SDD X Ray Gold And Silver Tester , X-Ray Fluorescence Spectrometer

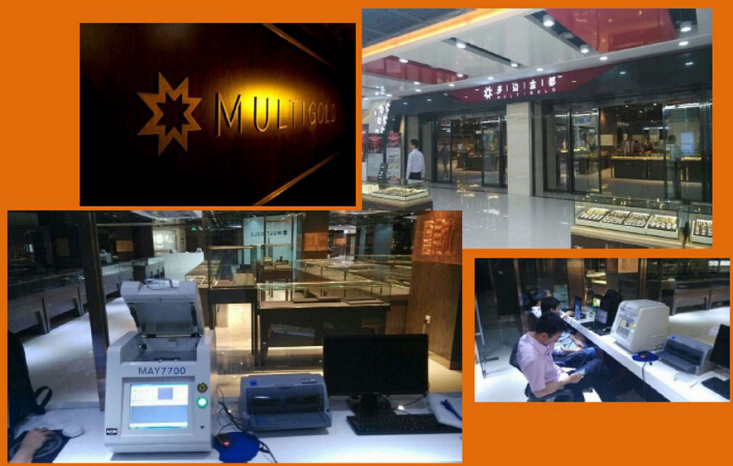

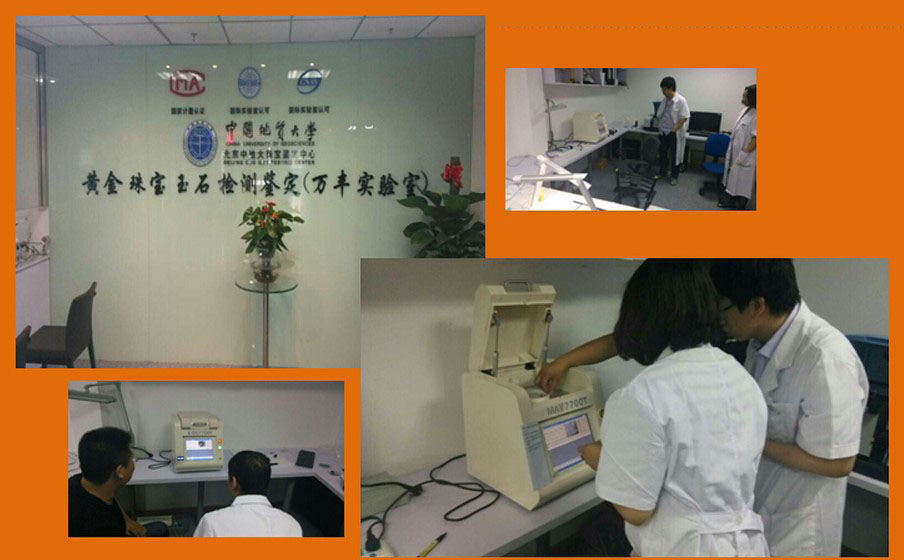

Applications
Banks; Jewelry industry: Jewelry retailers, jewelry manufacturers;
Precious metal refineries;
Pawn shops ;
Gold and precious metals research lab;
Government quality inspection departments;
Laboratories and tertiary institutions;
Precious metal refineries;
Pawn shops ;
Gold and precious metals research lab;
Government quality inspection departments;
Laboratories and tertiary institutions;
Certification:
Packaging & Shipping & Payment

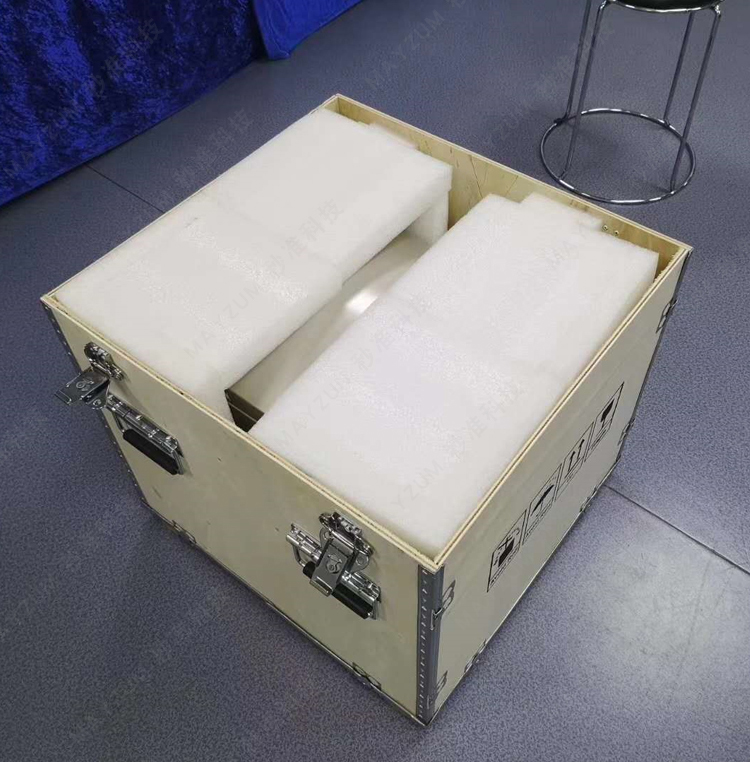

Packaging
Packing size: 660 * 620 * 620(mm)
Packaging Details: Standard Export Crate Packing, Filling with soft foam
Packaging Details: Standard Export Crate Packing, Filling with soft foam
NOTE:
Import duties and taxes are NOT included in the item price or shipping cost, buyer is responsible for it.
Import duties and taxes are NOT included in the item price or shipping cost, buyer is responsible for it.
