8W3v3-4

8-inch (200 mm) Subwoofer Driver, 4 Ω

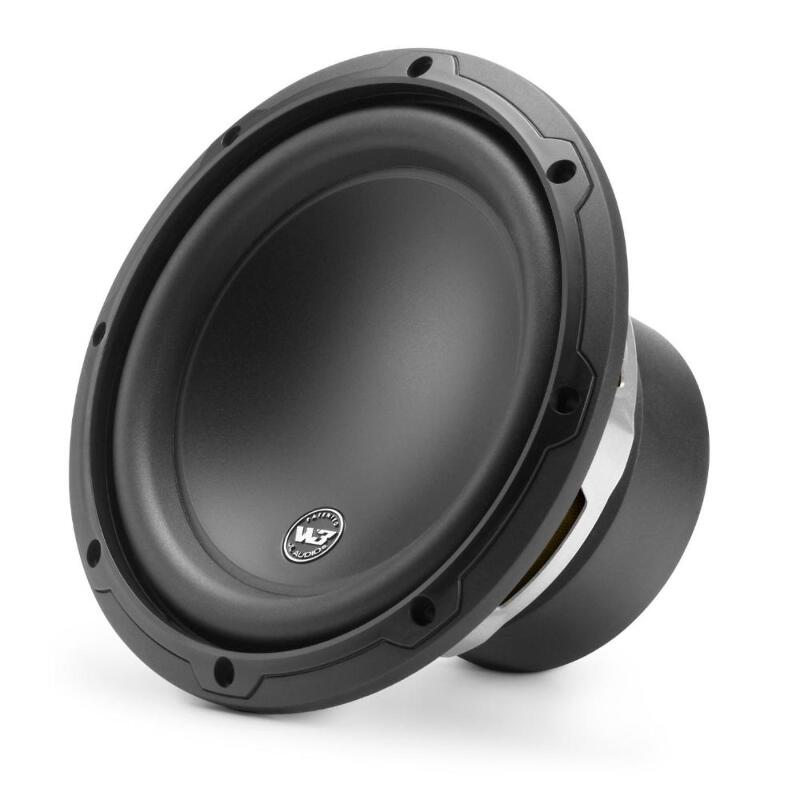

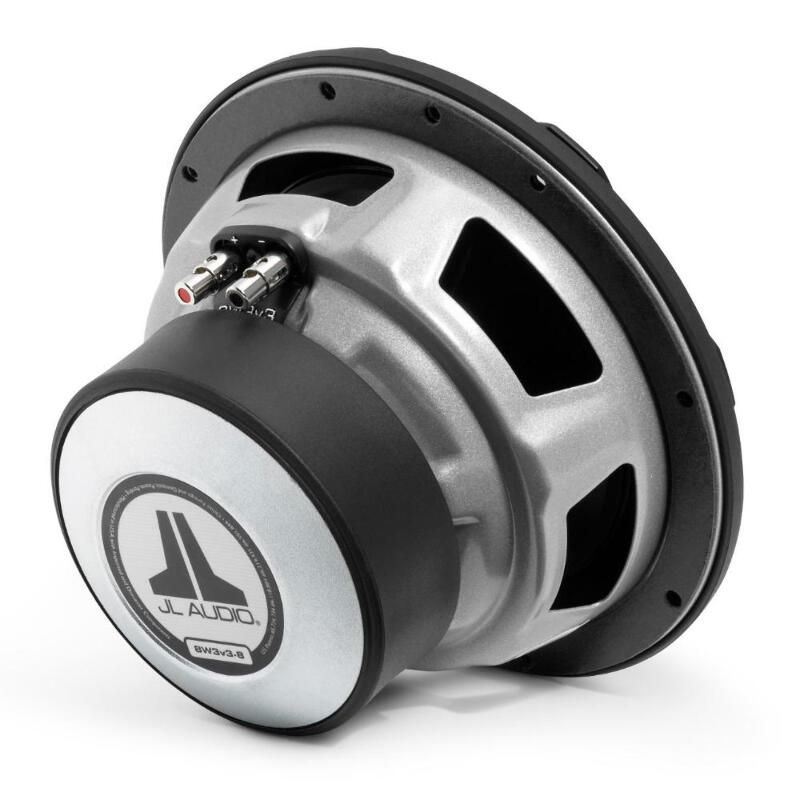

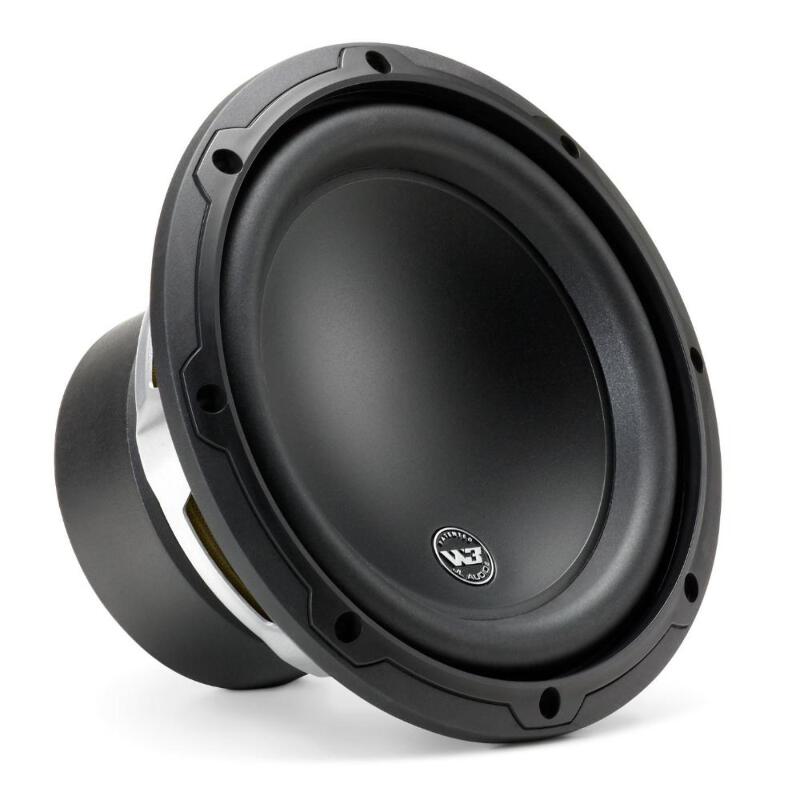

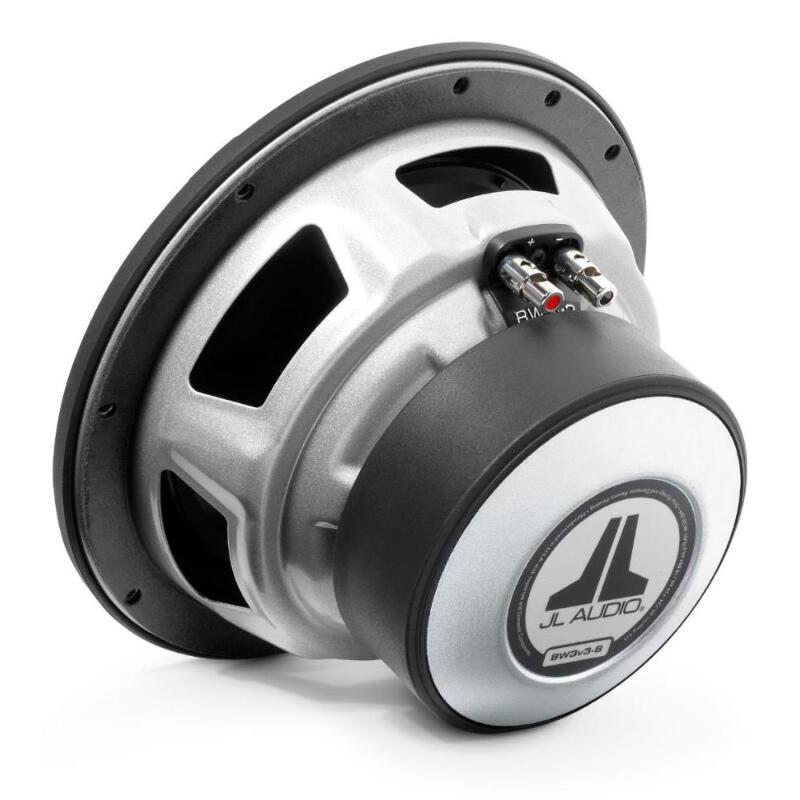

W3v3 8-inch Subwoofer Driver (250 W, 4 Ω)

If you need an 8-inch subwoofer that can create outstanding bass in extremely small enclosures, the 8W3v3 will do the job and surprise you with its power and accuracy. It employs the same technologies as its larger diameter brethren to deliver a whopping 0.375 in. (10 mm) of controlled, one-way, linear excursion.

The 8W3v3-4 is best uséd with amplifier power in the 75W - 250W range and is optimized to operate in a tiny 0.30 cu. ft. (8.5 l) sealed enclosure, or a 0.35 cu. ft. (9.9 l) ported enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.

Dynamic Motor Analysis - DMA Optimized Motor

JL Audio's proprietary Dynamic Motor Analysis system is a powerful suite of FEA-based modeling systems, first developed by JL Audio in 1997 and refined over the years to scientifically address the issue of speaker motor linearity. This leads to vastly reduced distortion and faithfully reproduced transients... or put simply: tight, clean, articulate bass.

Elevated Frame Cooling

JL Audio's patented Elevated Frame Cooling design delivers cool air through slots directly above the top-plate to the voice coil of the speaker. This not only enhances power handling, but also sound quality by minimizing dynamic parameter shifts and power compression.

Floating Cone Attach Method - FCAM™

This assembly technique, conceived by JL Audio, ensures proper surround geometry in the assembled speaker for better excursion control and dynamic voice coil alignment.

Vented Reinforcement Collar

JL Audio's Vented Reinforcement Collar (VRC®) improves the rigidity and stability of the cone/spider/voice coil junction and directs airflow over the voice coil windings for improved thermal performance.

• Continuous Power Handling (RMS)    250 W
• Recommended Amplifier Power (RMS)    75- 250 W
• Nominal Impedance (Znom)    4 Ω
• Nominal Diameter    8.0 in / 200 mm
• Overall Diameter (A)    8.54 in / 217 mm
• Mounting Hole Diameter (B)    7.09 in / 180 mm
• Bolt Hole Circle Diameter (C)    7.85 in / 199 mm
• Motor Outer Diameter (D)    4.75 in / 121 mm
• Mounting Depth (E)    4.63 in / 118 mm
• Driver Displacement    0.03 cu ft / 0.85 L
• Net Weight    8.2 lb / 3.7 kg
• Free Air Resonance (Fs)    35.14 Hz
• Electrical “Q” (Qes)    0.501
• Mechanical “Q” (Qms)    7.071
• Total Speaker “Q” (Qts)    0.467
• Equivalent Compliance (Vas)    0.54 cu ft / 15.29 L
• One-Way Linear Excursion (Xmax)*    0.375 in / 10.0 mm
• Reference Efficiency (no)    0.13%
• Efficiency (1 W / 1 m)**    83.24 dB SPL
• Effective Piston Area (Sd)    32.02 sq in / 0.021 sq m
• DC Resistance (Re)    3.77 Ω

* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.

** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is “louder”.

• 8W3v3-4
• Black plastic trim ring
• Owner's Manual
