Yellow is the ground wire, blue is the negative pole, and brown is the positive pole
Features:
Pump motor DC brushless motor no spark of work.
Can connect the car power, 12V battery can work, mobile convenience.

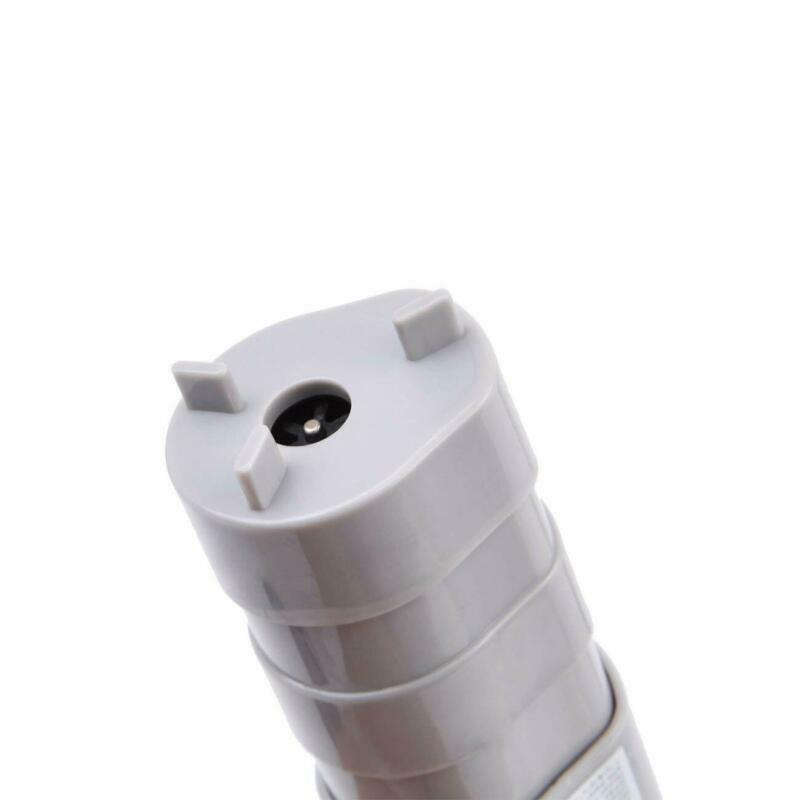

Pump motor shaft with high degree of wear-resistant ceramic shaft continuous service life of about 2000 hours.
CE, RoHS Certified.
Specifications:
JT-500 Model:
Input Voltage: DC 12V
Current: 1.25A
Power: 15W
Max Flow: 600 L/H
Max Water Head: 5m / 16.4ft
Fluid Temperature Range: -40C ~ +60C
Operating Temperature Range: -40C ~ +60C
Operating Humidity: 45% ~ 90%RH
MAX Noice: =<40dB
Water Resistant Level: IP68
Life Span: about 2000 hrs
Note:
Please don't work for 24 hours. This pump is intended for use with water only!
Package Includes:

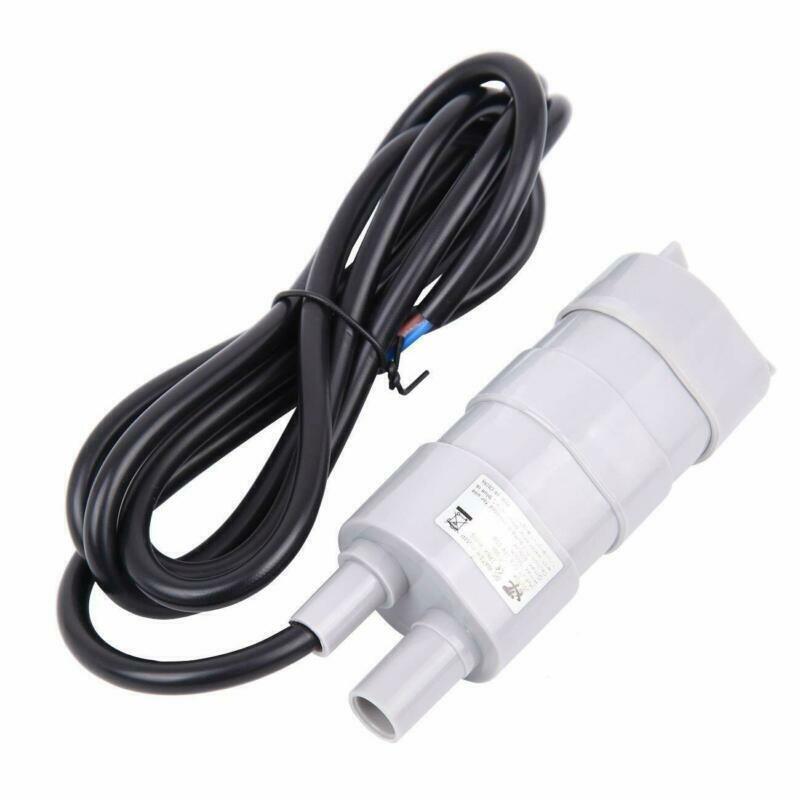

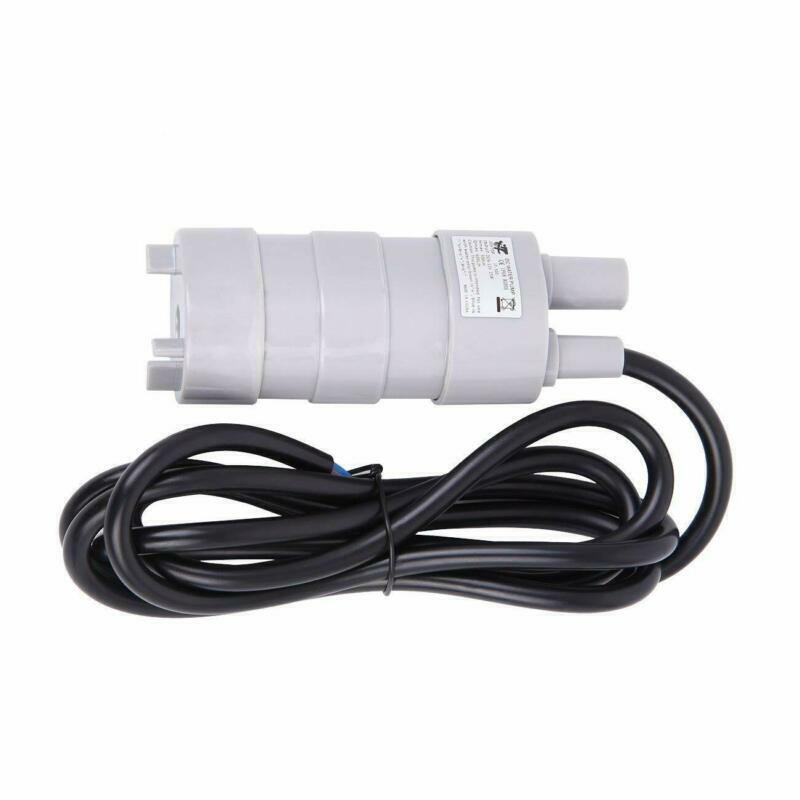

1 x Pump motor
