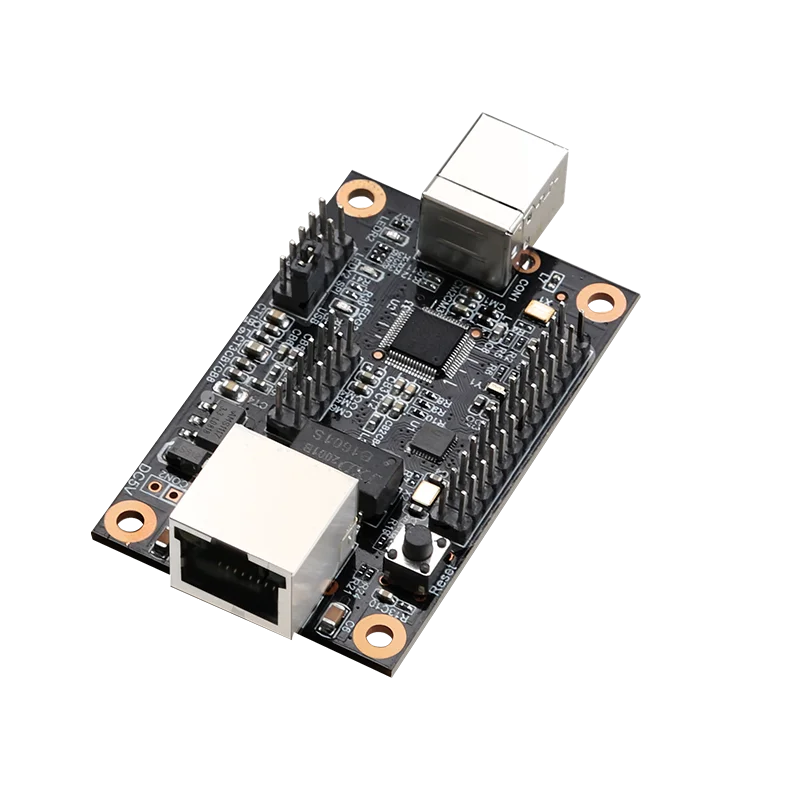

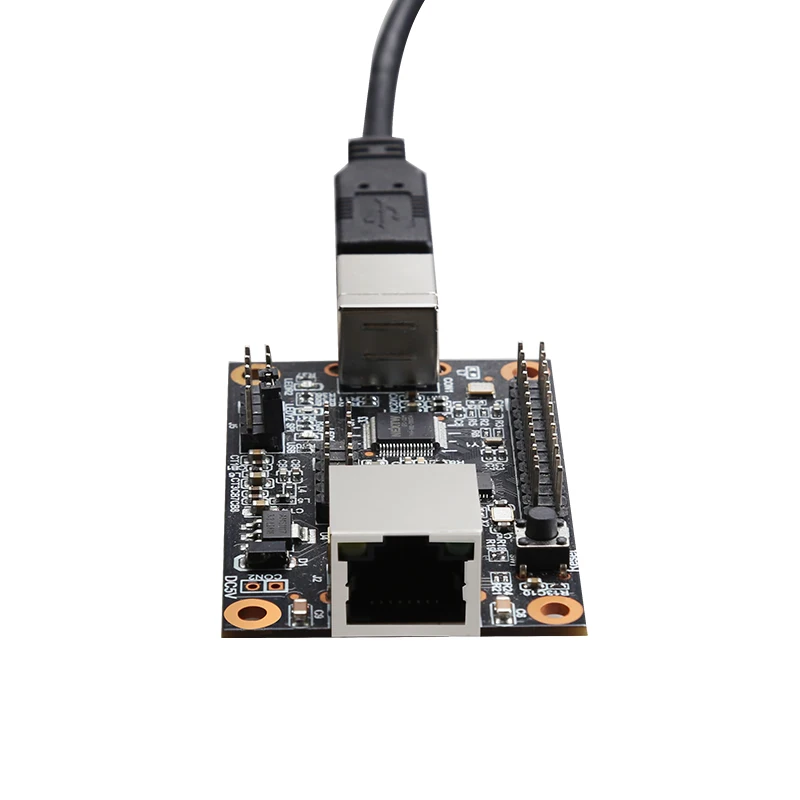

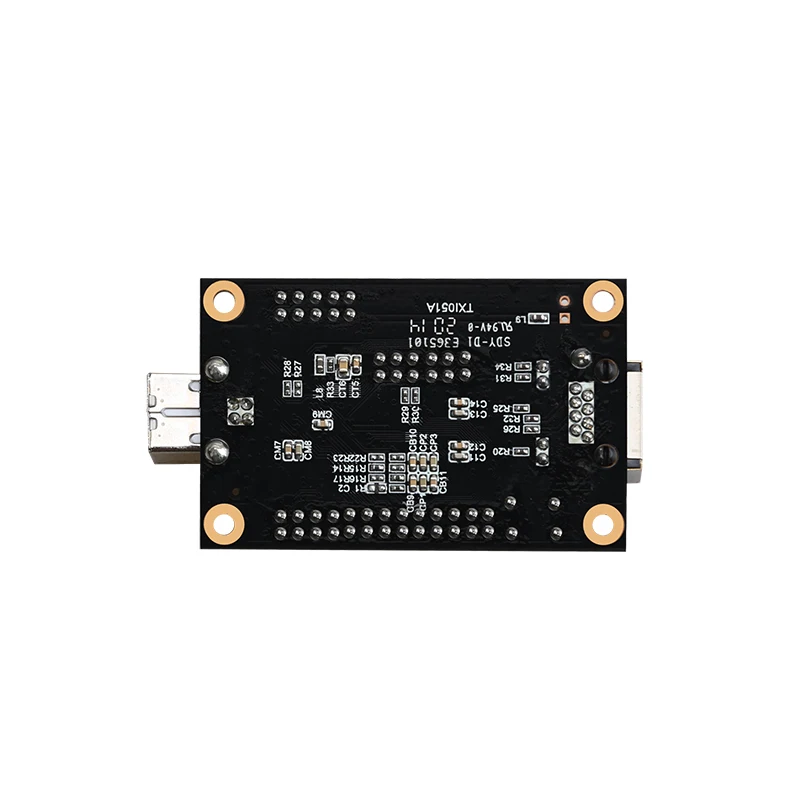

EtherCAT Universal USB Master Card E-C-M-SK Pure Hard New Master Station Solution
TXI051 is an USB EtherCAT Master Board ,it support USB or SPI interface. provides an easy way to migrate the EtherCAT master functions to the precise.
Model number : TXI051
Chipset : EC-01M
Port number : 1 *RJ45 ， 1*USB2.0-B
Network media : cat5
LED Indicator : Power, Operation state
Operation modes : U SB/SPI
Dimension : 60*40mm
Power Input : DC5V
Power Consumption : <0.5W
Environment
Operating Temperature: -40 ℃ -85 ℃
Relative Humidity: 10%-90%(non-condensing)
Storage Temperature: -40 ℃ -85 ℃
Relative Humidity: 5%-90%(non-condensing)
Other function
Supports maximum 40 EtherCAT Slaves
Supports minimum 0.25ms DC cycle time
Plug and play
