Technical Parameters
Password
- Factory Setup: 3368
-Factory Recovery: 0000
Main:
-IC Working Temperature Range: -30 °C to 70 °℃ (Vehicle Standard)
-OS: Android 14 HD Decoder:4K@60fps H.265
-Storage memory: RAM Samsung DDR3 2GB; ROM 64GB 8MP IPS
-CPU:4 Core CPU ARM Cortex A7*4,1.2GHZ*4
-GPU:ARM Mali T820 MP1
-Chipset: si4745
-Multipoint Capacitive screen Smart App Updates
-Smartphone-Link: Built-in modules of Carplay and Android Auto,
-support wireless connection
-DIY theme.

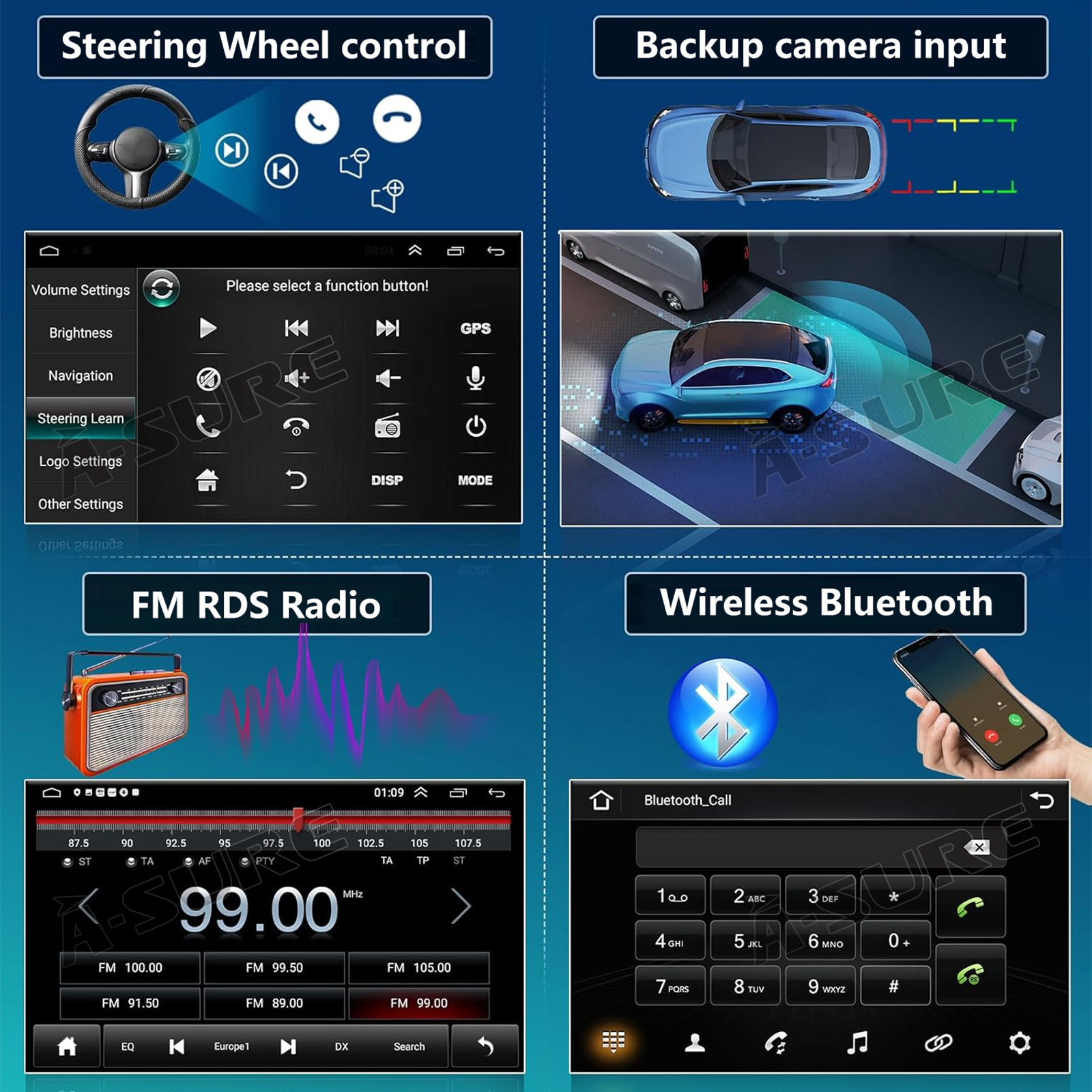

-Support original steering wheel control to work with the car radio
-Support 4G Dongle and WIFI

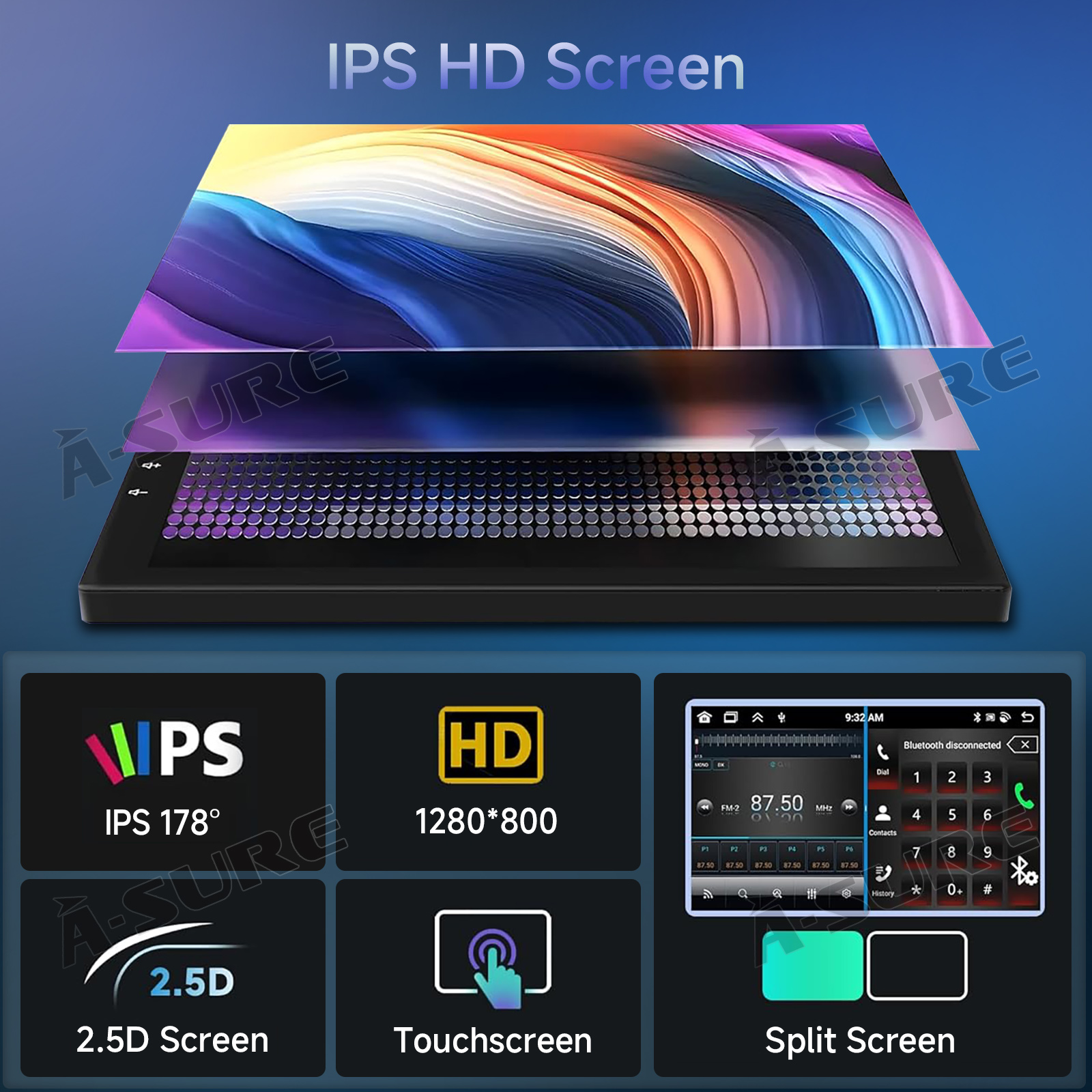

Screen:
-Resolution: 1280*800
-Touch Screen Function
-Image Brightness /Contrast/ Color Adjustable
Illumination:
7 Traditional Colors including Red, Green, Orange, White, Blue, Cyan-blue and Purple;
-Support Customized Color
Bluetooth：
- Built-in Bluetooth hands free call
- Support Bluetooth MPЗ Player Function A2DP
(Notice: This function can only be realized when the phone supports Bluetooth Audio Output)
- Support Bluetooth Phone Book Function
- Support Bluetooth Connection for iPhone
4G & Wifi
-Support 4G-LTE Wifi Dongle
-Built-in Wifi Module
GPS:
-GPS Port: COM2
GPS Baud Rate: 9600
-GPS dual zone function: Work navigation while listen to music at the same time GPS
-GPS OSD language: Japanese/Russian/Chinese/German/Italian/French/Arabic/ Greek/Portuguese/Dutch etc. GPS audio: work with front & rear speakers
USB:
-OTG USB Port: Support connecting to iPhone for wired Carplay, connecting to Android phones for wired Android Auto
- USB2.0 Port: Support USB flash drive with maximum 64G compatibility, USB cannot support portable hard drive.
-Available Video Formats: MPEG-1/2/4, H264. H263. VC1.RV. RMVB. Divx. Sorenson Spark. Spark. VP8. AVS Stream
Radio：
- Built-in Radio Tuner (18 Preset Stations) Radio -FM(3*6):76.OMHz-108.OMHz
-Built-in RDS Radio Receiver Function(Europe)

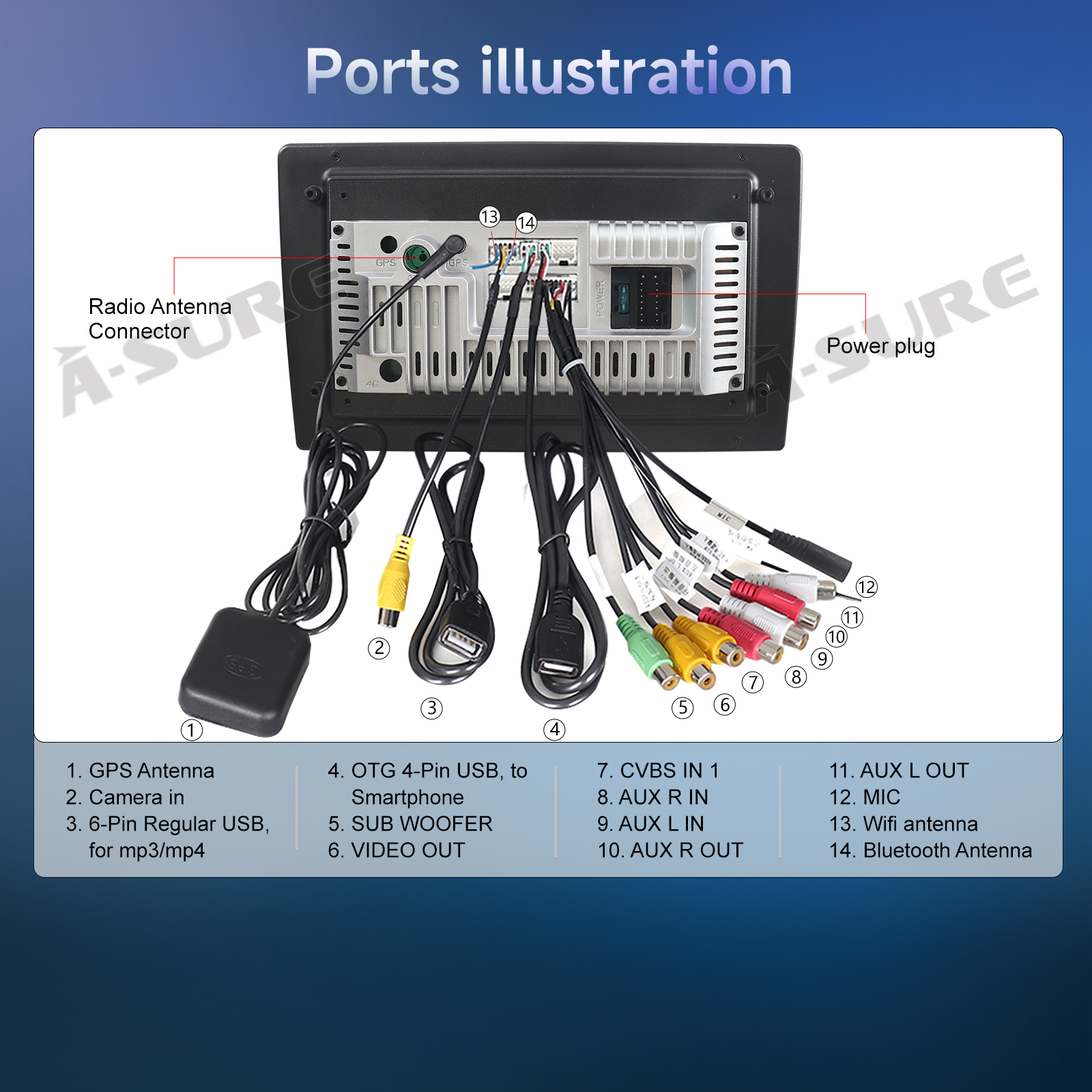

INPUT&OUTPUT:
-1* Radio Antenna Input Input & 1*GPS Antenna Input
Output RCA Video Output*2/ Rear View Camera Video Input*1 Nideo IN*1
-RCA Audio FR/FL/RR/RL/ Sub woofer*1Output AUXAudio R/L Input
