Product Description
|

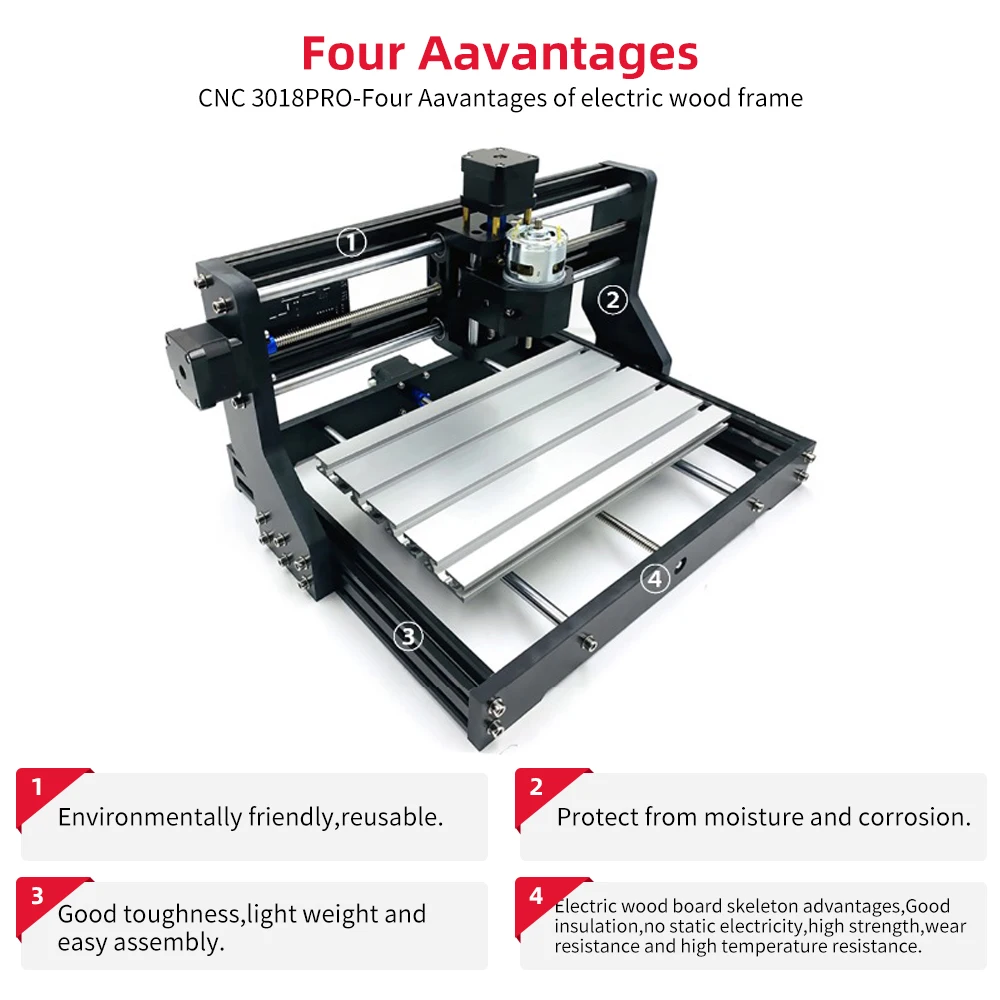

CNC 3018PRO Parameters |
|
|
Working area |
300*180*40mm |
|
Frame size |
400*330*240mm |
|
construction |
Aluminum + BAKELITE |
|
Power Supply |
24V 5A (Input AC100- 240V US/ EU optional) |
|
Max engraving thickness |
45mm |
|
Operation method |
PC-USB connection (xp win7 win8 win10) / offline |
|
Chuck kit |
ER11 3.175mm |
|
Spindle engraving |
|
|
Software |
GRBL controller,Candle(new version) |
|
Support file |
Gcode/Text/NC |
|

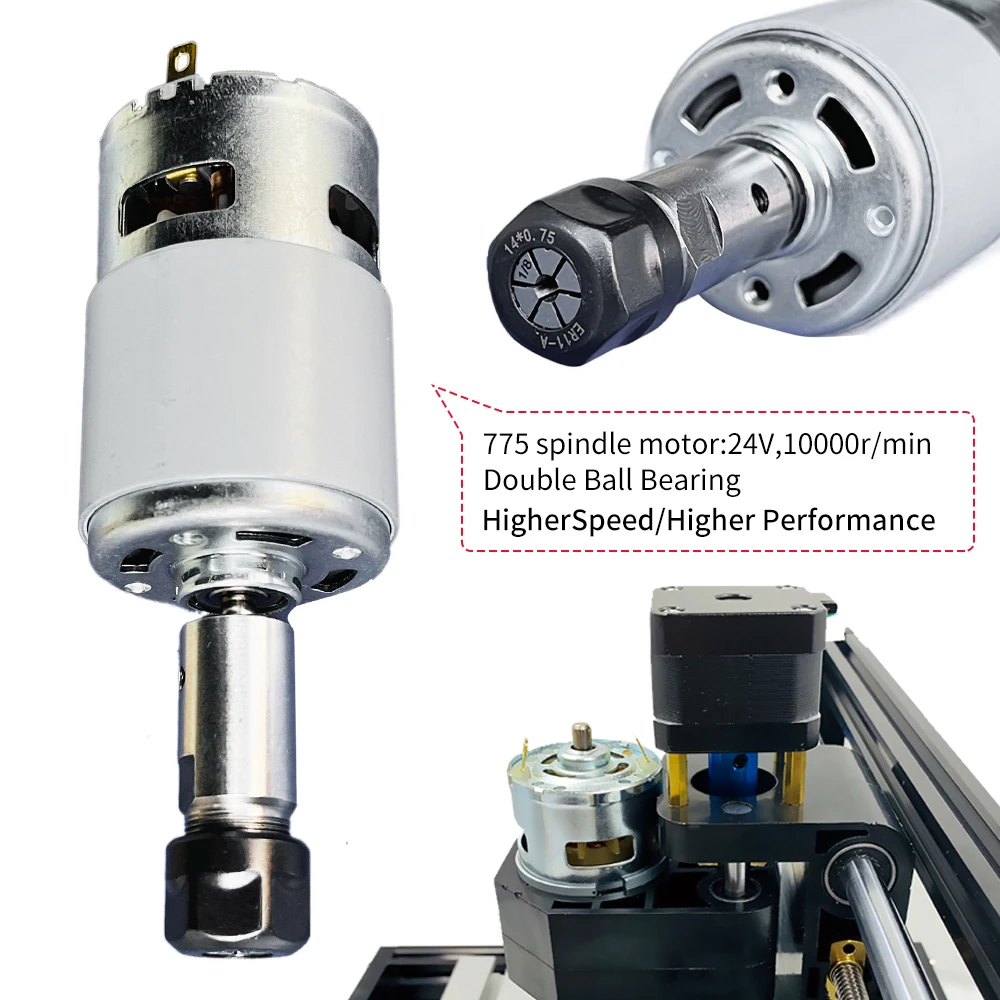

spindle power |
100w 10000r/min |
|
Spindle process |
Relief,drill hole,cut |
|
Can process materials |
wood,plastic ,pcb,acrylic ,plywood and so on. |
|
Laser engraving |
|
|
Software |
Laser GRBL ,engraver master，Lightburn， |
|
Support file |
jpg/bmp/png/Gcode(Laser GRBL) |
|
Laser |
0.5w/2.5w/3.5w/5.5w/15w 5.5W&15W Can engrave stainless steel |
|
Laser process |
Mark/cut |
|
Can process materials |
card,bamboo,stone,wood,leather,plastic,pcb,acrylic corkwood stainless steel ,anodized aluminum and so on. |

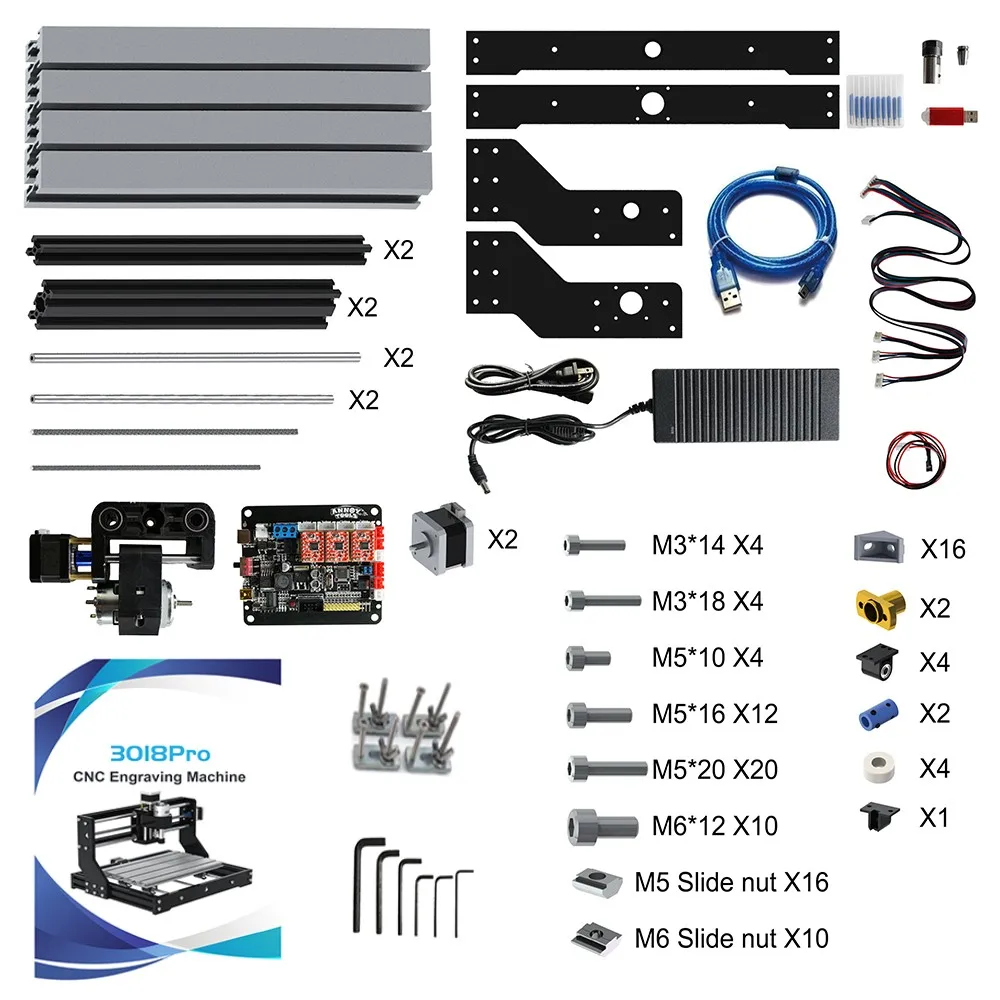

Without Offline:

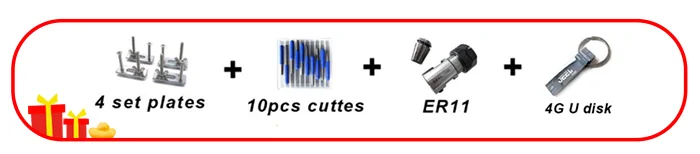

Package1: 1*Engraving machine + 1* ER11 +10 *Cutters+4 * Plates +1*4G U Disk
Package2: 1 * Engraving machine + 1 * ER11 +10 * Cutters+4 * Plates + 1* Laser(0.5w-15w) + 1*4G U Disk
With Offline:
Pack:age1: 1 * Engraving machine + 1 * ER11 +10 * Cutters+4 *Plates + 1*Offline control+ 1*4G U Disk
Package2: 1 * Engraving machine + 1 * ER11 +10 * Cutters+4 * Plates + 1* Laser (0.5w-15w)+1*Offline control + 1*4G U Disk

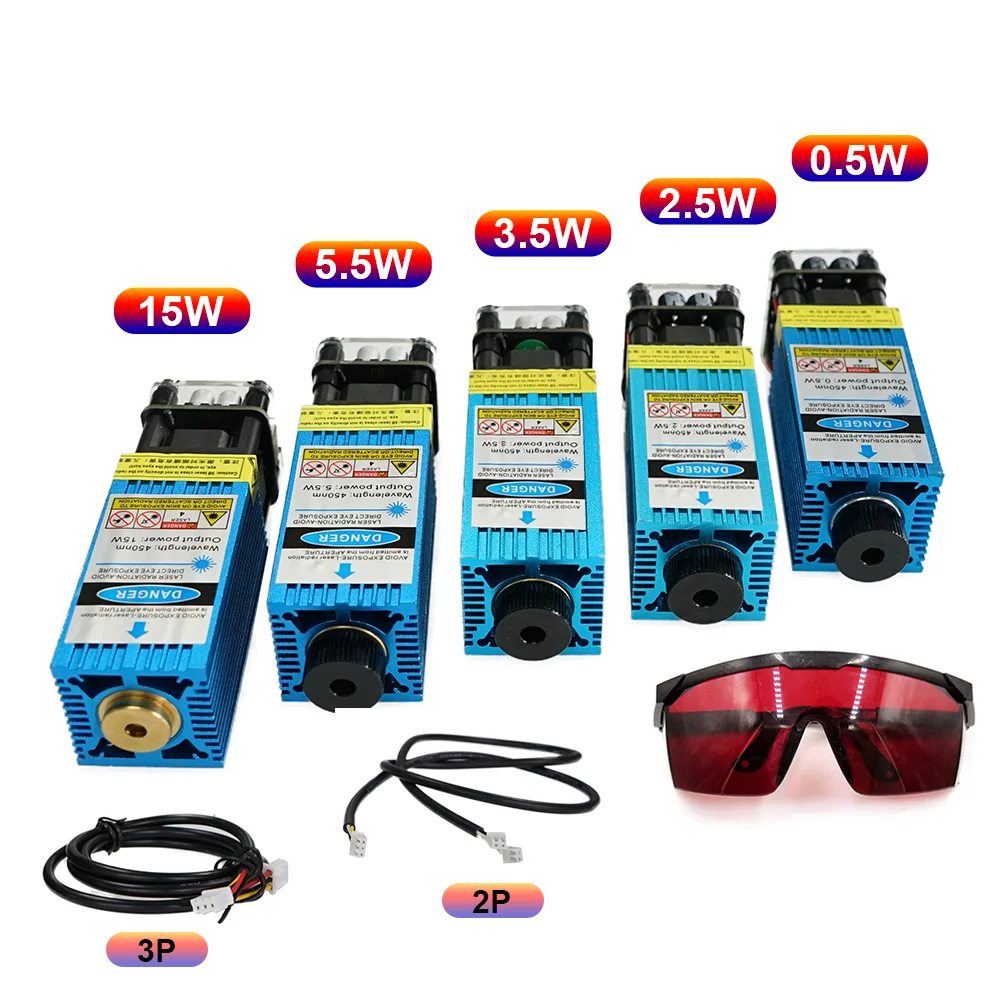

500mW/2500mW/5500mW/15W Laser Module
-
Laser module: 0.5w, 2.5W, 3.5W, 5.5W, 15W
-
Engraving distance:less than 3cm, 15W is fixed focus.
-
Laser wavelength: 445nm-450nm blue laser
-
Spot type: dotted
-
Output power: 0.5w, 1.5W, 2.5W, 4W, 5W
-
Size: 33*70mm
-
Drive mode: external ACC constant current drive
-
Cooling method: forced air cooling
-
Operating voltage: 12V DC
-
Control interface: 2 * 2.54 (TTL control switch, PWM control power)
-
Shell material: aluminum, surface anodized
-
Collimator lens: optical glass coating
40W Laser Module
-
FAC technology
-
Optical power output：5.5W
-
Wavelength：450nm
-
Beam Shape：Dot(fixed focues)
-
Working Voltage：DC 12V
-
Input Voltage：DC12V 3-4A
-
PWM/TTL Input：DC 5V
-
Life Time：10000-20,000 hours
-
Heatsink Material：Aircraft Aluminum +Blue Shell
-
Luminous Color：Blue
-
Cooling Mode：Temperature sensor intelligent control + 10000 rpm 40mm cooling fan
-
TTL&PWM Modulation：YES, Compatible with Both TTL & PWM Modulation

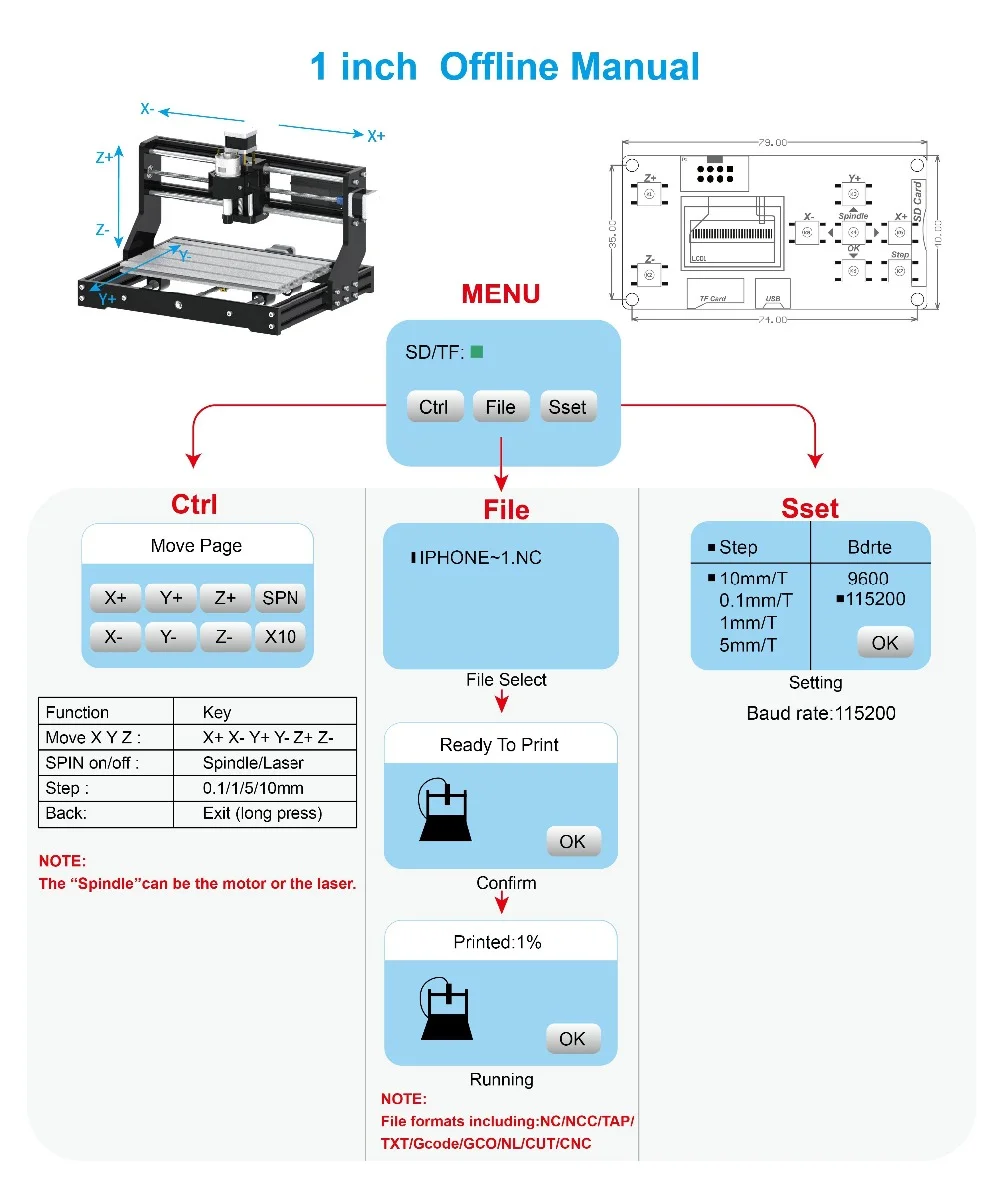

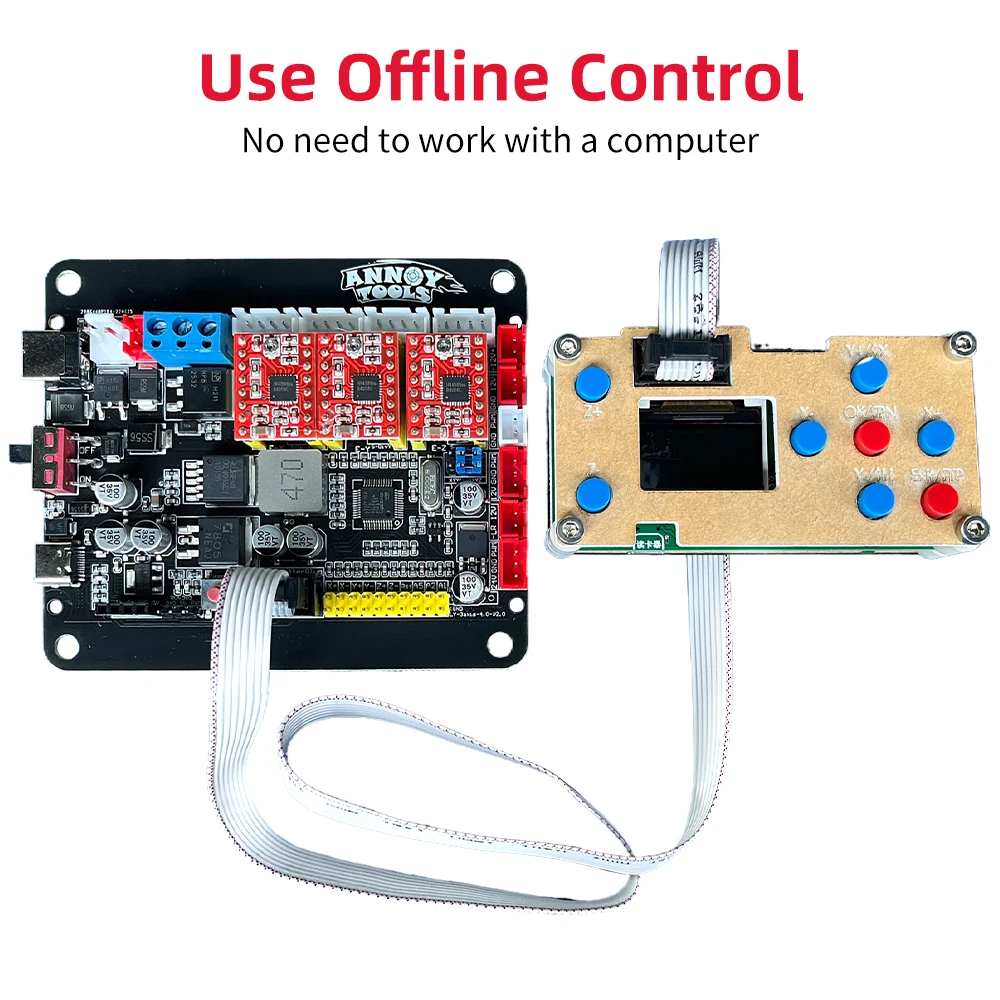

Offline controller
-
New high-speed 1inch Grbl offline controller Linking Grbl motherboards allows you to engrave files offline.
-
Read 600 files at a time.
-
You can connect a computer USB to transfer files to this controller.
-
Compatible with all versions of Grbl.
-
The baud rate is adjustable.
-
Press Z+ and Z-: the Z axis will move up and down.
-
Press X+ and X-: the X axis will move left and right.
-
Press Y+ and Y-: the Y axis will move Front and Back.
-
Press SPIN: Spindle on (Laser on ), Spindle off (laser off)
-
Press Z+ for 5 seconds: change the Language to English.
-
Press SMOD: return.
-
SD card: SD card reader is to write into the root directory G-code files .
Our Machine support lots of software,if you have any question,feel free to contact us!
