• 128 x 160 TFT color display
• Powered by 9V battery (battery not included)
• New boot voltage detection
• Automatically test the pins of a component and display on the LCD
• Measure the gate threshold voltage and gate capacitance of the MOSFET
• Measure bipolar transistor current amplification factor and base-emitter threshold voltage
• One-button operation, automatic shutdown to avoid unnecessary battery drainage
• Short detection time: only 1.7 seconds (it is normal to take 1 minute for bulk capacitor detection)
NOTE:
Please make sure that capacitors are discharged before testing.
Specifications:
• Display: 128 x 160 TFT color display
• Normal testing speed: 1.7 seconds
• Shutdown current: 20nA
• Resistor test range: 0.5 ohms - 50M ohms
• Inductor test range: 0.01mH - 20H
• Capacitor test range: 25pF - 100000uF
• Color: Black

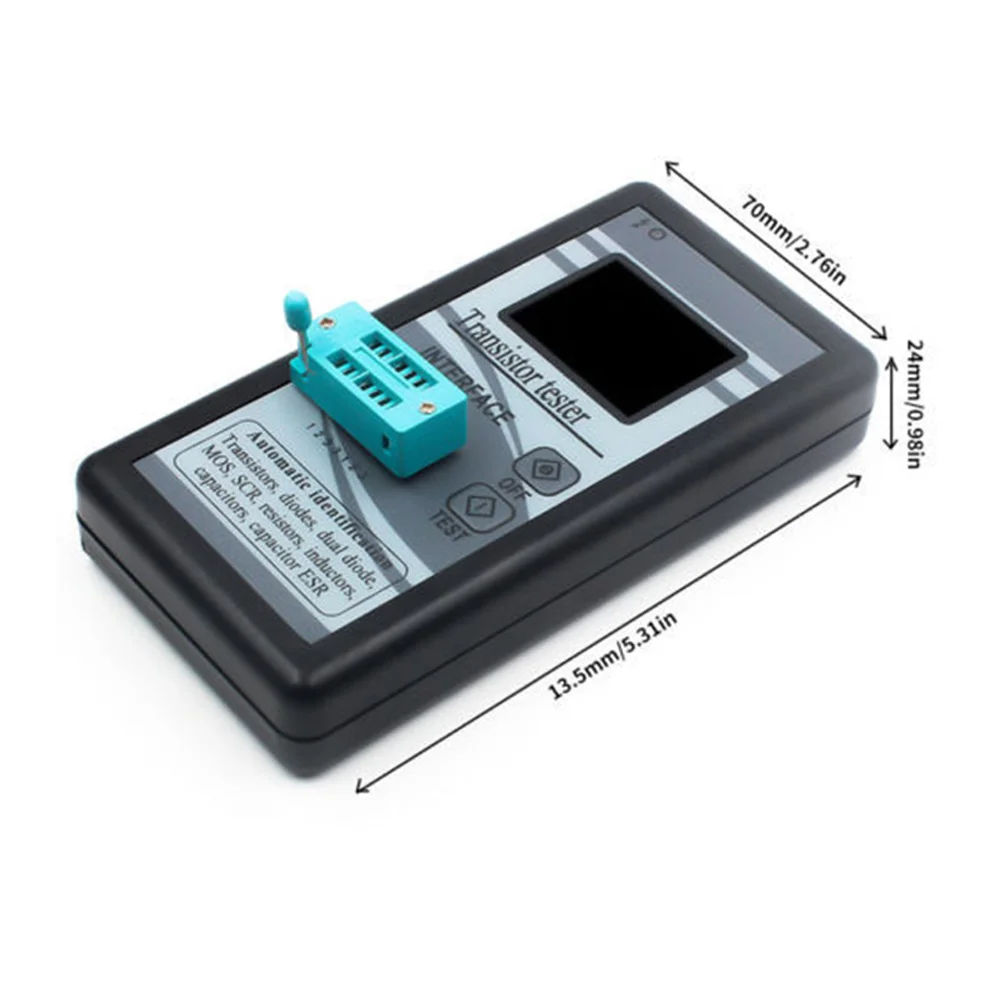

• Item size: 135 x 70 x 25 mm (5.31 x 2.76 x 0.98 in)
• Item weight: 99g (3.5 oz)
