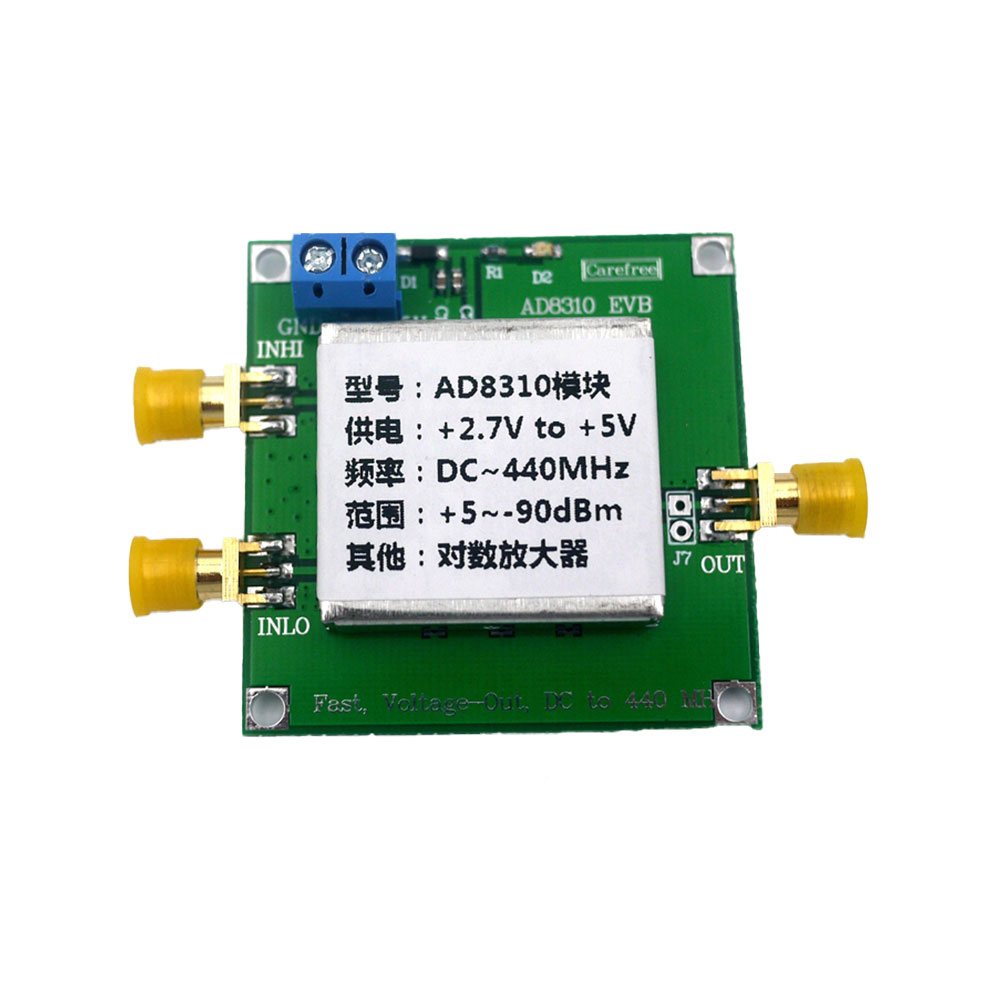

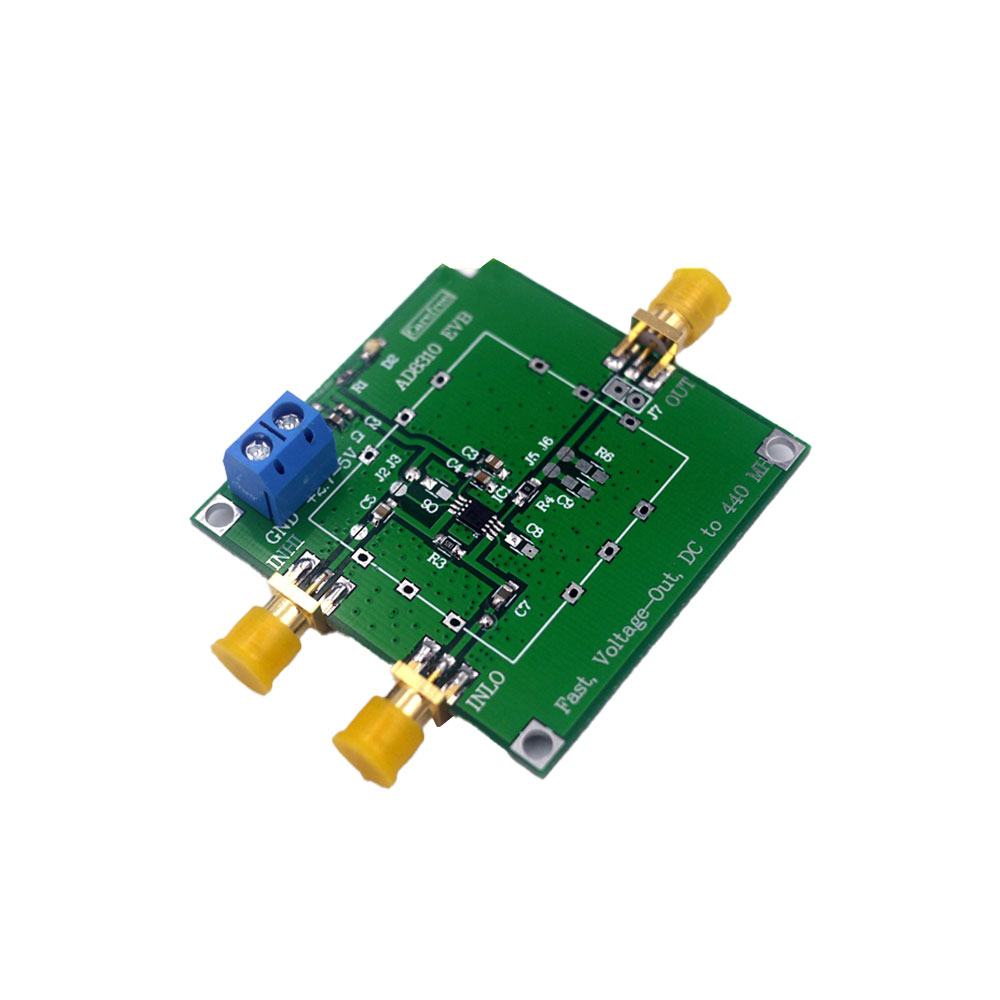

AD8310 Fast Voltage-Out DC-440MHz 90dB Logarithmic Amplifier
1, multi-level demodulation logarithmic amplifier
2, the voltage output, rise time is less than 15 ns
3, high current capacity: 25 mA to ground RL
4,95 dB dynamic range: -91 dBV to +4 dBV
5, single supply: minimum 2.7 V, current: 8 mA (typical)
6, the operating frequency: DC to 440 MHz, linearity: ± 0.4 dB
7, slope: +24 mV / dB, the intercept: -108 dBV
8, zoom height is stable, does not change with temperature
9, fully differential DC-coupled signal path
10, power-up time: 100 ns, sleep current: 1 mA
