Machinable metals: copper, aluminum, plastic, 45# steel, stainless steel and other metals.

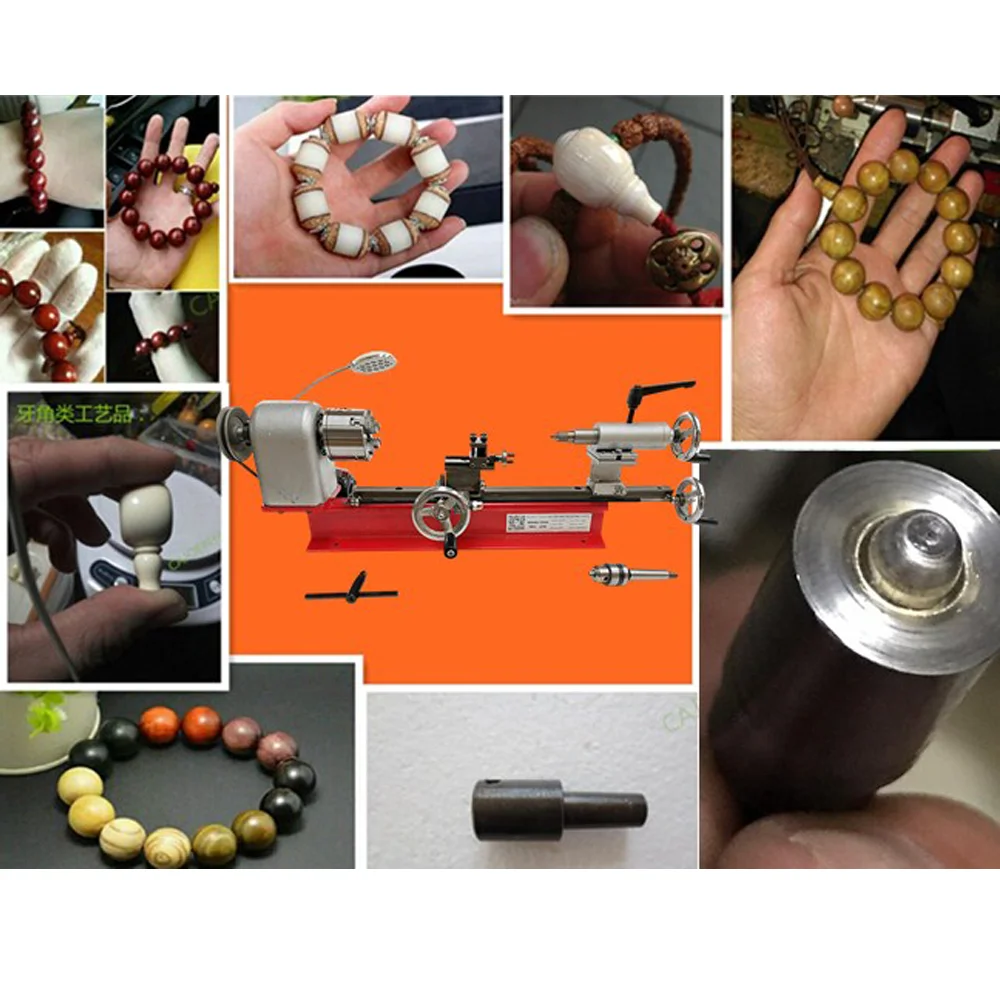

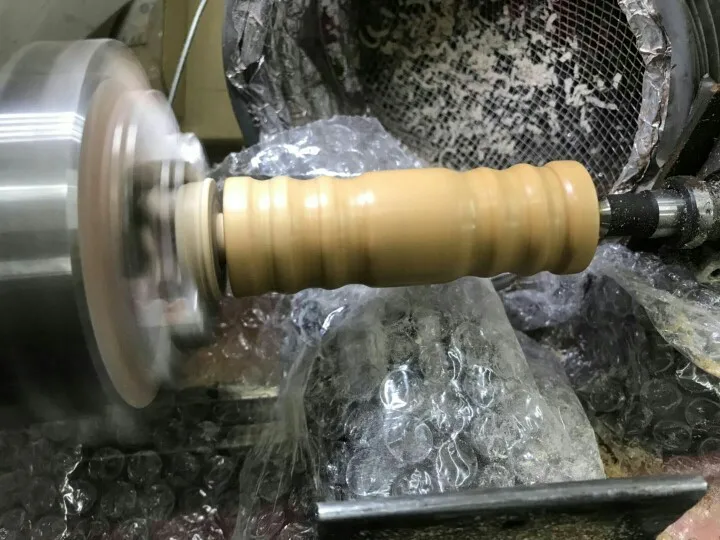

Wood can be made: wooden beads, wooden bowls, prayer beads, Xingyue Bodhi, wooden gourd, etc. Animal products such as animal bones, horns, and animal teeth can also be processed.
Chuck selection guide:
Three-jaw chuck is used to clamp cylindrical regular parts;
The four-jaw chuck is used for clamping cylindrical parts or irregular square parts.
(Choose according to your needs)
80 chuck metalworking chuck clamping range: positive jaw: 1-22mm, reverse jaw: 22~63mm
Turning tools and tool holders:
1. It can be equipped with 8*8mm or 10*10mm turning tools. (Supplementary note: turning tool holder is 14*14mm, fixed length is 30mm; tools within 14*14mm can be installed)
2. The tool holder that comes with this lathe can be angled (conical surface can be turned).

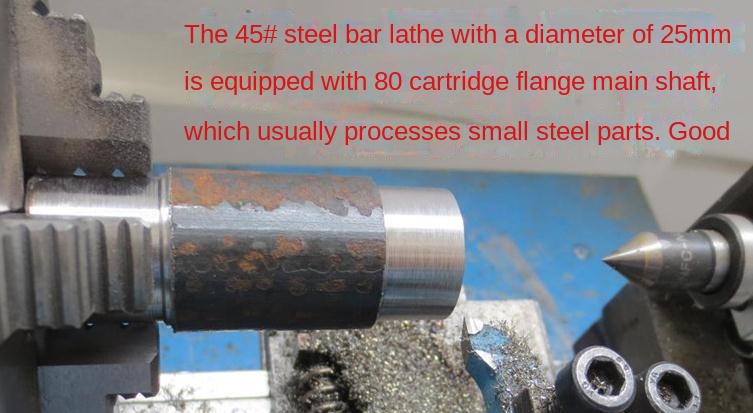

Mini lathe, configuration: 80 cast iron integrated spindle and 80 metalworking card
technical parameter:
Processing material: copper, aluminum, 45# steel, plastic, wood;
Spindle through hole: 16mm

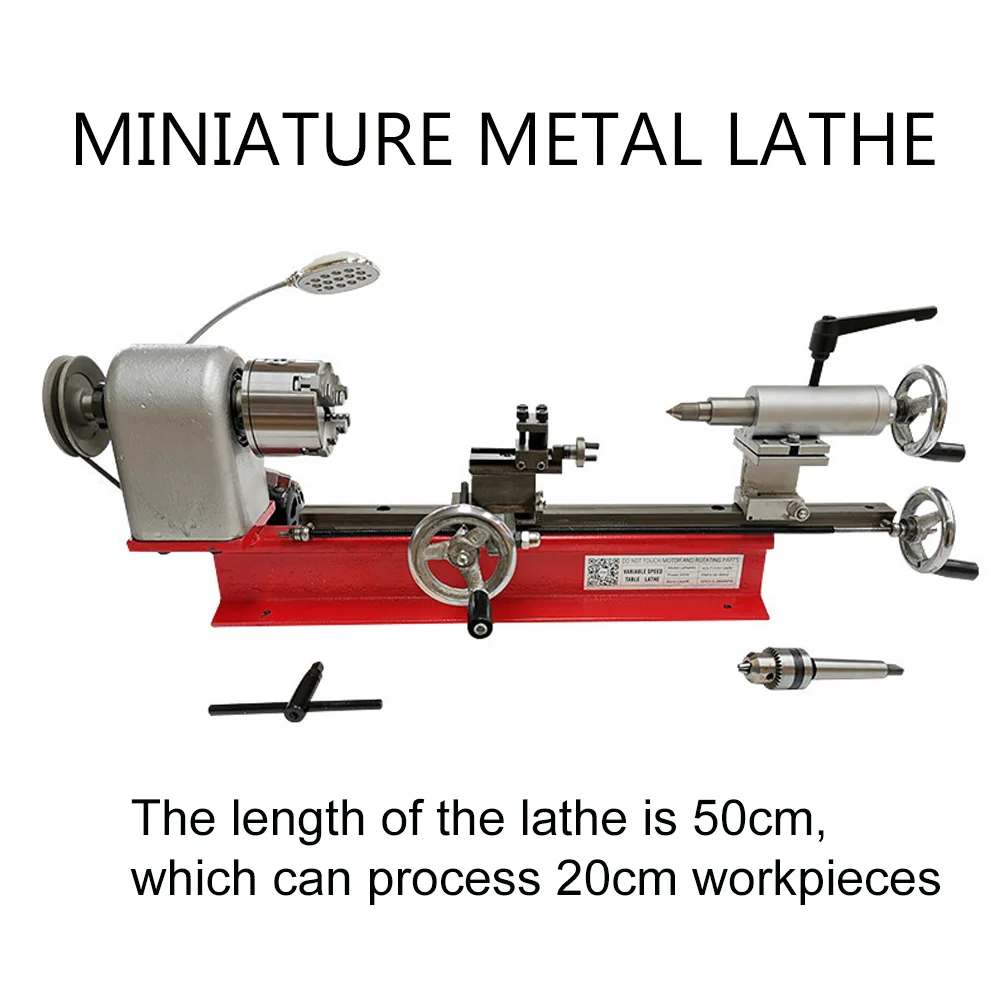

Maximum workpiece length that can be processed: 200mm

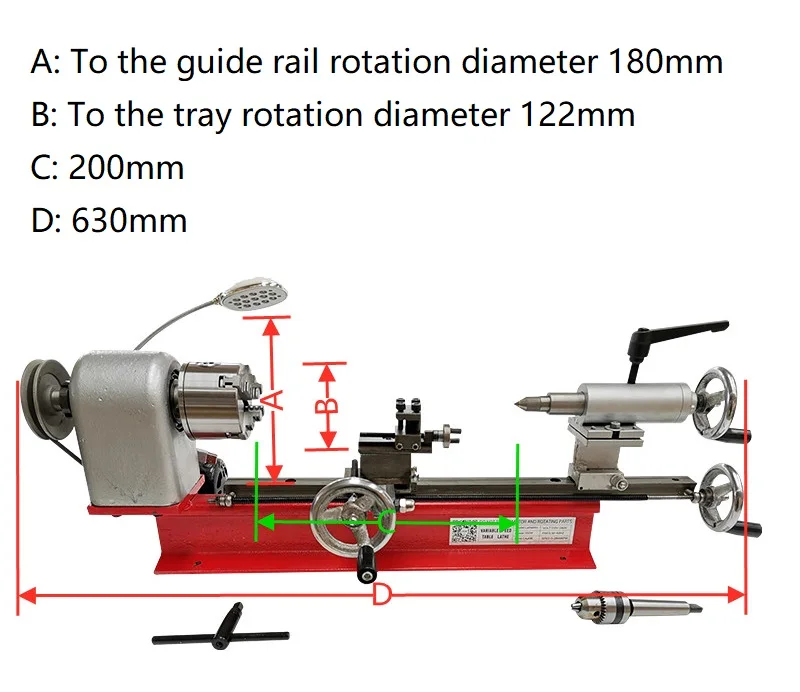

Maximum rotating diameter of the bed: 180mm
Maximum rotating diameter of horizontal carriage: 110mm
Spindle flange: 80mm
Taper of tailstock sleeve: MT1
Middle carriage stroke: 65mm
Tool post stroke: 40mm
Spindle speed: 50-2500RPM
Motor power: 350w
Voltage/frequency; Default: 220V /50Hz
