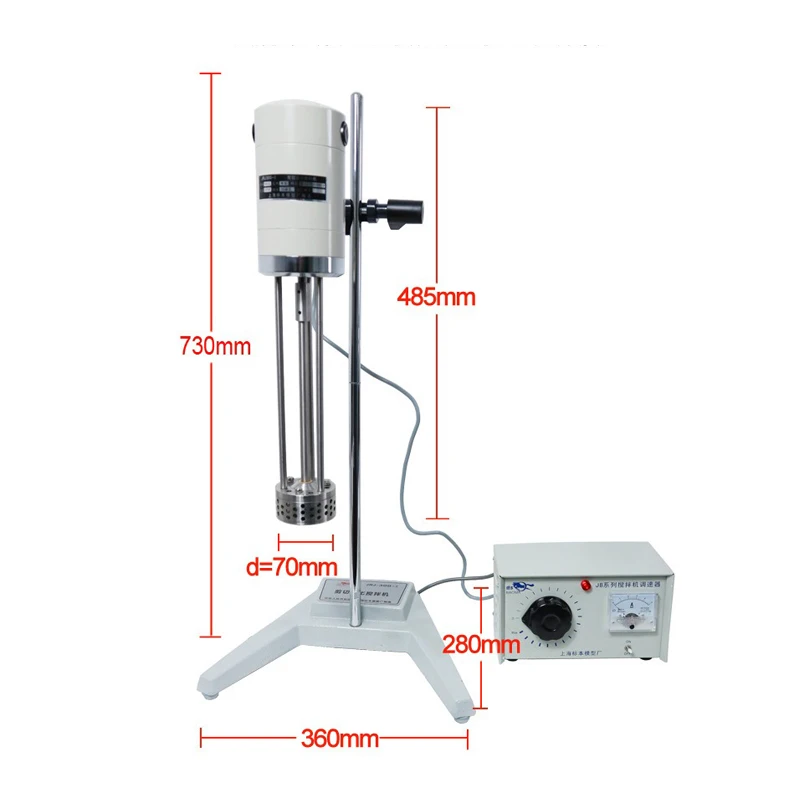

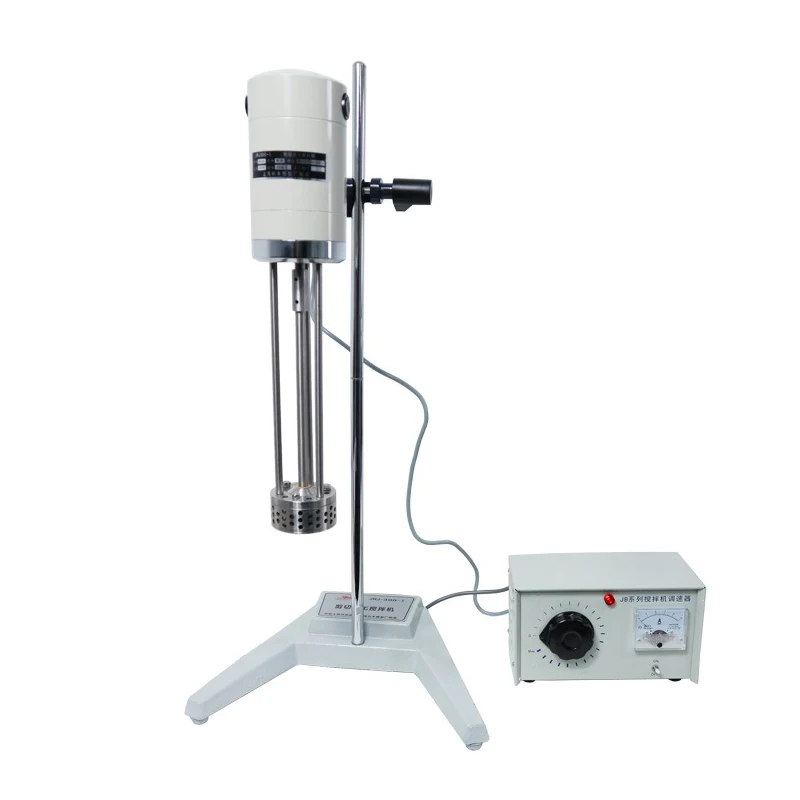

JRJ300-I High Speed Emulsifier Shear Emulsification Mixer 220V Homogenizer High Temperature CH
Product parameters:
Product model: JRJ300-1
Power type: electric
Layout form: vertical
Mixing method: forced mixing
Operation mode: continuous operation
Mixing drum shape: combination of rotor and mesh stator
Maximum mixing capacity (H₂O): 40L
Speed range: 200-11000rpm
Diameter of mixing head: ∮70mm
Motor input power: 510W
Working head stator configuration: 5/20/50mm2
Whole machine output power: 300W
Applicable medium viscosity: 5000CP
Speed display: scale display
Device method: fixed
Ambient temperature: 5-40°C
Speed control: stepless speed regulation
Rated power supply: 220V, 50Hz
Product model: JRJ300-1
Power type: electric
Layout form: vertical
Mixing method: forced mixing
Operation mode: continuous operation
Mixing drum shape: combination of rotor and mesh stator
Maximum mixing capacity (H₂O): 40L
Speed range: 200-11000rpm
Diameter of mixing head: ∮70mm
Motor input power: 510W
Working head stator configuration: 5/20/50mm2
Whole machine output power: 300W
Applicable medium viscosity: 5000CP
Speed display: scale display
Device method: fixed
Ambient temperature: 5-40°C
Speed control: stepless speed regulation
Rated power supply: 220V, 50Hz

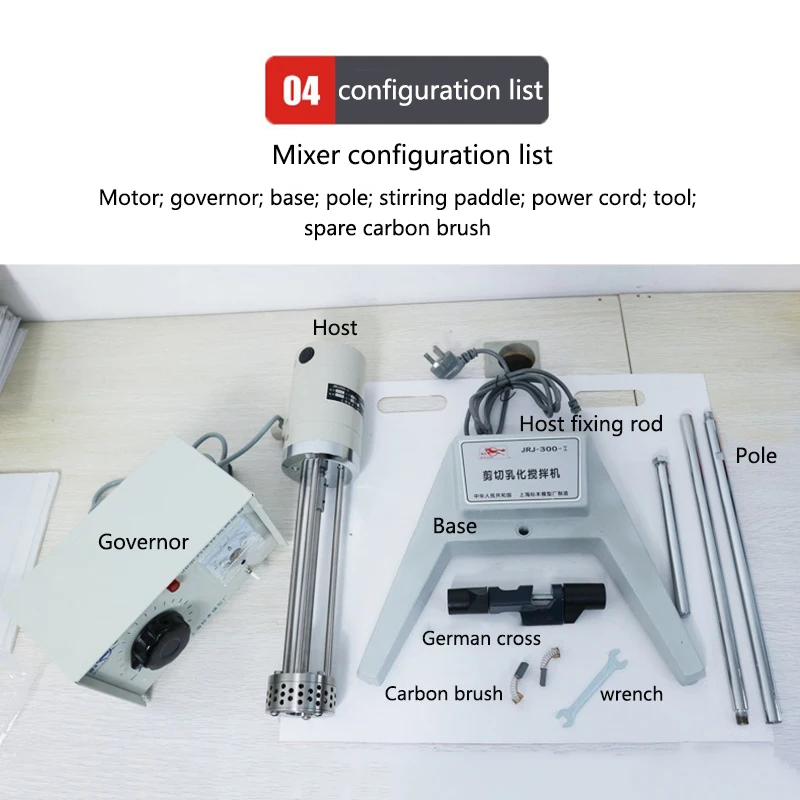

Motor; governor; base; pole; stirring paddle; power cord; tool; spare carbon brush
Scope of application
It is suitable for liquid/liquid mixing and emulsification, liquid/solid powder dispersion and slurrying experimental fields in biology, physics, chemistry, cosmetics, food, etc.

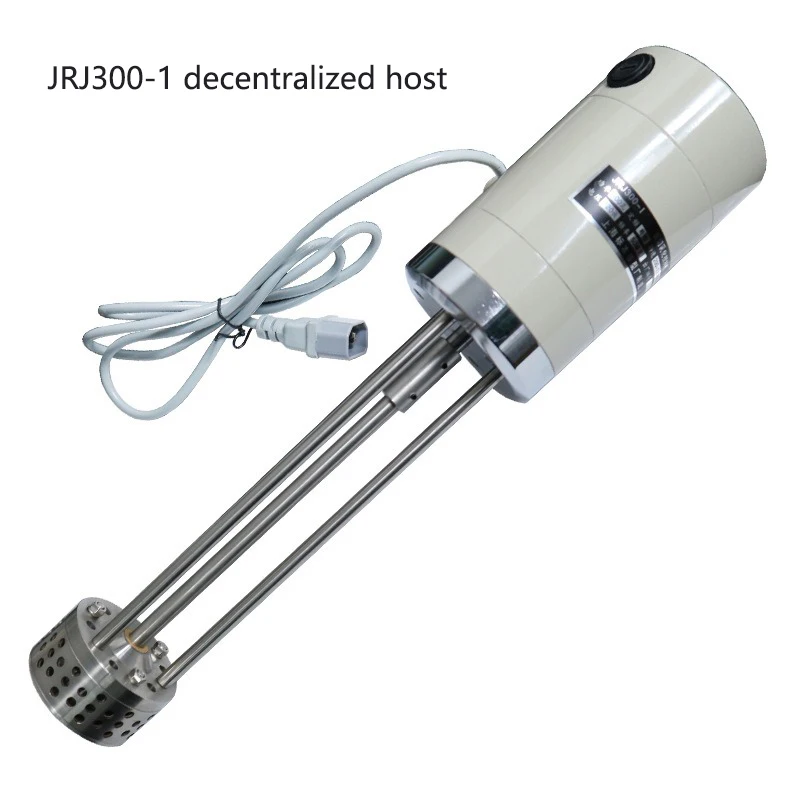

1. Product host
Infinitely variable speed, strong torque output; double stator structure, doubled the shearing effect.
2. Product label
Speed range: 200~11000rpm, the label on the host is clearly marked
3. Emulsion working head
Continuously variable speed, strong torque output; double stator structure, doubled the shearing effect; meet the medium viscosity materials, high temperature working conditions.
4. Spare inner stator
Long hole stator, mesh stator spare; round hole stator has been installed in the working head of the main machine; suitable for dispersing, emulsifying, homogenizing and mixing of solid liquid.
5. Stator structure
Inner and outer double stator structure design, outer stator diameter 70mm; inner stator configuration: 5/20/50mm2

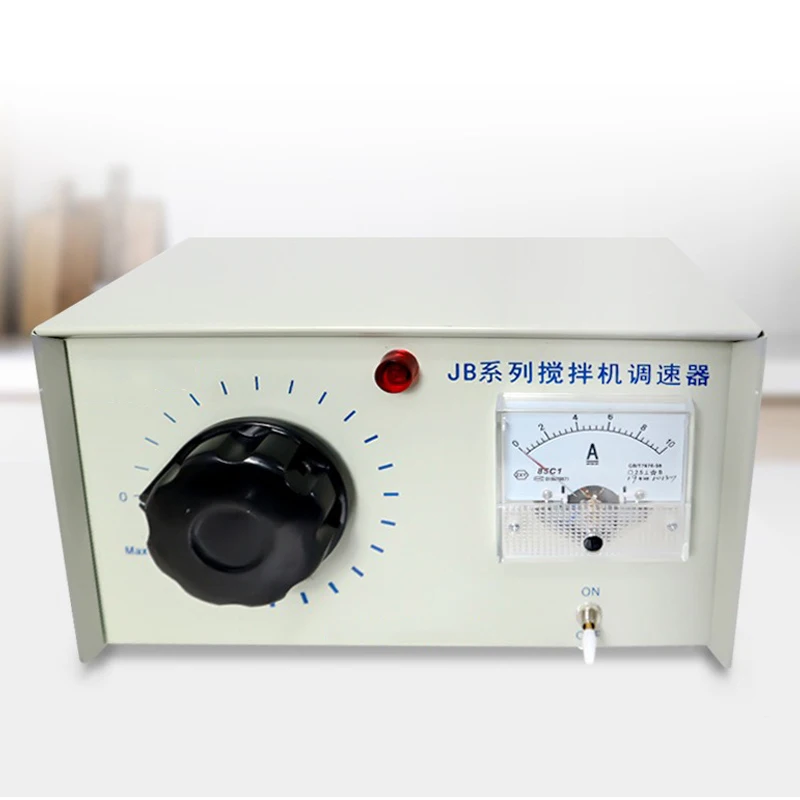

6. Blender governor
The experimental speed can be selected arbitrarily within the adjustable range of stepless speed regulation, wide application range and convenient speed regulation
