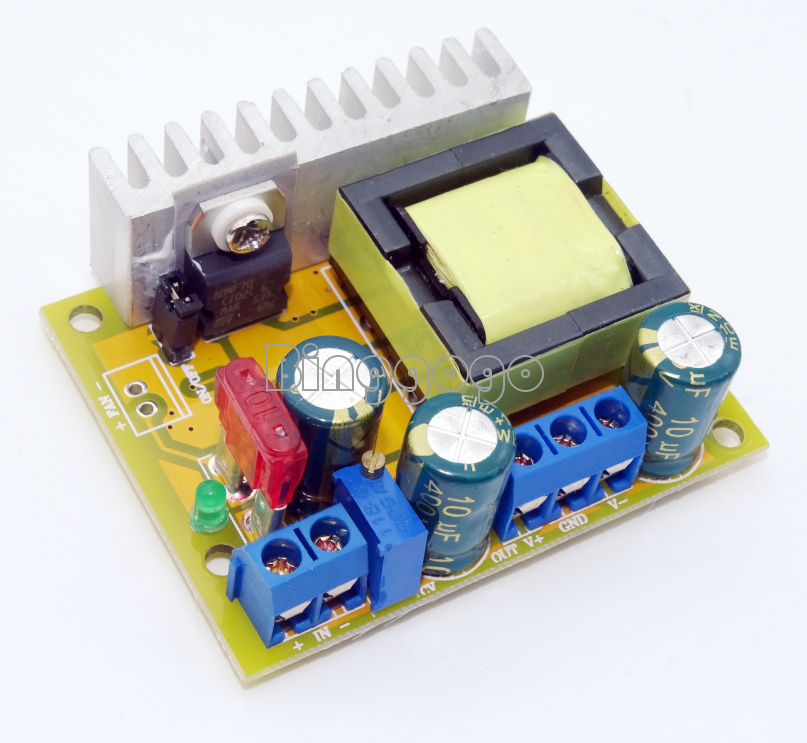

DC-DC 8V-32V to ±45V-390V Boost Converter High Voltage Capacitor Charging Module
Description
Module Name: High Voltage boost converter module
Module Properties: non-isolated step-up module

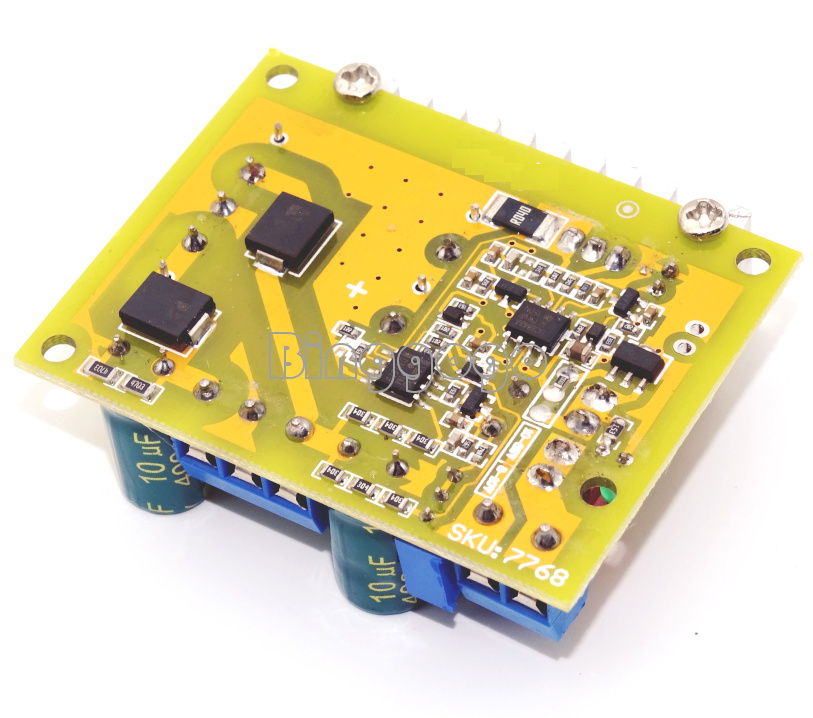

Input voltage: two input voltage range selectable, (jumper selectable through the back of the PCB, default setting 10-32V input)
1, 8V-16V input
2, 10V-32V input
Input Current: 5A (MAX)
Quiescent current: 15mA (12V step up to 50V, the higher the output voltage will increase the quiescent current)
Output voltage: ± 45-390V continuously adjustable (the default output ± 50V. This module has regulator function, after adjusted output voltage is stable and unchanging, not with changes in input voltage changes)
Output Current: 0.2A MAX (affected by input voltage and dropout voltage,the higher the output voltage, the smaller the output current)
Output Power: 40W (peak 70W)
Module Name: High Voltage boost converter module
Module Properties: non-isolated step-up module
Input voltage: two input voltage range selectable, (jumper selectable through the back of the PCB, default setting 10-32V input)
1, 8V-16V input
2, 10V-32V input
Input Current: 5A (MAX)
Quiescent current: 15mA (12V step up to 50V, the higher the output voltage will increase the quiescent current)
Output voltage: ± 45-390V continuously adjustable (the default output ± 50V. This module has regulator function, after adjusted output voltage is stable and unchanging, not with changes in input voltage changes)
Output Current: 0.2A MAX (affected by input voltage and dropout voltage,the higher the output voltage, the smaller the output current)
Output Power: 40W (peak 70W)
Working temperature: -40℃ ~ + 85℃(if temperature too high , please enhance heat dissipation)
Operating frequency: 75KHz
Conversion efficiency: up to 88% (affected by input voltage, output volage, current and dropout voltage )
Short circuit protection: Yes. (Input 10A fuse, at the output please do not short circuit arc, it may damage the electronic component, if you need please add power resistor in series for limiting)
Overcurrent protection: Yes. (Input current exceeds 4.5A, reducing the output voltage)
Overvoltage protection: Yes (Output voltage exceeds 410V, lowering the output voltage)
Input reverse polarity protection: Yes (non-self-healing, reverse burning fuse, you have better not reverse it.)
Installation: four 3mm screws
Connection: solderless terminals output
Module dimensions: 60(L)*50(W)*22(H)mm
The capacitor charging time measured data:
470uF full charge to 390V time is 2 seconds
1000uF full charge to 390V time is 4 seconds
2200uF full charge to 390V time is 8 seconds
4700uF full charge to 390V time is 18 seconds
Warning! The module output is high voltage, on people, animals have life-threatening, the course please pay attention to safety precautions. We are not responsible.
Conversion efficiency: up to 88% (affected by input voltage, output volage, current and dropout voltage )
Short circuit protection: Yes. (Input 10A fuse, at the output please do not short circuit arc, it may damage the electronic component, if you need please add power resistor in series for limiting)
Overcurrent protection: Yes. (Input current exceeds 4.5A, reducing the output voltage)
Overvoltage protection: Yes (Output voltage exceeds 410V, lowering the output voltage)
Input reverse polarity protection: Yes (non-self-healing, reverse burning fuse, you have better not reverse it.)
Installation: four 3mm screws
Connection: solderless terminals output
Module dimensions: 60(L)*50(W)*22(H)mm
The capacitor charging time measured data:
470uF full charge to 390V time is 2 seconds
1000uF full charge to 390V time is 4 seconds
2200uF full charge to 390V time is 8 seconds
4700uF full charge to 390V time is 18 seconds
Warning! The module output is high voltage, on people, animals have life-threatening, the course please pay attention to safety precautions. We are not responsible.
Applications:
the capacitor charging, guns power.
the power supply for your electronic device, can set the output voltage value according to your system.
voltage pressure test power, glow tube power.
hunting, rodent.
Package include:
1 x DC Boost Converter ±45-390V output adjustable
the capacitor charging, guns power.
the power supply for your electronic device, can set the output voltage value according to your system.
voltage pressure test power, glow tube power.
hunting, rodent.
Package include:
1 x DC Boost Converter ±45-390V output adjustable
-
