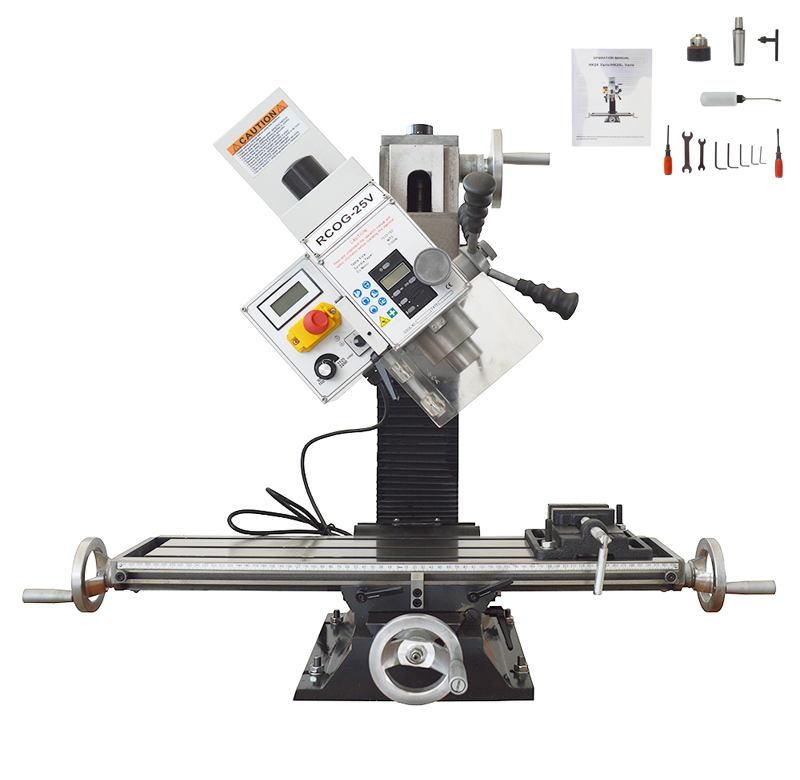

RCOG-25V Brushless Precision Milling and Drilling Machine 110V 1100W

Product Overview

RCOG-25V multi-functional drilling and milling machine has rich functions, can meet the metal, wood, plastic, Buddha beads and other finishing, all copper brushless motor, strong power, simple operation, durable, high processing accuracy, is the home DIY processing of various parts of the necessary machine.

Product Parameters

Model:	RCOG-25V
Voltage:	AC110V/60Hz
Motor power:	1100W brushless motor
X axis stroke:	18.9"(480mm)
Y axis stroke:	6.9"(175mm)
Z axis stroke:	11"(280mm)
Spindle incline Angle:	±90°(The nose can actually rotate 360 degrees)
Max. drilling diameter:	0.9"(25mm)
Max. Face screening capacity:	2.5"(63mm)
Max. vertical milling capacity:	0.79"(20mm)
Distance from spindle to table:	13.8"(350mm)
Spindle taper:	R8
Spindle stroke:	2"(52mm)
The Range of spindle speeds:	20-2250rpm
Table size:	27.5"7.1"(700mm180mm)
T groove width:	0.47"(12mm)
Package size:	36.2"23.6"36.2"(926092cm)
Gross weight:	286.6lb(130kg)

Product Features & Advantages

Aluminum scale navigation The high-precision all-steel main shaft and the feed handwheel are scaled for more accurate adjustment.	Control panel Equipped with multi-function control panel, integrated LCD, speed adjustment, positive and negative rotation and emergency stop switch.	Extended worktable 27*7" Precision-Ground Cast-Iron Table with Three T-Slots makes your work piece more stable.	LCD display The LCD can display the drilling depth more intuitively, and it is equipped with fine adjustment button to make the drilling depth more accurate.
Brushless motor Equipped with 1100W brushless motor and high quality integrated circuit, so that the machine run more stable and strong. Maintenance is also easier.	Spindle box Designed to be adjustable, the user can adjust the height of the spindle box by hand wheel.	Gear knob With high and low gear, the gears can be changed by the gear button under the stop state, simple and practical.	Feedinghandwheel The feeding handwheel is marked with a scale so that the user can control the amount of feed to complete higher precision machining.

- Powerful function: This is a multi - functional drilling and milling machine, can complete drilling and milling operations. Also can be used for precision parts processing, sample processing and model. - Brushless motor: It USES a 1100W brushless motor with strong power and easy maintenance. - All metal: It USES an integrated spindle and brass gear, which makes it not only precise but also durable. - Variable-Speed: Weather you need high speed or lower speed spindle operations this machine can handle it. Boasting a 50-2250 RPM spindle speed for the extreme precision your project needs. - It is important to note that this lathe has only a metric scale.


Item Included(028334)

RCOG-25V drilling and milling machine *1	Drill chuck *1	Drill chuck retaining pin *1
English instruction manual *1	Parallel-jaw vice *1	Fork wrench *2
Drill chuck wrench *1	Oil can * 1	Cross screwdriver *1
Word screwdriver *1	Hexagon wrench *5	ER32 collets*1
